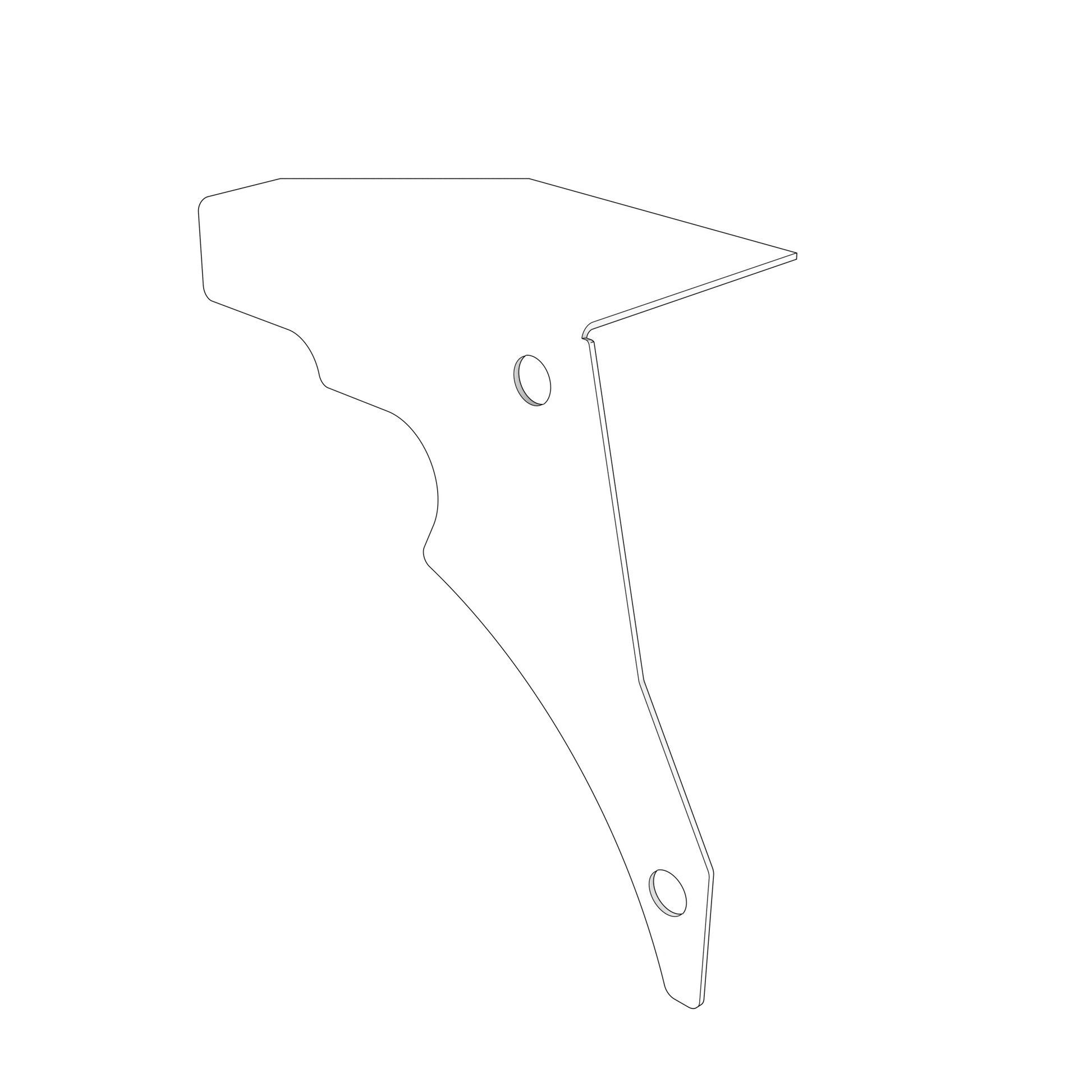

21594762 Heat Insulation | Genuine Volvo Penta Part

🔧 Product Description

Profiled exhaust/turbo heat-insulation section for Volvo Penta D13 marine propulsion engines. It is documented from engine serial number 2013458049 onward and is also used within conversion kit 22316856.

🚤 Compatibility

Typically suits:

• Volvo Penta D13C2-A MP
• Volvo Penta D13C4-A MP
• Volvo Penta D13B-G MP
• Volvo Penta D13B-L MP
• Volvo Penta D13B-K MP
• Volvo Penta D13B-C MP
• Volvo Penta D13C4-B MP
• Volvo Penta D13C5-B MP
• Volvo Penta D13C6-A MP
• Volvo Penta D13C5-A MP
• Volvo Penta D13C8-B MP

• Engine Family: D
• Serial Range: SN 2013458049-

⚙️ Key Features

• Genuine Volvo Penta thermal-insulation component
• Specific to listed D13B/D13C marine propulsion engines
• Documented from SN 2013458049 onward
• Used within conversion kit 22316856
• Reduces radiant heat exposure around the exhaust/turbo installation
• Engine type: 13-litre inline six-cylinder turbocharged diesel marine propulsion engine

🔌 Function

Limits radiant heat from the exhaust/turbocharger area and protects nearby hoses, wiring and equipment.

⚠️ Common Signs of Failure

• Cracked, brittle or missing insulation
• Heat damage or discolouration on nearby components
• Loose insulation contacting moving parts
• Higher engine-compartment temperature
• Soot staining or damage around an adjoining exhaust leak

🛠️ Service Notes

• Refit every shield and insulation panel before the engine is run — they are there to keep exhaust and manifold surface temperatures down in an enclosed engine space, and leaving one off is a genuine fire risk as well as making the space unbearable
• Check that the standoffs, spacers, clips and fasteners go back with the panel; the air gap they hold is what does the insulating, so a panel clamped flat to the manifold is not doing its job
• Renew insulation that is charred, crushed, torn, delaminated or has been soaked with oil or fuel — once contaminated it cannot be cleaned and it becomes the ignition source it was fitted to prevent
• Find and fix the leak first if the old insulation was oil-soaked or fuel-soaked; a new panel fitted over a live leak will be ruined again
• Check clearance to hoses, cables and the wiring loom once refitted, and make sure nothing can chafe against the shield edge with engine movement

🔄 Supersession & Cross Reference

OEM / Related Numbers

• 22316856 conversion kit — includes/uses heat insulation 21594762

📦 Condition

• Genuine Volvo Penta part
• Brand new
• Supplied in original or equivalent packaging
