21595268 Gear Housing | Genuine Volvo Penta Part

🔧 Product Description

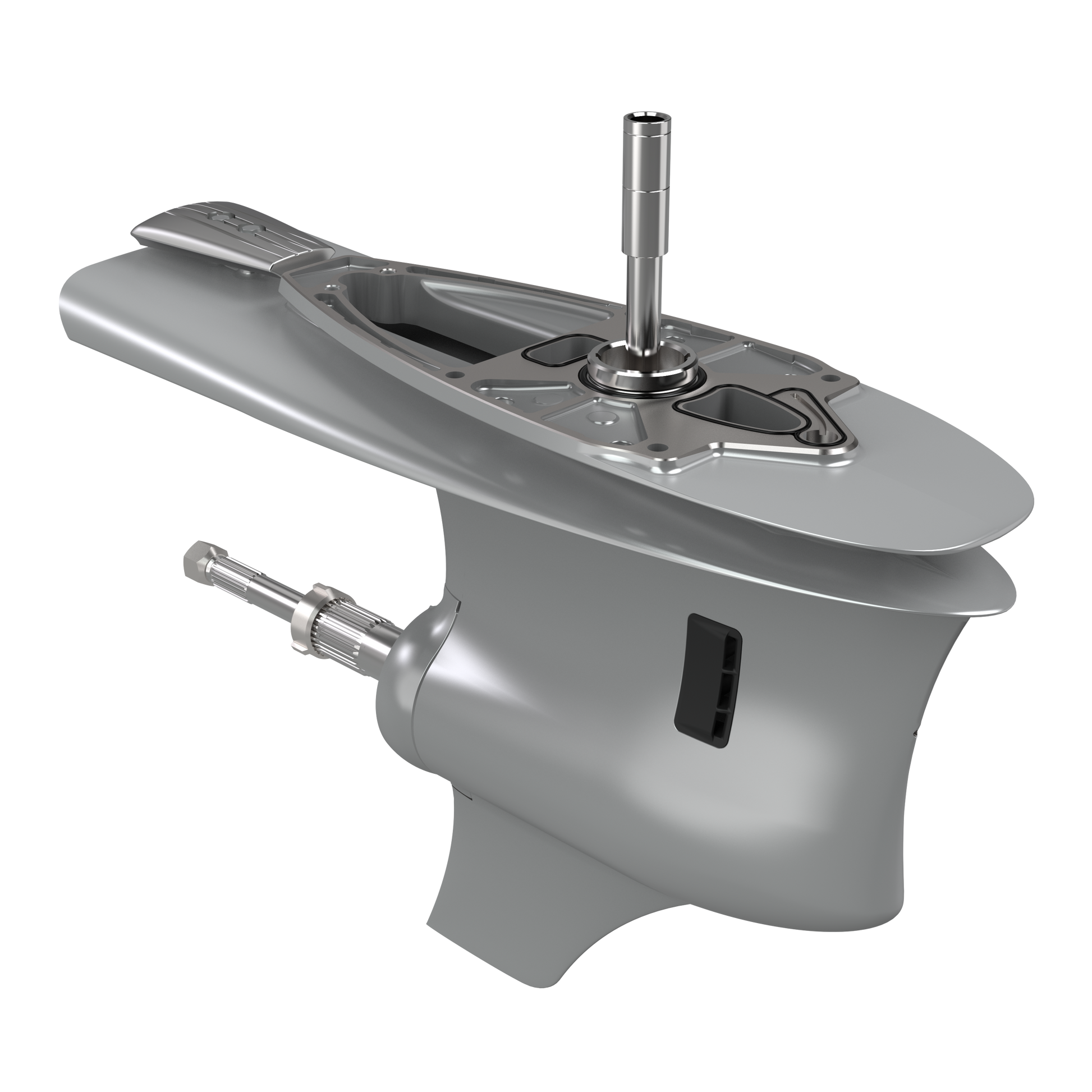

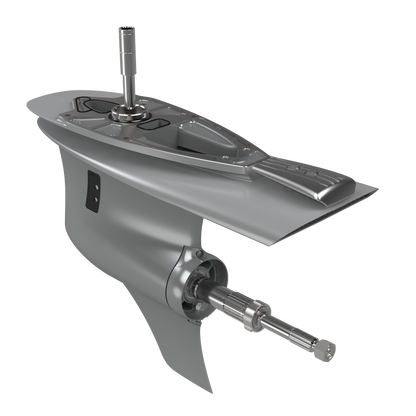

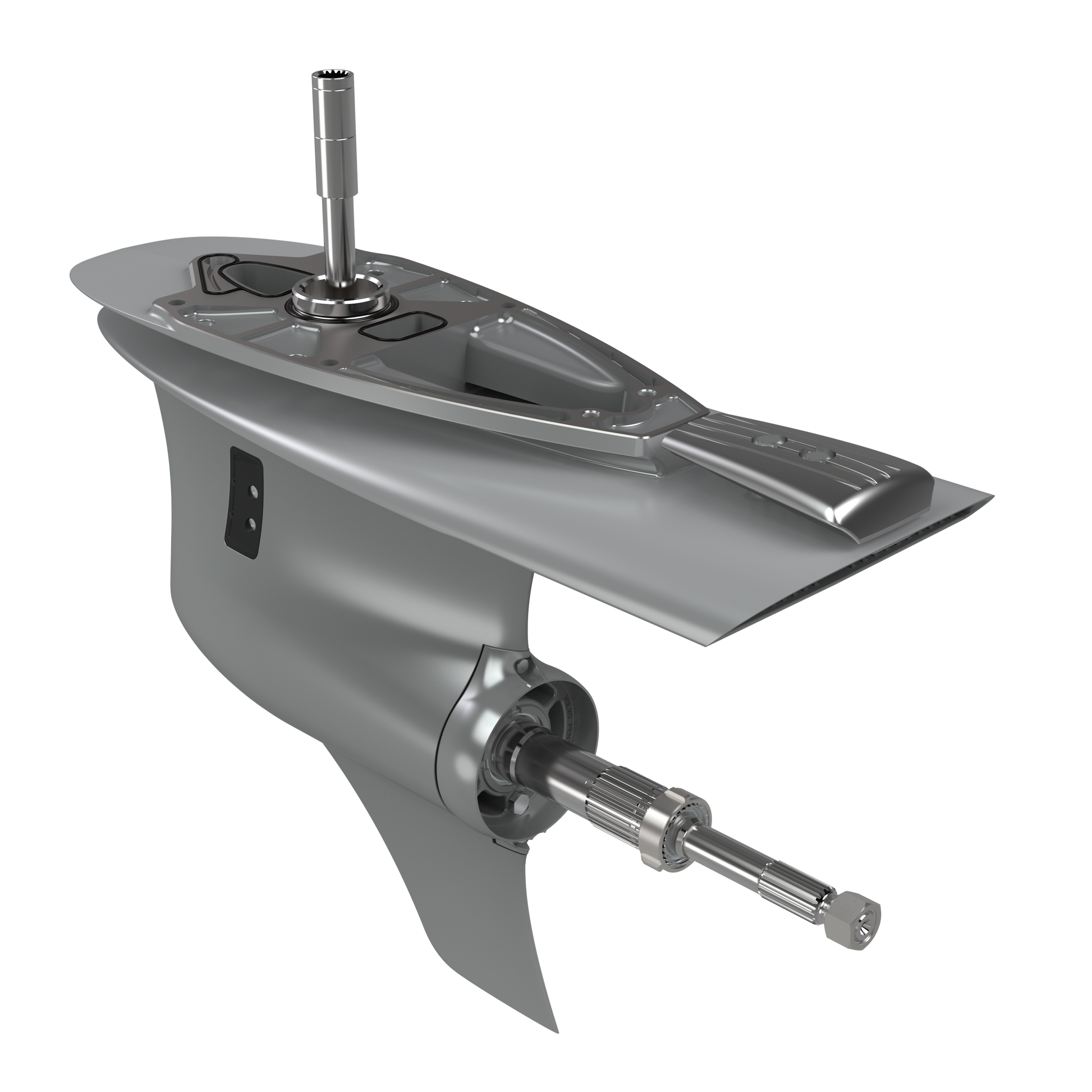

Complete lower gear housing for selected Volvo Penta DPS/FWD sterndrives using the documented 1.95:1, 2.14:1 or 2.32:1 overall ratios. The housing and internal interfaces are ratio/application specific and must be selected by complete drive product number.

🚤 Compatibility

• Engine Family: D, DPS
• HP Range: 110-220 HP

Full model list at the end of this description.

⚙️ Key Features

• Genuine Volvo Penta complete lower gear housing
• Documented for 1.95:1, 2.14:1 and 2.32:1 configurations
• Factory gear, bearing, propeller-shaft and seal interfaces
• Used across listed DPS and FWD drive families
• Do not interchange without confirming drive ratio
• Engine type: Volvo Penta sterndrive lower transmission assembly

🔌 Function

Supports and aligns the lower gear train and propeller shaft and transfers torque from the vertical shaft to the propeller.

⚠️ Common Signs of Failure

• Gear noise or vibration
• Metal debris or water in drive oil
• Propeller-shaft movement or seal leakage
• Bearing or gear overheating
• Housing cracks, corrosion or impact damage

🛠️ Service Notes

• A gear housing is a machined case that fixes the position of the shafts and bearings inside it — treat the bearing seats and mating faces as precision surfaces and never dress them with an abrasive, a file or a scraper
• Shim thickness, bearing preload and gear backlash belong to the housing, so they must be re-measured and re-established with the correct measuring tools when a housing is renewed rather than carried over from the old one
• Fit new seals, O-rings and gaskets throughout, and check that oil galleries and any breather or drain passages in the new housing are clear before assembly
• Assemble clean and lubricated with the correct gear oil, tighten the fasteners in the manual's sequence and to its figures, then turn the drive by hand to confirm the gears run freely
• Pressure and vacuum test the assembled drive for leaks before launch, and check the oil level and condition again after the first run

🔄 Supersession & Cross Reference

OEM / Related Numbers

• 3869466 drive reference — 1.95:1
• 3869469 drive reference — 2.14:1
• 3869467 drive reference — 2.32:1
• 21592053 upper gear
• 21595262 alternate lower gear-housing configuration

📦 Condition

• Genuine Volvo Penta part
• Brand new
• Supplied in original or equivalent packaging

🔎 Full Model Compatibility

Typically suits:

• Volvo Penta D3-110I-B, D3-110I-C, D3-130I-C, D3-220I-G, D3-130A-A, D3-160A-A, D3-130A-B, D3-160A-B, D3-130A-C, D3-160A-C, D3-140A-D, D3-170A-D, D3-200A-D, D3-220A-D, D3-140I-D, D3-140A-E, D3-170A-E, D3-200A-E, D3-220A-E, D3-140I-E, D3-140A-F, D3-170A-F, D3-200A-F, D3-220A-F, D3-140I-F, D3-140A-G, D3-170A-G, D3-200A-G, D3-220A-G, D3-140I-G, D3-190A-B, D3-190A-C, D3-190I-A, D3-110I-A, D3-130I-A, D3-160I-A, D3-110I-D, D3-150I-D, D3-170I-D, D3-200I-D, D3-220I-D, D3-110I-E, D3-150I-E, D3-170I-E, D3-200I-E, D3-220I-E, D3-110I-F, D3-150I-F, D3-170I-F, D3-200I-F, D3-220I-F, D3-110I-G, D3-150I-G, D3-170I-G, D3-200I-G, D3-110I-H, D3-160I-C, D3-190I-B, D3-190I-C, D3-140A-H, D3-170A-H, D3-200A-H, D3-220A-H, D3-130I-B, D3-160I-B, D3-150I-H, D3-170I-H, D3-200I-H, D3-220I-H, D3-140I-H
• Volvo Penta 8.1GiC-J, 8.1GiCE-M, 8.1GiCE-P, 8.1GiC-Q, 8.1GiCE-Q, 8.1GiE-M, 8.1GiE-P, 8.1Gi-J, 8.1GXiE-M, 8.1GXiE-P, 8.1GXi-J, 5.7GXiC-J, 5.7GXiCE-M, 5.7GXiC-P, 5.7GXiCE-P, 5.7GXi-J, 5.7GXiE-M, 5.7GXiE-P, 5.7GXi-P, 5.7Gi-300-J, 5.7GiCE-300-M, 5.7GiE-300-N, 5.7Gi-300-N, 5.7GiE-300-P, 5.7Gi-300-P, 5.7GiC-300-J, 5.7GiC-300-P, 5.7GXiE-N, 5.7GXi-N, 5.7GiE-300-M, 5.7GiCE-300-P, 5.0GXiCE-M, 5.0GXiC-P, 5.0GXiCE-P, 5.0GXi-J, 5.0GXiC-J, 5.0GXiE-M, 5.0GXiE-N, 5.0GXi-N, 5.0GXiE-P, 5.0GXi-P
• Volvo Penta DPS-A OXI
