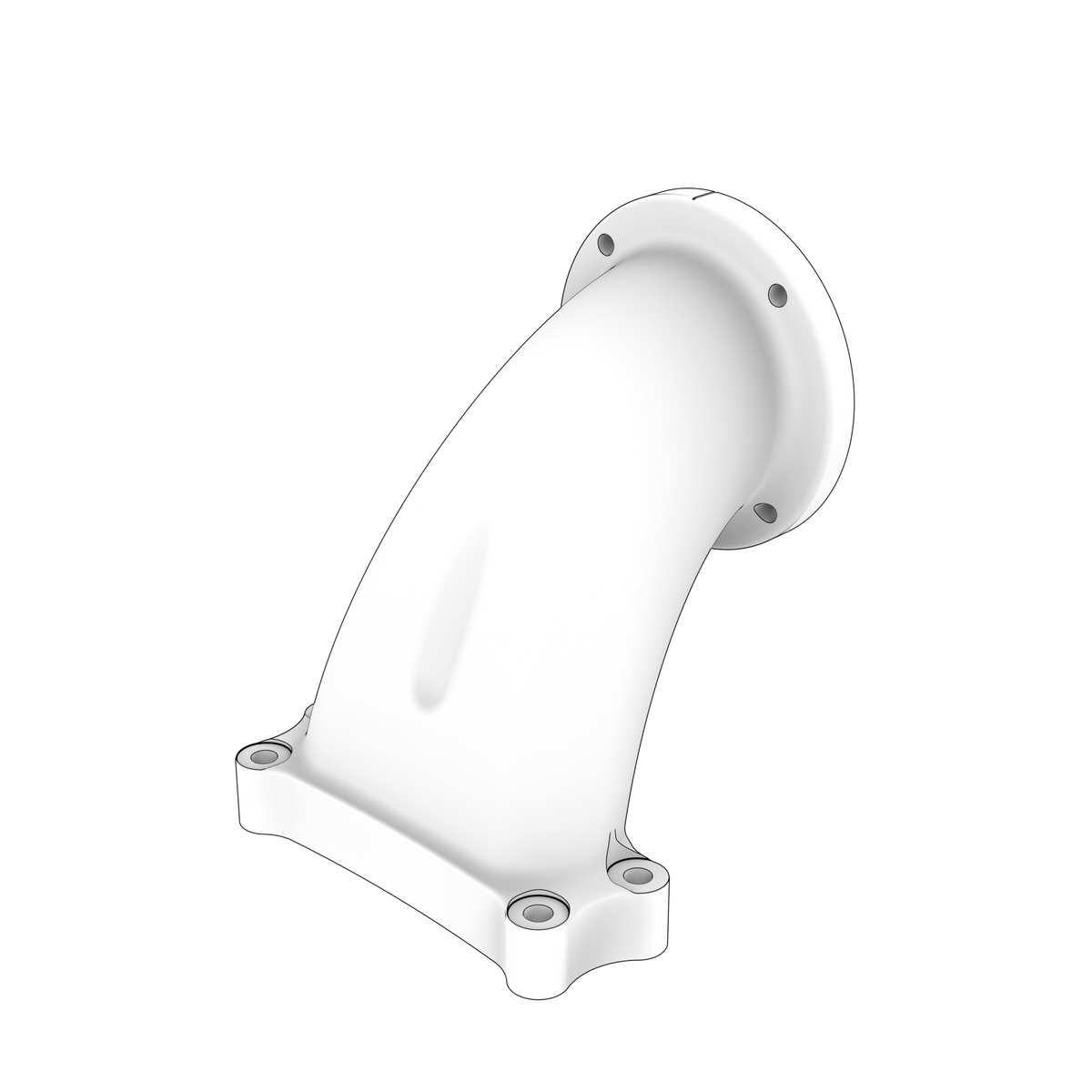

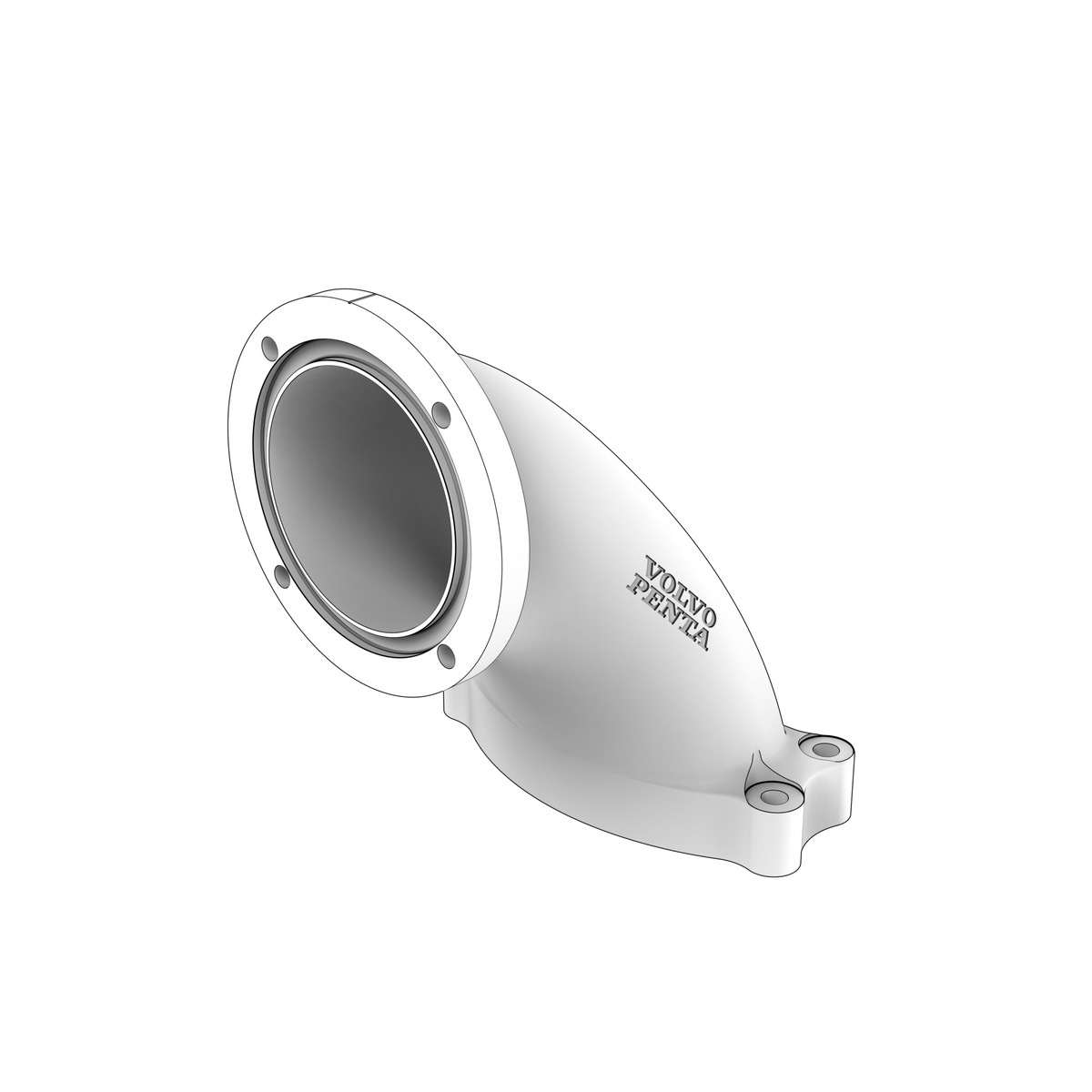

21612427 Exhaust Pipe Elbow | Genuine Volvo Penta Part

🔧 Product Description

A water-cooled exhaust elbow used in Volvo Penta IPS propulsion systems to direct exhaust gas and cooling water from the engine exhaust pipe into the IPS exhaust outlet.

🚤 Compatibility

Typically suits:

• Volvo Penta D6-330D-E
• Volvo Penta D6-370D-E
• Volvo Penta D4-260D-E
• Volvo Penta D4-260D-F
• Volvo Penta D4-300D-E
• Volvo Penta D4-300D-F
• Volvo Penta D6-330D-F
• Volvo Penta D6-370D-F
• Volvo Penta D6-300D-F
• Volvo Penta D6-310D-E
• Volvo Penta 8.1IPSCE-Q
• Volvo Penta D6-435D-E
• Volvo Penta D6-435D-F
• Volvo Penta IPS-F

• Engine Family: D, IPS
• HP Range: 260-435 HP

⚙️ Key Features

• IPS marine exhaust application
• Water-cooled elbow construction
• Correct Volvo Penta flange and sealing geometry
• Designed for high exhaust temperature and seawater exposure
• Used with the designated gasket, sealing ring and exhaust-pipe kit

🔌 Function

The elbow combines exhaust gas with cooling-water discharge and routes the mixture safely into the IPS exhaust system.

⚠️ Common Signs of Failure

• Soot or seawater leakage around the joint
• Internal corrosion or perforation
• Exhaust noise or fumes in the engine compartment
• Cooling-water restriction
• Cracked casting or damaged sealing flange

🛠️ Service Notes

• Renew the gaskets and seals at both joint faces and clean the faces back to bare metal; an exhaust joint will not seal on old gasket remains
• Look through the elbow before fitting and clear any carbon or scale, and where the elbow carries cooling water check its water passages for salt build-up and internal corrosion
• Check the flange faces for flatness and cracking, and check the studs and nuts — heat-cycled exhaust fasteners are often stretched or wasted and are best renewed
• Tighten evenly and progressively across the flange to the figure given in the workshop manual for your engine, then re-check once the engine has been hot and cooled again
• Where the elbow meets exhaust hose, use sound hose and the specified clamping arrangement, and keep the run rising and falling as designed so water cannot track back to the engine

🔄 Supersession & Cross Reference

OEM Supersession Chain

• 21612427 → Supersedes 3861077

OEM / Related Numbers

• 3861077 earlier number superseded by this part
• 3862150 - Gasket
• 424830 - Sealing ring
• 3819212 - Flange
• 3887735 - Related exhaust-pipe kits
• 22896527 - Related exhaust-pipe kits
• 3887736 - Related exhaust-pipe kits
• 21259299 - Exhaust pipe

📦 Condition

• Genuine Volvo Penta part
• Brand new
• Supplied in original or equivalent packaging
