21616857 Hose | Genuine Volvo Penta Part

🔧 Product Description

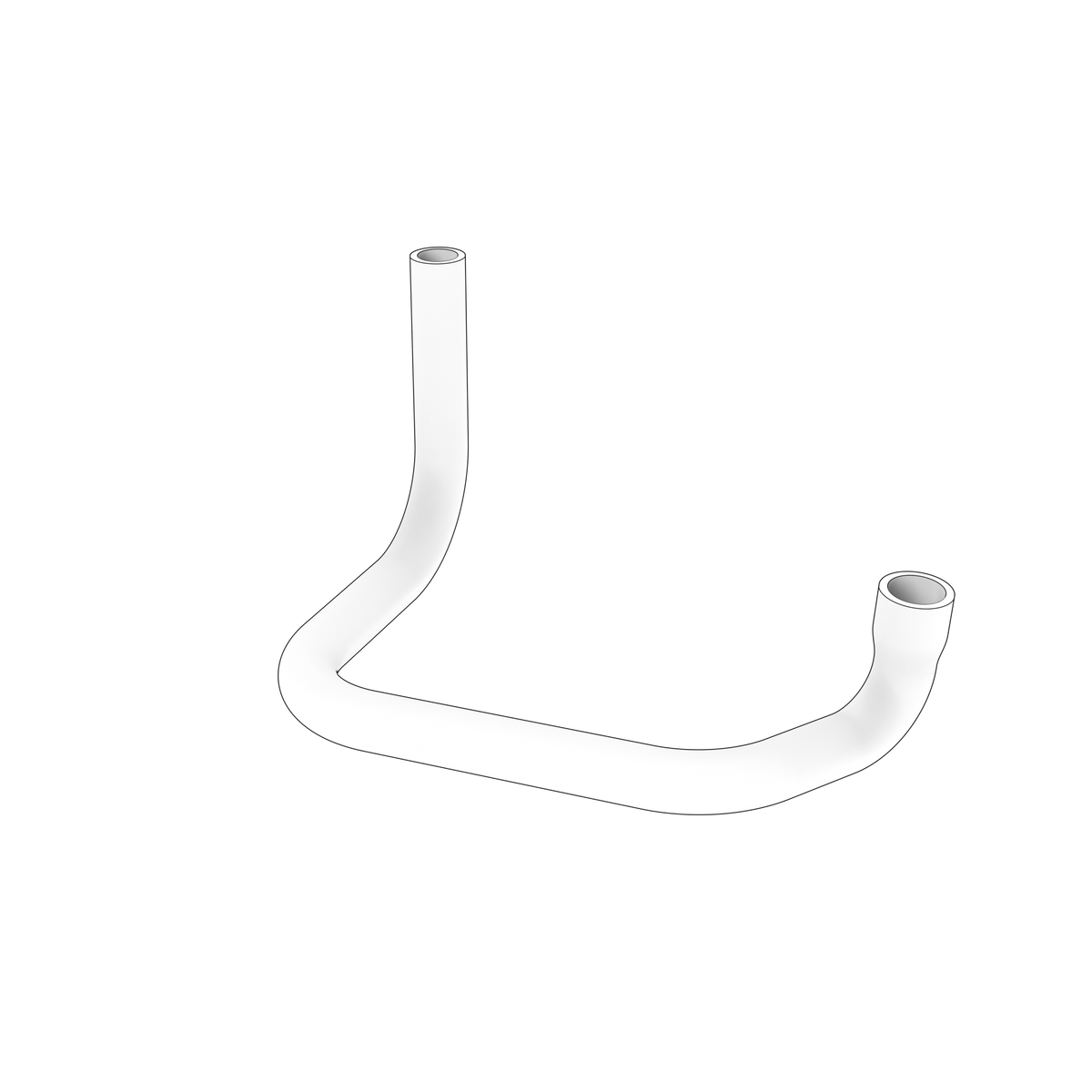

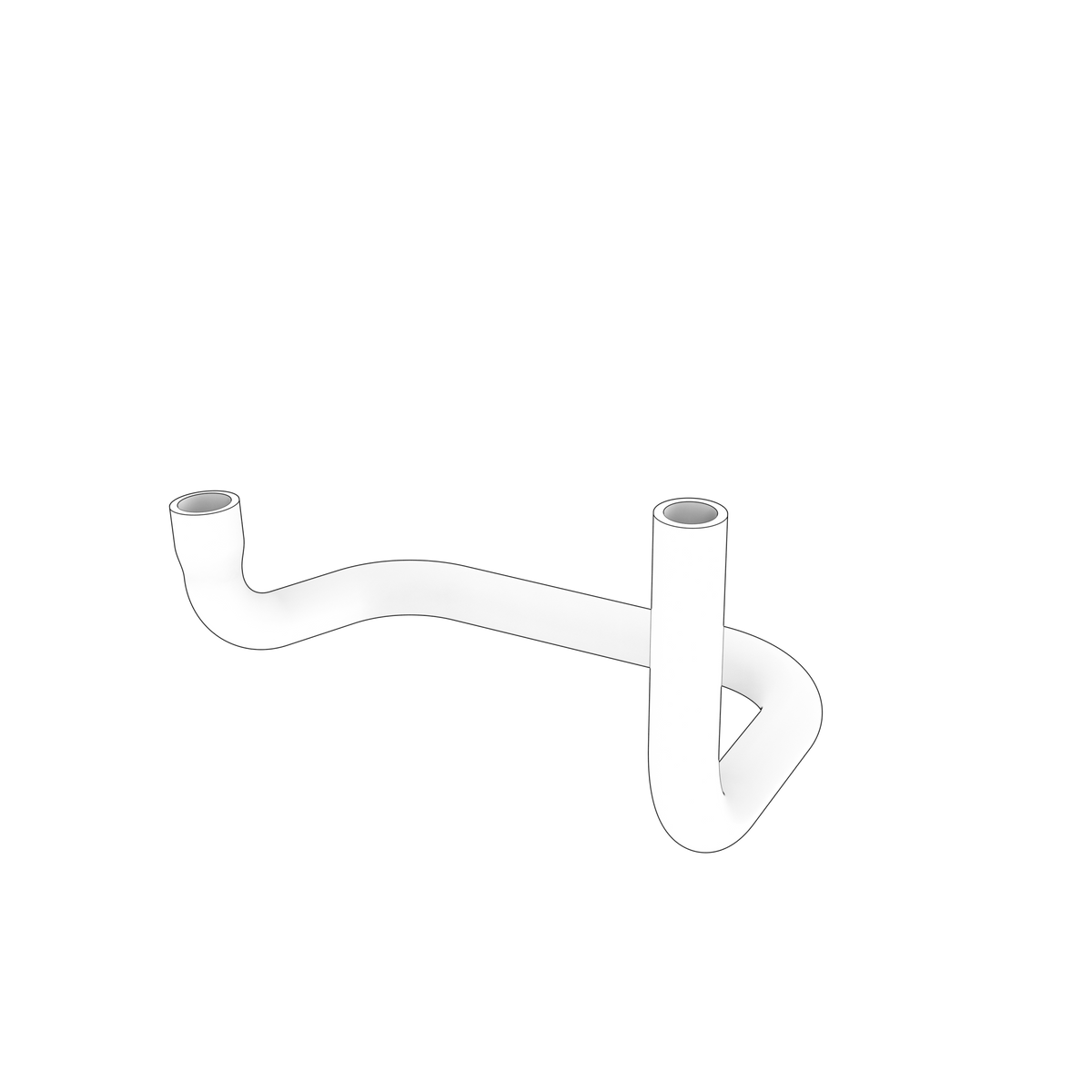

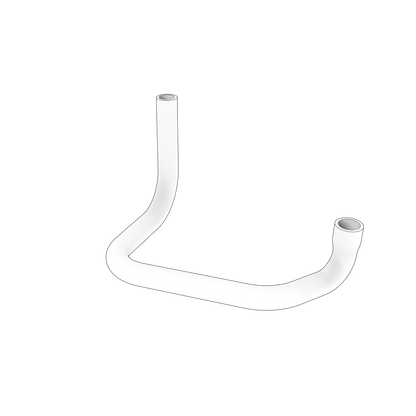

A factory-moulded hose used in the raw-water circuit from the gimbal connection to the seawater pump; applicable from serial number A249279 of Volvo Penta V8 marine petrol engines.

🚤 Compatibility

Typically suits:

• Volvo Penta V8-380-CE-A
• Volvo Penta V8-380-C-B
• Volvo Penta V8-380-CE-B
• Volvo Penta V8-380-C-D
• Volvo Penta V8-380-CE-D
• Volvo Penta V8-430-CE-D
• Volvo Penta V8-350-C-D
• Volvo Penta V8-350-CE-D
• Volvo Penta V8-380-C-A

• Engine Family: V
• HP Range: 350-430 HP

⚙️ Key Features

• Factory-moulded hose for the raw-water circuit between the gimbal connection and the seawater pump
• 0.463 kg
• Listed for 9 applications on V-series petrol engines

🔌 Function

Carries raw seawater through the engine's cooling circuit, keeping the run in a fixed moulded shape between its spigots so the bore is not kinked and flow to the pump, heat exchanger or discharge is maintained.

⚠️ Common Signs of Failure

• Seawater dripping or salt crust forming at a clamped joint
• Overheating or the alarm sounding at higher revs as flow drops
• Hose collapsing or drawing flat on the suction side when the engine is revved
• Weeping, sand-scoured or corroded spigots found under the clamps
• Inner liner delaminated and lifting, restricting the bore

🛠️ Service Notes

• Renew the clamps with the hose and check the spigots for pitting or scale first - a corroded spigot will not seal against a new hose.
• Check the seawater pump impeller and the rest of the raw-water run at the same time - debris shed by a failing hose ends up in the pump or the heat exchanger.
• This is a moulded hose bent to shape to clear the surrounding castings; a straight length cut to size will kink or chafe, so match the moulding rather than substituting hose by the metre.

🔄 Supersession & Cross Reference

OEM / Related Numbers

• 21614836 - Expansion tank
• 21630488 - Seawater-system adapter tee
• 21614855 - Cooling-system bracket

📦 Condition

• Genuine Volvo Penta part
• Brand new
• Supplied in original or equivalent packaging
