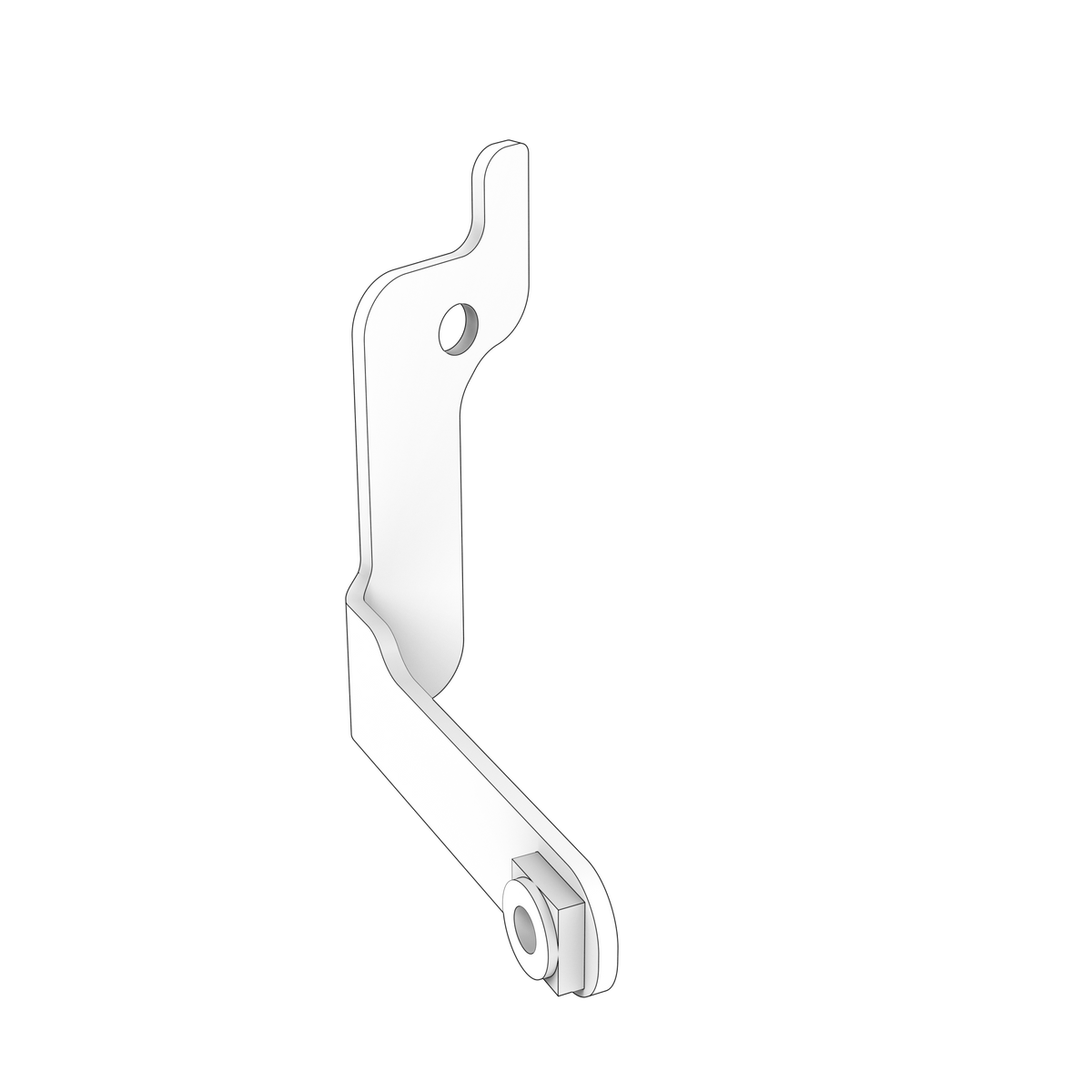

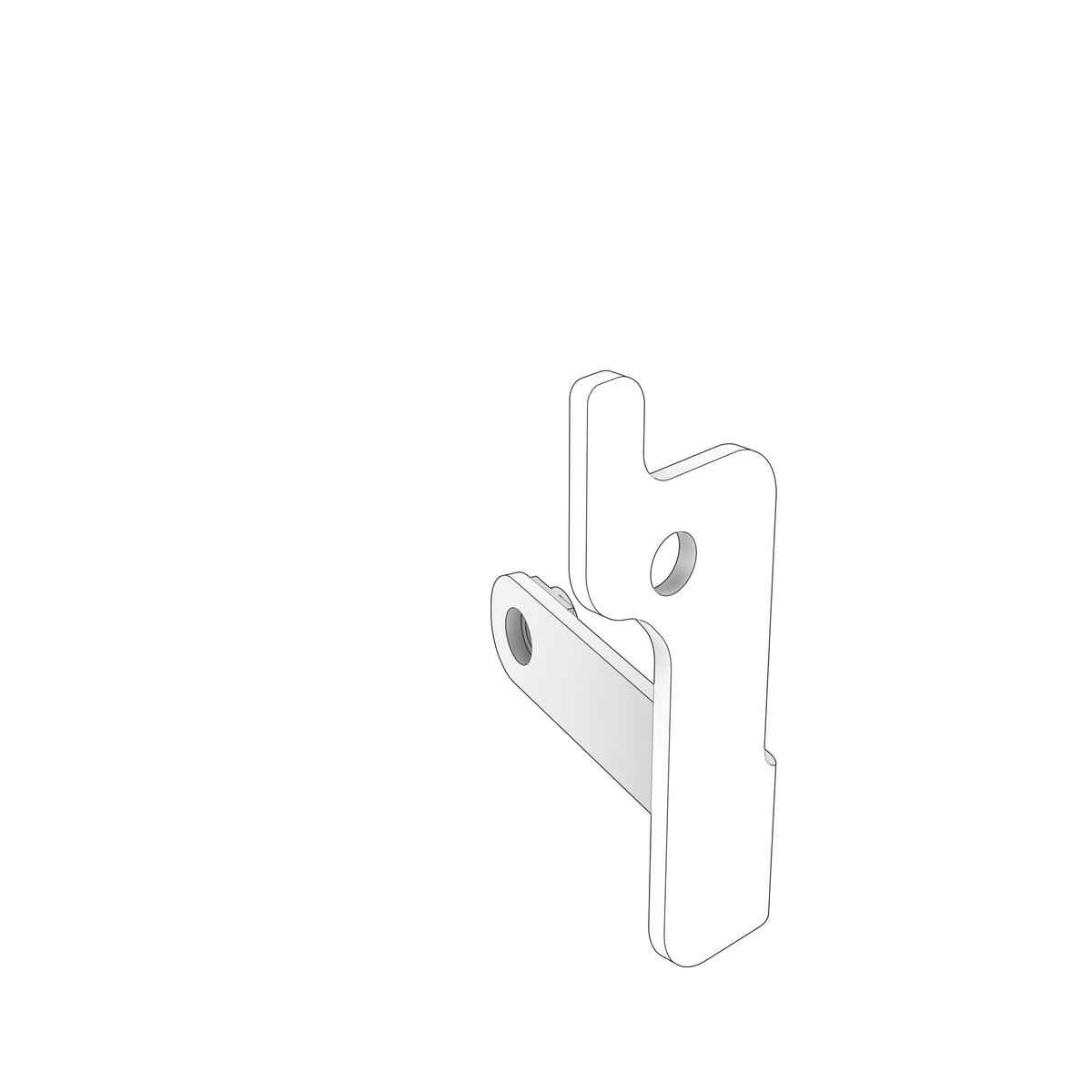

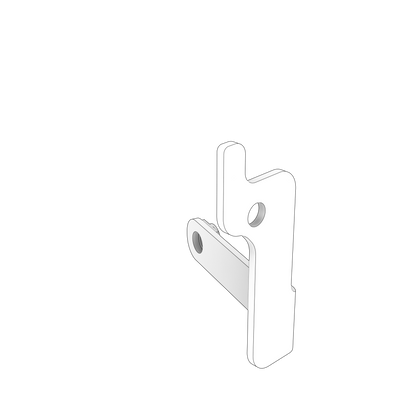

21619824 Bracket | Genuine Volvo Penta Part

🔧 Product Description

A support bracket used in the seawater-filter, radiator and pump cooling system of Volvo Penta D6-280A-E marine engines.

🚤 Compatibility

• Engine Family: D, TAMD, KAD, KAMD
• HP Range: 180-435 HP

Full model list at the end of this description.

⚙️ Key Features

• D6-280A-E cooling-system application
• Supports seawater pump 21419376
• Maintains pump and hose alignment
• Used with bracket 21368510 and the designated flange screws

🔌 Function

The bracket supports and aligns the seawater pump so belt, pipe and hose loads are not transferred into the pump housing.

⚠️ Common Signs of Failure

• Pump movement or vibration
• Hose or pulley misalignment

🛠️ Service Notes

• Offer the bracket up and start every fastener by hand before tightening any of them, so the component is not pulled into a strained position
• Check the mating faces are clean, flat and free of corrosion scale — a bracket that does not sit flat will work loose and let the component move
• Renew self-locking nuts, lock washers, tab washers or thread-locking compound wherever the original assembly used them, and tighten to the figure given in the workshop manual for your engine
• Where the bracket carries a rubber mount or bush, renew that at the same time rather than reusing a perished one
• On brackets in the inlet and exhaust area, never force alignment to make the holes line up — cure the misalignment at its source, or the bracket and the component it holds will both crack

🔄 Supersession & Cross Reference

OEM Supersession Chain

• 21619824 → Supersedes 965576

OEM / Related Numbers

• 965576 earlier number superseded by this part
• 21419376 - Seawater pump
• 21368500 - Seawater filter
• 21368510 - Companion bracket
• 23367003 - Related hoses
• 21368516 - Related hoses
• 973924 - Flange screws
• 947760 - Flange screws

📦 Condition

• Genuine Volvo Penta part
• Brand new
• Supplied in original or equivalent packaging

🔎 Full Model Compatibility

Typically suits:

• Volvo Penta D6-370A-C, D6-350A-A, D6-350A-B, D6-330A-D, D6-330D-E, D6-370D-E, D6-370D-B, D6-330D-B, D6-330A-F, D6-370A-F, D6-370D-A, D6-330D-C, D6-330A-C, D6-370D-C, D6-330D-D, D6-370D-D, D6-330D-F, D6-370A-D, D6-330A-E, D6-370A-E, D6-370D-F, D6-330I-D, D6-310I-B, D6-280I-B, D6-280I-E, D6-280I-D, D6-310I-D, D6-435I-D, D6-310I-E, D6-280I-A, D6-310I-A, D6-300A-F, D6-300D-F, D6-300I-F, D6-310D-A, D6-310D-B, D6-310D-D, D6-310D-C, D6-310D-E, D6-370I-A, D6-370I-B, D6-330I-B, D6-330I-C, D6-370I-C, D6-310A-B, D6-280A-C, D6-310A-C, D6-310A-A, D6-280A-D, D6-310A-D, D6-280A-E, D6-310A-E, D6-280I-C, D6-310I-C, D6-280A-A, D6-280A-B, D6-330I-F, D6-370I-F, D6-400A-E, D6-435D-A, D6-435D-D, D6-435D-E, D6-435D-F, D6-435I-A, D6-435I-C, D6-435I-E, D6-400A-F, D6-435D-C, D6-435I-F, D6-370I-D, D6-330I-E, D6-370I-E, D6-330A-B, D6-370A-B
• Volvo Penta D4-260A-B, D4-260A-A, D4-260A-C, D4-260A-D, D4-260A-E, D4-260A-F, D4-260D-B, D4-260D-C, D4-260D-D, D4-260D-E, D4-260D-F, D4-260I-A, D4-260I-B, D4-260I-C, D4-260I-D, D4-260I-E, D4-260I-F, D4-300A-A, D4-300A-C, D4-300A-D, D4-300A-E, D4-300A-F, D4-300D-A, D4-300D-C, D4-300D-D, D4-300D-E, D4-300D-F, D4-300I-A, D4-180I-C, D4-225I-C, D4-180I-D, D4-225I-D, D4-180I-E, D4-225I-E, D4-180I-F, D4-225I-F, D4-210A-A, D4-210A-B, D4-225A-B, D4-225A-C, D4-225A-D, D4-300I-C, D4-300I-D, D4-300I-E, D4-300I-F, D4-225A-E, D4-225A-F, D4-210I-A, D4-210I-B, D4-180I-B, D4-225I-B
• Volvo Penta KAD42B
• Volvo Penta KAMD42B
• Volvo Penta TAMD42B
