21621755 Air Heater | Genuine Volvo Penta Part

🔧 Product Description

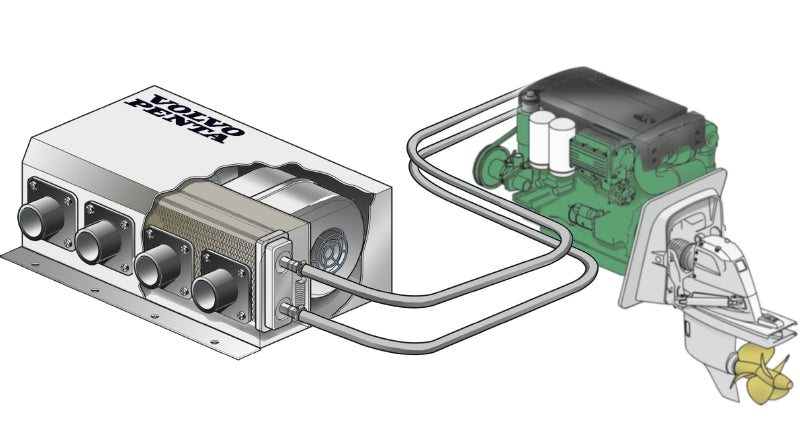

Volvo Penta cabin air heater rated at 10 kW on a 12 V supply, built with 60 mm outlets, weighing 5.987 kg. It is the only heater in the range listed with 60 mm outlets - the other four are all 55 mm - so the outlet diameter, not the output or the voltage, is what separates it from 21621753. Like the rest of the range it takes heat from the engine's closed-circuit cooling system, with a three-speed radial fan, a copper and brass heat exchanger, a stainless steel casing, four outlets supplied and a 16 mm water connection.

⚙️ Key Features

• 10 kW output on a 12 V supply
• 60 mm outlets, the only heater in the range listed at that size
• 5.987 kg
• Three fan speeds, radial fan, four outlets supplied
• Stainless steel casing, copper and brass heat exchanger, 16 mm water connection
• Uses waste heat from the engine's closed-circuit cooling system - no separate pipes or radiators needed
• Three-speed radial fan
• Stainless steel casing and copper / brass heat exchanger
• Can be installed vertically or horizontally
• Consumes very little power, with a low noise level
• Capacity free flow: 550 m3/hour at max. speed (free flow)
• Casing: stainless steel
• Dimensions: 370 x 160 x 236 mm
• Fan: 3 speed, radial
• Heat exchanger: copper / brass
• Outlet diameter: 60 mm
• Output: 10 kW
• Power supply: 12 V
• Water connection: 16 mm
• Fits: Engines with a closed-circuit (fresh water) cooling system

🔌 Function

Circulates engine coolant through a heat exchanger while a three-speed fan pushes cabin air across it, delivering up to 10 kW of heat to 60 mm ducting.

⚠️ Common Signs of Failure

• Fan not running at one or more of its three speeds
• Little or no cabin heat with the engine at working temperature
• Coolant weeping from the heat exchanger or its connections
• Air trapped in the coolant circuit, with the heater gurgling
• Airflow dropping off as the intake or ducting blocks

🛠️ Service Notes

• Order the 60 mm ducting to match - hose 21656856, nozzle 21656853 and Y-connector 21656860
• 21621753 is the same 10 kW 12 V heater with 55 mm outlets, so confirm the duct size before ordering either
• It can be mounted vertically or horizontally, and trapped air is released through a separate bleed valve
• The stainless steel casing and copper/brass heat exchanger are chosen to give long service in a harsh onboard atmosphere
• The heater can be installed above the engine, and any air trapped in the coolant can be released through a separate bleed valve
• Optional extras include air hoses, hose connections and various types of air valves

🔄 Supersession & Cross Reference

OEM Supersession Chain

• 21621755 → Supersedes 41103334 → Supersedes 41103324

OEM / Related Numbers

• 41103334 earlier number superseded by this part
• 41103324 earlier number superseded by this part
• 21621721 - Coolant pipe set
• 21621971 - Related air outlet

📦 Condition

• Genuine Volvo Penta part
• Brand new
• Supplied in original or equivalent packaging
