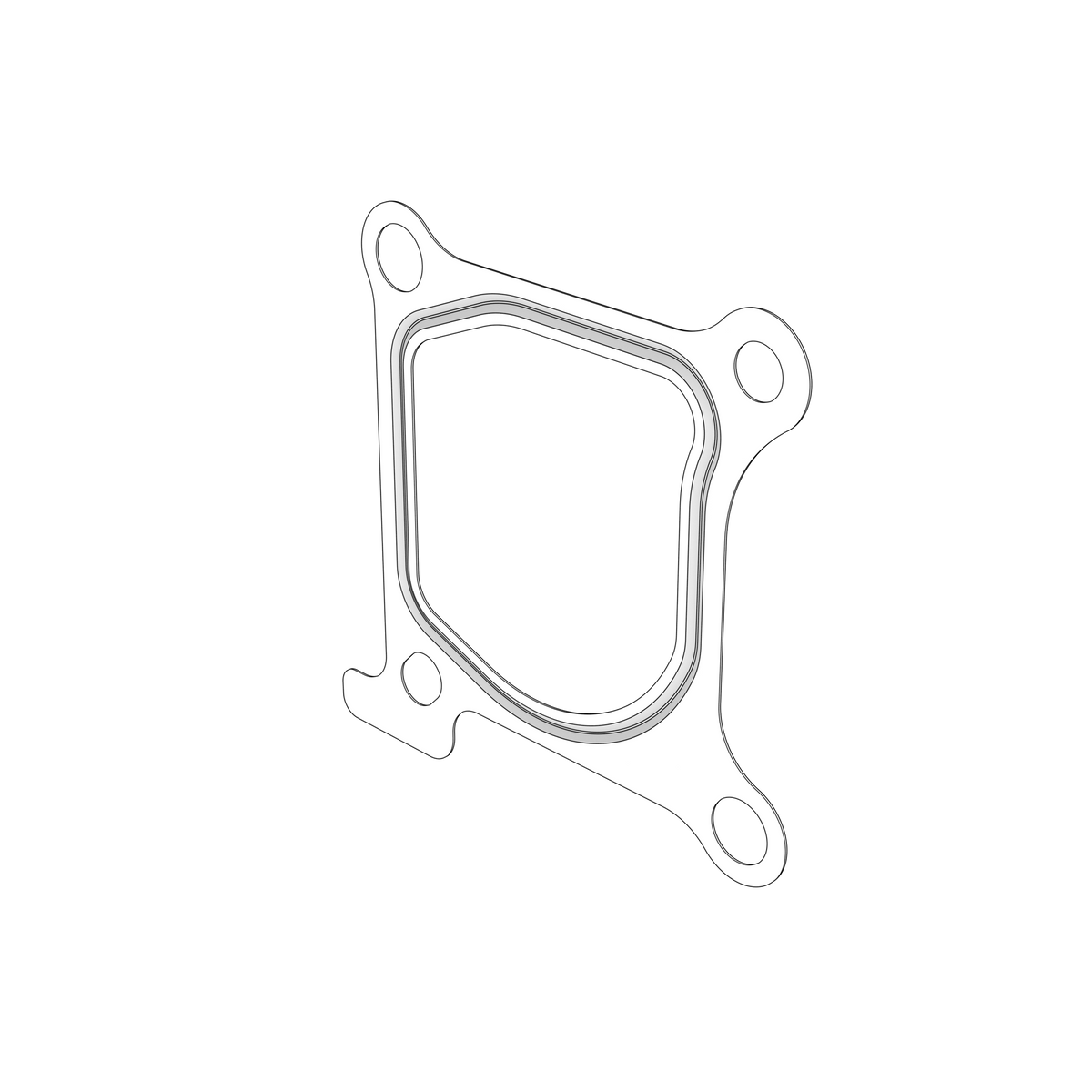

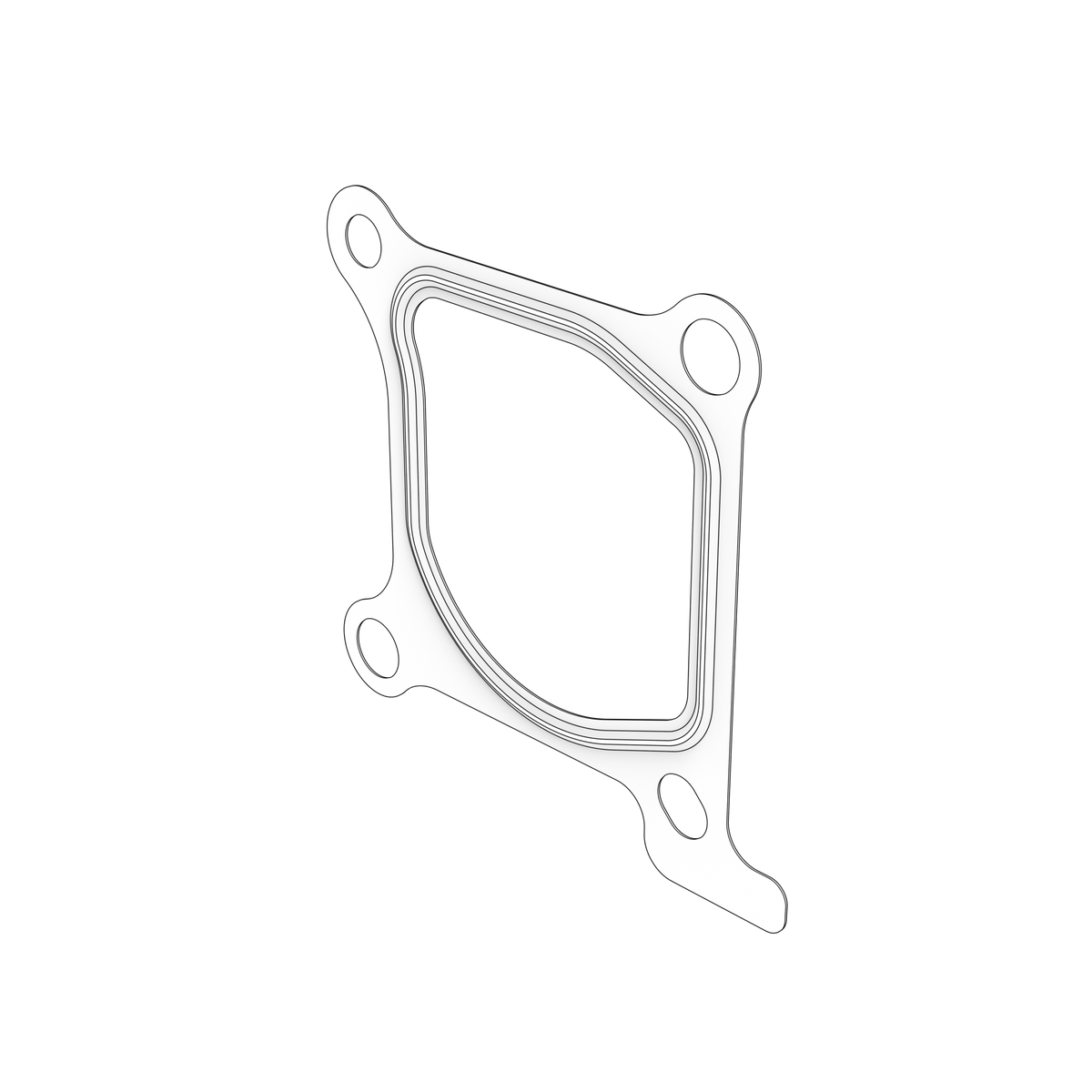

21625080 Gasket | Genuine Volvo Penta Part

🔧 Product Description

A sealing gasket used in the D3 longblock installation and cooling-water outlet pipe assembly.

🚤 Compatibility

• Engine Family: D
• HP Range: 110-220 HP

Full model list at the end of this description.

⚙️ Key Features

• D3 longblock installation gasket
• Coolant-resistant sealing material
• Correct water-outlet port profile
• Single-use service seal
• Used with the associated pipe, sensor and O-rings

🔌 Function

The gasket seals the cooling-water pipe joint during D3 longblock installation and prevents coolant loss.

⚠️ Common Signs of Failure

• Coolant seepage at the pipe flange
• Gasket crushed or torn
• Corrosion around the joint
• Cooling-system pressure loss
• Leakage after longblock replacement

🛠️ Service Notes

• Fit a new gasket every time the joint is disturbed — a gasket takes a permanent set once it has been torqued and will not seal reliably a second time
• Scrape both faces back to clean bare metal, keeping the blade at a shallow angle so it lifts the old material without gouging the surface, and use a plastic scraper on aluminium castings
• Check the faces for flatness, cracks and corrosion pitting, and make sure no old gasket, carbon or hardened sealant is left in the corners or around the bolt holes
• Fit the gasket dry unless the workshop manual for your engine calls for a sealant, and then only the type it specifies — surplus sealant squeezes out into oil, coolant and fuel passages
• Draw the fasteners down progressively in the sequence and to the torque given in the manual for your engine, and recheck after the first heat cycle where the manual asks for it

🔄 Supersession & Cross Reference

OEM / Related Numbers

• 21678692 - Related longblock installation kit
• 21673916 - Water outlet pipe
• 21664969 - Small-parts kit
• 8653172 - Sensor
• 30713576 - Clip
• 30713577 - O-rings
• 976045 - O-rings
• 21591184 - Inlet pipe

📦 Condition

• Genuine Volvo Penta part
• Brand new
• Supplied in original or equivalent packaging

🔎 Full Model Compatibility

Typically suits:

• Volvo Penta D3-220I-G, D3-140A-D, D3-170A-D, D3-200A-D, D3-220A-D, D3-140I-D, D3-140A-E, D3-170A-E, D3-200A-E, D3-220A-E, D3-140I-E, D3-140A-F, D3-170A-F, D3-200A-F, D3-220A-F, D3-140I-F, D3-140A-G, D3-170A-G, D3-200A-G, D3-220A-G, D3-140I-G, D3-110I-A, D3-110I-D, D3-150I-D, D3-170I-D, D3-200I-D, D3-220I-D, D3-110I-E, D3-150I-E, D3-170I-E, D3-200I-E, D3-220I-E, D3-110I-F, D3-150I-F, D3-170I-F, D3-200I-F, D3-220I-F, D3-110I-G, D3-150I-G, D3-170I-G, D3-200I-G, D3-110I-H, D3-140A-H, D3-170A-H, D3-200A-H, D3-220A-H, D3-150I-H, D3-170I-H, D3-200I-H, D3-220I-H, D3-140I-H
