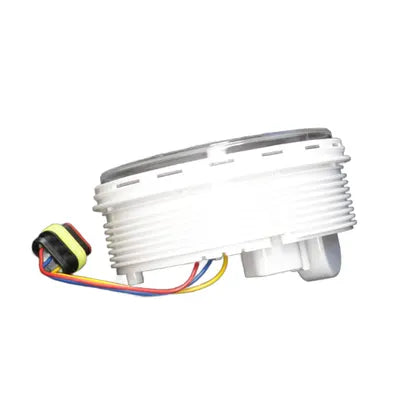

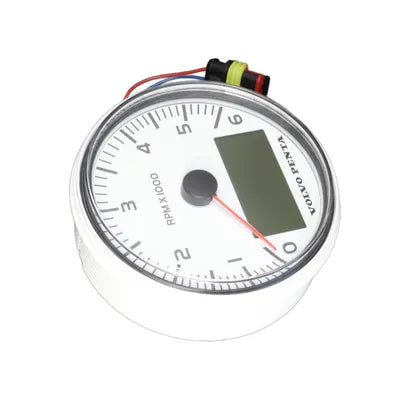

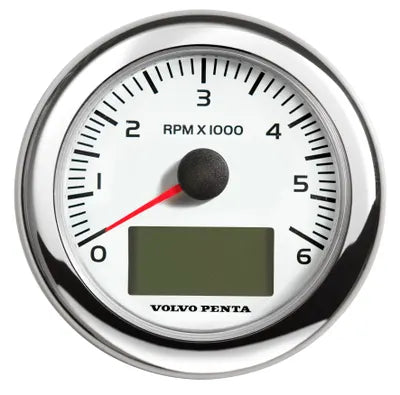

21628157 Tachometer | Genuine Volvo Penta Part

🔧 Product Description

Genuine Volvo Penta EVC tachometer, 85 mm, with a white dial reading 0 to 6000 rpm, weighing 0.202 kg and listed for 88 applications. Engine hours and alarm symbols are carried in the LCD display. This is the instrument listed for the earlier EVC MC and EVC C systems, which is what separates it from the rest of the 85 mm range.

🚤 Compatibility

• Engine Family: V
• HP Range: 200-430 HP

Full model list at the end of this description.

⚙️ Key Features

• 85 mm instrument diameter
• White dial, 0-6000 rpm scale
• Listed for EVC MC and EVC C systems
• Engine hours and alarm symbols in the LCD display
• 0.202 kg
• Anti-fogging membrane, full backlighting and serial connection
• Front ring ordered separately
• Gauge diameter: Ø 85 mm
• Gauge family: Tachometers
• Gauge range: EVC gauge range
• Listed for EVC MC, EVC C systems
• Anti-fogging membrane and full backlighting
• Plug-and-play serial connection - adding instruments is easy
• Diameter: 85 mm
• Dial colour: White
• Scale: 0-6000 rpm
• Evc generation: EVC MC, EVC C
• Fits: EVC MC, EVC C installations

🔌 Function

The tachometer receives digital engine-speed, operating-hour and alarm data from the EVC network and presents it at the helm or operator panel.

⚠️ Common Signs of Failure

• No rpm display
• Erratic or incorrect engine speed
• Blank LCD or missing engine hours
• Backlight failure
• Condensation or moisture inside the gauge

🛠️ Service Notes

• This is the EVC MC and EVC C instrument; the 0-4000 rpm 85 mm tachometers 21628160 in black and 21628159 in white are the EVC C-E and EVC2 versions, so match the system generation rather than the dial
• No black 85 mm 0-6000 rpm equivalent is listed, so a dark panel either takes this white dial or moves up to the 110 mm 21511183
• The 85 mm front ring is a separate order: 874708 or 874732 for panels up to 12 mm, 881612 or 881614 for 12 to 25 mm
• Front ring and mounting items are not supplied with the instrument and are ordered separately: 52 mm black 874709 or chrome 874733, 85 mm black 874708 or chrome 874732, 110 mm black 3847888 or chrome 3885216 for panels up to 12 mm (15 mm at 110 mm); 881611/881613 in 52 mm and 881612/881614 in 85 mm for panels 12-25 mm; X-rings 874843 in 52 mm and 874844 in 85 mm for flush mounting
• Seven tachometers are listed and dial colour, rpm scale, size and EVC generation are all that separate them: 21511178 is black, 0-4000 rpm, 110 mm, EVC C-E, EVC2; 21511176 is white, 0-4000 rpm, 110 mm, EVC C-E, EVC2; 21511183 is black, 0-6000 rpm, 110 mm, EVC C-E, EVC2; 21511180 is white, 0-6000 rpm, 110 mm, EVC C-E, EVC2; 21628160 is black, 0-4000 rpm, 85 mm, EVC C-E, EVC2; 21628159 is white, 0-4000 rpm, 85 mm, EVC C-E, EVC2

🔄 Supersession & Cross Reference

OEM Supersession Chain

• 21628157 → Supersedes 21509644 → Supersedes 21234537 → Supersedes 3885697 → Supersedes 3843246

OEM / Related Numbers

• 21509644 earlier number superseded by this part
• 21234537 earlier number superseded by this part
• 3885697 earlier number superseded by this part
• 3843246 earlier number superseded by this part

📦 Condition

• Genuine Volvo Penta part
• Brand new
• Supplied in original or equivalent packaging

🔎 Full Model Compatibility

Typically suits:

• Volvo Penta V8-350-CE-R, V8-380-CE-R, V8-300-CE-M, V8-350-CE-M, V8-300-CE-N, V8-350-CE-N, V8-380-CE-M, V8-270-CE-B, V8-300-E-A, V8-300-E-B, V8-300-CE-A, V8-320-CE-B, V8-300-CE-B, V8-320-E-A, V8-320-E-B, V8-320-CE-A, V8-380-CE-A, V8-380-CE-B, V8-380-CE-D, V8-430-CE-D, V8-350-CE-D, V8-380-CE-J, V8-430-CE-J, V8-350-CE-H, V8-350-CE-J, V8-300-CE-R, V8-430-CE-R, V8-430-CE-M, V8-300-CE-K, V8-350-CE-K, V8-380-CE-K, V8-430-CE-K, V8-300-CE-P, V8-350-CE-P, V8-380-CE-P, V8-300-CE-G, V8-300-CE-H, V8-300-CE-J, V8-350-CE-G, V8-225-CE-A, V8-225-CE-B, V8-270-E-A, V8-270-E-B, V8-270-CE-A, V8-380-CE-N, V8-430-CE-N, V8-430-CE-P, V8-300-CE-S, V8-350-CE-S, V8-400-CE-R
• Volvo Penta 8.1GiCE-P, 8.1GiCE-Q, 8.1GiE-P, 8.1GXiE-P, 8.1IPSCE-P, 8.1IPSCE-Q, 5.7GXiE-320-R, 5.7GXiCE-320-R, 5.7GXiCE-P, 5.7GXiE-P, 5.7GiE-300-P, 5.7GiE-300-R, 5.7GiCE-300-P, 5.7GiCE-300-R, 5.0GiCE-225-S, 5.0GXiCE-P, 5.0GXiE-270-R, 5.0GXiCE-270-R, 5.0GXiE-P, 4.3GXiE-225-R, 4.3GXiE-P, 4.3GXiE-Q
• Volvo Penta V6-200-CE-N, V6-240-CE-M, V6-280-CE-M, V6-280-CE-J, V6-280-CE-G, V6-240-CE-N, V6-240-CE-K, V6-280-CE-K, V6-200-CE-P, V6-250-CE-P, V6-280-CE-P, V6-225-E-A, V6-280-CE-N, V6-250-CE-O, V6-240-CE-G, V6-240-CE-J
