21628159 Tachometer Kit | Genuine Volvo Penta Part

🔧 Product Description

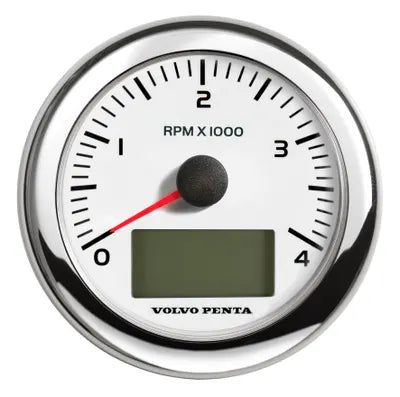

Genuine Volvo Penta EVC tachometer, 85 mm, with a white dial reading 0 to 4000 rpm, weighing 0.227 kg and listed for 100 applications. Engine hours and alarm symbols appear in the LCD display. It is listed for EVC C to EVC-E and EVC2 systems and also for D1 and D2 engines with MDI, with the anti-fogging membrane, full backlighting and plug-and-play serial connection common to the EVC instruments.

🚤 Compatibility

• Engine Family: D, VMM
• HP Range: 110-480 HP
• Year Range: Approximately 2004 onward

Full model list at the end of this description.

⚙️ Key Features

• 85 mm instrument diameter
• White dial, 0-4000 rpm scale
• Engine hours and alarm symbols in the LCD display
• For EVC C-E and EVC2, and for D1/D2 with MDI
• 0.227 kg
• Anti-fogging membrane, full backlighting and serial connection
• 85mm (Volvo assembly listing)
• Gauge diameter: Ø 85 mm
• Gauge family: Tachometers
• Gauge range: EVC gauge range
• Listed for EVC C-E, EVC2 systems
• Also for D1/D2 engines with MDI
• Anti-fogging membrane and full backlighting
• Plug-and-play serial connection - adding instruments is easy
• Diameter: 85 mm
• Dial colour: White
• Scale: 0-4000 rpm
• Evc generation: EVC C-E, EVC2
• Also fits: D1/D2 with MDI
• Fits: EVC C-E, EVC2 installations

📋 Kit Contents

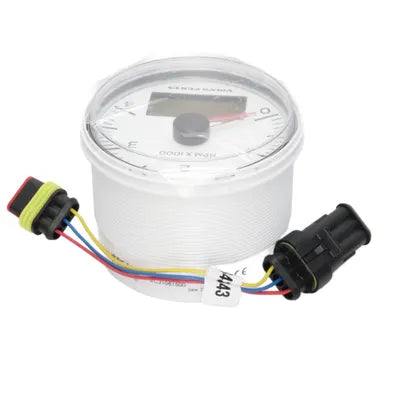

• Electronic tachometer assembly - part number 21628159 - quantity 1
• Integral LCD, rear connector and instrument electronics - supplied as part of tachometer 21628159
• Bezel / mounting ring is not included and must be selected separately from 874708, 881612 or 874732

🔌 Function

The tachometer receives engine-speed data from the MDI or EVC network and displays crankshaft rpm. Its LCD provides local engine-hour information and alarm-symbol indication for the operator.

⚠️ Common Signs of Failure

• Tachometer remains at zero with the engine running
• Rpm indication jumps, drops out or reads incorrectly
• LCD engine-hour display is blank or unreadable
• Alarm symbols or backlighting do not operate
• Instrument loses communication because of a connector, power-supply or network fault

🛠️ Service Notes

• The black 85 mm 0-4000 rpm version is 21628160, and the 110 mm equivalents on the same scale are 21511178 in black and 21511176 in white
• A replacement tachometer starts its displayed hour count from zero, so record the old reading before the instrument comes out
• The front ring is not included: 874708 black or 874732 chrome for panels up to 12 mm, 881612 or 881614 for 12 to 25 mm
• Front ring and mounting items are not supplied with the instrument and are ordered separately: 52 mm black 874709 or chrome 874733, 85 mm black 874708 or chrome 874732, 110 mm black 3847888 or chrome 3885216 for panels up to 12 mm (15 mm at 110 mm); 881611/881613 in 52 mm and 881612/881614 in 85 mm for panels 12-25 mm; X-rings 874843 in 52 mm and 874844 in 85 mm for flush mounting
• Seven tachometers are listed and dial colour, rpm scale, size and EVC generation are all that separate them: 21511178 is black, 0-4000 rpm, 110 mm, EVC C-E, EVC2; 21511176 is white, 0-4000 rpm, 110 mm, EVC C-E, EVC2; 21511183 is black, 0-6000 rpm, 110 mm, EVC C-E, EVC2; 21511180 is white, 0-6000 rpm, 110 mm, EVC C-E, EVC2; 21628160 is black, 0-4000 rpm, 85 mm, EVC C-E, EVC2; 21628157 is white, 0-6000 rpm, 85 mm, EVC MC, EVC C

🔄 Supersession & Cross Reference

OEM Supersession Chain

• 21628159 → Supersedes 21509649 → Supersedes 21234535 → Supersedes 3885695 → Supersedes 3843242

OEM / Related Numbers

• 21509649 earlier number superseded by this part
• 21234535 earlier number superseded by this part
• 3885695 earlier number superseded by this part
• 3843242 earlier number superseded by this part
• 874708 optional black bezel fitting kit for panels up to 12mm thick
• 881612 optional black bezel fitting kit for panels 12-25mm thick
• 874732 optional chrome mounting ring

📦 Condition

• Genuine Volvo Penta part
• Brand new
• Supplied in original or equivalent packaging

🔎 Full Model Compatibility

Typically suits:

• Volvo Penta D6-330A-F, D6-370A-F, D6-330D-F, D6-370D-F, D6-300A-F, D6-300D-F, D6-300I-F, D6-340I-G, D6-380I-G, D6-440I-G, D6-480I-G, D6-300A-G, D6-340A-G, D6-380A-G, D6-440I-WJ-G, D6-480I-WJ-G, D6-300D-G, D6-340D-G, D6-380D-G, D6-440D-G, D6-480D-G, D6-400A-G, D6-440A-G, D6-300I-G, D6-330I-F, D6-370I-F, D6-435D-F, D6-400A-F, D6-435I-F, D6-480A-G
• Volvo Penta D4-260A-F, D4-260D-F, D4-260I-F, D4-300A-F, D4-300D-F, D4-180I-F, D4-225I-F, D4-300I-F, D4-225A-F, D4-175I-G, D4-230I-G, D4-270I-G, D4-320I-G, D4-300I-G, D4-150A-G, D4-230A-G, D4-270A-G, D4-320A-G, D4-300A-G, D4-145I-G, D4-175 VG
• Volvo Penta D13C2-B MP, D13C1-A MP, D13C2-A MP, D13C3-A MP, D13C4-A MP, D13B-E MH, D13B-E MH (FE), D13B-N MH, D13B-N MH (FE), D13C4-B MP, D13C5-B MP, D13C6-A MP, D13C1-A MH, D13C2-A MH, D13C5-A MP, D13C7-B MP, D13C8-B MP
• Volvo Penta D3-110I-H, D3-140A-H, D3-170A-H, D3-200A-H, D3-220A-H, D3-150I-H, D3-170I-H, D3-200I-H, D3-220I-H, D3-140I-H
• Volvo Penta D8A2-A MP, D8A5-A MH, D8A6-A MH, D8A5-A MG, D8A6-A MG, D8A4-A MP, D8A1-A MP, D8A3-A MP
• Volvo Penta D11C3-A MP, D11C2-A MP, D11C4-A MP, D11B3-A MP, D11B4-A MP, D11B2-A MP, D11B1-A MP
• Volvo Penta D16C1-E MH, D16C1-F MH, D16C2-E MH, D16C2-F MH
• Volvo Penta D9A2L MH, D9A2M MP
• Volvo Penta VMM-A
