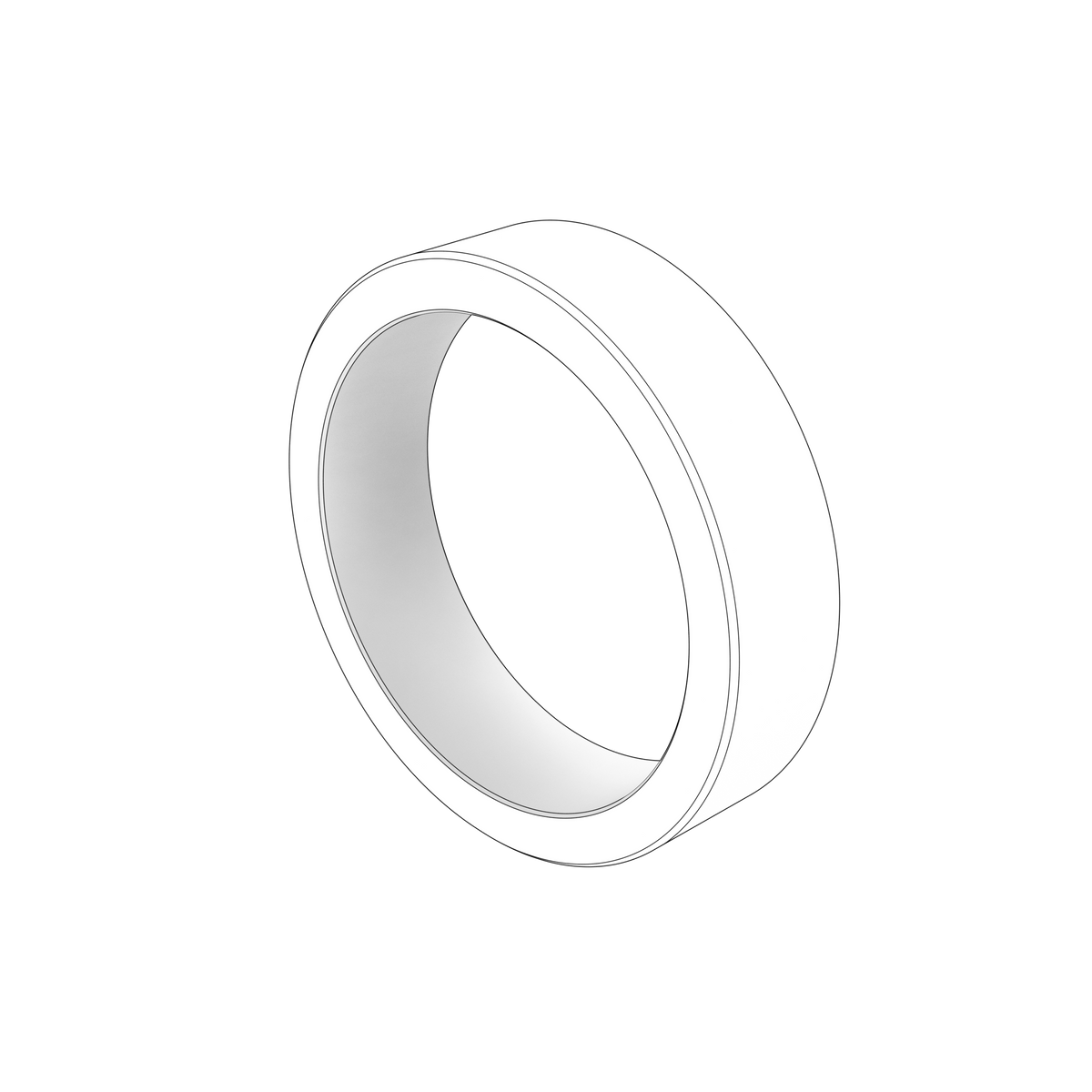

21628455 Spacer Sleeve | Genuine Volvo Penta Part

🔧 Product Description

A machined spacer sleeve used to establish the correct installed distance and alignment between the assigned Volvo Penta components.

🚤 Compatibility

• Engine Family: TAD, D

Full model list at the end of this description.

⚙️ Key Features

• Precision inside and outside diameters
• Correct OEM installed length
• Prevents fastener over-compression
• Maintains bracket, bearing or pulley alignment
• Engine- or drive-duty construction
• 6 used per assembly

🔌 Function

The sleeve controls component spacing and provides a rigid bearing surface for the mounting fastener.

⚠️ Common Signs of Failure

• Sleeve worn, oval or cracked
• Fretting at the sleeve ends
• Component misalignment
• Fastener unable to clamp correctly
• Excessive movement at the joint

🛠️ Service Notes

• A spacer sleeve sets a fixed length in the joint — never leave one out, shorten one, or substitute a stack of washers, or the clamping load and alignment will both be wrong
• Check that the sleeve is square and fully seated in its counterbore or recess before any fastener is tightened
• Discard a sleeve that is crushed, bell-mouthed, scored or corroded; a shortened sleeve lets the joint be over-clamped and the component distorted
• On sleeves in an oil circuit, make sure the bore is clear and that any seal running on the sleeve has a clean, unscored surface to work against
• Tighten the joint to the figure in the workshop manual for your engine, with the sleeve taking the clamping load rather than the component it protects

🔄 Supersession & Cross Reference

OEM Supersession Chain

• 21628455 → Supersedes 20514249

OEM / Related Numbers

• 20514249 earlier number superseded by this part

📦 Condition

• Genuine Volvo Penta part
• Brand new
• Supplied in original or equivalent packaging

🔎 Full Model Compatibility

Typically suits:

• Volvo Penta D13C1-A MP, D13C2-A MP, D13C3-A MP, D13C4-A MP, D13C6-A MP, D13C5-A MP
• Volvo Penta TAD1341-43GE-B, TAD1341VE, TAD1341GE
• Volvo Penta TAD1344-45GE-B, TAD1344VE, TAD1344GE
• Volvo Penta TAD1342VE, TAD1342GE
• Volvo Penta TAD1343VE, TAD1343GE
• Volvo Penta TAD1345GE, TAD1345VE
• Volvo Penta TAD1340VE
• Volvo Penta TAD1346GE
• Volvo Penta TAD1350VE
• Volvo Penta TAD1360-62VE
• Volvo Penta TAD1363-65VE
