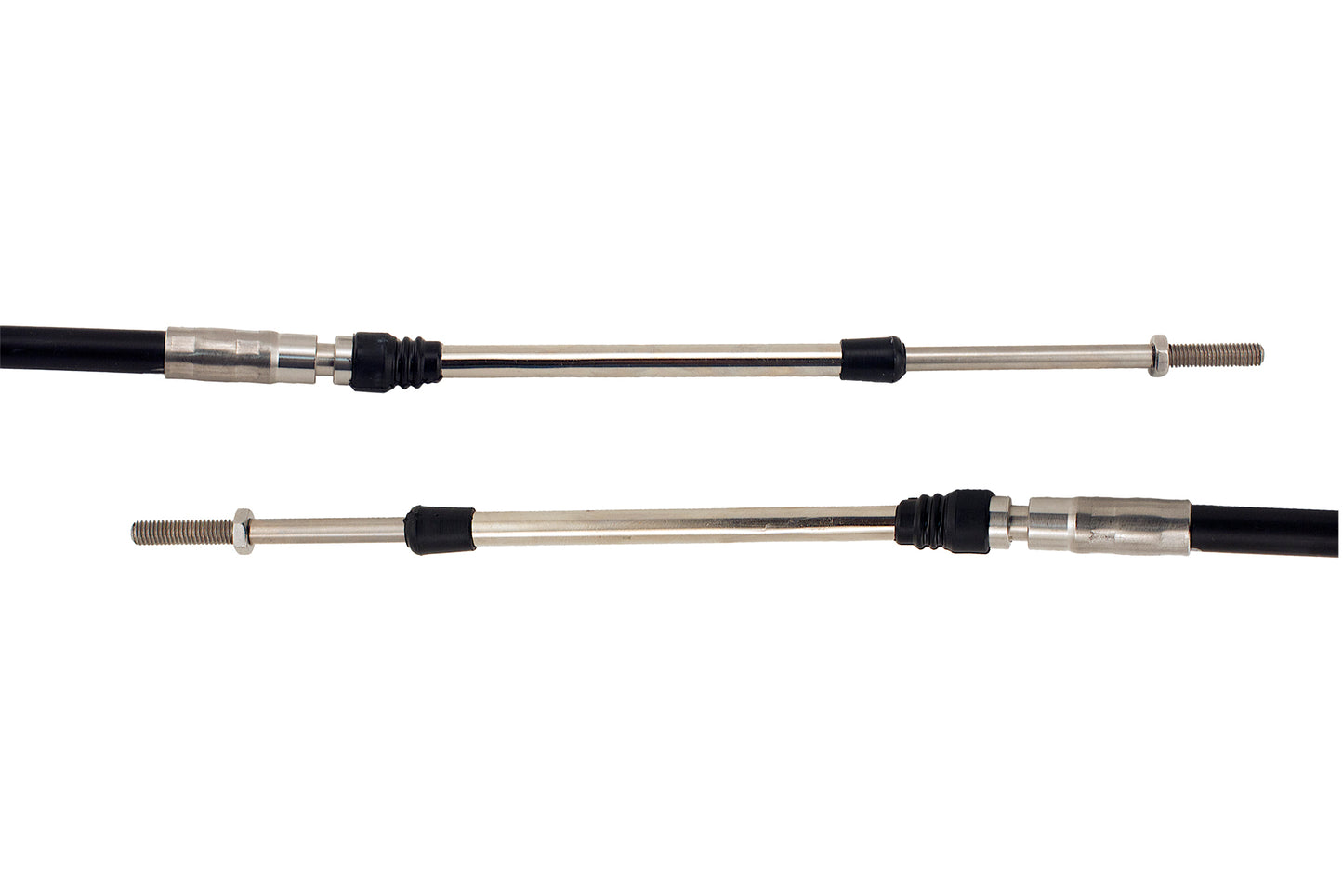

21633488 Control Cable | Genuine Volvo Penta Part

🔧 Product Description

Volvo Penta's standard control cables are manufactured of corrosion-resistant material with an outer sheath of HD polyethylene. They are designed following Volvo Penta's extremely stringent requirements for efficient operation with minimum play, and are permanently lubricated to ensure minimum friction and long service life. This is the 17 ft (5.18 m) length.

🚤 Compatibility

Typically suits:

• Volvo Penta D11B3-A MP
• Volvo Penta D11B4-A MP

• Engine Family: D

⚙️ Key Features

• Standard control cable, 17 ft (5.18 m)
• 0.93 kg
• Corrosion-resistant construction with an HD polyethylene outer sheath, permanently lubricated
• Two cables for a single-engine installation, four for a twin
• Supersedes 1140187
• Neighbouring lengths in the standard range: 21633487 is the 16 ft (4.88 m), and 21633489 is the 18 ft (5.49 m)
• Xact equivalent in this length is 21407230
• Volvo Penta Control Cable, 17 ft
• Fits Volvo Penta engine remote control systems
• One of the range covering 5 to 50 foot (1.5 - 15 metres)
• Length: 17 ft
• Range: 5 to 50 foot (1.5 - 15 metres)
• 17 ft, 5.18 m
• Corrosion-resistant material with an HD polyethylene outer sheath
• Permanently lubricated for minimum friction and long service life
• Length ft: 17
• Length m: 5.18 m
• Fits: Volvo Penta mechanical control installations

🔌 Function

Connects the helm control to the engine throttle, the reversing gear or the sterndrive shift mechanism, transmitting lever movement along a push-pull inner wire so the engine follows the control head.

⚠️ Common Signs of Failure

• Heavy or stiff at the lever, needing more force than it used to
• Lost motion at the lever before the engine or the gearbox answers
• Gear not engaging cleanly, or the throttle not reaching its stops
• Outer sheath split, kinked or chafed where the cable passes a bulkhead or bracket
• Corroded end fittings, or an inner that is stiff to work by hand once the cable is off

🛠️ Service Notes

• Measure the run in as straight a line as possible between the control mechanism and the engine or transmission connection, allow a 200 mm radius for every bend, and add 200 mm to the total; if the figure falls between two standard lengths, take the longer cable
• The cable must not be cut to size, and fewer bends mean better operation and a longer life, so order the length the run actually needs
• Supersedes 1140187, catalogued earlier as mechanical control cables - order this number if your records still show any of them
• These cables use the same connections as Control Cable 333, so they go straight onto a Volvo Penta engine remote control system in its place
• The range is supplied in fixed one-foot steps from 5 to 50 foot; order the length the run actually needs rather than cutting a cable down
• Select the exact cable length: fewer bends mean better operation and durability
• Measure in as straight a line as possible between the control mechanism and the engine or transmission connection, and allow a radius of 200 mm for every bend, so length = A + B + 200 mm
• If the measurement falls between two standard lengths, select the longer cable
• The cables must not be cut to size
• A single engine installation requires two cables and a twin installation requires four

🔄 Supersession & Cross Reference

OEM Supersession Chain

• 21633488 → Supersedes 1140187

OEM / Related Numbers

• 1140187 earlier number superseded by this part
• 21407230 - Volvo Penta Xact premium low-friction cable, 17ft

Aftermarket / Verified Equivalents

• RECMAR: PRE3300C17
• SeaStar / Teleflex: CC33017 standard 33C cable
• SeaStar / Teleflex Xtreme: CCX63317
• EDGE / Multiflex: 33C premium control cable, 17ft

📦 Condition

• Genuine Volvo Penta part
• Brand new
• Supplied in original or equivalent packaging
