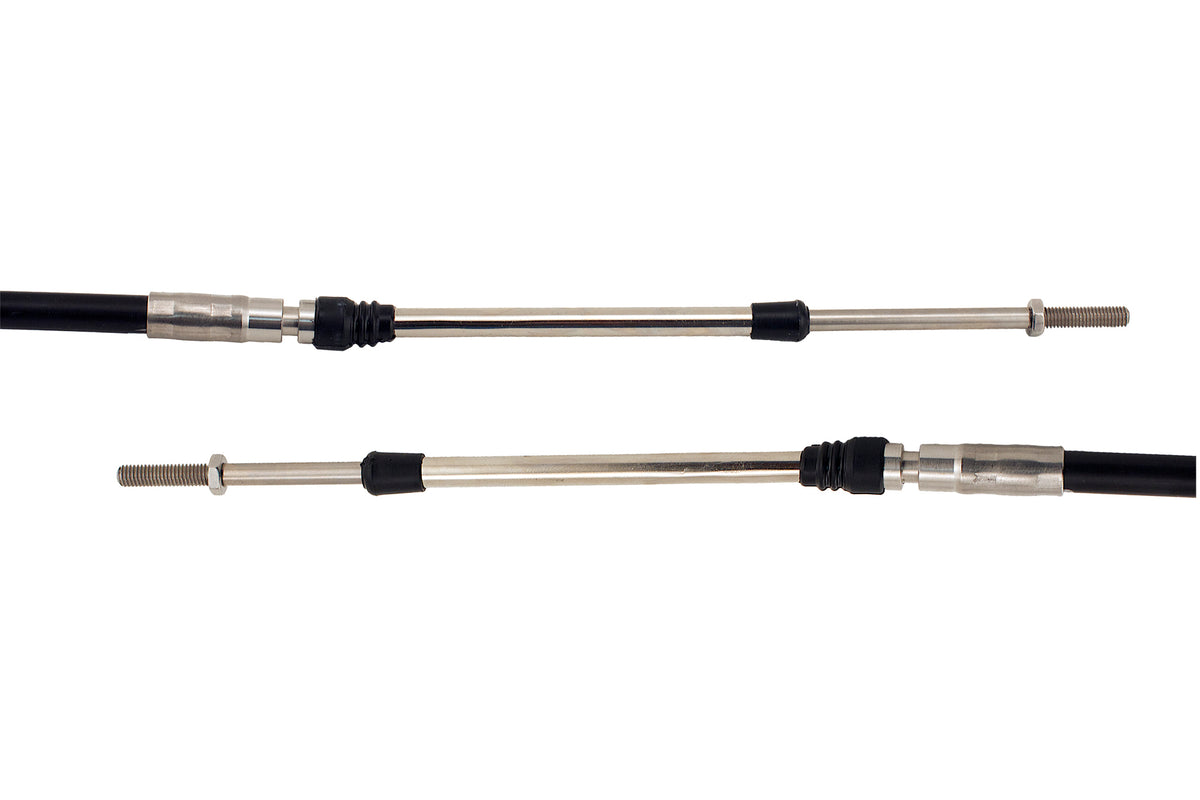

21633521 Control Cable | Genuine Volvo Penta Part

🔧 Product Description

Volvo Penta's standard control cables are manufactured of corrosion-resistant material with an outer sheath of HD polyethylene. They are designed following Volvo Penta's extremely stringent requirements for efficient operation with minimum play, and are permanently lubricated to ensure minimum friction and long service life. This is the 50 ft (15.24 m) length.

🚤 Compatibility

• Engine Family: D, TAMD, AD, TMD, MS, HS, KAMD, MD, KAD
• HP Range: 13-435 HP

Full model list at the end of this description.

⚙️ Key Features

• Standard control cable, 50 ft (15.24 m)
• 2.523 kg
• Corrosion-resistant construction with an HD polyethylene outer sheath, permanently lubricated
• A single-engine installation takes two cables and a twin installation four
• Listed for 351 applications across D, TAMD, AD, TMD, MS and HS series
• Neighbouring lengths in the same range: 21633520 is the 49 ft
• Volvo Penta Control Cable, 50 ft
• Fits Volvo Penta engine remote control systems
• One of the range covering 5 to 50 foot (1.5 - 15 metres)
• Length: 50 ft
• Range: 5 to 50 foot (1.5 - 15 metres)
• 50 ft, 15.24 m
• Corrosion-resistant material with an HD polyethylene outer sheath
• Permanently lubricated for minimum friction and long service life
• Length ft: 50
• Length m: 15.24 m
• Fits: Volvo Penta mechanical control installations

🔌 Function

Carries the helm lever's movement to the engine as a push-pull action, so throttle, reversing gear or drive shift can be worked from the wheel.

⚠️ Common Signs of Failure

• Lever stiff, notchy or needing two hands to move
• Throttle or shift lagging behind the lever, or not settling in the detent
• Outer sheath split, kinked or chafed where it passes a bulkhead
• Rust-coloured water weeping from the end fittings
• Inner wire found corroded, frayed or broken inside the outer on strip-down

🛠️ Service Notes

• Volvo Penta's own method is to measure the straightest possible line from the control mechanism to the engine or transmission connection and add 200 mm for each bend; where the answer sits between two listed lengths, order the longer one, and never cut a cable to fit
• The standard range runs from 5 ft (21633476) to 50 ft (21633521) in one-foot steps and the published weights do not climb cleanly with length, so order by the measured run rather than by mass
• The Xact range stops at 49 ft (21407262), so this length is only available as a standard cable
• These cables use the same connections as Control Cable 333, so they go straight onto a Volvo Penta engine remote control system in its place
• The range is supplied in fixed one-foot steps from 5 to 50 foot; order the length the run actually needs rather than cutting a cable down
• Select the exact cable length: fewer bends mean better operation and durability
• Measure in as straight a line as possible between the control mechanism and the engine or transmission connection, and allow a radius of 200 mm for every bend, so length = A + B + 200 mm
• If the measurement falls between two standard lengths, select the longer cable
• The cables must not be cut to size
• A single engine installation requires two cables and a twin installation requires four

🔄 Supersession & Cross Reference

Aftermarket / Verified Equivalents

• RECMAR: PRE3300C50
• SeaStar / Teleflex: CC33050 standard 33C cable
• SeaStar / Teleflex Xtreme: CCX63350
• EDGE / Multiflex: 33C premium control cable, 50ft

📦 Condition

• Genuine Volvo Penta part
• Brand new
• Supplied in original or equivalent packaging

🔎 Full Model Compatibility

Typically suits:

• Volvo Penta D6-370A-C, D6-350A-A, D6-350A-B, D6-330A-D, D6-330D-E, D6-370D-E, D6-370D-B, D6-330D-B, D6-330A-F, D6-370A-F, D6-370D-A, D6-330D-C, D6-330A-C, D6-370D-C, D6-330D-D, D6-370D-D, D6-330D-F, D6-370A-D, D6-330A-E, D6-370A-E, D6-370D-F, D6-330I-D, D6-310I-B, D6-280I-B, D6-280I-C, D6-280I-D, D6-280I-E, D6-310I-D, D6-435I-D, D6-310I-E, D6-280I-A, D6-310I-A, D6-300A-F, D6-300D-F, D6-300I-F, D6-310D-A, D6-310D-B, D6-310D-D, D6-310D-C, D6-310D-E, D6-370I-A, D6-370I-B, D6-330I-B, D6-330I-C, D6-370I-C, D6-370I-D, D6-310A-B, D6-280A-C, D6-310A-C, D6-310A-A, D6-280A-D, D6-310A-D, D6-280A-E, D6-310A-E, D6-310I-C, D6-280A-A, D6-280A-B, D6-330I-F, D6-370I-F, D6-400A-E, D6-435D-A, D6-435D-D, D6-435D-E, D6-435D-F, D6-435I-A, D6-435I-C, D6-435I-E, D6-400A-F, D6-435D-C, D6-435I-F, D6-330I-E, D6-370I-E, D6-330A-B, D6-370A-B
• Volvo Penta D4-260A-B, D4-260A-A, D4-260A-C, D4-260A-D, D4-260A-E, D4-260A-F, D4-260D-B, D4-260D-C, D4-260D-D, D4-260D-E, D4-260D-F, D4-260I-A, D4-260I-B, D4-260I-C, D4-260I-D, D4-260I-E, D4-260I-F, D4-300A-A, D4-300A-C, D4-300A-D, D4-300A-E, D4-300A-F, D4-300D-A, D4-300D-C, D4-300D-D, D4-300D-E, D4-300D-F, D4-300I-A, D4-180I-C, D4-225I-C, D4-180I-D, D4-225I-D, D4-180I-E, D4-225I-E, D4-180I-F, D4-225I-F, D4-210A-A, D4-210A-B, D4-225A-B, D4-225A-C, D4-225A-D, D4-300I-C, D4-300I-D, D4-300I-E, D4-300I-F, D4-225A-E, D4-225A-F, D4-210I-A, D4-210I-B, D4-180I-B, D4-225I-B
• Volvo Penta D3-110I-B, D3-110I-C, D3-130I-C, D3-130A-A, D3-160A-A, D3-130A-B, D3-160A-B, D3-130A-C, D3-160A-C, D3-190A-B, D3-190A-C, D3-190I-A, D3-110I-A, D3-130I-A, D3-160I-A, D3-160I-C, D3-110I-D, D3-190I-B, D3-190I-C, D3-130I-B, D3-160I-B
• Volvo Penta D11C1-A MP, D11C3-A MP, D11C2-A MP, D11C4-A MP, D11B3-A MP, D11B4-A MP, D11A-A, D11A-B, D11A-C, D11A-D, D11A-E, D11B2-A MP, D11A-C MP, D11A-D MP, D11A-E MP, D11A-C (IPS), D11B1-A MP
• Volvo Penta D2-40, D2-40B, D2-40F, D2-55, D2-55B, D2-55C, D2-55D, D2-55E, D2-55F, D2-50F, D2-75, D2-75B, D2-75C, D2-75F, D2-60F
• Volvo Penta D12C-A MP, D12D-A MH, D12D-A MP, D12D-B MH, D12D-B MP, D12D-C MH, D12D-C MP, D12D-D MP, D12D-E MH, D12D-E MP, D12D-F MP, D12D-G MH, D12D-G MP, D12D-H MP
• Volvo Penta D16C-A MH, D16C-B MH, D16C-C MH, D16C1-E MG, D16C1-F MG, D16C2-E MG, D16C2-F MG, D16C-D MH, D16C1-E MH, D16C1-F MH, D16C2-E MH, D16C2-F MH
• Volvo Penta D9A-A, D9A2J, D9A2G, D9A2D, D9A2B, D9A2F, D9A2K, D9A2H, D9A2A, D9A2C, D9A2E
• Volvo Penta D1-30, D1-30B, D1-30F, D1-13, D1-13B, D1-13F, D1-20, D1-20B, D1-20F
• Volvo Penta TAMD31L, TAMD31L-A, TAMD31M, TAMD31M-A, TAMD31P, TAMD31P-A, TAMD31S, TAMD31D, TAMD31P-B
• Volvo Penta TAMD122A, TAMD122A/C, TAMD122AF, TAMD122D, TAMD122P-A, TAMD122P-B, TAMD122P-C
• Volvo Penta TAMD74P-A, TAMD74P-B, TAMD74A, TAMD74C-A, TAMD74C-B, TAMD74L-A, TAMD74L-B
• Volvo Penta D7A-B TA, D7A-T, D7A-TA, D7C-B TA, D7C-TA, D7C-A TA
• Volvo Penta TAMD41D, TAMD41H-A, TAMD41H-B, TAMD41P-A, TAMD41P, TAMD41P-B
• Volvo Penta AD31D, AD31D-A, AD31L-A, AD31P-A, AD31XD
• Volvo Penta TAMD162C-C, TAMD162A, TAMD162B, TAMD162C, TAMD162C-B
• Volvo Penta MD2010, MD2010B, MD2010-C, MD2010-D
• Volvo Penta MD2020, MD2020B, MD2020-C, MD2020-D
• Volvo Penta MD2030, MD2030B, MD2030-C, MD2030-D
• Volvo Penta MD2040, MD2040B, MD2040-C, MD2040-D
• Volvo Penta MD22, MD22A, MD22L, MD22P
• Volvo Penta AD41D, AD41L-A, AD41P-A
• Volvo Penta D5A-B TA, D5A-T, D5A-TA
• Volvo Penta KAD44P, KAD44P-B, KAD44P-C
• Volvo Penta KAMD43P, KAMD43P-A, KAMD43P-B
• Volvo Penta KAMD44P-B, KAMD44P-C, KAMD44P-A
• Volvo Penta TAMD165A, TAMD165C, TAMD165P
• Volvo Penta TAMD72A, TAMD72P-A, TAMD72WJ-A
• Volvo Penta TMD22A, TMD22B, TMD22P-C
• Volvo Penta D41D, D41L-A
• Volvo Penta KAD42B, KAD42P-A
• Volvo Penta KAMD42B, KAMD42P-A
• Volvo Penta TAMD102A, TAMD102D
• Volvo Penta TAMD163A-A, TAMD163P-A
• Volvo Penta TAMD42WJ-A, TAMD42B
• Volvo Penta TAMD63L-A, TAMD63P-A
• Volvo Penta TAMD71B, TAMD71A
• Volvo Penta TAMD73P-A, TAMD73WJ-A
• Volvo Penta TMD31D, TMD31L-A
• Volvo Penta TMD41D, TMD41L-A
• Volvo Penta HS1A
• Volvo Penta KAD300-A
• Volvo Penta KAD32P
• Volvo Penta KAD43P-A
• Volvo Penta KAMD300-A
• Volvo Penta MS2B-A
• Volvo Penta TAMD103A
• Volvo Penta TAMD121D
• Volvo Penta TAMD22P-B
• Volvo Penta TAMD60C
• Volvo Penta TAMD61A
• Volvo Penta TAMD62A
• Volvo Penta TAMD75P-A
• Volvo Penta TMD102A
• Volvo Penta TMD121C
• Volvo Penta TMD122A
