21651097 Hose | Genuine Volvo Penta Part

21651097 Hose | Genuine Volvo Penta Part

$187.88 AUD
$187.88 AUD
Sale Sold out
Shipping calculated at checkout.

In stock — Australian warehouse

Typically reaches our store in 3–5 business days

Availability checked daily with Volvo Penta

✓ Authorised Volvo Penta Dealer · Genuine Volvo Penta parts · Ships Australia-wide

🔧 Product Description

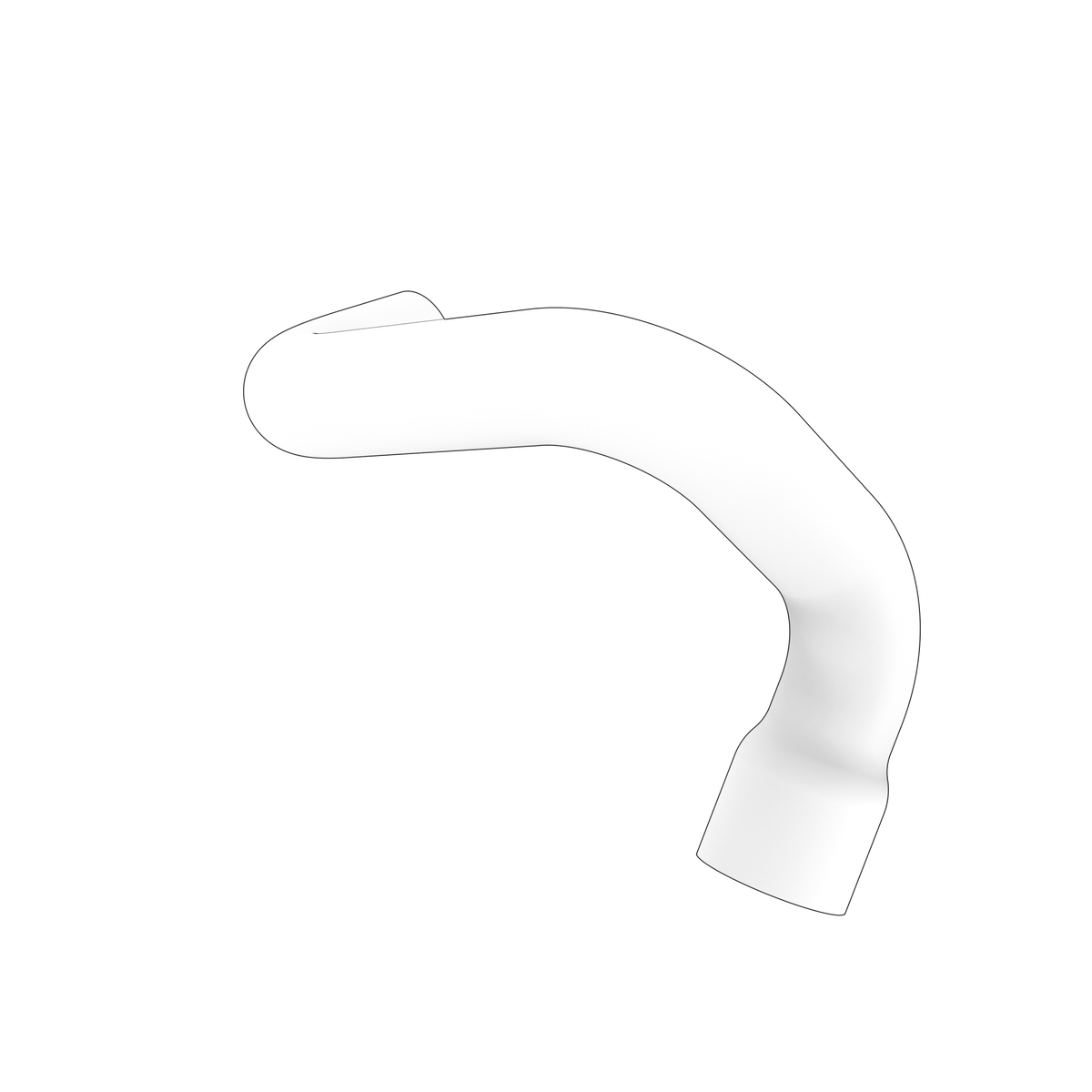

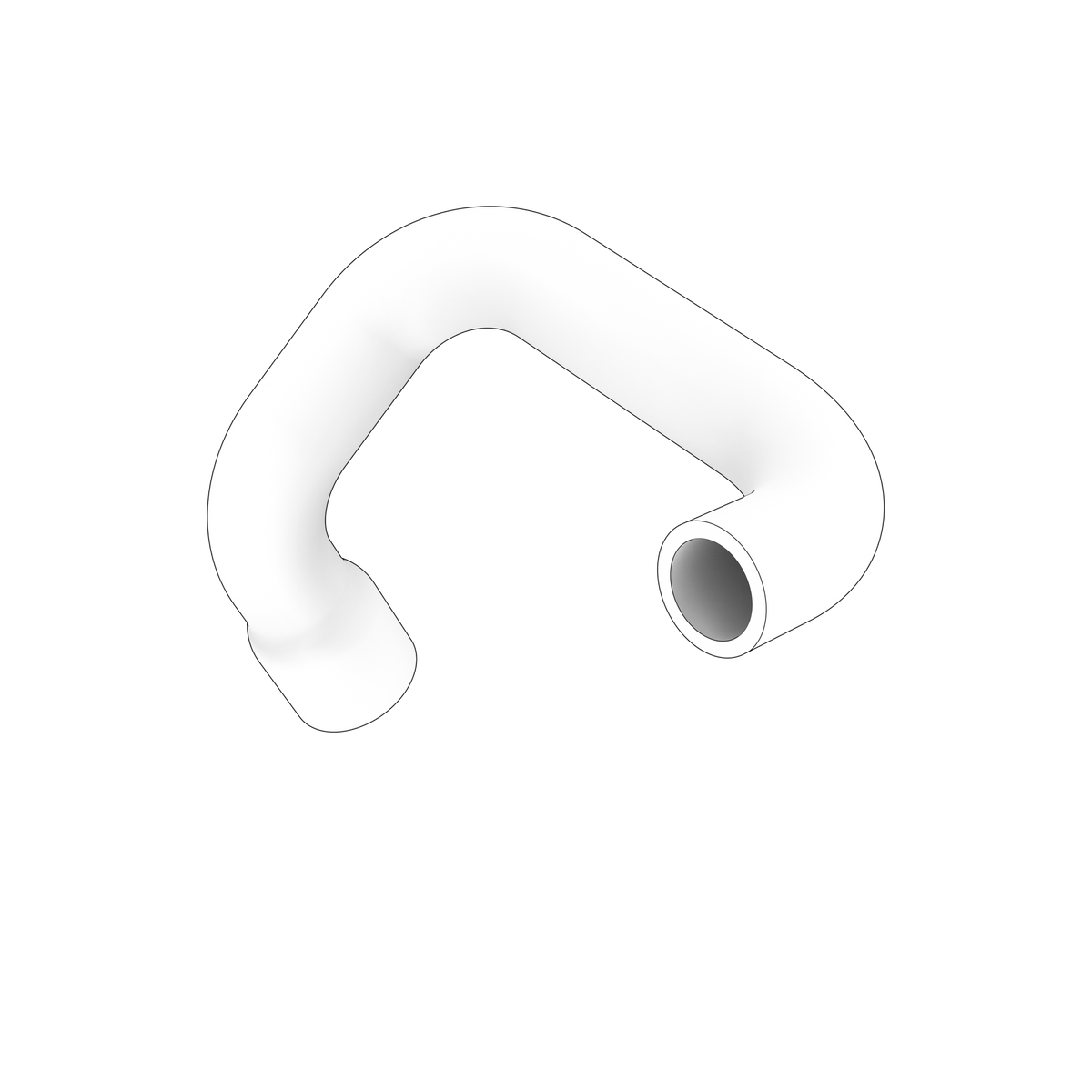

Internal raw-water intake hose used inside Volvo Penta DP-H and DP-R sterndrives. It carries seawater from the drive intake to the transom and engine cooling circuit and is a critical service item when the drive is removed.

🚤 Compatibility

Typically suits:

  • Volvo Penta DPH-D1
  • Volvo Penta D6-330A-F
  • Volvo Penta D6-370A-F
  • Volvo Penta D4-260A-F
  • Volvo Penta D4-300A-F
  • Volvo Penta D6-300A-F
  • Volvo Penta D4-225A-F
  • Volvo Penta D6-300A-G
  • Volvo Penta D6-340A-G
  • Volvo Penta D6-380A-G
  • Volvo Penta D6-400A-G
  • Volvo Penta D6-400A-F
  • Volvo Penta D4-150A-G
  • Volvo Penta D4-230A-G
  • Volvo Penta D4-270A-G
  • Volvo Penta D4-300A-G
  • Engine Family: DPH, D
  • HP Range: 150-400 HP

⚙️ Key Features

  • Genuine Volvo Penta internal water-intake hose
  • DP-H and DP-R drive application
  • Moulded for internal drive routing
  • Carries raw cooling water under pump suction
  • Documented H-1097 aftermarket replacement
  • System type: Internal sterndrive raw-water intake

🔌 Function

Transfers seawater from the sterndrive intake to the engine-mounted raw-water pump.

⚠️ Common Signs of Failure

  • Engine overheating at speed
  • Air entering the seawater pump
  • Cracked, flattened or kinked hose
  • Salt deposits or leakage inside the transom assembly
  • Poor raw-water flow

🛠️ Service Notes

  • Fit hoses only to clean, sound spigots — take off old rubber, scale and corrosion, and renew the spigot or pipe if it is pitted, because no clamp will seal a rough sealing face
  • Push the hose fully home so the clamp sits behind the bead or barb rather than over the end of the spigot, and fit new clamps whenever a hose is renewed
  • Let the hose follow its natural bend with no kinks and no tension on either connection, clear of hot surfaces and moving parts, with chafe protection wherever it passes a bracket, edge or bulkhead
  • Use the correct grade of hose for the duty, and clamp to the standard the installation demands — twin clamps are normal practice on seawater and fuel connections below the waterline
  • Refill, vent and run the engine, then check every joint hot and cold and recheck the clamps after the first running period as the hose beds down

🔄 Supersession & Cross Reference

OEM Supersession Chain

  • 21651097 → Supersedes 3808170 → Supersedes 3863345 → Supersedes 3583014

OEM / Related Numbers

  • 3808170 earlier number superseded by this part
  • 3863345 earlier number superseded by this part
  • 3583014 earlier number superseded by this part

Other-Brand OEM Numbers

  • VOE21651097

Aftermarket / Verified Equivalents

  • MarineParts H-1097

📦 Condition

  • Genuine Volvo Penta part
  • Brand new
  • Supplied in original or equivalent packaging
