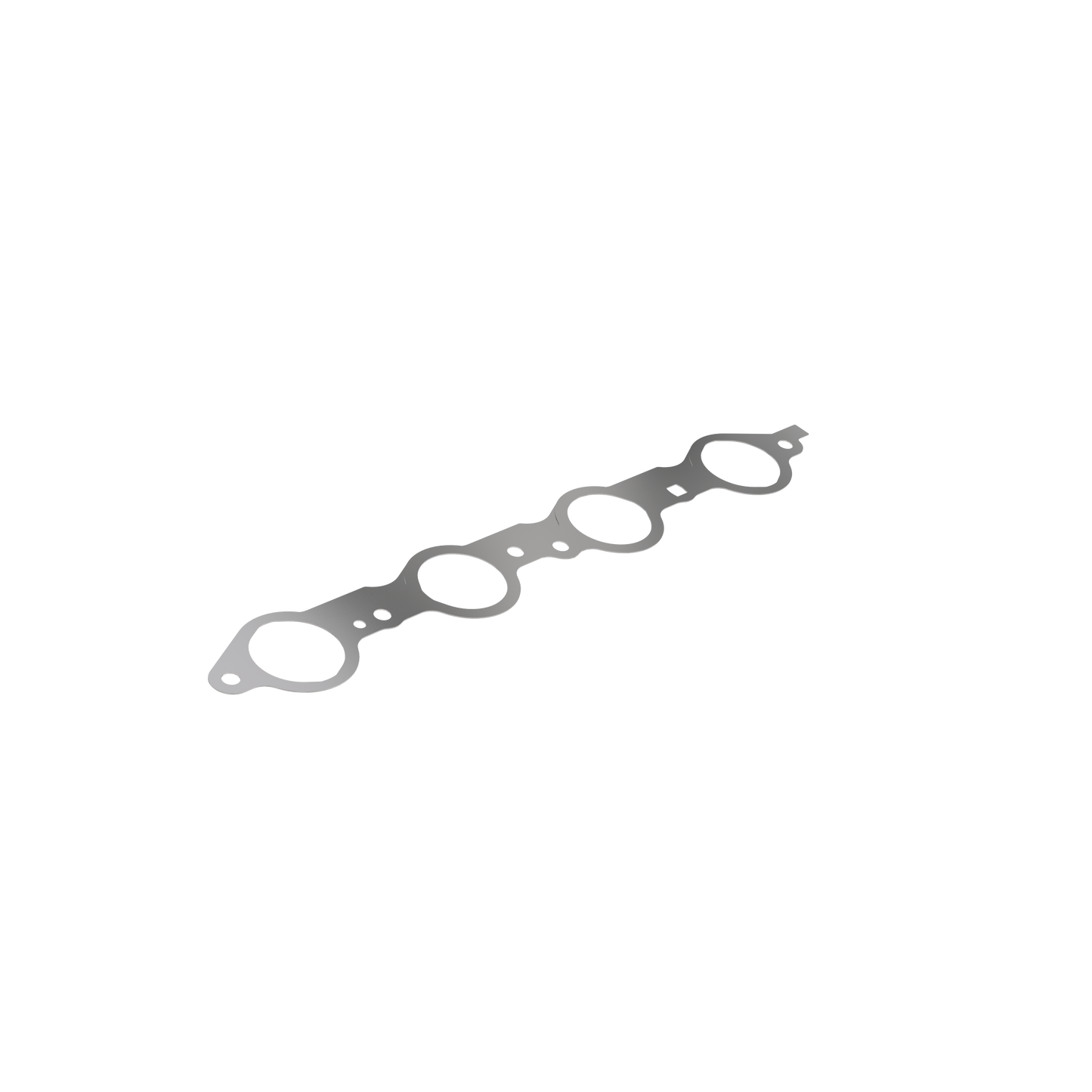

21669281 Gasket | Genuine Volvo Penta Part

🔧 Product Description

A genuine Volvo Penta sealing component used with the associated exhaust-manifold installation. It seals the specified exhaust-manifold flange and is specified for the temperature, pressure and mating geometry at that position.

🚤 Compatibility

Typically suits:

• Volvo Penta V8-380-CE-A
• Volvo Penta V8-380-C-B
• Volvo Penta V8-380-CE-B
• Volvo Penta V8-380-C-D
• Volvo Penta V8-380-CE-D
• Volvo Penta V8-430-CE-D
• Volvo Penta V8-350-C-D
• Volvo Penta V8-350-CE-D
• Volvo Penta V8-380-C-A

• Engine Family: V
• HP Range: 350-430 HP

⚙️ Key Features

• Genuine Volvo Penta position-specific seal
• Designed for exhaust heat or the assigned fluid
• Prevents leakage at the mating joint
• Engine type: Turbocharged Volvo Penta marine or industrial diesel
• 2 used per assembly

🔌 Function

Seals the specified exhaust-manifold flange, preventing gas or fluid leakage and preserving joint pressure.

⚠️ Common Signs of Failure

• Soot, oil or coolant seepage
• Gasket blowout or O-ring extrusion
• Hardening, cracking or flattening
• Recurring leakage from warped mating faces
• Heat damage around the joint

🛠️ Service Notes

• Fit a new gasket every time the joint is disturbed — a gasket takes a permanent set once it has been torqued and will not seal reliably a second time
• Scrape both faces back to clean bare metal, keeping the blade at a shallow angle so it lifts the old material without gouging the surface, and use a plastic scraper on aluminium castings
• Check the faces for flatness, cracks and corrosion pitting, and make sure no old gasket, carbon or hardened sealant is left in the corners or around the bolt holes
• Fit the gasket dry unless the workshop manual for your engine calls for a sealant, and then only the type it specifies — surplus sealant squeezes out into oil, coolant and fuel passages
• Draw the fasteners down progressively in the sequence and to the torque given in the manual for your engine, and recheck after the first heat cycle where the manual asks for it

🔄 Supersession & Cross Reference

OEM / Related Numbers

• 21669277 - associated exhaust manifolds
• 21669279 - associated exhaust manifolds
• 21669297 - associated O-ring

📦 Condition

• Genuine Volvo Penta part
• Brand new
• Supplied in original or equivalent packaging
