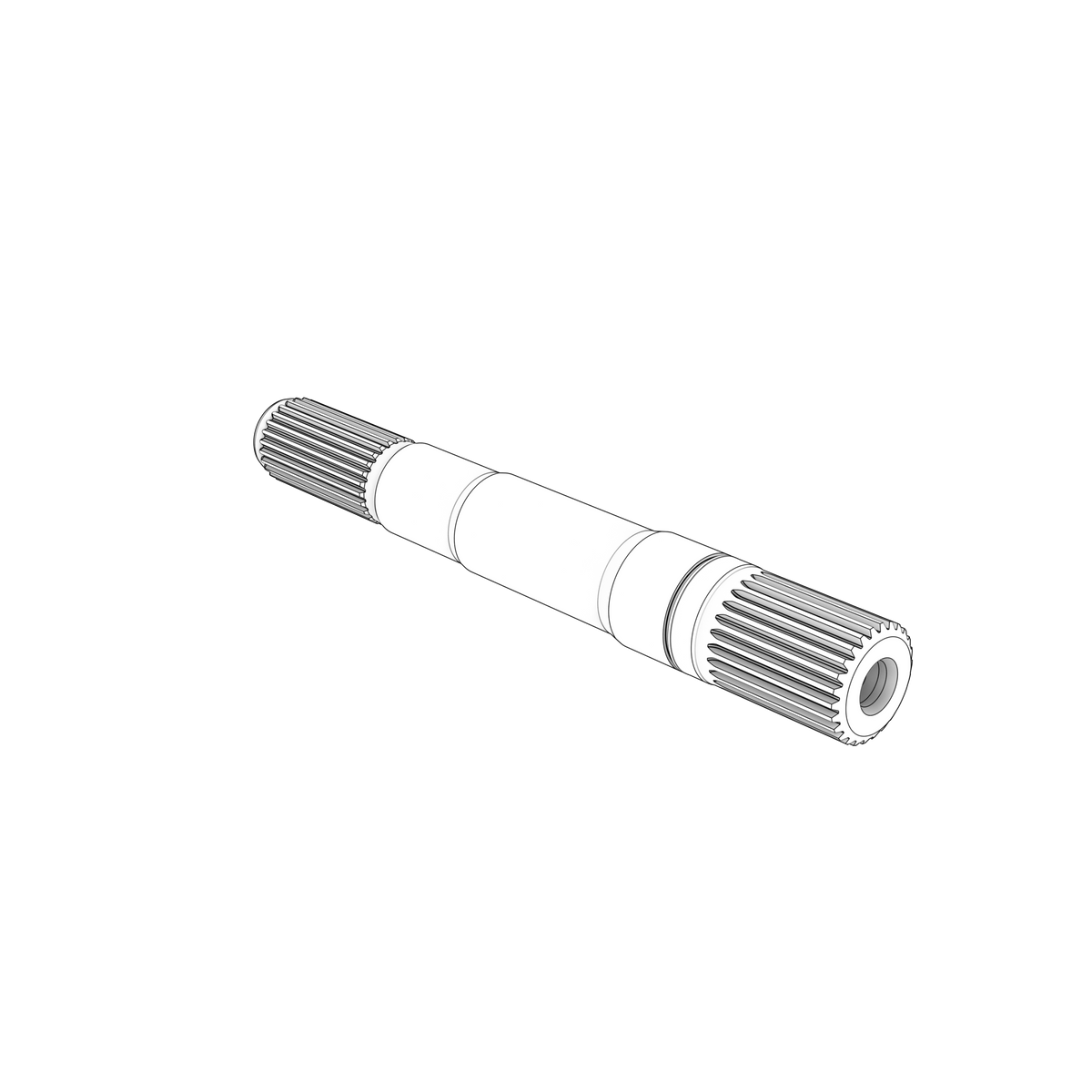

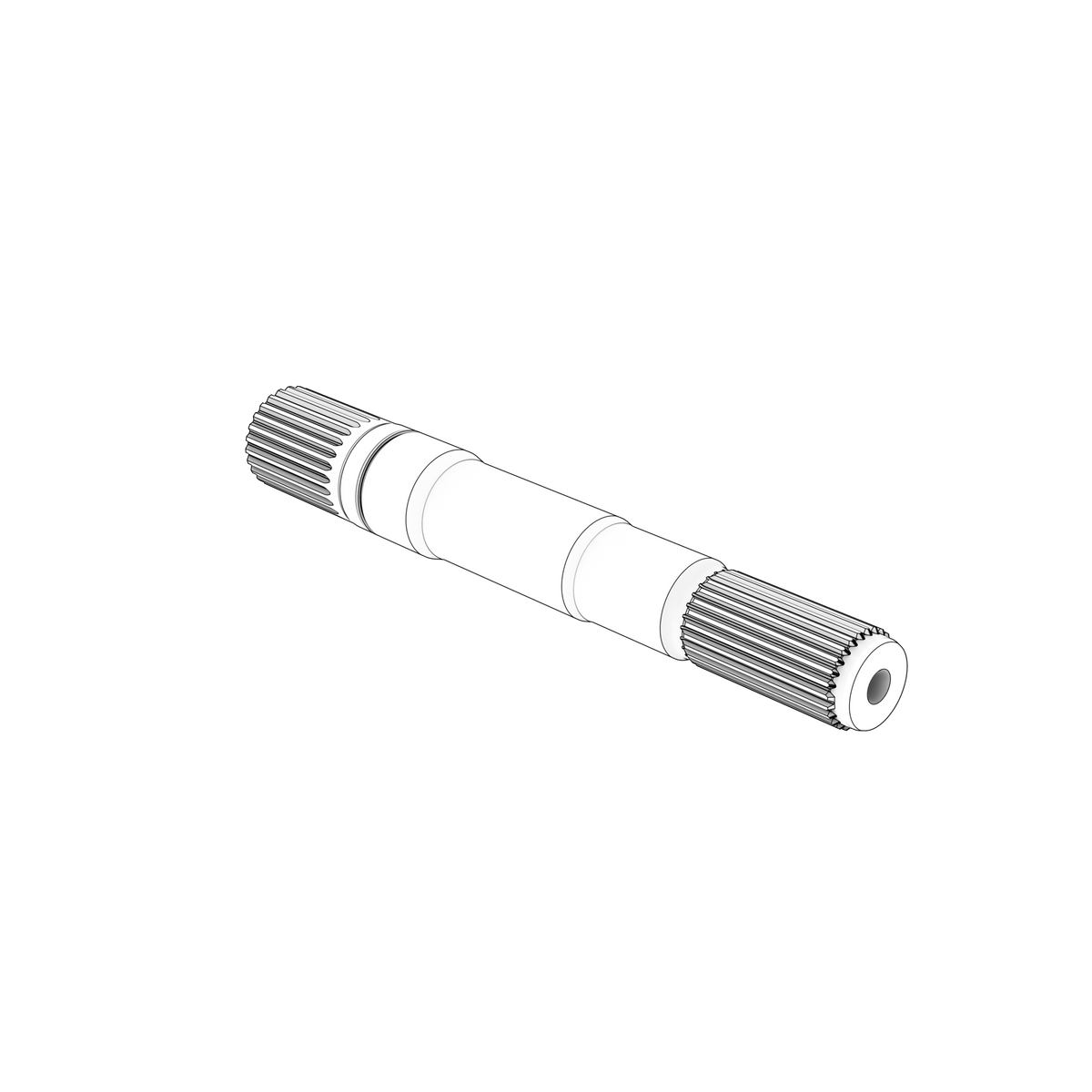

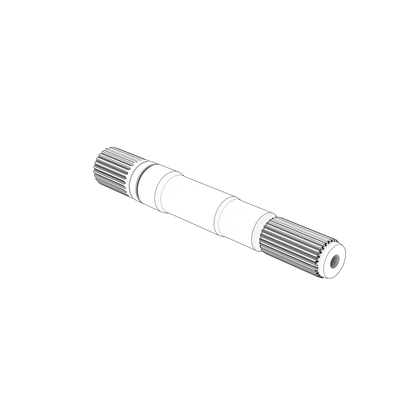

21736958 Shaft | Genuine Volvo Penta Part

🔧 Product Description

A genuine Volvo Penta shaft used in Volvo Penta TAD8 timing-gear and auxiliary-drive systems. It is manufactured to the factory dimensions and operating specification for the catalogued installation.

🚤 Compatibility

• Engine Family: DPH, D, TSK, DPR
• HP Range: 150-435 HP
• Year Range: Approximately 2010 - 2021

Full model list at the end of this description.

⚙️ Key Features

• Marine Propulsion group shaft, 1.447 kg
• Supersedes part number 3588815
• Listed for 152 applications across DPH, DPR, TSK and D series

🔌 Function

Transmits drive as a rotating shaft within the sterndrive and transom installation, carrying torque between the components it splines or keys into.

⚠️ Common Signs of Failure

• Vibration through the hull that changes with drive speed rather than engine speed
• Clonk on taking up drive, or on the change between ahead and astern
• Rumble or grinding from the drive that worsens under load
• Splines rounded, the shaft scored at a bearing or seal land, or run-out found once the drive is stripped

🛠️ Service Notes

• It supersedes 3588815, so a drive listed with the earlier number takes this shaft
• Renew the seals and check the bearings the shaft runs in before reassembly, since a scored seal land will destroy a new seal
• The published description for this number places it in the engine timing train, which does not match its Marine Propulsion grouping or its DPH, DPR and TSK fitment: confirm the application against the drive's parts list for your engine

🔄 Supersession & Cross Reference

OEM Supersession Chain

• 21736958 → Supersedes 3588815

OEM / Related Numbers

• 3588815 earlier number superseded by this part

📦 Condition

• Genuine Volvo Penta part
• Brand new
• Supplied in original or equivalent packaging

🔎 Full Model Compatibility

Typically suits:

• Volvo Penta D6-370A-C, D6-350A-A, D6-350A-B, D6-330A-D, D6-330D-E, D6-370D-E, D6-370D-B, D6-330D-B, D6-330A-F, D6-370A-F, D6-370D-A, D6-330D-C, D6-330A-C, D6-370D-C, D6-330D-D, D6-370D-D, D6-330D-F, D6-370A-D, D6-330A-E, D6-370A-E, D6-370D-F, D6-330I-D, D6-310I-B, D6-280I-B, D6-280I-C, D6-280I-D, D6-280I-E, D6-310I-D, D6-435I-D, D6-310I-E, D6-280I-A, D6-310I-A, D6-300A-F, D6-300D-F, D6-300I-F, D6-310D-A, D6-310D-B, D6-310D-D, D6-310D-C, D6-310D-E, D6-370I-A, D6-370I-B, D6-330I-B, D6-330I-C, D6-370I-C, D6-370I-D, D6-310A-B, D6-280A-C, D6-310A-C, D6-310A-A, D6-280A-D, D6-310A-D, D6-280A-E, D6-310A-E, D6-310I-C, D6-280A-A, D6-280A-B, D6-300A-G, D6-340A-G, D6-380A-G, D6-400A-G, D6-330I-F, D6-370I-F, D6-400A-E, D6-435D-A, D6-435D-D, D6-435D-E, D6-435D-F, D6-435I-A, D6-435I-C, D6-435I-E, D6-400A-F, D6-435D-C, D6-435I-F, D6-330I-E, D6-370I-E, D6-330A-B, D6-370A-B
• Volvo Penta D4-260A-B, D4-260A-A, D4-260A-C, D4-260A-D, D4-260A-E, D4-260A-F, D4-260D-B, D4-260D-C, D4-260D-D, D4-260D-E, D4-260D-F, D4-260I-A, D4-260I-B, D4-260I-C, D4-260I-D, D4-260I-E, D4-260I-F, D4-300A-A, D4-300A-C, D4-300A-D, D4-300A-E, D4-300A-F, D4-300D-A, D4-300D-C, D4-300D-D, D4-300D-E, D4-300D-F, D4-300I-A, D4-180I-C, D4-225I-C, D4-180I-D, D4-225I-D, D4-180I-E, D4-225I-E, D4-180I-F, D4-225I-F, D4-210A-A, D4-210A-B, D4-225A-B, D4-225A-C, D4-225A-D, D4-300I-C, D4-300I-D, D4-300I-E, D4-300I-F, D4-225A-E, D4-225A-F, D4-210I-A, D4-210I-B, D4-180I-B, D4-225I-B, D4-150A-G, D4-230A-G, D4-270A-G, D4-320A-G, D4-300A-G
• Volvo Penta TSK DPH, TSK DP-H, TSK DP-H/DPR, TSK DPH-A, TSK DPH-AP, TSK DPH-AS, TSK DPH-B, TSK DPH-BP, TSK DPH-BS, TSK DPH-C, TSK DPH-E, TSK DPH-D
• Volvo Penta DPH-D1, DPH-A, DPH-C
• Volvo Penta DPR-A, DPR-C, DPR-B
