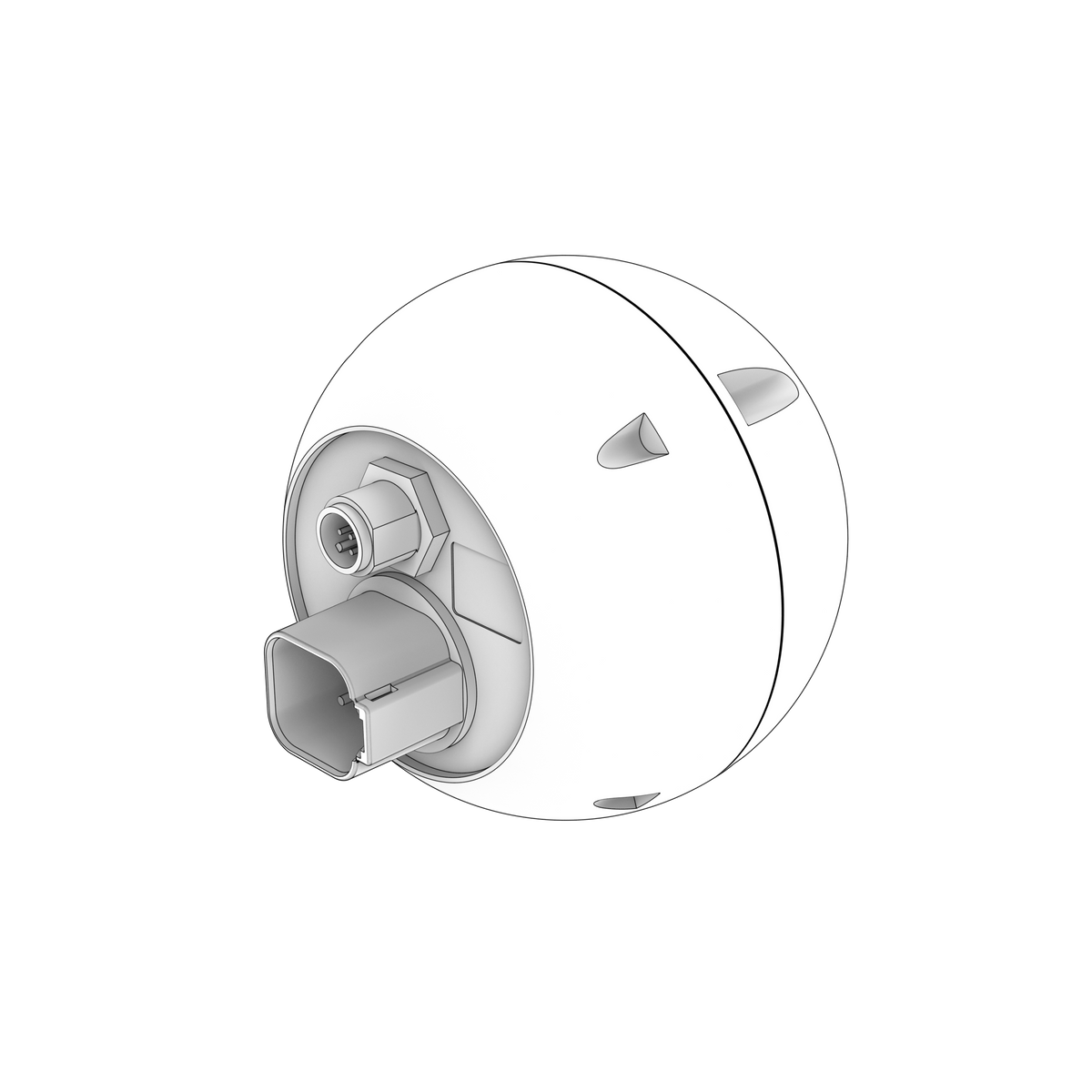

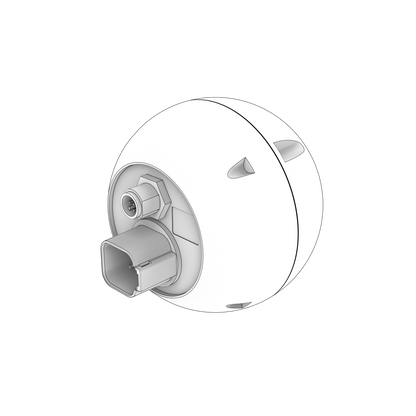

21812209 Compass Kit | Genuine Volvo Penta Part

🔧 Product Description

A genuine Volvo Penta heading-sensor package for compatible EVC-E3 autopilot installations. The electronic compass supplies vessel heading and rate information to the integrated steering and autopilot system.

🚤 Compatibility

• Engine Family: V, D
• HP Range: 110-480 HP
• Year Range: Approximately 2010s

Full model list at the end of this description.

⚙️ Key Features

• Genuine EVC-E autopilot heading sensor
• Marine-sealed electronic compass assembly
• Designed for integration with Volvo Penta steering and EVC networks
• Provides heading data for autopilot and course keeping
• Requires correct mounting orientation and system calibration
• Engine type: Volvo Penta EVC-E3 electronically controlled marine propulsion system

📋 Kit Contents

• Electronic compass / heading-sensor assembly - Volvo Penta 21812209
• Matched connection lead and mounting hardware - supplied with kit 21812209; individual kit numbers are not published in the indexed accessory listing
• Installation and calibration instructions - supplied according to market version

🔌 Function

The compass measures vessel heading and movement so the autopilot can compare actual course with commanded course and make steering corrections.

⚠️ Common Signs of Failure

• Autopilot cannot acquire or hold heading
• Heading displayed at the helm is incorrect or unstable
• Compass calibration repeatedly fails
• Network does not detect the sensor
• Magnetic interference or water damage affects the compass

🛠️ Service Notes

• The kit bundles more than the compass head: a Multiflex cable (3886666), an NMEA 2000 power cable (21812205), an NMEA 2000 T-connector (21812195) and a 2 m NMEA cable (21812194) are all included — if only a cable or connector needs renewing after fitting, order that item alone rather than the whole kit again
• Mount it well clear of speakers, large ferrous masses and any other compass, and run the calibration procedure for your EVC generation once it is wired in

📦 Condition

• Genuine Volvo Penta part
• Brand new
• Supplied in original or equivalent packaging

🔎 Full Model Compatibility

Typically suits:

• Volvo Penta D6-330A-F, D6-370A-F, D6-330D-F, D6-370D-F, D6-300A-F, D6-300D-F, D6-300I-F, D6-340I-G, D6-380I-G, D6-440I-G, D6-480I-G, D6-300A-G, D6-340A-G, D6-380A-G, D6-440I-WJ-G, D6-480I-WJ-G, D6-300D-G, D6-340D-G, D6-380D-G, D6-440D-G, D6-480D-G, D6-400A-G, D6-440A-G, D6-300I-G, D6-330I-F, D6-370I-F, D6-435D-F, D6-400A-F, D6-435I-F
• Volvo Penta D4-260A-F, D4-260D-F, D4-260I-F, D4-300A-F, D4-300D-F, D4-180I-F, D4-225I-F, D4-300I-F, D4-225A-F, D4-175I-G, D4-230I-G, D4-270I-G, D4-320I-G, D4-300I-G, D4-230A-G, D4-270A-G, D4-320A-G, D4-300A-G, D4-145I-G
• Volvo Penta V8-300-CE-M, V8-350-CE-M, V8-300-CE-N, V8-350-CE-N, V8-380-CE-M, V8-350-CE-J, V8-430-CE-M, V8-300-CE-K, V8-350-CE-K, V8-380-CE-K, V8-430-CE-K, V8-300-CE-P, V8-350-CE-P, V8-380-CE-P, V8-300-CE-J, V8-380-CE-N, V8-430-CE-N, V8-430-CE-P
• Volvo Penta D13C1-A MP, D13C2-A MP, D13C3-A MP, D13C4-A MP, D13B-E MH, D13B-E MH (FE), D13B-N MH, D13B-N MH (FE), D13C6-A MP, D13C1-A MH, D13C5-A MP
• Volvo Penta D3-110I-H, D3-140A-H, D3-170A-H, D3-200A-H, D3-220A-H, D3-150I-H, D3-170I-H, D3-200I-H, D3-220I-H
• Volvo Penta D8A5-A MH, D8A6-A MH, D8A1-A MP, D8A2-A MP, D8A3-A MP, D8A4-A MP
• Volvo Penta V6-200-CE-P, V6-250-CE-P, V6-280-CE-P, V6-250-CE-R, V6-280-CE-R
• Volvo Penta D11B3-A MP, D11B4-A MP, D11B2-A MP, D11B1-A MP
• Volvo Penta D9A2L MH, D9A2M MP
