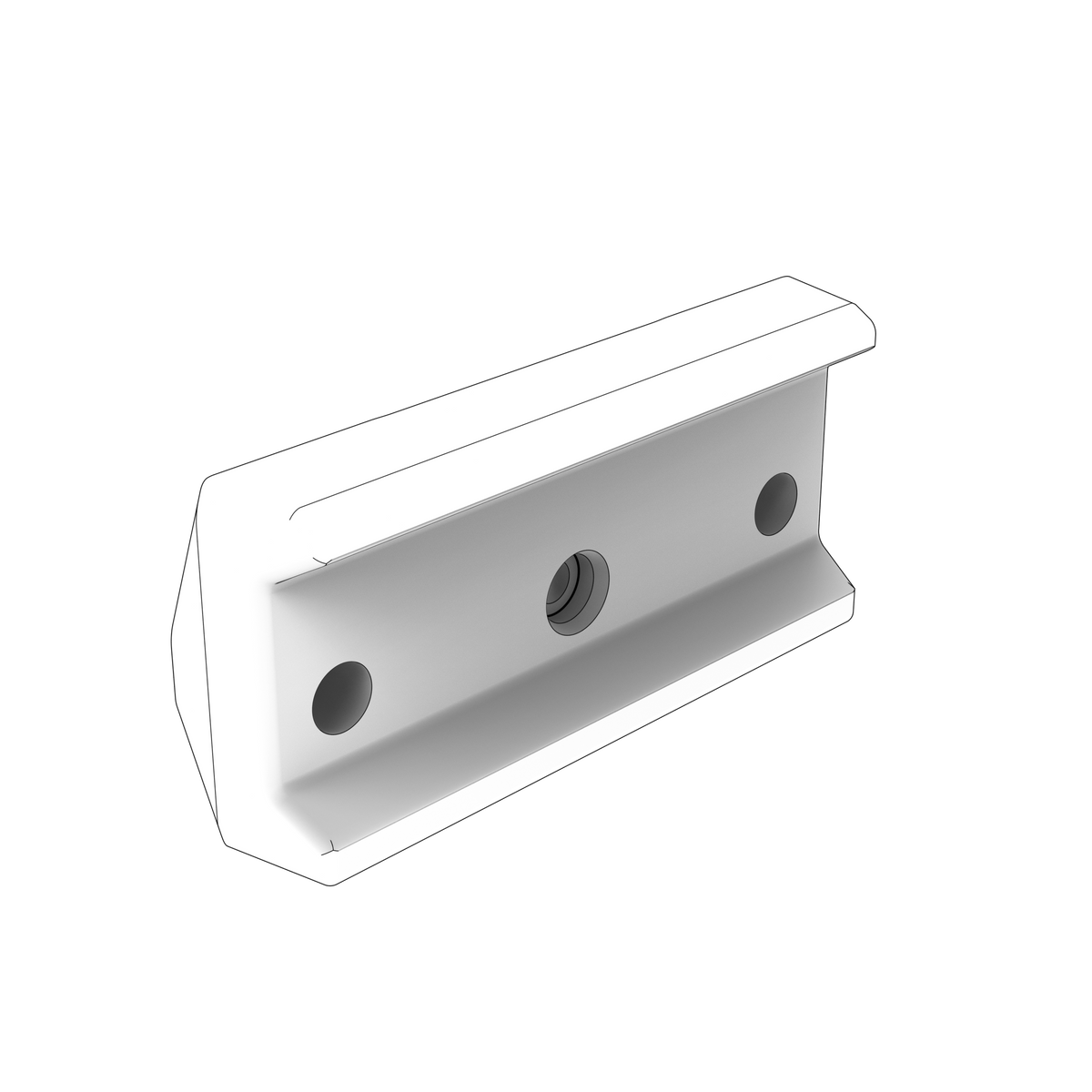

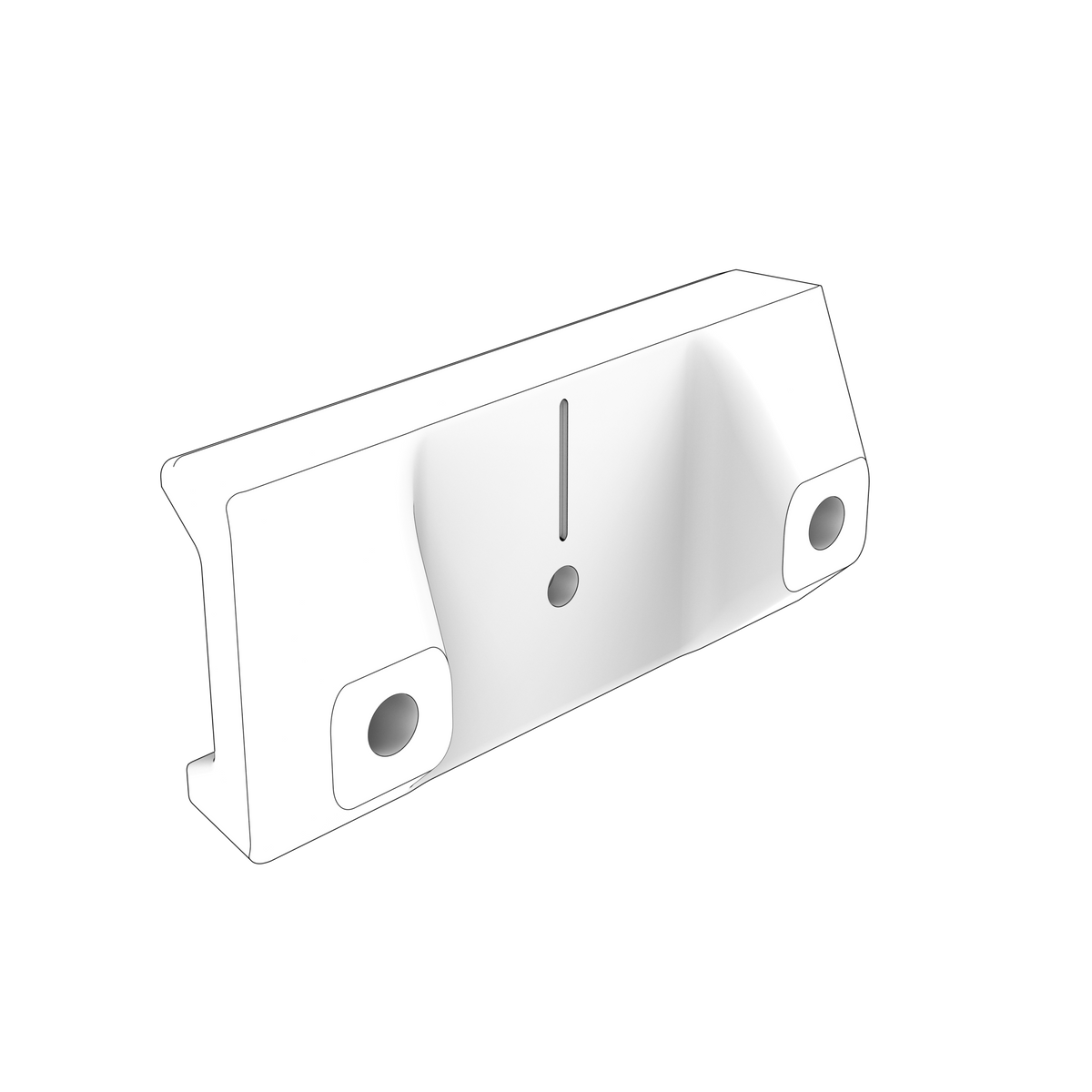

21814240 Lock Brace | Genuine Volvo Penta Part

🔧 Product Description

Lock brace securing the charge-air cooler in the D8A1-A marine installation. It prevents movement under boost pressure, vibration and vessel motion.

🚤 Compatibility

Typically suits:

• Volvo Penta D8A2-A MP
• Volvo Penta D8A5-A MH
• Volvo Penta D8A6-A MH
• Volvo Penta D8A5-A MG
• Volvo Penta D8A6-A MG
• Volvo Penta D8A4-A MP
• Volvo Penta D8A1-A MP
• Volvo Penta D8A3-A MP

• Engine Family: D

⚙️ Key Features

• Application-specific brace geometry
• Prevents component movement
• Maintains alignment under vibration
• Designed for original fasteners
• Exact schematic position required
• 2 used per assembly

🔌 Function

Locks the charge-air cooler in its designed position under vibration and boost load.

⚠️ Common Signs of Failure

• Cracking or bending
• Elongated holes
• Fretting or movement marks
• Component displacement

🛠️ Service Notes

• Fit a new lock brace rather than reusing the old one — a locking device that has already been formed or clamped into place has lost its grip and may not hold a second time
• Tighten the fastener to the torque given in the workshop manual for your engine first, then secure the lock brace against it; the locking device is never what pulls the joint up
• Check the brace engages fully and sits flat against its abutment, with nothing trapped underneath and no gap that would let the fastener move
• Inspect the brace and its seating for cracks, corrosion and distortion, and confirm the fastener it secures is the correct one for that joint
• Check the locking arrangement whenever the assembly is opened up, and again after the first period of running following any work

🔄 Supersession & Cross Reference

OEM / Related Numbers

• 22497596 - charge-air-cooler references
• 23025189 - charge-air-cooler references
• 23330571 - charge-air-cooler references
• 21889243 - flange
• 22574528 - connecting pipe

📦 Condition

• Genuine Volvo Penta part
• Brand new
• Supplied in original or equivalent packaging
