21829326 Spinner | Genuine Volvo Penta Part
21829326 Spinner | Genuine Volvo Penta Part
Couldn't load pickup availability
In stock — Australian warehouse
Typically reaches our store in 3–5 business days
Availability checked daily with Volvo Penta
✓ Authorised Volvo Penta Dealer · Genuine Volvo Penta parts · Ships Australia-wide
🔧 Product Description

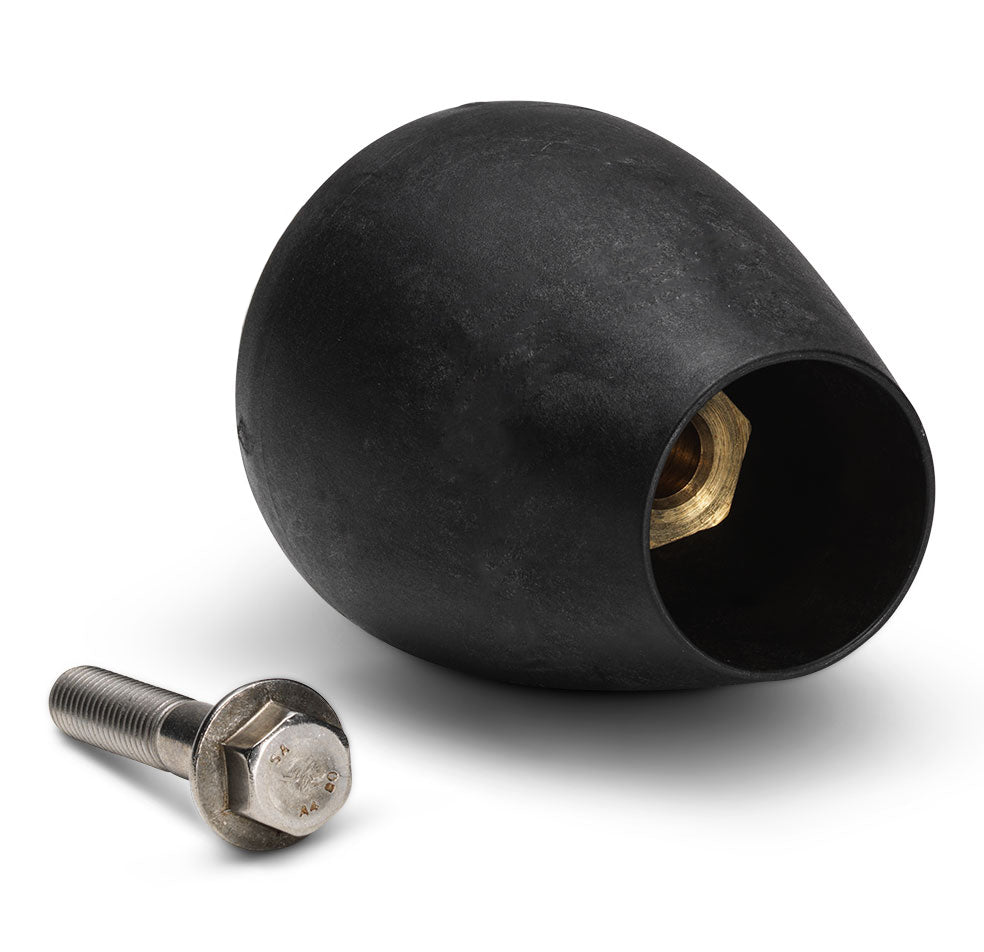

Genuine Volvo Penta propeller cone kit, including the propeller cone with integrated rear propeller nut and lock bolt 991609. The folder lists it as installation hardware, Duoprop type G, DPH drives.
🚤 Compatibility
Typically suits:
- Volvo Penta DPH-D1
- Volvo Penta D6-330A-F
- Volvo Penta D6-370A-F
- Volvo Penta D4-260A-F
- Volvo Penta D4-300A-F
- Volvo Penta D6-300A-F
- Volvo Penta D4-225A-F
- Volvo Penta D6-300A-G
- Volvo Penta D6-340A-G
- Volvo Penta D6-380A-G
- Volvo Penta DPH-E
- Volvo Penta D6-400A-G
- Volvo Penta D6-400A-F
- Volvo Penta D4-150A-G
- Volvo Penta D4-230A-G
- Volvo Penta D4-270A-G
- Volvo Penta D4-300A-G
- Engine Family: DPH, D
- HP Range: 150-400 HP
⚙️ Key Features
- Drive-specific internal thread / seating
- Streamlined hydrodynamic profile
- Works with specified retaining hardware
- Corrosion-resistant marine construction
- Drive serial and propeller system must match
- Propeller cone kit, including the propeller cone with integrated rear propeller nut and lock bolt 991609.
- Installation hardware, Duoprop type G, DPH drives.
🔌 Function
Secures the rear propeller hardware and provides a streamlined cone at the end of the DPH shaft.
⚠️ Common Signs of Failure
- Cracks or impact deformation
- Will not seat against propeller hardware
- Loosening in service
🛠️ Service Notes
- The cone is part of the propeller assembly, so only work on it with the drive shut down and the propellers safely immobilised, and ideally with the boat out of the water
- Clean the shaft, the cone seat and the threads, and check the seat and any bushing or ring for wear, cracking or corrosion before fitting
- Fit the cone with all of its original small parts — washer, ring and nut arrangement — in the correct order, renewing anything damaged or corroded
- Tighten the retaining nut to the figure and by the locking method given in the workshop manual for your drive, and confirm the lock is properly engaged before the boat goes back in
- Check the cone for security at each haul-out, and look over the anodes and shaft seals while you have it apart
- This propeller cone has an integrated rear propeller nut and replaces the previous propeller cone with a separate rear propeller nut.
- For the previous version DPH drives, DPH-A to DPH-C, the propeller cone has a separate rear propeller nut, part number 3863213.
🔄 Supersession & Cross Reference
OEM Supersession Chain
- 21829326 → Supersedes 3807136
OEM / Related Numbers
- 3807136 earlier number superseded by this part
- 21829324 - related propeller spinner reference
- 991609 - spinner retaining screw
- 23553896 - lower-gear sealing-ring kit
- 22123612-22123618 - related DPH lower-gear assembly references
📦 Condition
- Genuine Volvo Penta part
- Brand new
- Supplied in original or equivalent packaging
