21831047 Pump | Genuine Volvo Penta Part
21831047 Pump | Genuine Volvo Penta Part
Couldn't load pickup availability
In stock — Australian warehouse
Typically reaches our store in 2–3 business days
Availability checked daily with Volvo Penta
✓ Authorised Volvo Penta Dealer · Genuine Volvo Penta parts · Ships Australia-wide
🔧 Product Description

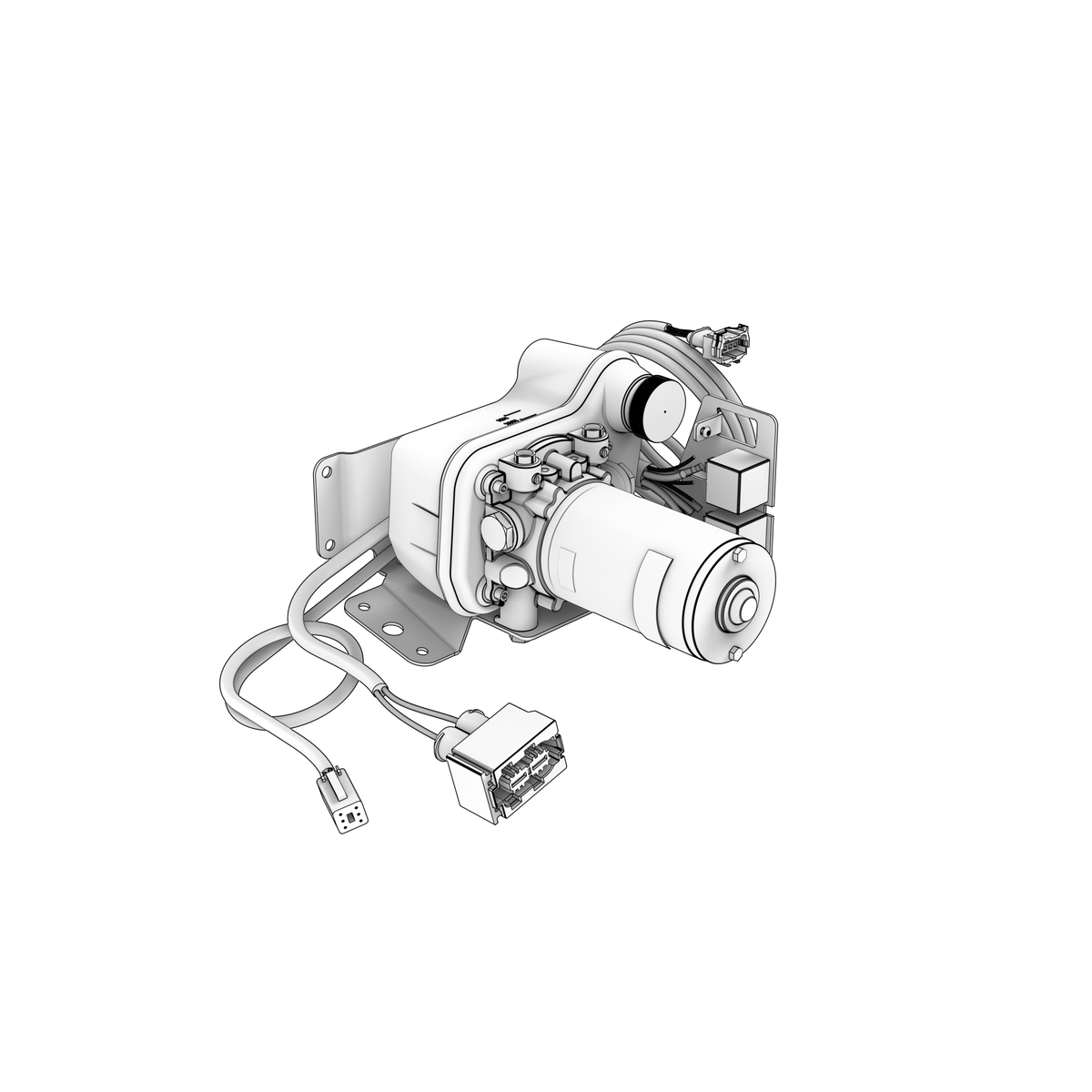

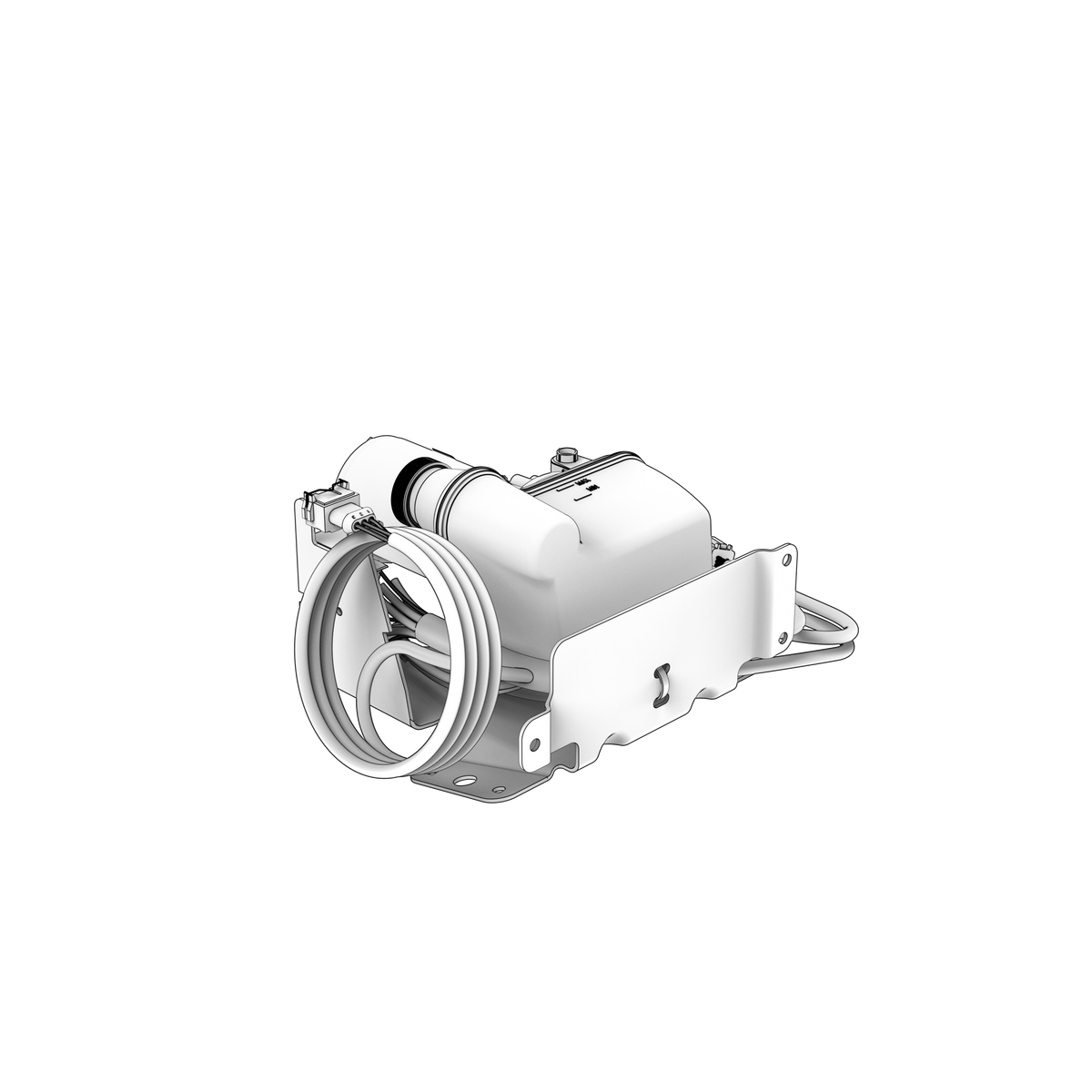

Electro-hydraulic trim pump for DPH-C sterndrives. The unit pressurises the trim cylinders to raise, lower and hold the drive at the commanded angle.
🚤 Compatibility
Typically suits:
- Volvo Penta DPH-D1
- Volvo Penta D6-330A-F
- Volvo Penta D6-370A-F
- Volvo Penta D4-260A-F
- Volvo Penta D4-300A-F
- Volvo Penta D6-300A-F
- Volvo Penta D4-225A-F
- Volvo Penta D6-300A-G
- Volvo Penta D6-340A-G
- Volvo Penta D6-380A-G
- Volvo Penta D6-400A-G
- Volvo Penta D6-400A-F
- Volvo Penta DPR-D
- Volvo Penta D4-150A-G
- Volvo Penta D4-230A-G
- Volvo Penta D4-270A-G
- Volvo Penta D4-300A-G
- Engine Family: DPH, D, DPR
- HP Range: 150-400 HP
⚙️ Key Features
- System-specific flow and pressure
- Matched ports and connections
- Designed for original electrical / mechanical drive
- Product and serial number must match
🔌 Function
Generates and controls hydraulic pressure for sterndrive trim movement.
⚠️ Common Signs of Failure
- Low flow or pressure
- Leakage at shaft, housing or ports
- Abnormal pump noise
- Intermittent or failed electrical operation
- Overheating or slow system response
🛠️ Service Notes
- Establish why the old pump failed before the new one goes on — debris, a blocked strainer, a starved supply or a dry run will take out the replacement just as quickly
- Fit new gaskets, O-rings and seals on the pump's joint faces and drive, with the faces clean, and use only the sealant the workshop manual for your engine specifies
- Check the drive and the shaft it runs on — coupling, gear, key, belt or drive dog — while access is good, and renew anything doubtful
- Prime or fill the pump as the manual for your engine directs, bleed the system afterwards, and confirm it is actually delivering before the boat leaves
- Tighten mounting and cover fasteners evenly to the manual's figures; pump housings distort easily, and a distorted housing either leaks or binds
🔄 Supersession & Cross Reference
OEM Supersession Chain
- 21831047 → Supersedes 21692435 → Supersedes 3818340 → Supersedes 3587109 → Supersedes 3863128
OEM / Related Numbers
- 21692435 earlier number superseded by this part
- 3818340 earlier number superseded by this part
- 3587109 earlier number superseded by this part
- 3863128 earlier number superseded by this part
- 3861575 - trim-pump electric motor
- 3861577 - electrical connector
- 3861578 - O-ring
- 3861574 - screw
- 3861570 - hydraulic reservoir
- 3861572 - reservoir cap
- 3858083 - mounting bracket
- 21857958 - wiring harness
- 21767816 - trim relay
- 21721548 - hydraulic hoses
- 21721550 - hydraulic hoses
📦 Condition
- Genuine Volvo Penta part
- Brand new
- Supplied in original or equivalent packaging
