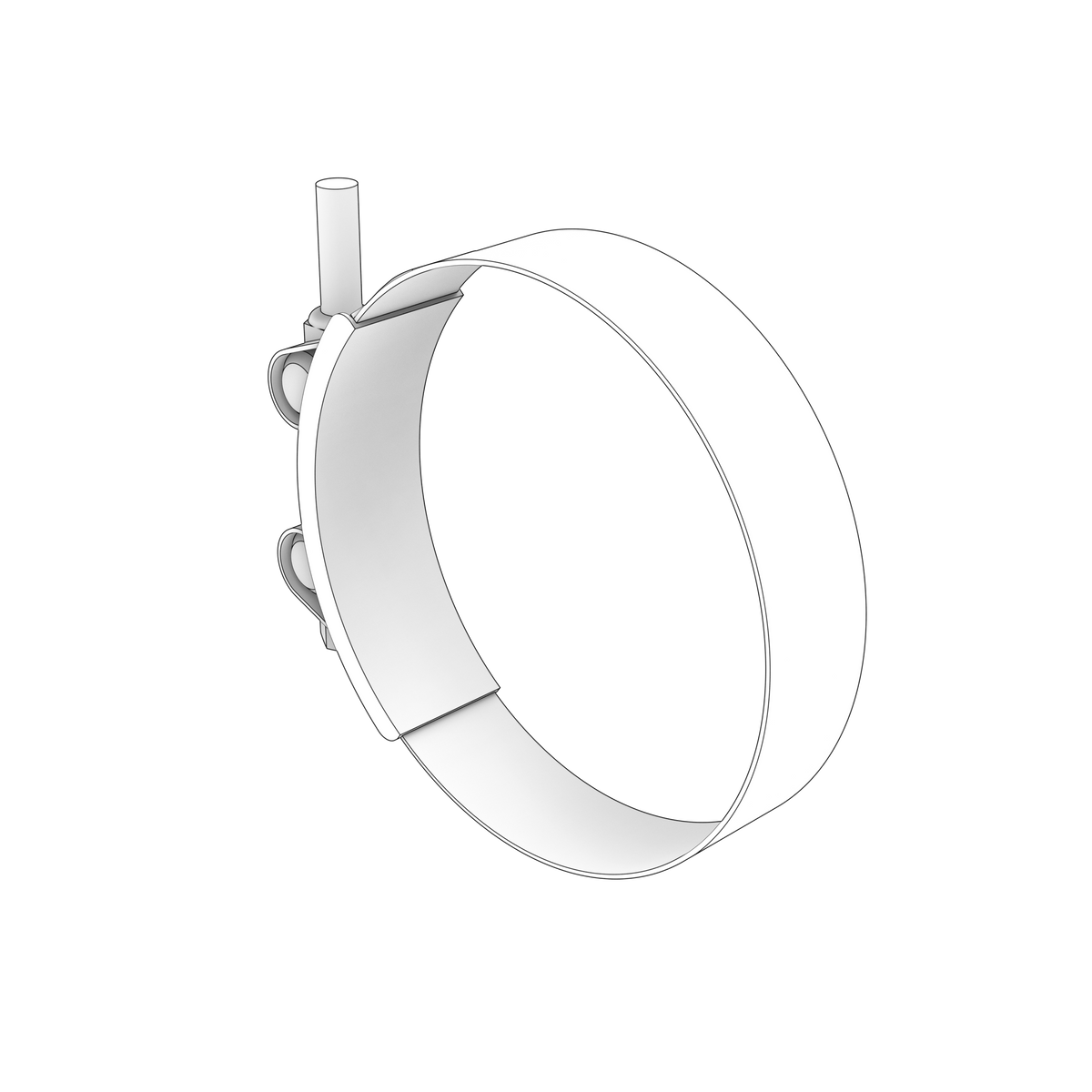

21832260 Hose Clamp | Genuine Volvo Penta Part

🔧 Product Description

Factory-formed clamp used at the D4 exhaust-pipe hose connection. This revision is supplied without the earlier plastic sleeve and maintains the specified clamp position and load on the exhaust connection.

🚤 Compatibility

Typically suits:

• Volvo Penta D4-260A-F
• Volvo Penta D4-300A-F
• Volvo Penta D4-225A-F

• Engine Family: D
• HP Range: 225-300 HP

⚙️ Key Features

• Direct-fit Volvo Penta clamp geometry
• Used on D4-F exhaust-pipe connections
• Supersedes the earlier 3817484 clamp
• Supplied as one clamp
• Selected by engine product and serial number
• Engine type: 4-cylinder turbocharged marine diesel

🔌 Function

Clamps the exhaust hose securely to the mating exhaust pipe so exhaust gas and cooling water remain contained within the wet-exhaust system.

⚠️ Common Signs of Failure

• Soot or water tracks around the joint
• Clamp will not maintain torque
• Visible distortion, corrosion or cracking
• Exhaust hose movement at the connection
• Exhaust smell or water leakage in the engine space

🛠️ Service Notes

• Match the clamp to the hose outside diameter so the band closes well within its working range rather than at the very end of its travel
• Position it over the spigot behind the bead or barb, with the screw where a driver or spanner can still reach it once everything is refitted
• Tighten to seal, not to crush — an over-tightened worm-drive clamp cuts into soft hose and starts the leak you were trying to stop
• Renew clamps when a hose is changed rather than reusing them, and keep band, housing and screw all marine-grade stainless so the clamp does not corrode against itself
• Where two clamps are fitted to one connection, stagger the screw heads and recheck both after the first running period

🔄 Supersession & Cross Reference

OEM Supersession Chain

• 21832260 → Supersedes 3817484

OEM / Related Numbers

• 3817484 earlier number superseded by this part

📦 Condition

• Genuine Volvo Penta part
• Brand new
• Supplied in original or equivalent packaging
