🔧 Product Description

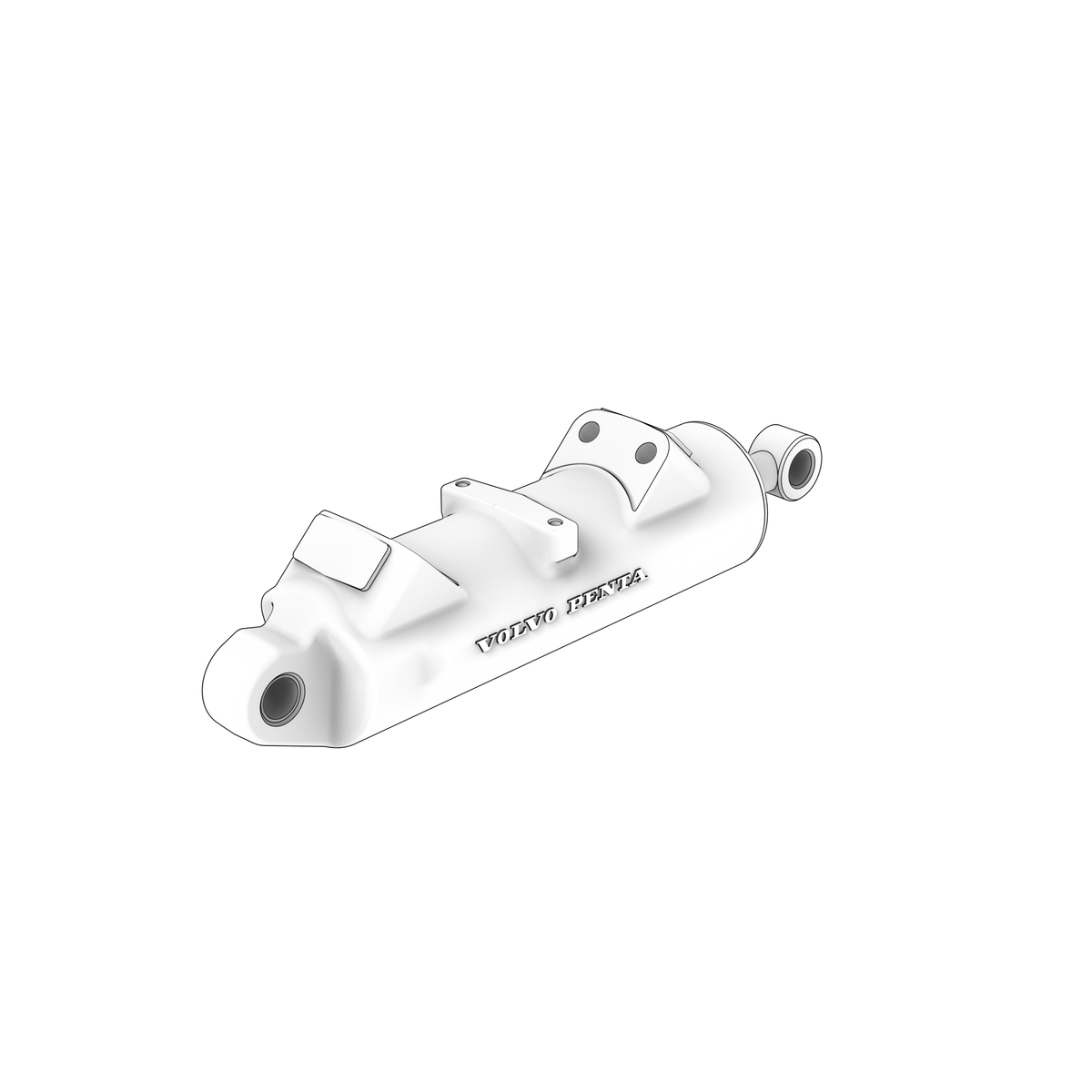

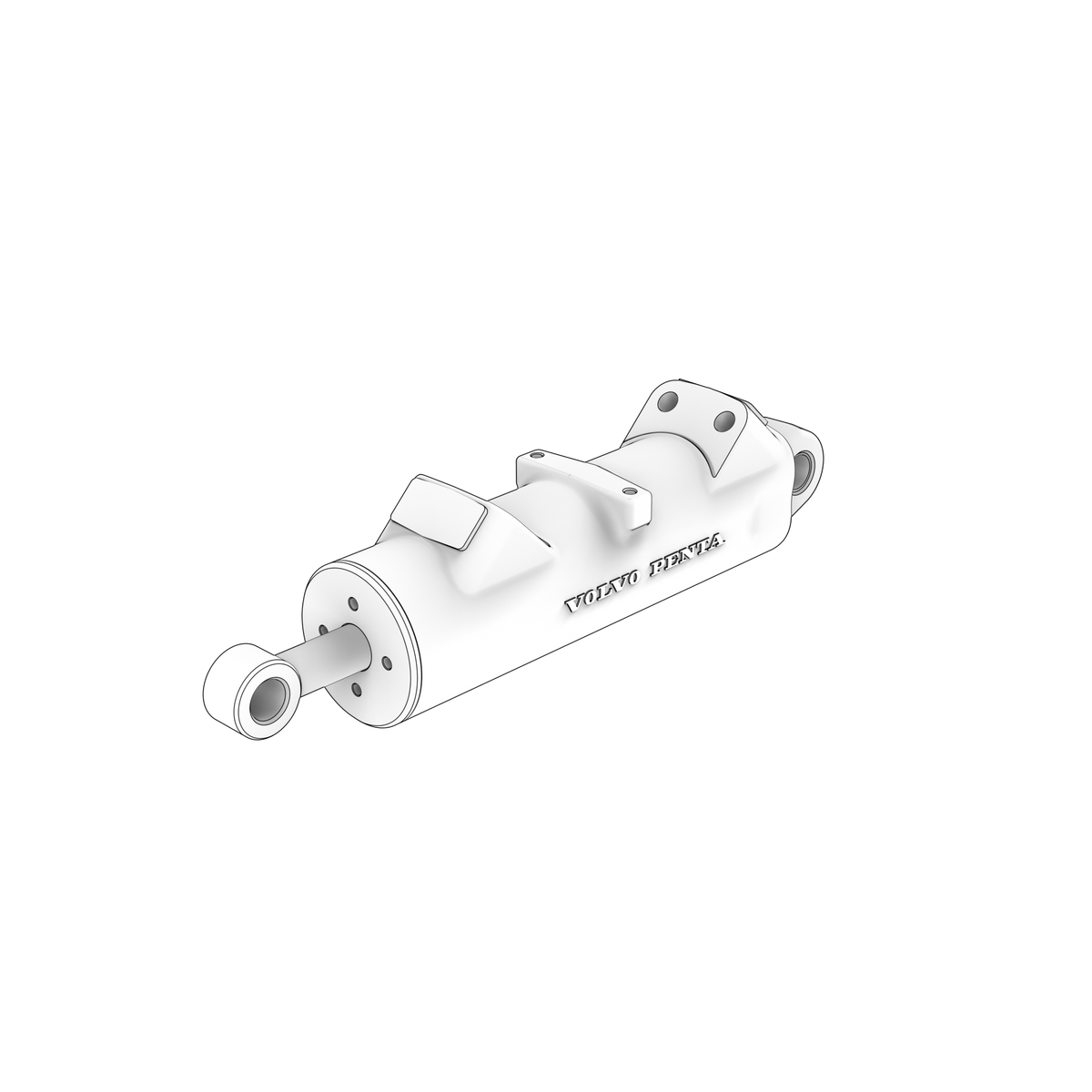

Complete starboard hydraulic trim cylinder for Volvo Penta DPH and DPR sterndrive transom-shield systems. It replaces cylinder 3888301 and is the right-hand cylinder when viewed from behind the vessel.
🚤 Compatibility
Typically suits:
- Volvo Penta DPH-D1
- Volvo Penta D6-330A-F
- Volvo Penta D6-370A-F
- Volvo Penta D4-260A-F
- Volvo Penta D4-300A-F
- Volvo Penta D6-300A-F
- Volvo Penta D4-225A-F
- Volvo Penta D6-300A-G
- Volvo Penta D6-340A-G
- Volvo Penta D6-380A-G
- Volvo Penta DPH-E
- Volvo Penta TSK DPH-E
- Volvo Penta D6-400A-G
- Volvo Penta D6-400A-F
- Volvo Penta DPR-D
- Volvo Penta D4-150A-G
- Volvo Penta D4-230A-G
- Volvo Penta D4-270A-G
- Volvo Penta D4-300A-G
- Volvo Penta TSK DPH-E1
- Engine Family: DPH, D, TSK, DPR
- HP Range: 150-400 HP
⚙️ Key Features
- Starboard/right-hand trim-cylinder position
- Complete hydraulic cylinder assembly
- Direct replacement for 3888301
- DPH and DPR sterndrive application
- Supports precise trim and tilt control
- Engine type: Marine diesel sterndrive
🔌 Function
Converts hydraulic pressure into controlled movement of the sterndrive, setting running trim and raising the drive for service or shallow-water operation.
⚠️ Common Signs of Failure
- Drive trims slowly or unevenly
- Drive drifts down and will not hold position
- Hydraulic fluid leakage at the rod or end cap
- Pitted, bent or corroded piston rod
- Cylinder binds, knocks or fails to complete its travel
🛠️ Service Notes
- This is the starboard-side cylinder for DPH/DPR — the port-side equivalent is a separate, differently numbered cylinder, so confirm which side is being replaced before ordering
- A rebuild kit (dust seal, pressure seal, wiper, O-rings and end cap) is available if the cylinder is otherwise sound but weeping — bleed the trim system and check the fluid level after either a rebuild or a full replacement
🔄 Supersession & Cross Reference
OEM Supersession Chain
- 21840806 → Supersedes 3888301 → Supersedes 3862853
OEM / Related Numbers
- 3888301 earlier number superseded by this part
- 3862854 earlier number superseded by this part
- 3862853 earlier number superseded by this part
- 21840807 (port-side counterpart)
- 22121309 (later port-side cylinder reference)
- SK-301 trim-cylinder seal kit
Aftermarket / Verified Equivalents
- SLP TP-806 complete starboard trim cylinder
- RECMAR REC21840806 complete replacement
- RECMAR REC19088 service end cap
- RECMAR REC22169 seal kit
📦 Condition
- Genuine Volvo Penta part
- Brand new
- Supplied in original or equivalent packaging
