21867150 Cable | Genuine Volvo Penta Part

🔧 Product Description

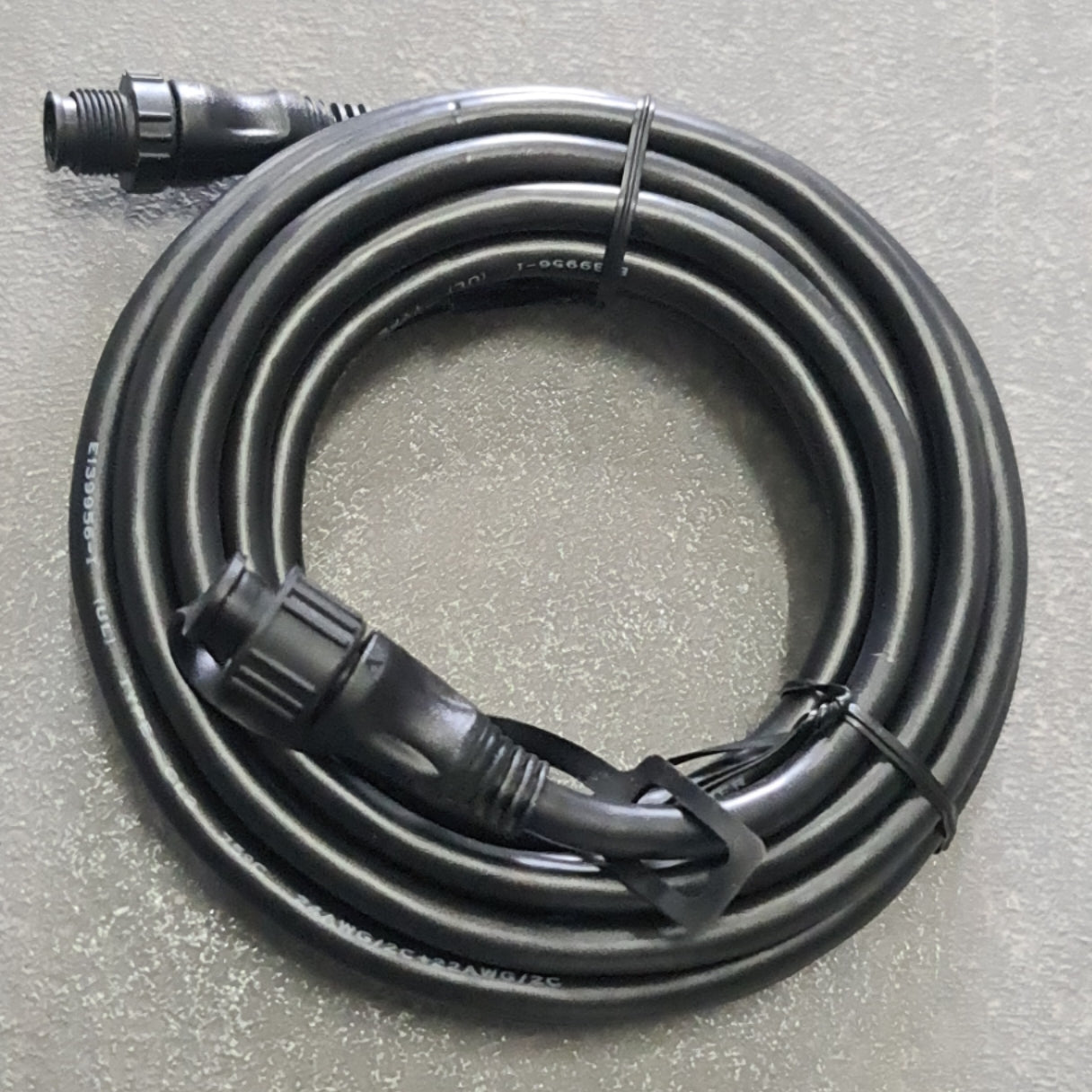

A genuine 4-metre Volvo Penta NMEA 2000 extension cable used to extend the EVC and vessel-data network between compatible T-connectors, displays and control components.

🚤 Compatibility

• Engine Family: D, V, VMM
• HP Range: 110-480 HP
• Year Range: Approximately 2012 - current production-era applications

Full model list at the end of this description.

⚙️ Key Features

• 4 metre NMEA 2000 extension cable
• 0.272 kg
• Listed for 160 applications across the D, V and VMM ranges
• Extends the EVC and vessel-data network between compatible T-connectors, displays and controls
• L=4000mm (Volvo assembly listing)

🔌 Function

Extends the vessel-data network by a fixed 4 metre run, carrying both the network signal and its power between T-connectors, displays and control components.

⚠️ Common Signs of Failure

• Displays or instruments dropping out intermittently
• Network or communication fault codes that clear and return
• Data from one device missing while the rest of the network stays alive
• Connector locking ring corroded, or pins green or pushed back
• Sheath cut, crushed or chafed where the run passes a bulkhead

🛠️ Service Notes

• Cables 21867151 and 21867152 are the same cable in 6 metre and 10 metre lengths - measure the run before ordering
• Check the connectors and the network terminators before condemning the cable; a dropped-out device is more often a wet connector than a broken cable

🔄 Supersession & Cross Reference

OEM / Related Numbers

• 21867151 - 6m Volvo Penta network cable
• 21867152 - 10m Volvo Penta network cable
• 21812205 - NMEA 2000 power cable
• 21812195 - T-connector
• 21812196 - network terminators
• 21812203 - network terminators
• 3889758 - network converter

Aftermarket / Verified Equivalents

• Garmin: 010-11076-04, 4m NMEA 2000 backbone / drop cable
• Maretron: NMEA 2000 approved double-ended cordset of matching connector type and 4m length

📦 Condition

• Genuine Volvo Penta part
• Brand new
• Supplied in original or equivalent packaging

🔎 Full Model Compatibility

Typically suits:

• Volvo Penta D6-330A-F, D6-370A-F, D6-330D-F, D6-370D-F, D6-300A-F, D6-300D-F, D6-300I-F, D6-340I-G, D6-380I-G, D6-440I-G, D6-480I-G, D6-300A-G, D6-340A-G, D6-380A-G, D6-440I-WJ-G, D6-480I-WJ-G, D6-300D-G, D6-340D-G, D6-380D-G, D6-440D-G, D6-480D-G, D6-400A-G, D6-440A-G, D6-300I-G, D6-330I-F, D6-370I-F, D6-435D-F, D6-400A-F, D6-435I-F
• Volvo Penta V8-300-CE-M, V8-350-CE-M, V8-300-CE-N, V8-350-CE-N, V8-380-CE-M, V8-380-CE-D, V8-430-CE-D, V8-380-CE-J, V8-430-CE-J, V8-350-CE-H, V8-350-CE-J, V8-430-CE-M, V8-300-CE-K, V8-350-CE-K, V8-380-CE-K, V8-430-CE-K, V8-300-CE-P, V8-350-CE-P, V8-380-CE-P, V8-300-CE-G, V8-300-CE-H, V8-300-CE-J, V8-350-CE-G, V8-380-CE-N, V8-430-CE-N, V8-430-CE-P
• Volvo Penta D13C3-B MH, D13C1-B MH, D13C4-B MH, D13C2-B MP, D13C1-A MP, D13C2-A MP, D13C3-A MP, D13C4-A MP, D13B-L MP, D13B-E MH, D13B-E MH (FE), D13B-K MP, D13B-N MH, D13B-N MH (FE), D13B-J MP, D13B-M MP, D13C4-B MP, D13C5-B MP, D13C6-A MP, D13C1-A MH, D13C5-A MP
• Volvo Penta D3-220I-G, D3-140A-G, D3-170A-G, D3-200A-G, D3-220A-G, D3-140I-G, D3-110I-G, D3-150I-G, D3-170I-G, D3-200I-G, D3-110I-H, D3-140A-H, D3-170A-H, D3-200A-H, D3-220A-H, D3-150I-H, D3-170I-H, D3-200I-H, D3-220I-H, D3-140I-H
• Volvo Penta D4-260A-F, D4-260D-F, D4-260I-F, D4-300A-F, D4-300D-F, D4-180I-F, D4-225I-F, D4-300I-F, D4-225A-F, D4-175I-G, D4-230I-G, D4-270I-G, D4-320I-G, D4-300I-G, D4-150A-G, D4-230A-G, D4-270A-G, D4-320A-G, D4-300A-G, D4-145I-G
• Volvo Penta V6-200-CE-N, V6-240-CE-M, V6-280-CE-M, V6-280-CE-J, V6-280-CE-G, V6-240-CE-N, V6-240-CE-K, V6-280-CE-K, V6-200-CE-P, V6-250-CE-P, V6-280-CE-P, V6-225-E-A, V6-280-CE-N, V6-250-CE-O, V6-240-CE-G, V6-240-CE-J, V6-250-CE-R, V6-280-CE-R
• Volvo Penta D11C1-A MP, D11C3-A MP, D11C2-A MP, D11C4-A MP, D11B3-A MP, D11B4-A MP, D11A-E, D11B2-A MP, D11A-E MP, D11B1-A MP
• Volvo Penta D8A2-A MP, D8A5-A MH, D8A6-A MH, D8A5-A MG, D8A6-A MG, D8A4-A MP, D8A1-A MP, D8A3-A MP
• Volvo Penta D16C-D MH, D16C1-E MH, D16C1-F MH, D16C2-E MH, D16C2-F MH
• Volvo Penta D9A2L MH, D9A2M MP
• Volvo Penta VMM-A
