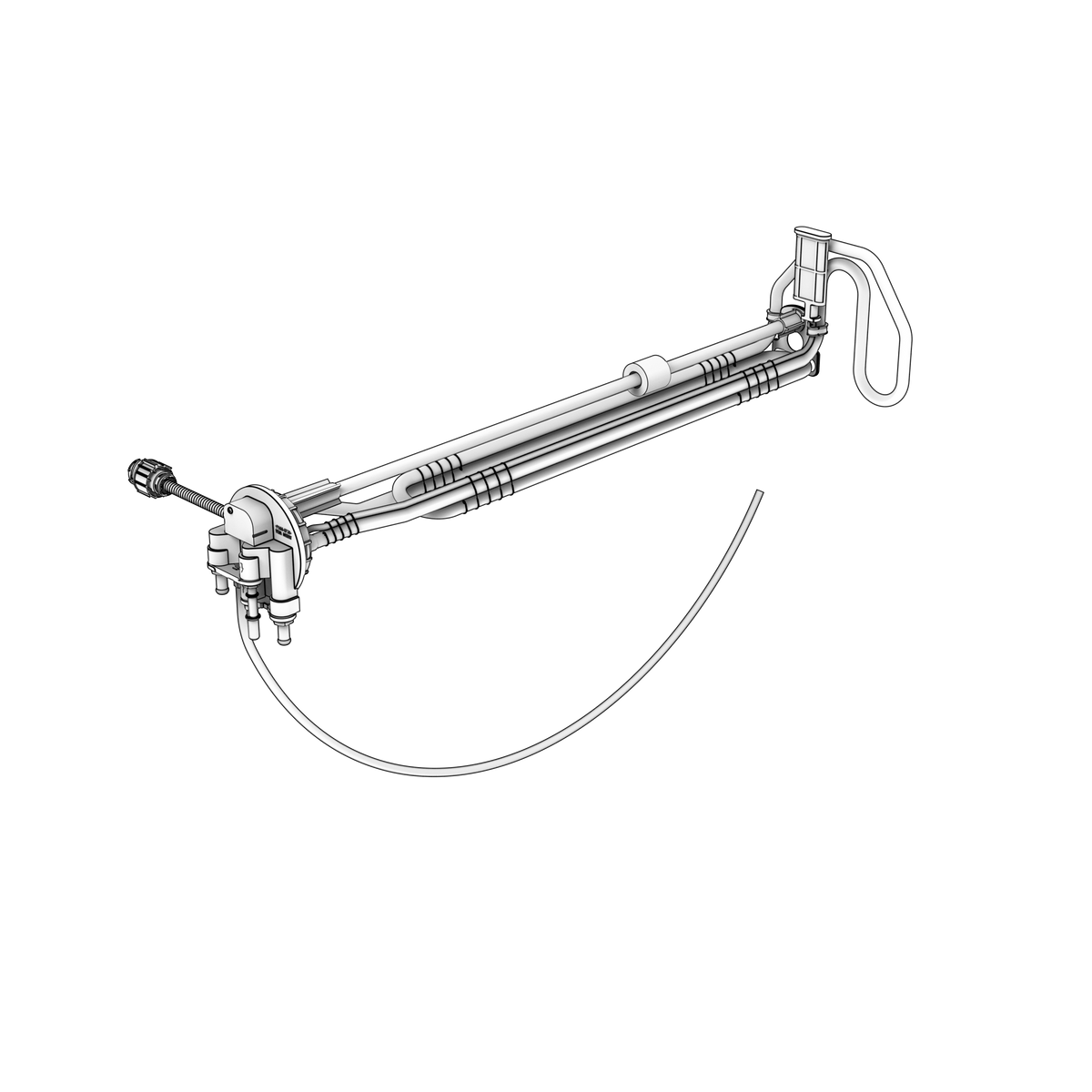

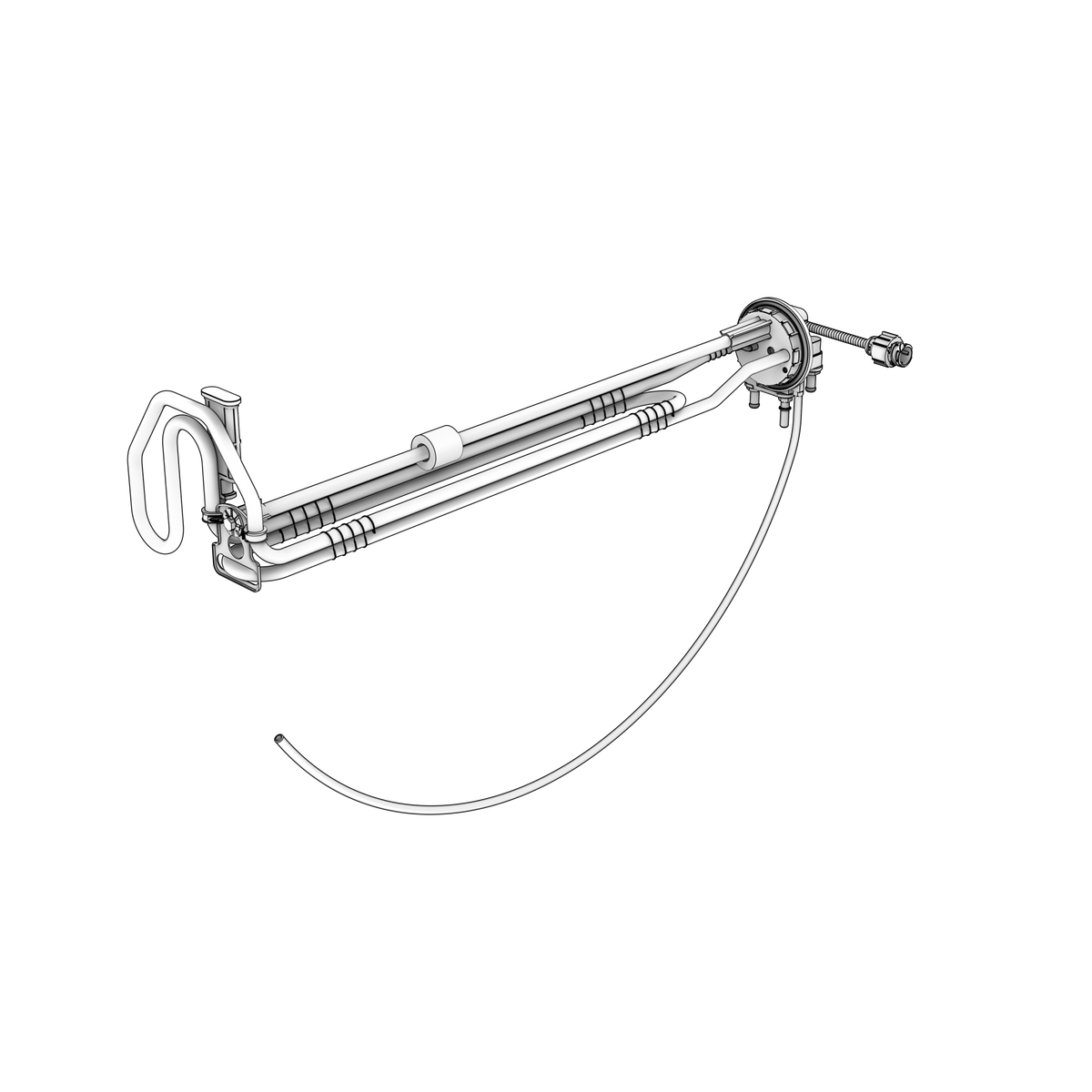

21876315 Level Sensor | Genuine Volvo Penta Part

🔧 Product Description

A genuine urea-tank level sensor used in Volvo Penta SCR systems. It monitors the AdBlue / DEF level and supplies tank information to the aftertreatment control system.

🚤 Compatibility

Typically suits:

• Volvo Penta TWD1663GE
• Volvo Penta TWD1672-1673GE

• Engine Family: TWD
• HP Range: Approximately 380-800 HP
• Year Range: Approximately 2014 - current production-era applications

⚙️ Key Features

• Factory-calibrated electrical characteristics
• Sealed engine-grade connector or housing
• Supports control, monitoring and protection functions
• Model- and software-specific operation where applicable
• Engine type: Turbocharged industrial diesel or gas engine with SCR aftertreatment

🔌 Function

Converts the assigned operating condition into an electrical signal or processes that signal for the engine-control, display and protection system.

⚠️ Common Signs of Failure

• Incorrect, unstable or missing data
• Implausible-signal or communication fault code
• Engine warning, derate or shutdown
• Open circuit, short circuit or internal electronic failure

🛠️ Service Notes

• Note the wiring and the sensor's orientation before removal, and isolate the circuit so nothing is live while the sender is out
• Check the float or probe moves freely through its full travel before fitting, and that nothing inside the tank or reservoir can foul it
• Seal the thread or flange as the installation specifies, and be sparing with sealant on a sender that earths through its body — an insulated sender reads nothing at all
• Do not over-tighten; these are thin-walled sensor bodies going into thin-walled tanks and housings
• Prove the installation end to end afterwards, confirming the gauge or alarm responds correctly at both ends of the range rather than assuming a new part must be good

🔄 Supersession & Cross Reference

OEM Supersession Chain

• 21876315 → Supersedes 21596913

OEM / Related Numbers

• 21596913 earlier number superseded by this part
• 24669282 - later OEM sensor reference
• 21232792 - sealing O-ring
• 21643134 - urea tanks
• 22663471 - urea tanks
• 20807608 - filler neck
• 20703186 - filler cap
• 82269261 - tank filter
• 23584789 - gasket

Aftermarket / Verified Equivalents

• DT Spare Parts: 6.33954
• DT Spare Parts: 6.33954SP
• Sampa: 076.153
• Auger: 98859

📦 Condition

• Genuine Volvo Penta part
• Brand new
• Supplied in original or equivalent packaging
