21880386 Seawater Filter | Genuine Volvo Penta Part

🔧 Product Description

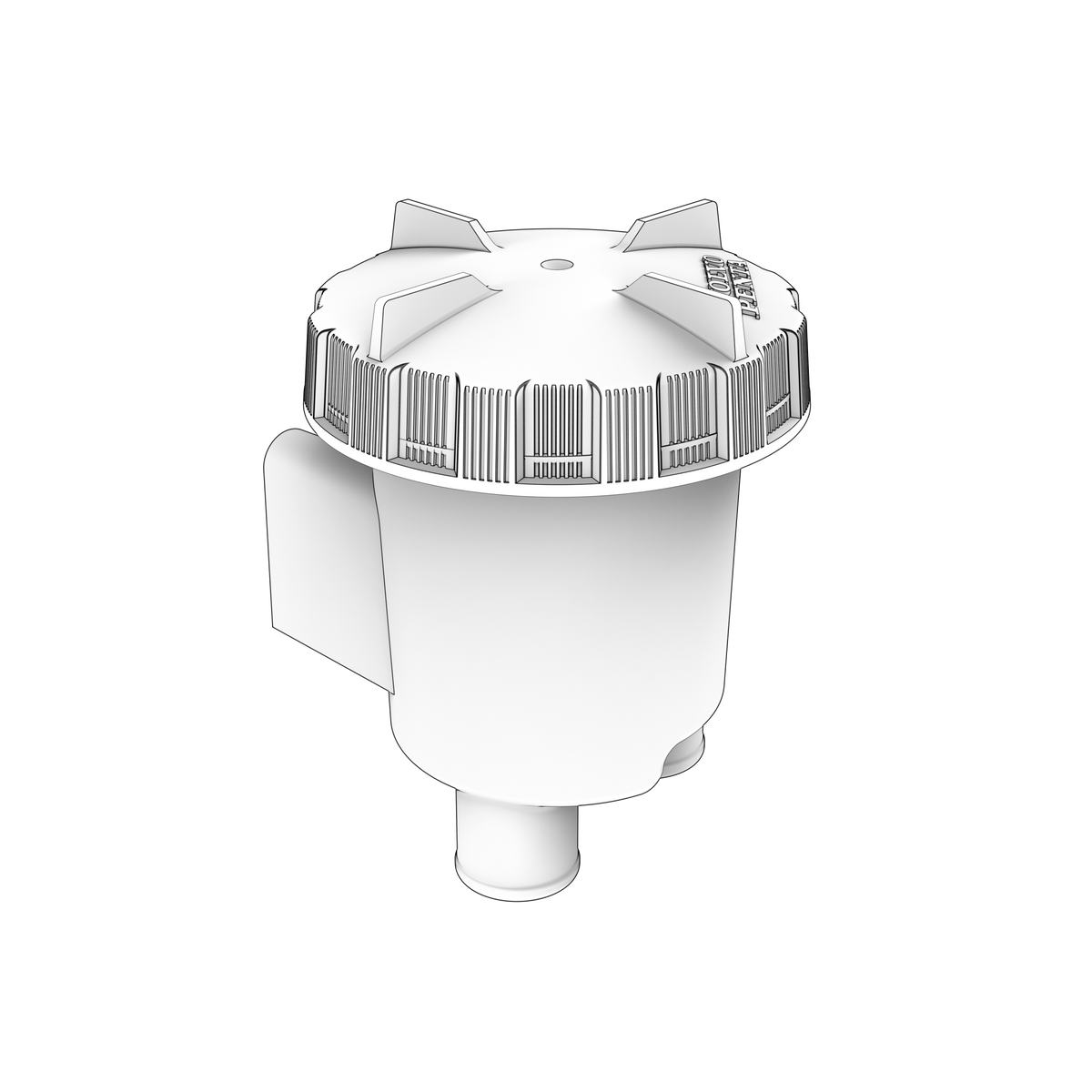

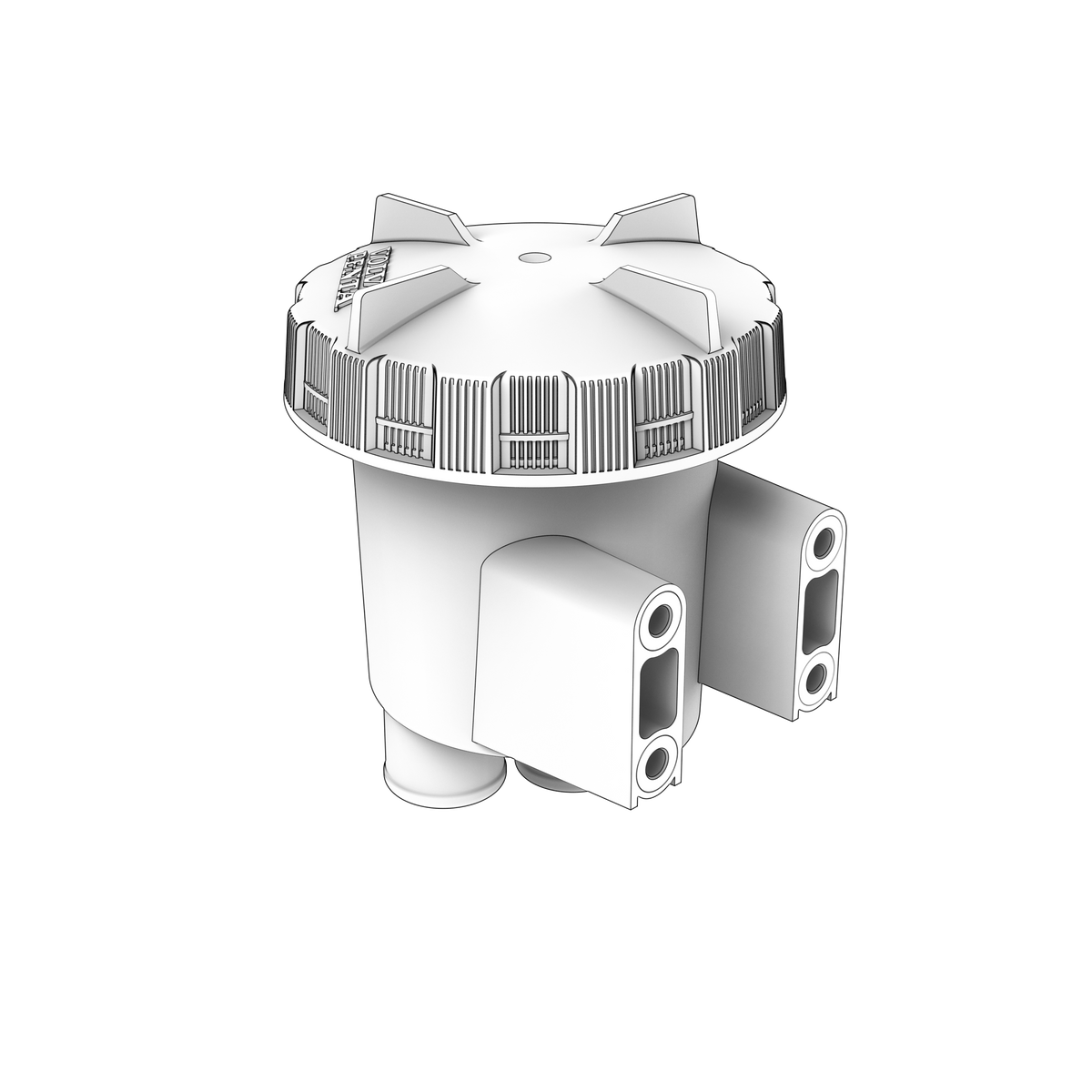

A genuine complete sea-water strainer assembly for Volvo Penta D3 marine engines. It replaces earlier complete filter references 860631 and 21641712 and includes the service components needed to filter raw cooling water before it reaches the pump and heat exchanger.

🚤 Compatibility

• Engine Family: V, D
• HP Range: 110-430 HP
• Year Range: Approximately 2010 - 2020

Full model list at the end of this description.

⚙️ Key Features

• Factory flow capacity and filtration specification
• Correct housing, seal and connection dimensions
• Protects downstream engine components
• Serviceable filter or strainer design
• Direct replacement for the specified system
• Engine type: 2.4L inline five-cylinder common-rail turbocharged marine diesel

📋 Kit Contents

• 21863984 - filter cover
• 842982 - pressure plate
• 842724 - cover sealing ring
• 21880390 - removable strainer
• Filter housing - included in assembly; not separately marketed under an individual service part number in the applicable diagram

🔌 Function

Removes contamination from the applicable air, fuel, oil or water circuit before it reaches sensitive engine or drive components.

⚠️ Common Signs of Failure

• Restriction warning or reduced system flow
• Contaminated fluid or intake air
• Collapsed, blocked or damaged filter element
• Leakage around the housing or cover
• Accelerated wear or overheating of downstream components

🛠️ Service Notes

• The bowl is roughly 5 inches (127 mm) across the cap, per an owner's report — worth checking clearance at the mounting position if working in a tight engine bay
• Close the seacock and inspect the lid seal every time the strainer is opened; a leaking lid loses pump suction without any visible water leak

🔄 Supersession & Cross Reference

OEM Supersession Chain

• 21880386 → Supersedes 21641712 → Supersedes 860631

OEM / Related Numbers

• 21641712 earlier number superseded by this part
• 860631 earlier number superseded by this part

Aftermarket / Verified Equivalents

• Recmar: REC21880386 complete sea-water filter assembly

📦 Condition

• Genuine Volvo Penta part
• Brand new
• Supplied in original or equivalent packaging

🔎 Full Model Compatibility

Typically suits:

• Volvo Penta V8-350-C-R, V8-350-CE-R, V8-380-C-R, V8-380-CE-R, V8-430-C-R, V8-300-C-M, V8-300-CE-M, V8-350-C-M, V8-350-CE-M, V8-300-C-N, V8-300-CE-N, V8-350-C-N, V8-350-CE-N, V8-380-C-M, V8-380-CE-M, V8-380-CE-J, V8-380-C-J, V8-430-CE-J, V8-430-C-J, V8-350-C-H, V8-350-CE-H, V8-350-C-J, V8-350-CE-J, V8-300-C-R, V8-300-CE-R, V8-430-CE-R, V8-430-C-M, V8-430-CE-M, V8-300-C-K, V8-300-CE-K, V8-350-C-K, V8-350-CE-K, V8-380-C-K, V8-380-CE-K, V8-430-C-K, V8-430-CE-K, V8-300-C-P, V8-300-CE-P, V8-350-C-P, V8-350-CE-P, V8-380-C-P, V8-380-CE-P, V8-430-C-P, V8-300-CE-G, V8-300-C-G, V8-300-C-H, V8-300-CE-H, V8-300-C-J, V8-300-CE-J, V8-350-C-G, V8-350-CE-G, V8-380-C-N, V8-380-CE-N, V8-430-C-N, V8-430-CE-N, V8-430-CE-P, V8-300-C-S, V8-300-CE-S, V8-350-C-S, V8-350-CE-S
• Volvo Penta V6-200-N, V6-200-C-N, V6-200-CE-N, V6-240-M, V6-240-C-M, V6-240-CE-M, V6-280-M, V6-280-C-M, V6-280-CE-M, V6-280-J, V6-280-CE-J, V6-280-G, V6-280-C-G, V6-280-CE-G, V6-280-C-J, V6-240-N, V6-240-C-N, V6-240-CE-N, V6-280-N, V6-280-C-N, V6-240-CE-K, V6-280-CE-K, V6-200-P, V6-200-C-P, V6-200-CE-P, V6-250-P, V6-250-C-P, V6-250-CE-P, V6-280-P, V6-280-C-P, V6-280-CE-P, V6-200-C-G, V6-200-G, V6-200-J, V6-200-C-J, V6-280-CE-N, V6-200-M, V6-200-C-M, V6-250-O, V6-250-C-O, V6-250-CE-O, V6-240-C-G, V6-240-CE-G, V6-240-G, V6-240-J, V6-240-CE-J, V6-240-C-J, V6-200-R, V6-200-C-R, V6-250-R, V6-250-C-R, V6-250-CE-R, V6-280-R, V6-280-C-R, V6-280-CE-R
• Volvo Penta D3-220I-G, D3-140A-D, D3-170A-D, D3-200A-D, D3-220A-D, D3-140I-D, D3-140A-E, D3-170A-E, D3-200A-E, D3-220A-E, D3-140I-E, D3-140A-F, D3-170A-F, D3-200A-F, D3-220A-F, D3-140I-F, D3-140A-G, D3-170A-G, D3-200A-G, D3-220A-G, D3-140I-G, D3-110I-D, D3-150I-D, D3-170I-D, D3-200I-D, D3-220I-D, D3-110I-E, D3-150I-E, D3-170I-E, D3-200I-E, D3-220I-E, D3-110I-F, D3-150I-F, D3-170I-F, D3-200I-F, D3-220I-F, D3-110I-G, D3-150I-G, D3-170I-G, D3-200I-G, D3-110I-H, D3-140A-H, D3-170A-H, D3-200A-H, D3-220A-H, D3-150I-H, D3-170I-H, D3-200I-H, D3-220I-H, D3-140I-H
