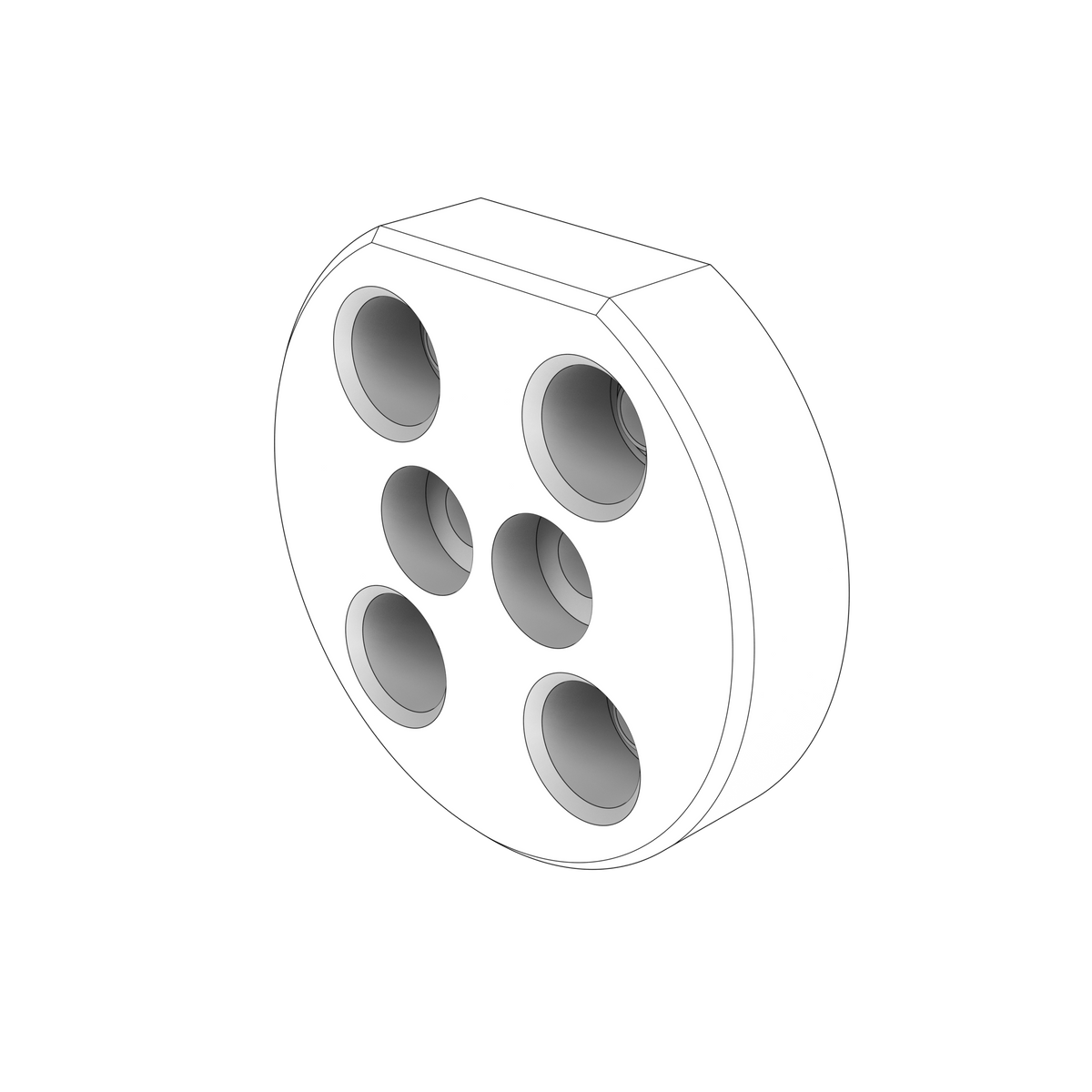

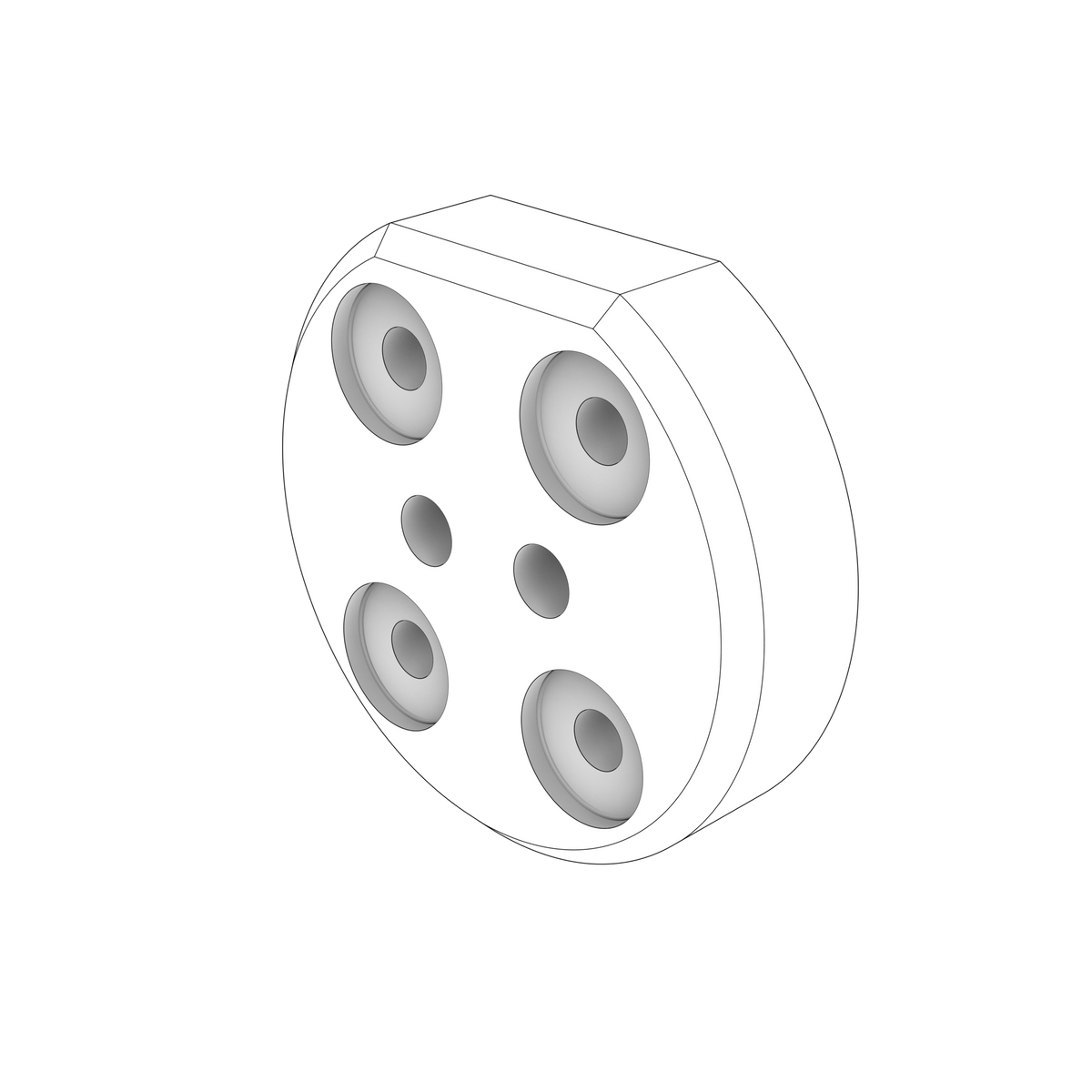

22001102 Disc | Genuine Volvo Penta Part

🔧 Product Description

Guide/retaining disc used in the DPH/DPR transom-shield hydraulic-steering hose arrangement. It keeps the hose bundle correctly separated and supported through steering and trim movement.

🚤 Compatibility

• Engine Family: DPH, D, TSK, DPR
• HP Range: 150-480 HP

Full model list at the end of this description.

⚙️ Key Features

• Original diameter, thickness and interface geometry
• Controls hose spacing or mechanical retention
• Designed for the DPH/DPR steering arrangement
• Marine corrosion-resistant material
• Correct order and orientation are required

🔌 Function

Separates, guides or retains the hydraulic steering hoses and adjoining components within the transom-shield steering installation.

⚠️ Common Signs of Failure

• Cracking or permanent distortion
• Hose chafe from lost spacing
• Loose or displaced disc
• Corrosion or wear
• Steering-hose movement at the transom shield

🛠️ Service Notes

• Used in the power-steering cylinder installation on DPH and DPR sterndrive steering; this number is the one listed for single-cylinder and electronic-steering arrangements, so confirm which arrangement your boat has before ordering.
• Work clean and cap or plug open hydraulic connections as soon as they are broken — dirt or water drawn into the steering circuit will cause trouble further downstream.
• Renew any seal or gasket disturbed during removal and check the mating faces for burrs, scoring or corrosion before refitting.
• Top up with the fluid specified for your steering system, bleed it properly, then turn the drive fully to each lock and check for stiffness, air in the system and any weeping before the boat is used.

🔄 Supersession & Cross Reference

OEM Supersession Chain

• 22001102 → Supersedes 3586766

OEM / Related Numbers

• 3586766 earlier number superseded by this part
• 22001104 - companion guide disc
• 3594036 - related bellows
• 948211 - cable tie
• 23307655 - related service kit
• 21929775 - related repair kit
• 889455 - gasket

📦 Condition

• Genuine Volvo Penta part
• Brand new
• Supplied in original or equivalent packaging

🔎 Full Model Compatibility

Typically suits:

• Volvo Penta D6-330A-F, D6-370A-F, D6-300A-F, D6-300A-G, D6-340A-G, D6-380A-G, D6-400A-G, D6-440A-G, D6-400A-F, D6-480A-G
• Volvo Penta D4-260A-F, D4-300A-F, D4-225A-F, D4-150A-G, D4-230A-G, D4-270A-G, D4-320A-G, D4-300A-G
• Volvo Penta TSK DPH-E, TSK DPI-A, TSK DPI-A2, TSK DPH-E1
• Volvo Penta DPH-D1, DPH-E
• Volvo Penta DPR-D
