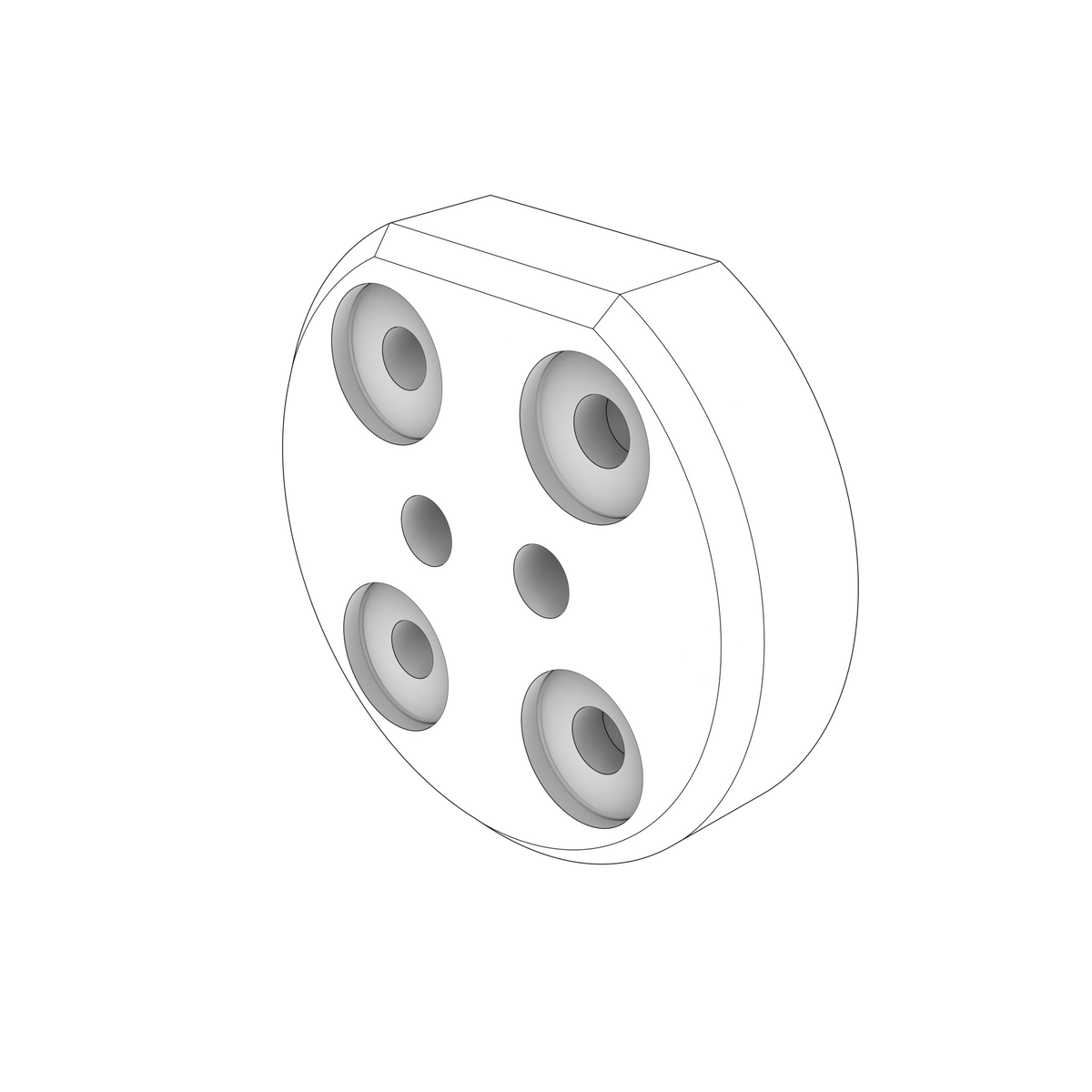

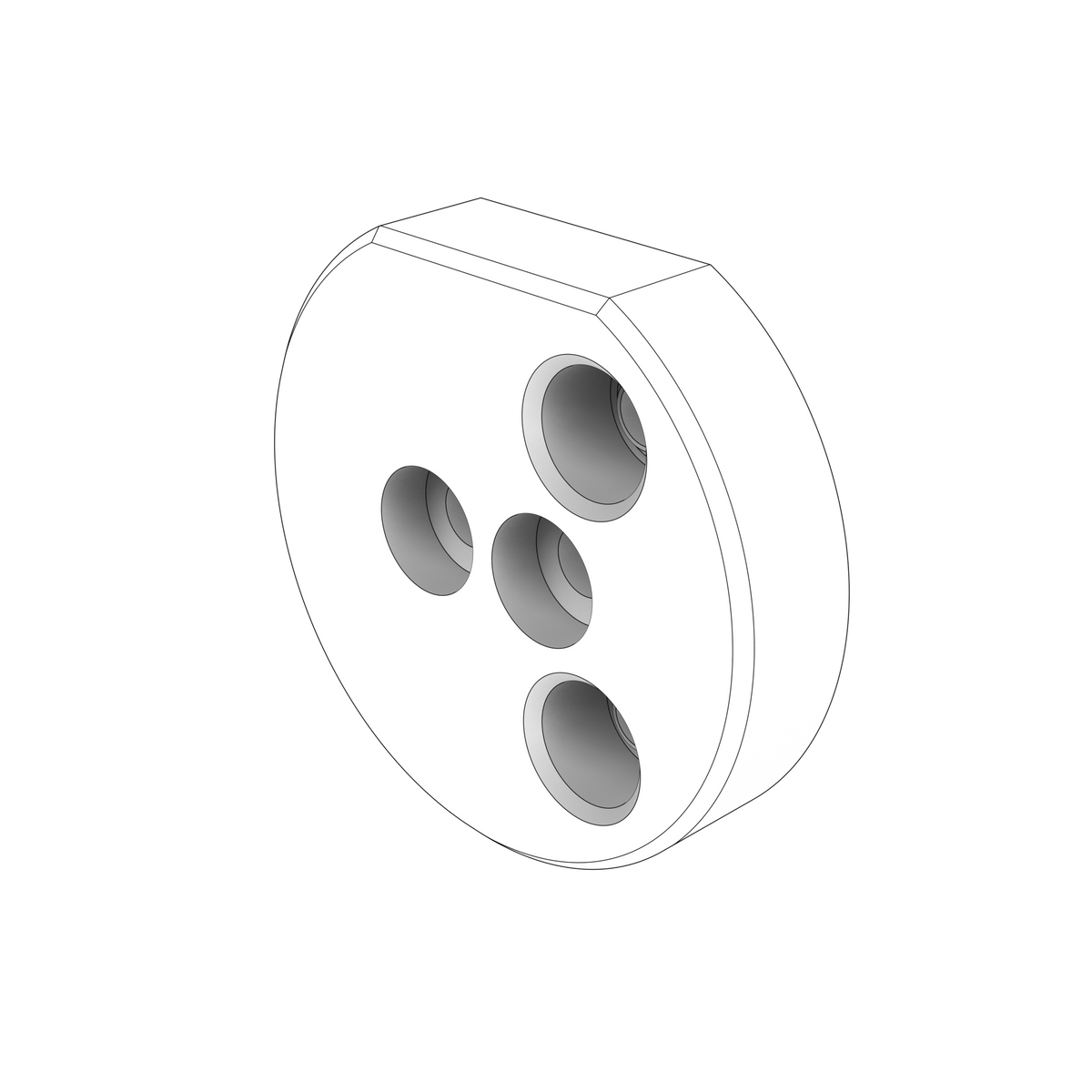

22001104 Disc | Genuine Volvo Penta Part

22001104 Disc | Genuine Volvo Penta Part

$145.71 AUD
$145.71 AUD
Sale Sold out
Shipping calculated at checkout.

In stock — Australian warehouse

Typically reaches our store in 3–5 business days

Availability checked daily with Volvo Penta

✓ Authorised Volvo Penta Dealer · Genuine Volvo Penta parts · Ships Australia-wide

🔧 Product Description

Companion guide disc for the DPH/DPR steering-hose bundle. Its thickness and profile maintain hose spacing and prevent chafe as the drive steers and trims.

🚤 Compatibility

Typically suits:

  • Volvo Penta DPH-D1
  • Volvo Penta D6-330A-F
  • Volvo Penta D6-370A-F
  • Volvo Penta D4-260A-F
  • Volvo Penta D4-300A-F
  • Volvo Penta D6-300A-F
  • Volvo Penta D4-225A-F
  • Volvo Penta D6-300A-G
  • Volvo Penta D6-340A-G
  • Volvo Penta D6-380A-G
  • Volvo Penta D6-400A-G
  • Volvo Penta D6-400A-F
  • Volvo Penta DPR-D
  • Volvo Penta D4-150A-G
  • Volvo Penta D4-230A-G
  • Volvo Penta D4-270A-G
  • Volvo Penta D4-300A-G
  • Engine Family: DPH, D, DPR
  • HP Range: 150-400 HP

⚙️ Key Features

  • Original diameter, thickness and interface geometry
  • Controls hose spacing or mechanical retention
  • Designed for the DPH/DPR steering arrangement
  • Marine corrosion-resistant material
  • Correct order and orientation are required

🔌 Function

Separates, guides or retains the hydraulic steering hoses and adjoining components within the transom-shield steering installation.

⚠️ Common Signs of Failure

  • Cracking or permanent distortion
  • Hose chafe from lost spacing
  • Loose or displaced disc
  • Corrosion or wear
  • Steering-hose movement at the transom shield

🛠️ Service Notes

  • Used in the power-steering cylinder installation on DPH and DPR sterndrive steering; this number is the one listed for the starboard cylinder of a twin-engine installation, so check your arrangement before ordering.
  • Work clean and cap or plug open hydraulic connections as soon as they are broken so nothing enters the steering circuit.
  • Renew any seal or gasket disturbed during removal and check the mating faces for burrs, scoring or corrosion before refitting.
  • Top up with the fluid specified for your steering system, bleed it, then turn the drive fully to each lock and check for stiffness, trapped air and any weeping before the boat is used.

🔄 Supersession & Cross Reference

OEM Supersession Chain

  • 22001104 → Supersedes 3817652

OEM / Related Numbers

  • 3817652 earlier number superseded by this part
  • 22001102 - companion guide disc
  • 3594036 - related bellows
  • 948211 - cable tie
  • 23307655 - related service kit
  • 21929775 - related repair kit
  • 889455 - gasket

📦 Condition

  • Genuine Volvo Penta part
  • Brand new
  • Supplied in original or equivalent packaging
