22001317 Hose | Genuine Volvo Penta Part
22001317 Hose | Genuine Volvo Penta Part
Couldn't load pickup availability
Available from Volvo Penta international
Typically reaches our store in 10–14 business days
Availability checked daily with Volvo Penta
✓ Authorised Volvo Penta Dealer · Genuine Volvo Penta parts · Ships Australia-wide
🔧 Product Description

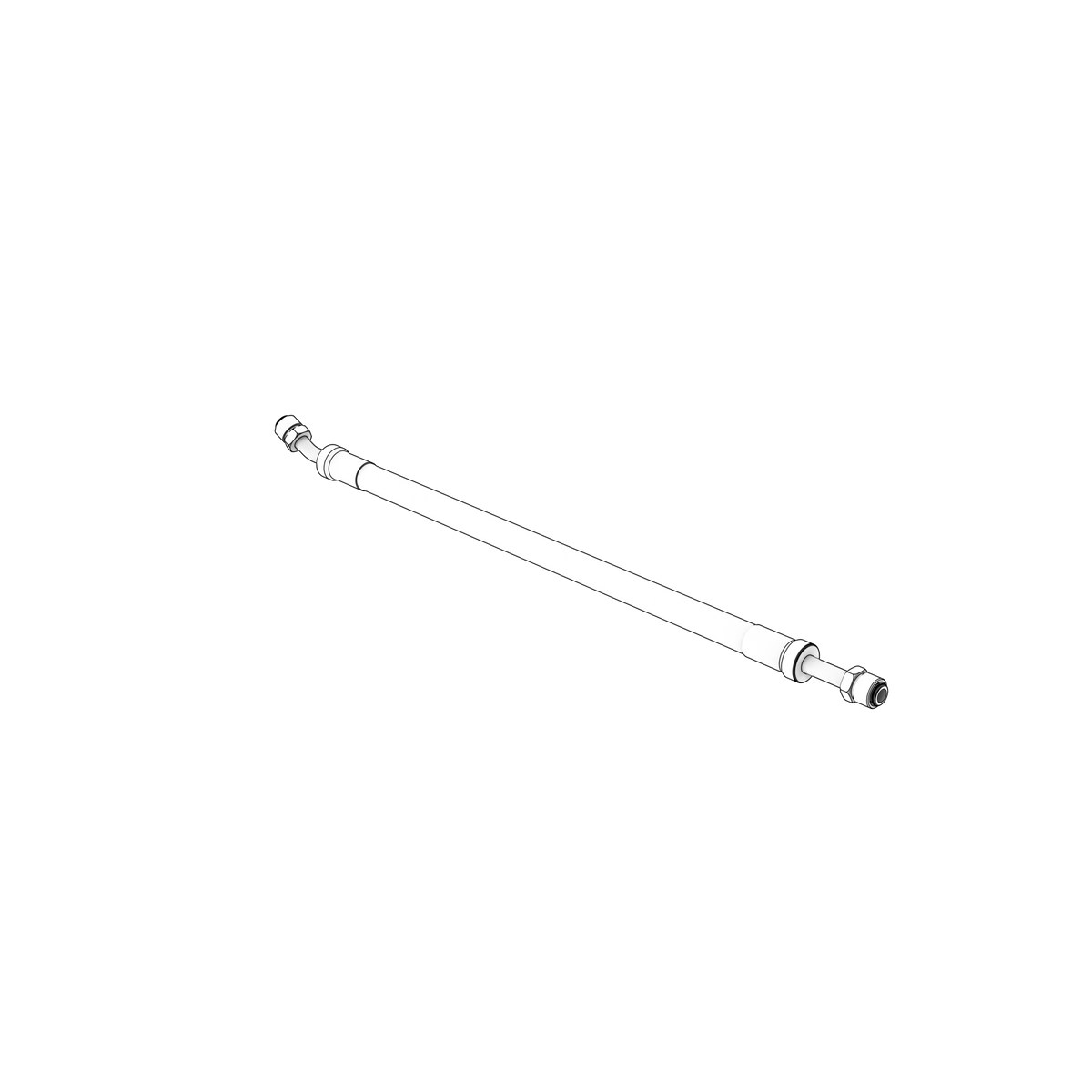

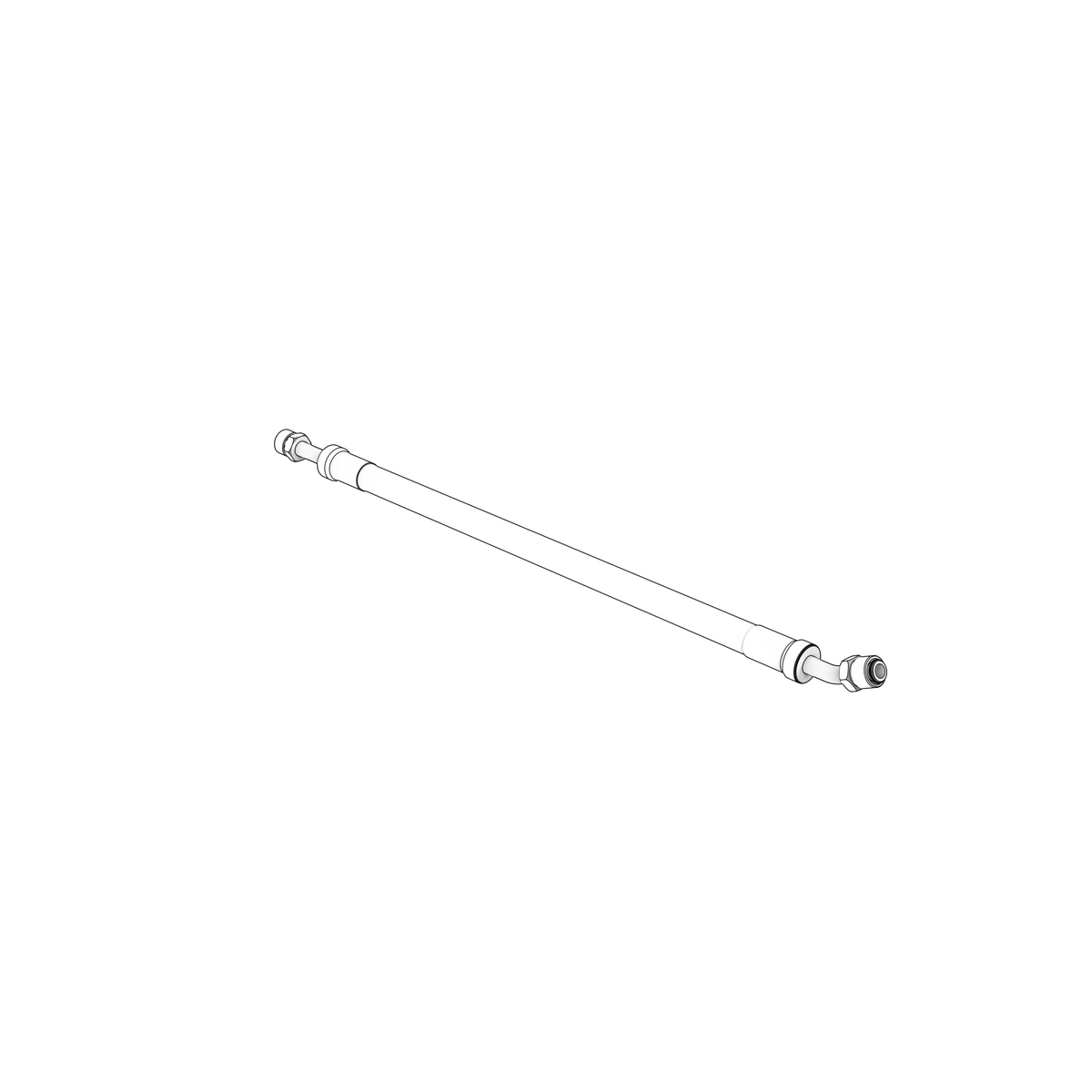

Hydraulic return hose used in the DPH/DPR steering system. The hose is formed to connect the steering valve and reservoir/return circuit while clearing the transom-shield hardware.
🚤 Compatibility
Typically suits:
- Volvo Penta DPH-D1
- Volvo Penta D6-330A-F
- Volvo Penta D6-370A-F
- Volvo Penta D4-260A-F
- Volvo Penta D4-300A-F
- Volvo Penta D6-300A-F
- Volvo Penta D4-225A-F
- Volvo Penta D6-300A-G
- Volvo Penta D6-340A-G
- Volvo Penta D6-380A-G
- Volvo Penta D6-400A-G
- Volvo Penta D6-400A-F
- Volvo Penta D4-150A-G
- Volvo Penta D4-230A-G
- Volvo Penta D4-270A-G
- Volvo Penta D4-300A-G
- Engine Family: DPH, D
- HP Range: 150-400 HP
⚙️ Key Features
- Factory-moulded routing and end geometry
- Resists vibration, pressure pulses and engine movement
- Exact internal diameter and length are application controlled
🔌 Function
Carries the assigned coolant, oil, fuel, air, ventilation gas or hydraulic fluid while accommodating engine movement and vibration.
⚠️ Common Signs of Failure
- Fluid seepage at the body or connections
- Chafing or heat damage
🛠️ Service Notes
- Fit hoses only to clean, sound spigots — take off old rubber, scale and corrosion, and renew the spigot or pipe if it is pitted, because no clamp will seal a rough sealing face
- Push the hose fully home so the clamp sits behind the bead or barb rather than over the end of the spigot, and fit new clamps whenever a hose is renewed
- Let the hose follow its natural bend with no kinks and no tension on either connection, clear of hot surfaces and moving parts, with chafe protection wherever it passes a bracket, edge or bulkhead
- Use the correct grade of hose for the duty, and clamp to the standard the installation demands — twin clamps are normal practice on seawater and fuel connections below the waterline
- Refill, vent and run the engine, then check every joint hot and cold and recheck the clamps after the first running period as the hose beds down
🔄 Supersession & Cross Reference
OEM Supersession Chain
- 22001317 → Supersedes 21453321 → Supersedes 21199262
OEM / Related Numbers
- 21453321 earlier number superseded by this part
- 21914259 - steering valve
- 21199274 - nipple
- 3859043 - fitting
- 3859042 - O-ring
- 21314058 - filter
- 22141359 - valve references
- 22141353 - valve references
- 21314061 - solenoid references
- 21314064 - solenoid references
- 3850397 - temperature switch
- 21198760 - cover
- 3841608 - wing nut
- 21199454 - decal
- 21469067 - control unit
- 21453160 - bracket
- 21453317 - related hoses
- 21453315 - related hoses
- 21453313 - related hoses
- 21453311 - related hoses
- 21453319 - pressure hose
- 3588972 - cable kit
📦 Condition
- Genuine Volvo Penta part
- Brand new
- Supplied in original or equivalent packaging
