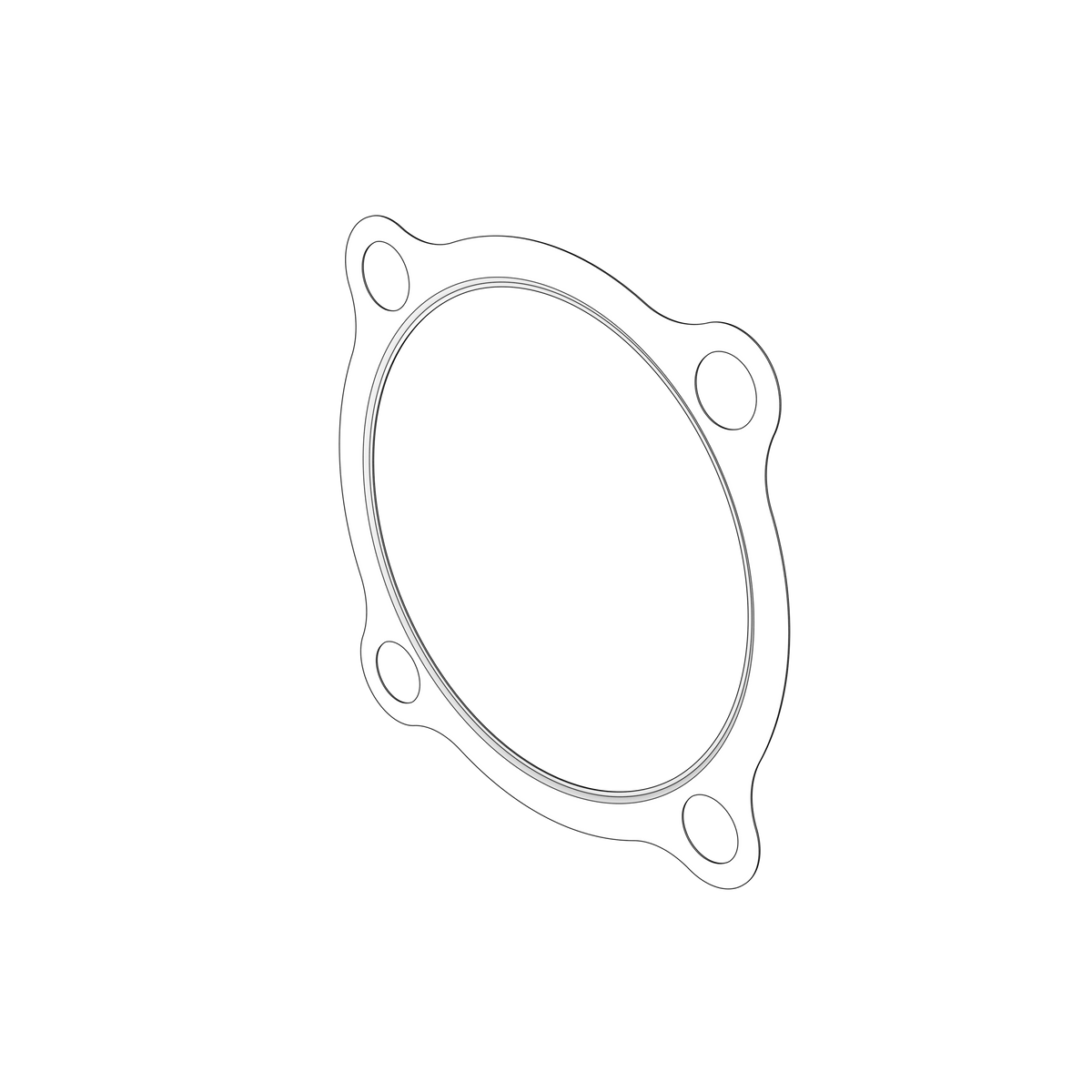

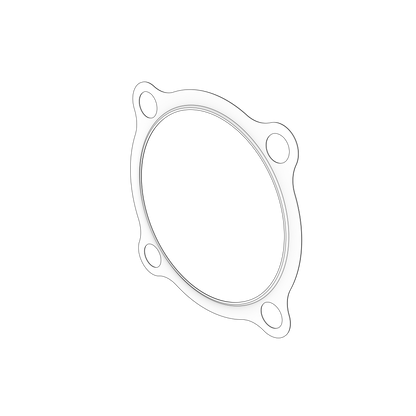

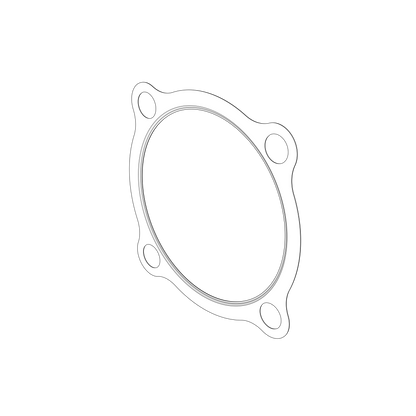

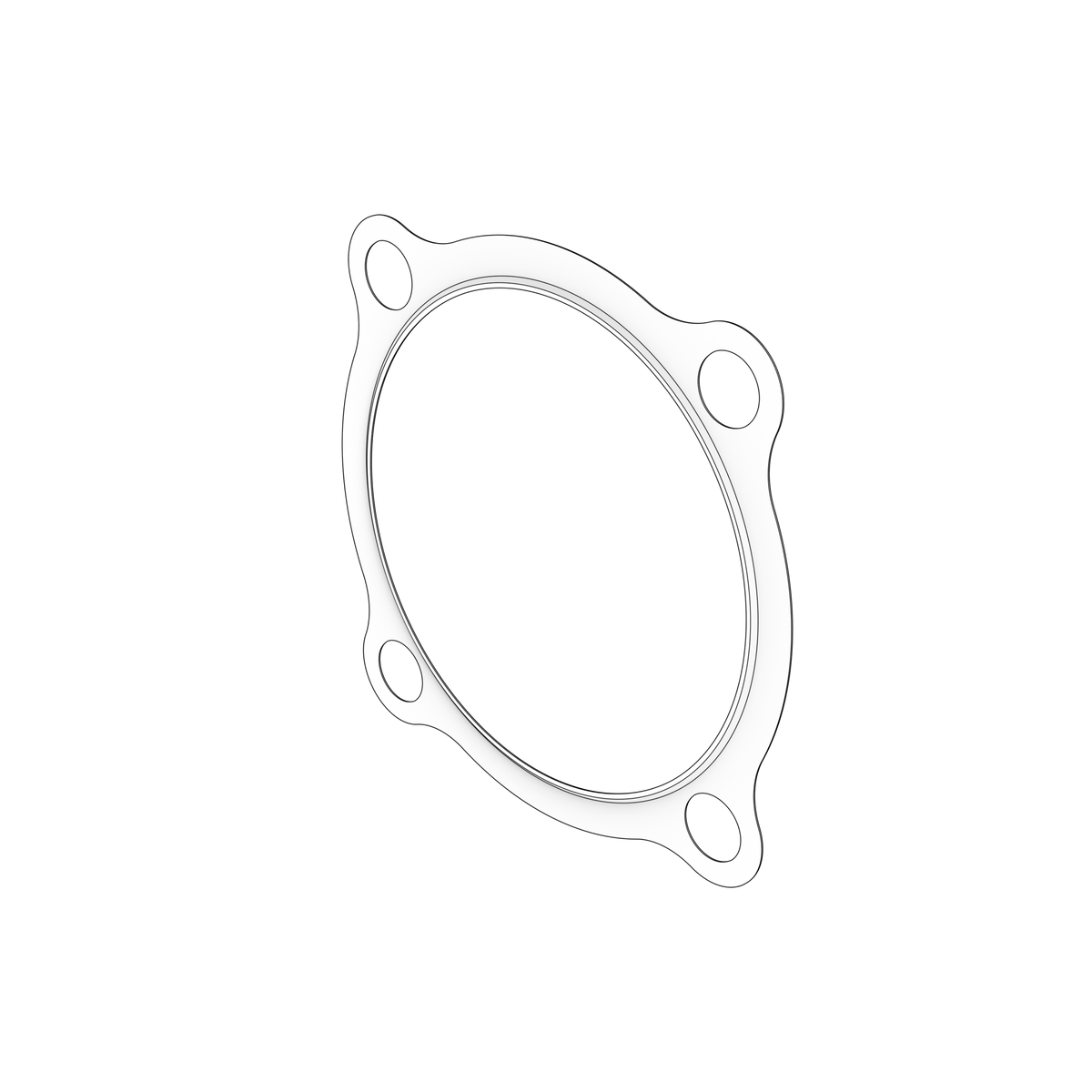

22007049 Plane Gasket | Genuine Volvo Penta Part

🔧 Product Description

Die-cut plane gasket used in the Volvo Penta engine assembly that specifies 22007049. Port openings, bolt pattern and compressed thickness are matched to the adjoining machined surfaces.

🚤 Compatibility

Typically suits:

• Volvo Penta TAD840GE
• Volvo Penta TAD552VE
• Volvo Penta TAD853VE
• Volvo Penta TAD880-84VE
• Volvo Penta TAD580-83VE
• Volvo Penta TAD570-72VE
• Volvo Penta TAD570-71VE-B
• Volvo Penta TAD550-51VE
• Volvo Penta TAD540-42VE
• Volvo Penta TAD840-43VE
• Volvo Penta TAD850-52VE
• Volvo Penta TAD870-73VE
• Volvo Penta TADH880-84VE

• Engine Family: TAD, TADH

⚙️ Key Features

• Die-cut to the original port and bolt pattern
• Material matched to temperature and fluid exposure
• Controls sealing thickness and component clearance
• Designed for clean, flat mating surfaces
• Single-use replacement during disassembly

🔌 Function

Seals two flat mating surfaces against leakage while maintaining the specified assembled clearance.

⚠️ Common Signs of Failure

• Fluid, air or exhaust leakage
• Blow-out between ports
• Compression loss or pressure drop
• Surface corrosion or distortion
• Gasket hardening, splitting or improper reuse

🛠️ Service Notes

• Always fit a new gasket, and take the old one off completely without scoring the joint faces — a plastic scraper and a residue-free solvent on aluminium, never an abrasive disc or a steel blade
• Check both faces for flatness, corrosion pitting and pulled threads before assembly; a gasket cannot bridge a distorted or damaged joint face
• Fit dry unless the procedure for your engine specifically calls for sealant — sealant on a gasket designed to run dry acts as a lubricant and lets the gasket creep out under clamping load
• Locate the gasket on its dowels or bolts and check every port, passage and bolt hole lines up before anything is tightened
• Draw the fasteners down in stages, evenly and from the centre outwards, to the figure in the workshop manual for your engine
• Handle the gasket flat and unfolded — a crease or a nicked edge becomes a leak path

📦 Condition

• Genuine Volvo Penta part
• Brand new
• Supplied in original or equivalent packaging
