22023230 Wiring Harness | Genuine Volvo Penta Part

22023230 Wiring Harness | Genuine Volvo Penta Part

$3,243.54 AUD
$3,243.54 AUD
Sale Sold out
Shipping calculated at checkout.

Available from Volvo Penta international

Typically reaches our store in 10–14 business days

Availability checked daily with Volvo Penta

✓ Authorised Volvo Penta Dealer · Genuine Volvo Penta parts · Ships Australia-wide

🔧 Product Description

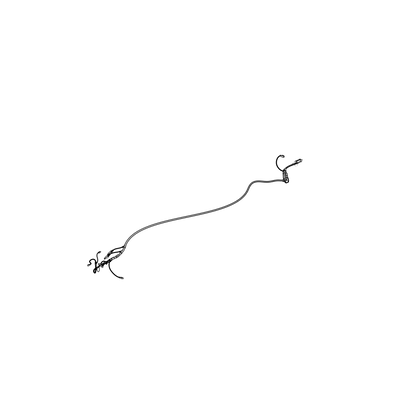

Genuine Volvo Penta 3.5m D11A-D IPS / Jackshaft Wiring Harness, part number 22023230. A genuine 3.5-metre wiring harness used in Volvo Penta D11A-D marine propulsion, IPS or jackshaft installations.

🚤 Compatibility

Typically suits:

  • Volvo Penta D11C2-A MP
  • Volvo Penta D11C4-A MP
  • Volvo Penta D11B4-A MP
  • Volvo Penta D11B2-A MP
  • Volvo Penta D11A-D MP
  • Volvo Penta D11A-E MP
  • Volvo Penta IPS20-D
  • Volvo Penta IPS2-C
  • Volvo Penta D8A4-A MP
  • Volvo Penta IPS2-B
  • Engine Family: D, IPS
  • HP Range: Approximately 625-725 HP
  • Year Range: Approximately 2007 – 2015

⚙️ Key Features

  • 3500 mm long
  • For D11A-D propulsion, IPS and jackshaft installations
  • 3.4 kg
  • Supersedes 21851494 and 21851495
  • Listed for ten D series and IPS applications
  • L=3500mm (Volvo assembly listing)

🔌 Function

Carries power and signal between the engine, the driveline and the control equipment over a 3500 mm run, in a loom terminated for that length.

⚠️ Common Signs of Failure

  • Intermittent alarms or lost communication that follow engine vibration
  • Salt or green corrosion in a connector shell
  • Outer sheath rubbed through against a bracket, clip or hot pipe
  • Resistance in a circuit rising when the loom is flexed
  • A connector that will no longer latch or seal

🛠️ Service Notes

  • Supersedes 21851494 and 21851495
  • Harnesses 22023226, 22023228 and 22023231 cover the same installation at 1700, 2600 and 5500 mm, so measure the run before ordering
  • Route the new loom exactly as the old one lay and clip it at every original point

🔄 Supersession & Cross Reference

OEM Supersession Chain

  • 22023230 → Supersedes 21851494 → Supersedes 21851495 → Supersedes 21761785 → Supersedes 21761786

OEM / Related Numbers

  • 21851494 earlier number superseded by this part
  • 21851495 earlier number superseded by this part
  • 21761786 earlier number superseded by this part
  • 21751128 – support bracket
  • 949997 – clamp
  • 994383 – flange screw
  • 821542 – spacer sleeve

📦 Condition

  • Genuine Volvo Penta part
  • Brand new
  • Supplied in original or equivalent packaging
