22023238 Wiring Harness | Genuine Volvo Penta Part

🔧 Product Description

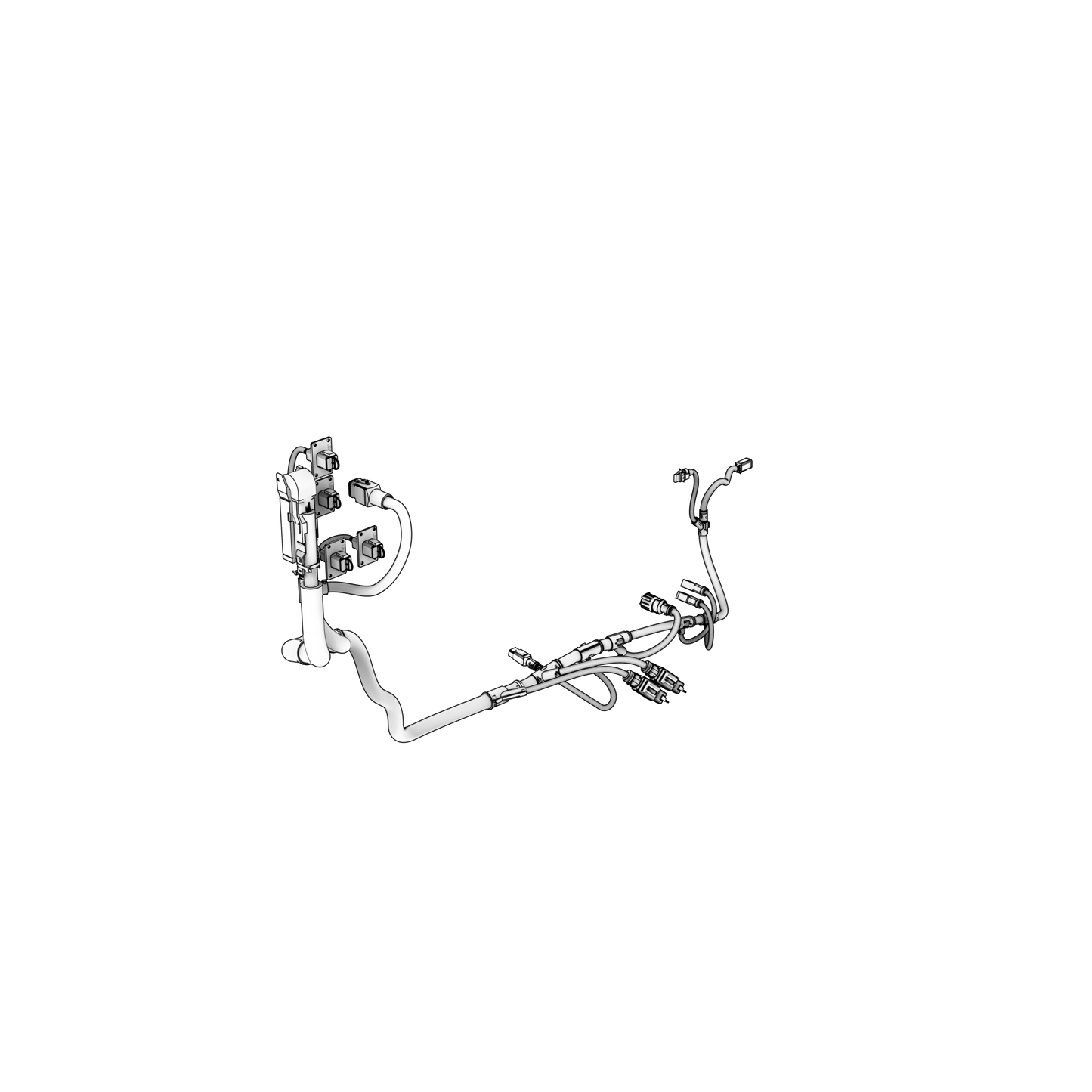

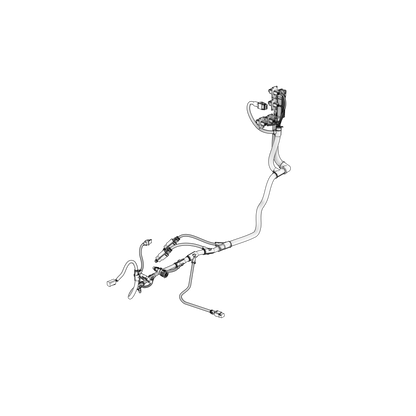

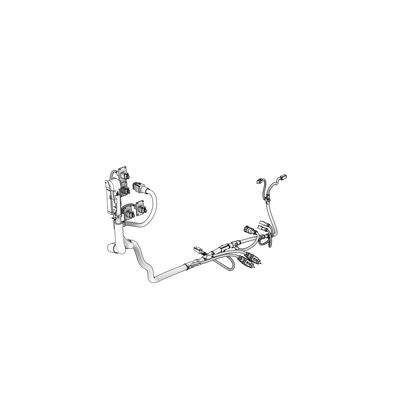

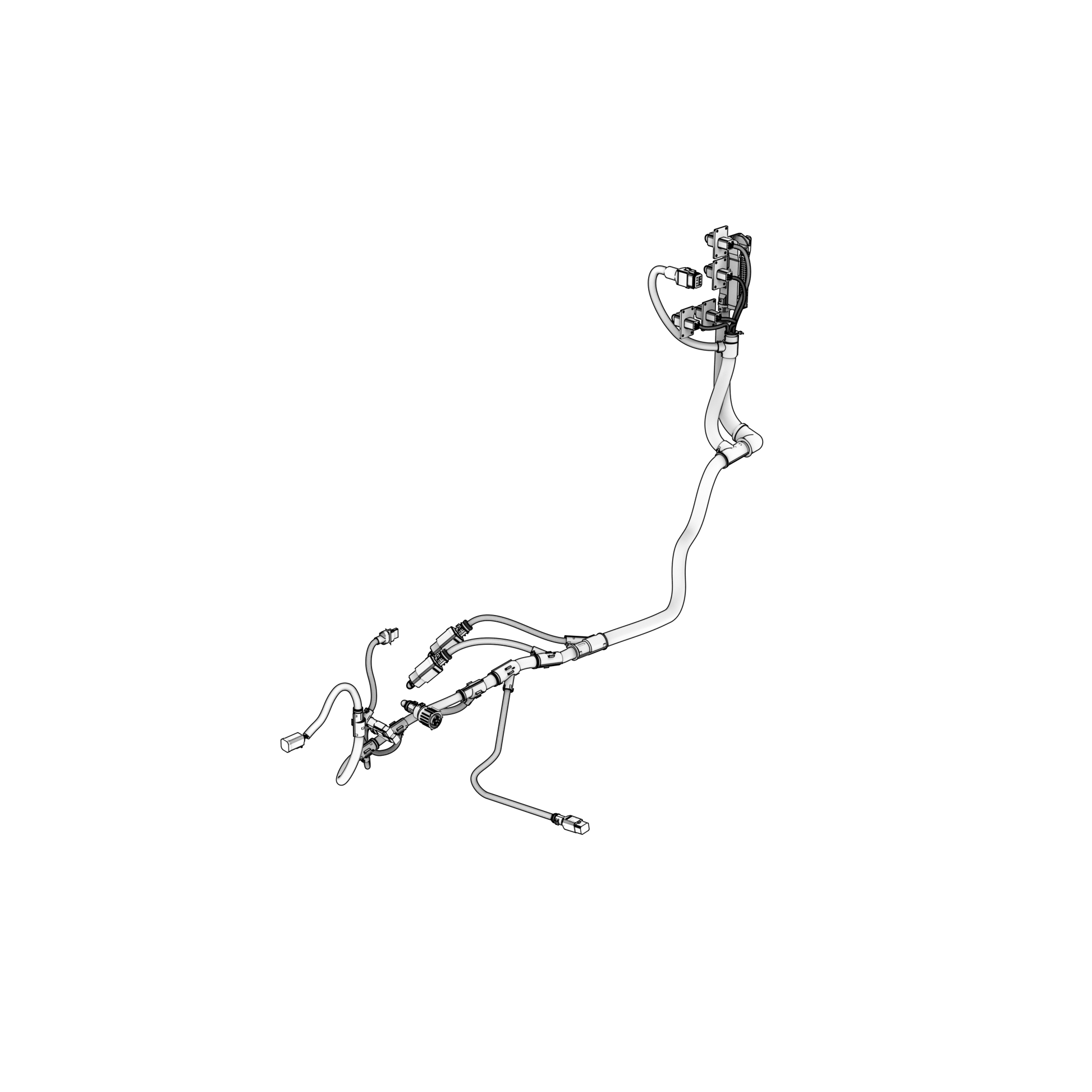

Genuine Volvo Penta 1.3m EVC / IPS Steering Wiring Harness, part number 22023238. A genuine 1.3-metre wiring harness used between the engine, HCU or steering components in Volvo Penta EVC-E2 and IPS installations.

🚤 Compatibility

• Engine Family: D, IPS
• HP Range: 180-435 HP
• Year Range: Approximately 2012 - current supported applications

Full model list at the end of this description.

⚙️ Key Features

• 1300 mm long
• For D13 IPS installations with a 380 mm jackshaft
• 1.633 kg
• Supersedes 21759842
• Listed for 41 D series and IPS applications
• L=1300mm (Volvo assembly listing)

🔌 Function

Carries power and signal between the engine, the steering and hydraulic control unit and the IPS drive over a 1300 mm run, in a loom terminated for that installation.

⚠️ Common Signs of Failure

• Steering or drive faults that appear and clear with vibration
• Corrosion or moisture inside a connector shell
• Chafed or heat damaged sheath where the loom passes the jackshaft or a hot pipe
• A circuit reading open or high resistance when the loom is moved
• Pins found pushed back, bent or green in the housing

🛠️ Service Notes

• Supersedes 21759842
• The length of this harness is matched to the jackshaft, so measure the jackshaft and the cable run before ordering rather than judging by weight
• Keep the loom clear of the rotating jackshaft and clip it at every original point

🔄 Supersession & Cross Reference

OEM Supersession Chain

• 22023238 → Supersedes 21759842

OEM / Related Numbers

• 21759842 earlier number superseded by this part

📦 Condition

• Genuine Volvo Penta part
• Brand new
• Supplied in original or equivalent packaging

🔎 Full Model Compatibility

Typically suits:

• Volvo Penta D13C2-B MP, D13C1-A MP, D13C2-A MP, D13C3-A MP, D13C4-A MP, D13B-L MP, D13B-G MP, D13B-K MP, D13B-C MP, D13C6-A MP, D13C4-B MP, D13C5-B MP, D13C5-A MP, D13C8-B MP
• Volvo Penta D6-330A-F, D6-370A-F, D6-330D-F, D6-370D-F, D6-300A-F, D6-300D-F, D6-300I-F, D6-330I-F, D6-370I-F, D6-435D-F, D6-400A-F, D6-435I-F
• Volvo Penta D4-260A-F, D4-260D-F, D4-260I-F, D4-300A-F, D4-300D-F, D4-180I-F, D4-225I-F, D4-300I-F, D4-225A-F
• Volvo Penta D11B3-A MP, D11B4-A MP, D11B2-A MP, D11B1-A MP
• Volvo Penta IPS3-C
• Volvo Penta IPS30-D
