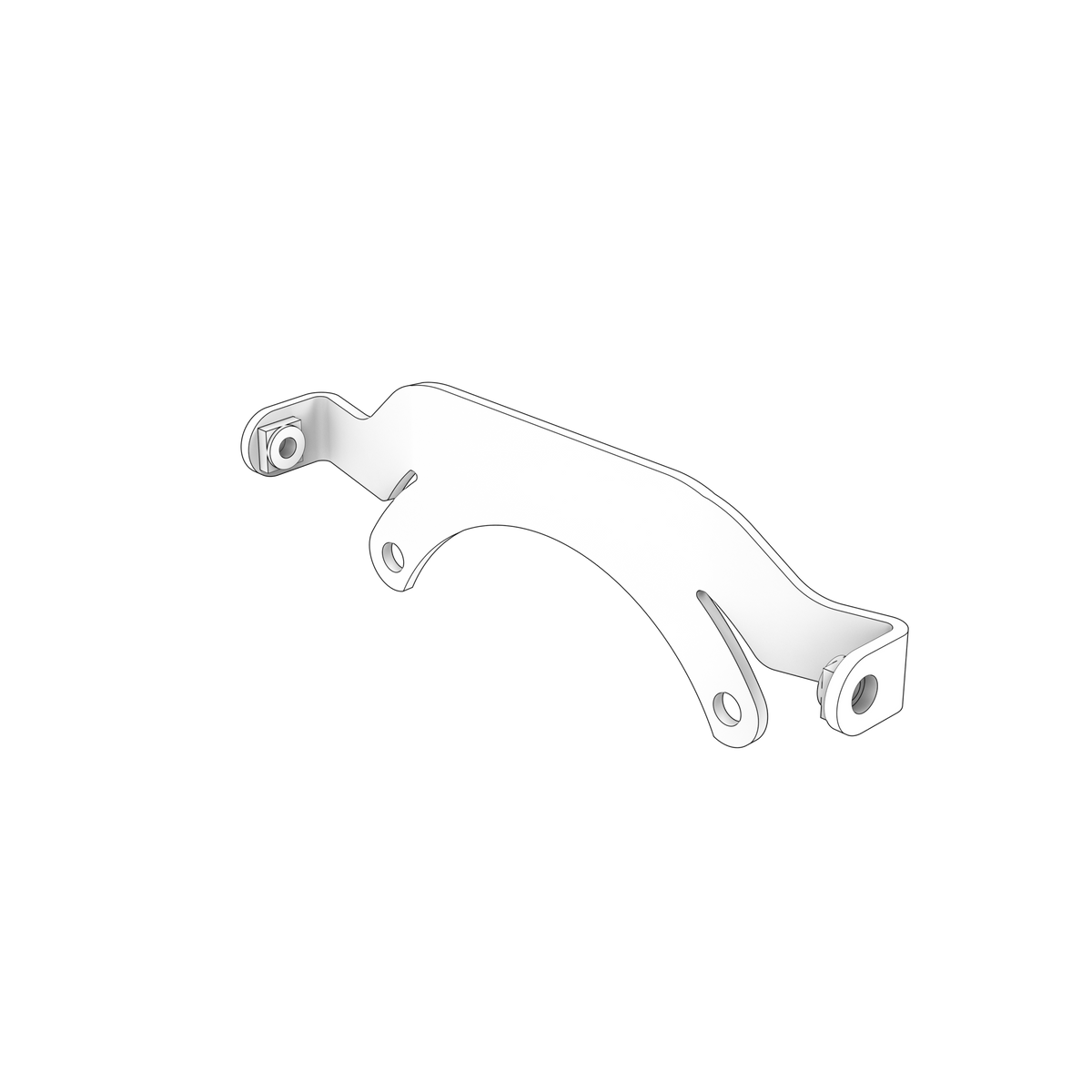

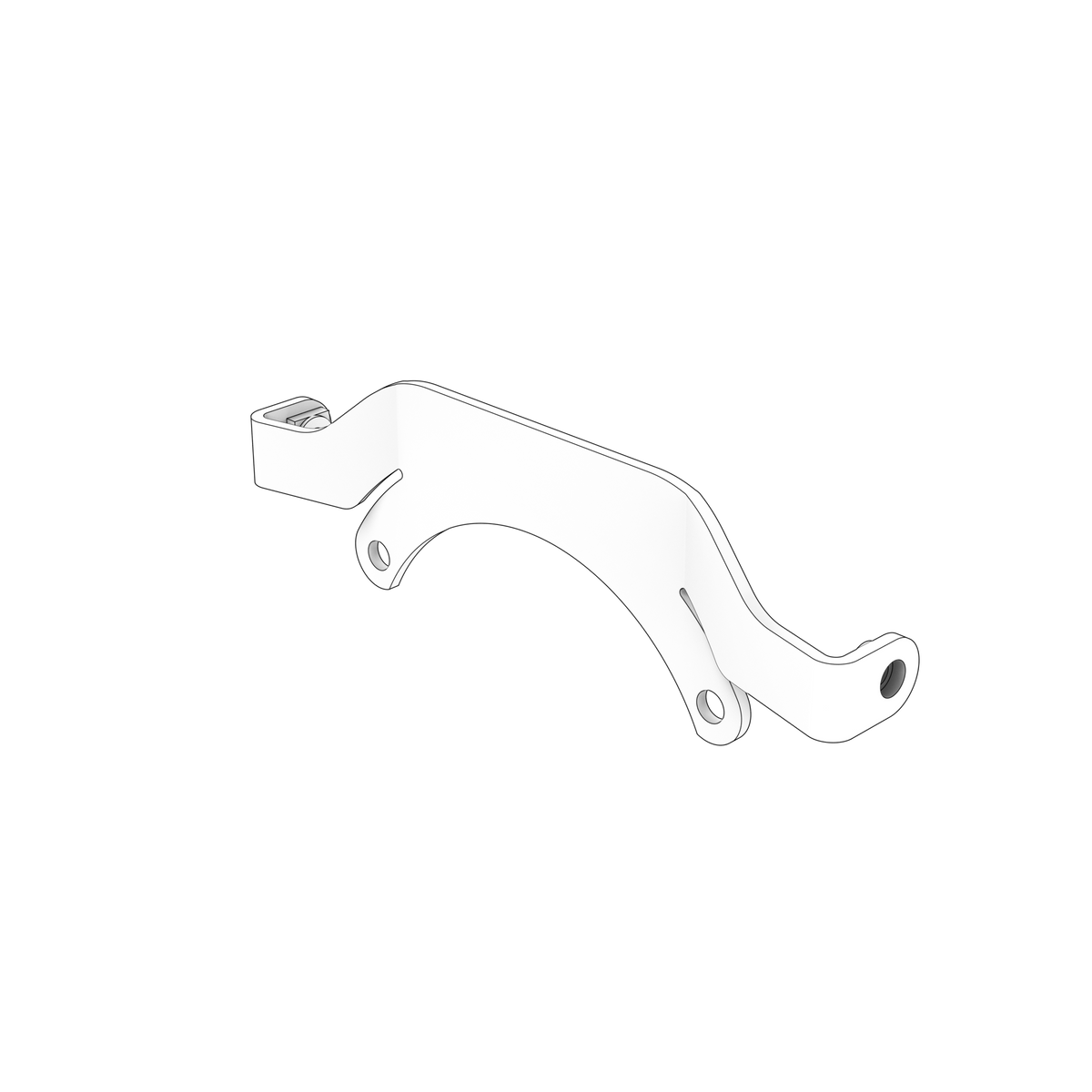

22032613 Bracket | Genuine Volvo Penta Part

🔧 Product Description

Support bracket in the D11B1-A MP air-inlet system. It locates the air-cleaner housing and related cover components so intake hoses and mounting hardware are not subjected to excessive movement.

🚤 Compatibility

Typically suits:

• Volvo Penta D11C1-A MP
• Volvo Penta D11C3-A MP
• Volvo Penta D11C2-A MP
• Volvo Penta D11C4-A MP
• Volvo Penta D11B3-A MP
• Volvo Penta D11B4-A MP
• Volvo Penta D11B2-A MP
• Volvo Penta D11B1-A MP

• Engine Family: D

⚙️ Key Features

• D11B1-A MP air-inlet application
• Air-cleaner housing support
• Factory fastener and spacer geometry
• Maintains inlet-component alignment
• Works with cover 22032666 and filter 21496510
• Engine type: 11-litre 6-cylinder turbocharged marine-commercial diesel

🔌 Function

Supports and positions the air-cleaner assembly so the intake tract remains aligned, sealed and protected from vibration.

⚠️ Common Signs of Failure

• Air cleaner housing sagging, tilted or moving by hand
• Intake hose kinked, pulled tight or rubbing where the housing has dropped
• Cracks at a mounting hole or a formed bend in the bracket
• Fasteners repeatedly working loose, with the holes worn oval
• Dust streaks downstream of the filter, showing the housing has not been sealing squarely

🛠️ Service Notes

• Check the intake hose, clamps and filter sealing face at the same time, because a dropped housing usually means the seal has been loaded off-square
• 22032684 is the equivalent air-cleaner bracket for the D11B2-A MP installation at the same listed weight, so order by engine designation and not by weight

🔄 Supersession & Cross Reference

OEM / Related Numbers

• 21496510 (related air filter)
• 22032666 (related air-filter cover)
• 22033545 (related sound absorber)
• 22024770 (related cover)
• 992404 (related grommet)

📦 Condition

• Genuine Volvo Penta part
• Brand new
• Supplied in original or equivalent packaging
