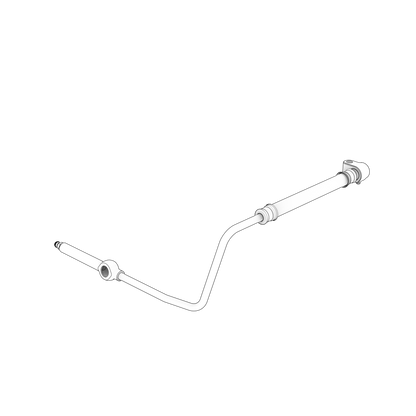

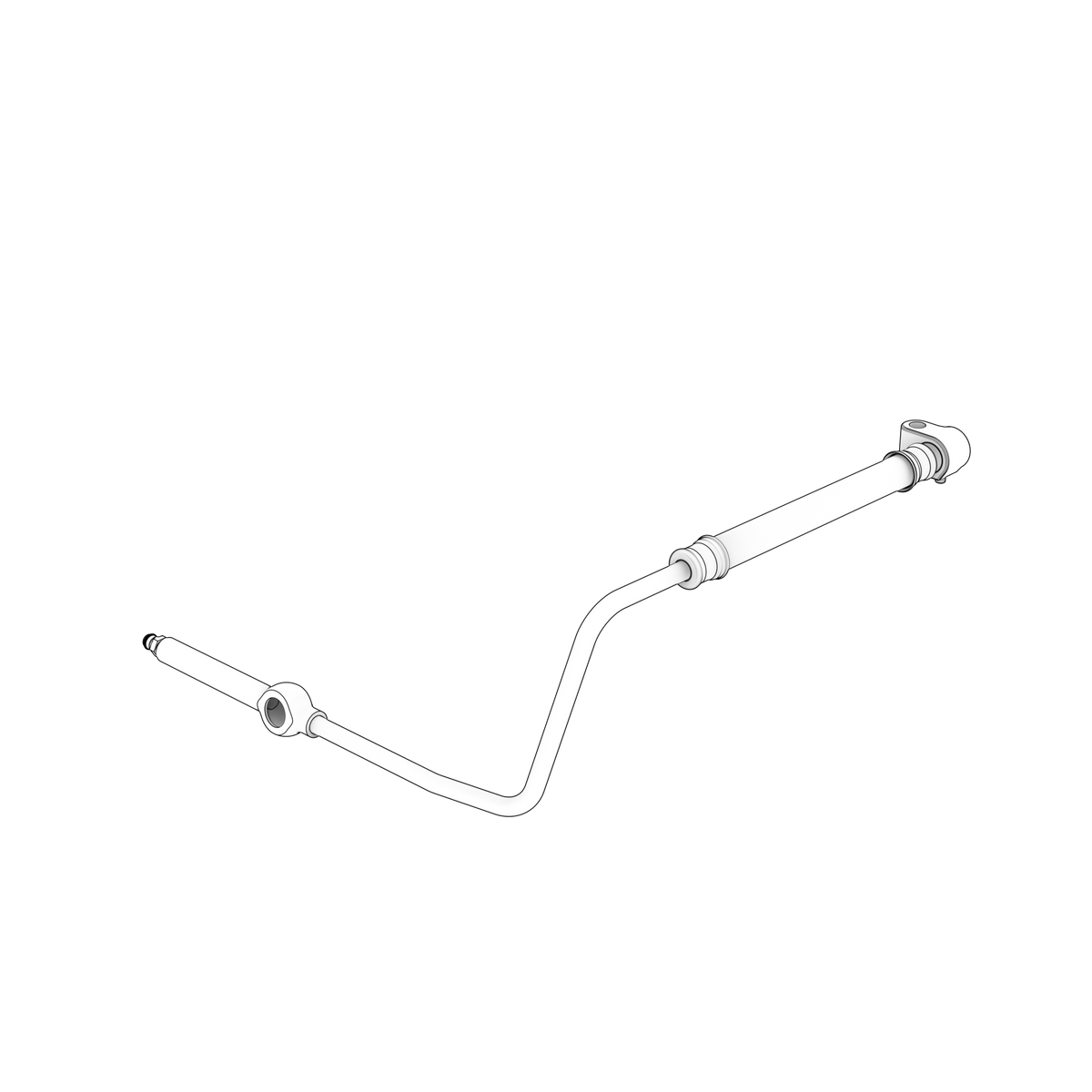

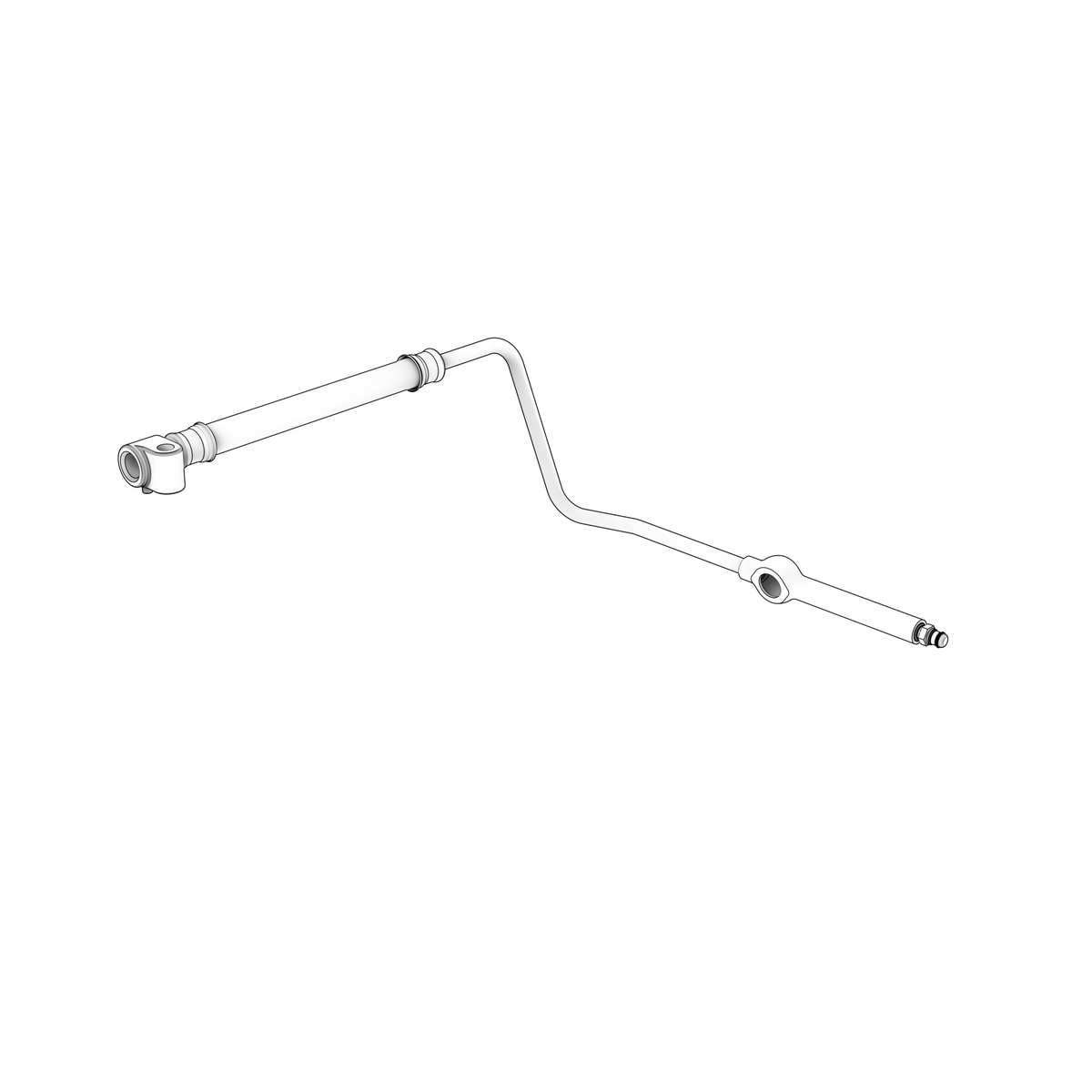

22037739 Fuel Hose | Genuine Volvo Penta Part

🔧 Product Description

High-pressure-rated formed fuel hose used in the Volvo Penta D13 fuel supply/return circuit. It is built with the correct fuel-resistant liner, crimped ends and routing to withstand engine vibration, temperature and pressure pulses.

🚤 Compatibility

• Engine Family: D

Full model list at the end of this description.

⚙️ Key Features

• Fuel-resistant inner liner and reinforced hose body
• Factory-crimped fittings and model-specific branch length
• Designed to prevent suction-side air ingress and external leakage
• Protective routing for vibration, heat and chafe resistance
• Exact supply, return and filter position must be matched
• Also supersedes Volvo part number 21550182

🔌 Function

Carries diesel or gasoline through the low-pressure supply, return or filter circuit without leakage or air ingress.

⚠️ Common Signs of Failure

• Fuel odour, dampness or visible seepage
• Hardening, cracking or blistering
• Air ingress causing difficult starting or unstable running
• Chafe damage at clamps or brackets
• Loose, corroded or leaking crimp fittings

🛠️ Service Notes

• Renew the sealing washers, O-rings or seals that belong to the connection rather than reusing them, and do not put jointing compound on a fuel union to cure a weep
• Fit the hose without twist, and support and clip it along its run so it cannot chafe or hang its own load on the end fittings
• Keep the hose clear of hot exhaust and moving parts, and cap the open ends while working so nothing gets into the fuel system
• Tighten unions to the figure given in the workshop manual for your engine — overtightening a fuel fitting distorts the seat and makes the leak permanent
• Bleed the fuel system afterwards, then run the engine and check the whole run for weeps under working pressure, with no ignition sources near and a means of containing spilt fuel to hand

🔄 Supersession & Cross Reference

OEM Supersession Chain

• 22037739 → Supersedes 22037732

OEM / Related Numbers

• 3889699 - related/earlier D13 fuel-hose reference; confirm serial application

📦 Condition

• Genuine Volvo Penta part
• Brand new
• Supplied in original or equivalent packaging

🔎 Full Model Compatibility

Typically suits:

• Volvo Penta D13C1-A MP, D13C2-A MP, D13C3-A MP, D13C4-A MP, D13B-A MP, D13B-H MP, D13B-G MP, D13B-L MP, D13B-E MG, D13B-E MG (FE), D13B-E MH, D13B-E MH (FE), D13B-F MG, D13B-F MG (FE), D13B-K MP, D13B-N MH, D13B-N MH (FE), D13B-B MP, D13B-D MP, D13B-J MP, D13B-M MP, D13B-C MP, D13C6-A MP, D13C1-A MH, D13C2-A MH, D13C5-A MP, D13C2-A MG, D13C1-A MG
