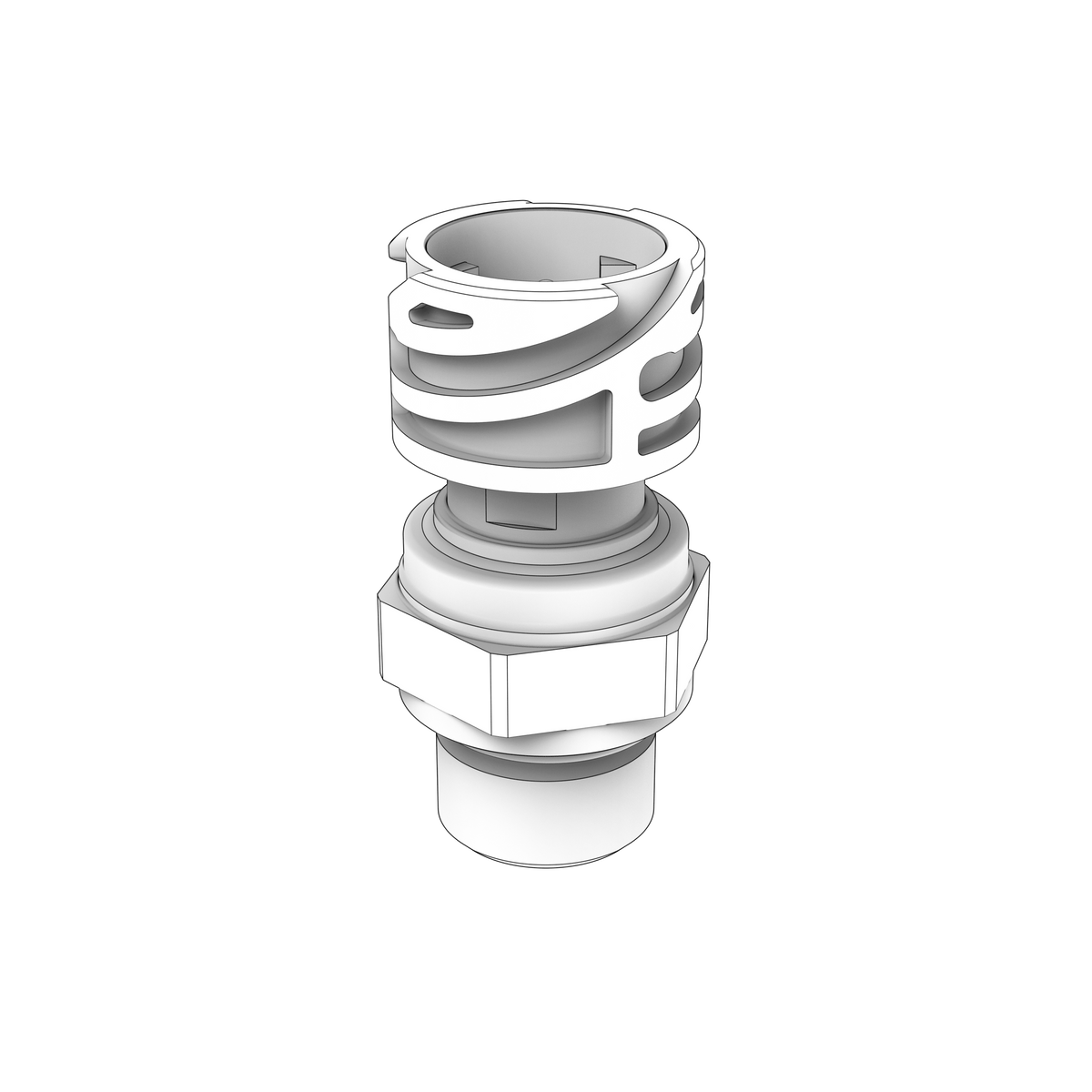

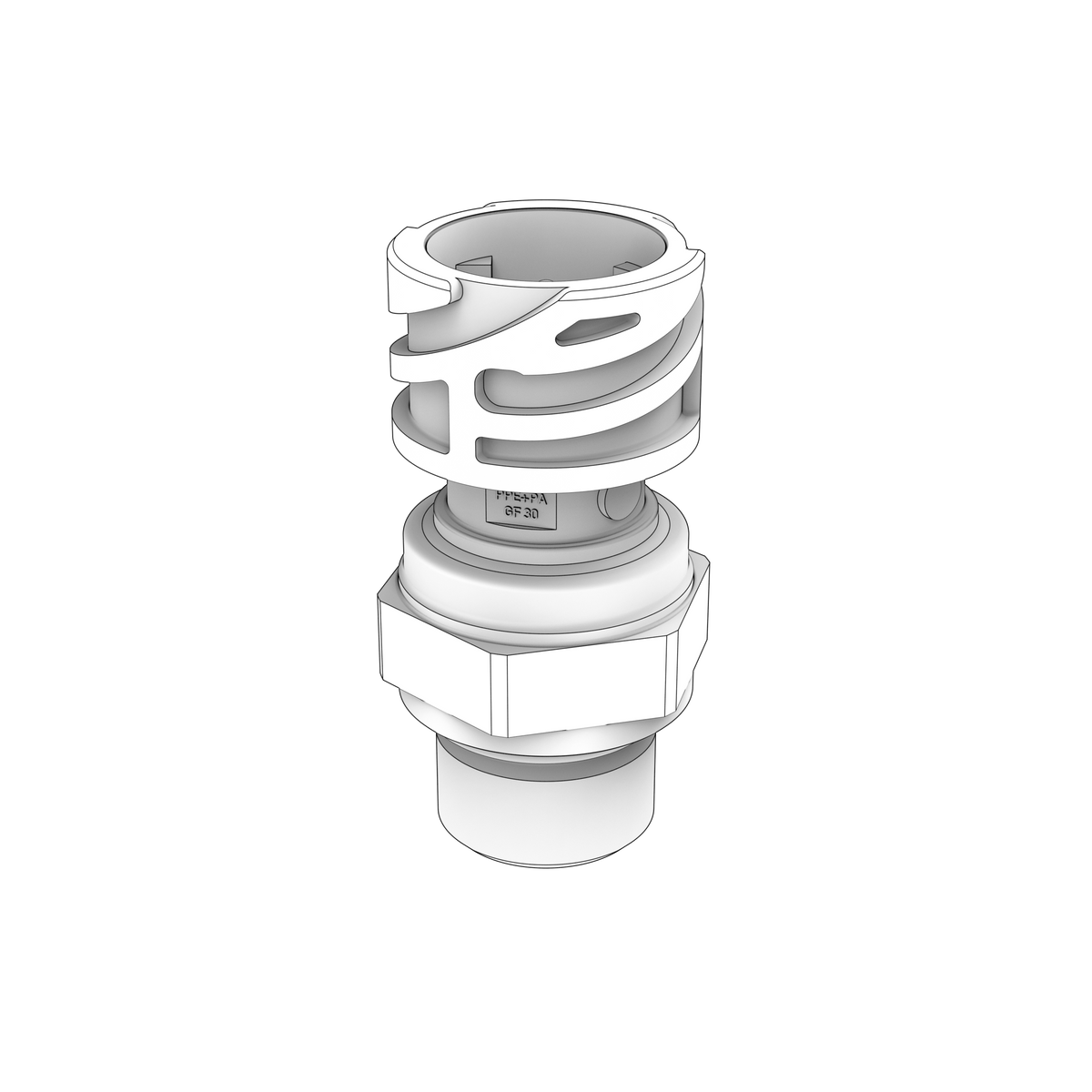

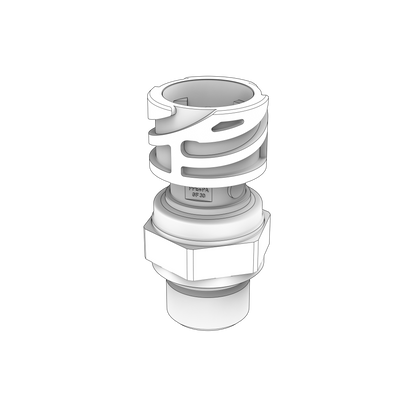

22052384 Pressure Sensor | Genuine Volvo Penta Part

🔧 Product Description

Electronic pressure sensor used by the Volvo Penta monitoring system to measure coolant or seawater-circuit pressure on large marine engines. It supplies the ECU/EVC with a calibrated signal for protection, alarms and diagnostics.

🚤 Compatibility

• Engine Family: D

Full model list at the end of this description.

⚙️ Key Features

• Calibrated pressure-sensing element
• Sealed engine-room electrical connector
• Provides live data to ECU/EVC protection logic
• Exact pressure range and signal curve must match
• Product, serial and software calibration controlled
• Quantity varies by assembly, most commonly one

🔌 Function

Converts system pressure into an electrical signal used for display, alarm, protection and diagnostics.

⚠️ Common Signs of Failure

• Missing, implausible or unstable pressure reading
• False low-pressure alarm or engine derate
• Open/short-circuit diagnostic code
• Fluid leakage through the sensor body
• Corroded connector pins or damaged wiring

🛠️ Service Notes

• Fit into a clean, dry, undamaged port with a new sealing washer or O-ring, start it by hand, and tighten only to the figure in the workshop manual — overtightening distorts the sensing element and shifts the reading
• Do not wrap sealing tape or smear jointing compound over the sensing face or into the port; shreds of tape travel into the system and a partly blocked port reads low
• Handle the sensor by its body: never lever it round by the connector or the wiring, and do not knock or drop it, since a sensing element is easily damaged without any external sign
• Mate the electrical connector clean and dry and push it fully home until it locks, then clip the harness so it cannot hang or pull on the sensor
• Before condemning a sensor, satisfy yourself the pressure it reports is genuinely wrong — an implausible reading is often a correct report of a real fault; after fitting, check the reading is stable and sensible cold and warm and that the sensor is dry under pressure

🔄 Supersession & Cross Reference

OEM Supersession Chain

• 22052384 → Supersedes 3808805 → Supersedes 874329

OEM / Related Numbers

• 3808805 earlier number superseded by this part
• 874329 earlier number superseded by this part

Aftermarket / Verified Equivalents

• Swedish Lorry Parts SEN-8805 - direct pressure-sensor cross-reference
• Topyauld: 3808805

📦 Condition

• Genuine Volvo Penta part
• Brand new
• Supplied in original or equivalent packaging

🔎 Full Model Compatibility

Typically suits:

• Volvo Penta D13C4-B MH, D13C1-B MH, D13C4-A MP, D13B-L MP, D13B-E MG, D13B-E MG (FE), D13B-K MP, D13B-N MH (FE), D13B-D MP, D13B-J MP, D13B-M MP, D13B-C MP, D13C4-B MP, D13C5-B MP, D13C1-B MG, D13C3-B MG, D13C1-A MG, D13C8-B MP, D13B-N MH, D13C1-A MH, D13C3-B MH
• Volvo Penta D12C-A MP, D12D-A MG, D12D-A MH, D12D-A MP, D12D-B MH, D12D-C MH, D12D-C MP, D12D-E MG, D12D-E MP, D12D-F MP, D12D-G MP, D12D-H MP
• Volvo Penta D9A2J, D9A2G, D9A2L MH, D9A2D, D9A2B, D9A2F, D9A2K, D9A2H, D9A2M MP, D9A2A, D9A2C, D9A2E
• Volvo Penta D16C-A MG, D16C-A MH, D16C-B MH, D16C-C MH, D16C1-E MG, D16C1-F MG, D16C-D MH, D16C1-E MH, D16C1-F MH
• Volvo Penta D8A2-A MP, D8A5-A MH, D8A6-A MH, D8A5-A MG, D8A6-A MG, D8A4-A MP, D8A1-A MP, D8A3-A MP
• Volvo Penta D11C3-A MP, D11B3-A MP, D11B4-A MP
