22059724 Propeller Kit | Genuine Volvo Penta Part

🔧 Product Description

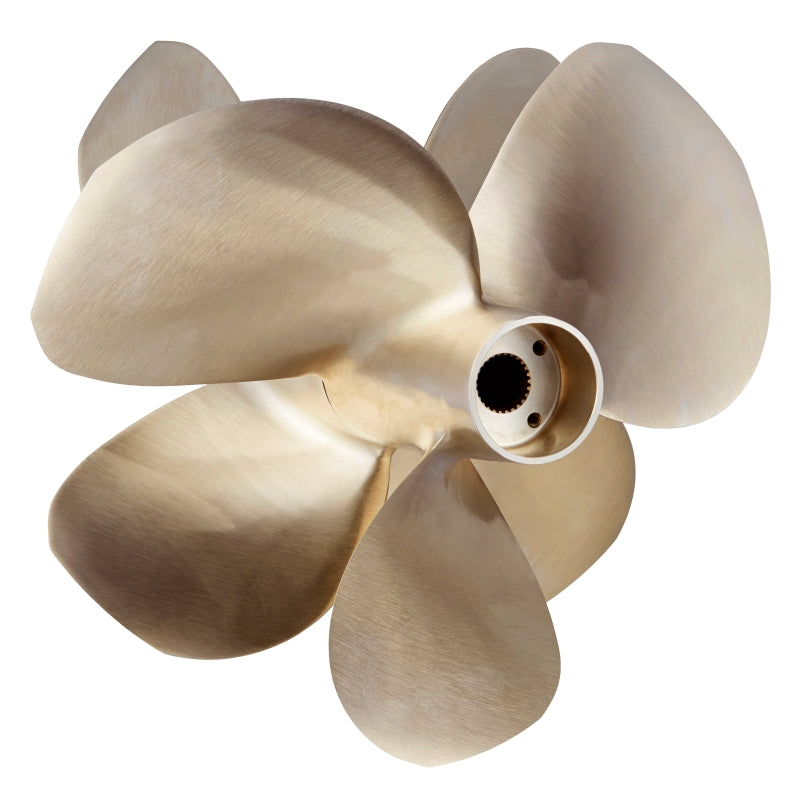

Genuine Volvo Penta type QE4 nibral propeller set for Volvo Penta IPS 3, IPS 30. The QE propeller is a variant of the standard high performance Q propeller, featuring thicker blades and a slightly larger blade area. This adds strength and overall robustness, but will reduce efficiency and top speed. QE propellers could be a good choice for marine commercial vessels when operating in an area of temporary debris and flotsam, such as crushed ice and other floating objects that can damage the propeller. Volvo Penta IPS turns the propellers round to a forward-facing position, so the twin counter-rotating propellers pull the boat through the water rather than push it, and optimal interaction between the front and rear propeller holds performance and fuel efficiency across the whole speed range.

🚤 Compatibility

Typically suits:

• Volvo Penta D13C2-B MP
• Volvo Penta D13C2-A MP
• Volvo Penta D13C4-A MP
• Volvo Penta D13B-L MP
• Volvo Penta D13B-G MP
• Volvo Penta D13B-K MP
• Volvo Penta D13B-C MP
• Volvo Penta IPS30-E
• Volvo Penta D13C6-A MP
• Volvo Penta IPS3-C
• Volvo Penta D13C4-B MP
• Volvo Penta D13C5-B MP
• Volvo Penta D13C5-A MP
• Volvo Penta IPS30-D
• Volvo Penta IPS3-A
• Volvo Penta D13C7-B MP
• Volvo Penta D13C8-B MP

• Engine Family: D, IPS
• HP Range: Approximately 0-700 HP
• Year Range: Approximately mid-2010s onward

⚙️ Key Features

• Type QE4 heavy-duty set, front 22059614 and rear 22059634
• Thicker blades than standard Type Q for debris-laden water
• Approved for D13 IPS900, IPS1050 and IPS1200
• 260 kg
• The QE range runs QE1 to QE4
• NiBral nickel-bronze-aluminium alloy, corrosion resistant
• Includes line cutter
• Nibral (nickel-bronze-aluminium) alloy, as the whole Volvo Penta IPS propeller range.
• A variant of the standard high performance type Q propeller.
• Thicker blades and a slightly larger blade area for strength and robustness.
• Reduced efficiency and top speed compared with the standard type Q.
• Suited to commercial vessels working in temporary debris and flotsam.
• The type QE propeller is approved for D13 IPS900, IPS1050 and IPS1200.
• Supplied as a matched front and rear pair.
• When considering changing to the QE propeller, consult your local dealer or Volvo Penta Sales Application Engineer for size guidance and speed calculations.
• Material: nibral
• Fits: Volvo Penta IPS 3, IPS 30 (D13 engines)
• Type: QE4
• Set contains: front 22059614, rear 22059634

📋 Kit Contents

• 1 × Type QE4 front propeller - 22059614
• 1 × Type QE4 rear propeller - 22059634
• Propeller cone, nuts, washers and installation hardware are serviced separately
• Related IPS3 propeller-cone kit - 21297787

🔌 Function

Converts drive torque into thrust as a forward-facing contra-rotating pair, with the heavier blade section trading a little top speed for resistance to debris damage.

⚠️ Common Signs of Failure

• Vibration caused by blade damage or an unmatched propeller pair
• Cavitation, ventilation or poor acceleration
• Blade-edge erosion, corrosion or impact damage
• Incorrect loading after mixing Q and QE propeller families

🛠️ Service Notes

• The published 260 kg sits well above 22059721 at 165 kg, 22059722 at 161 kg and 22059723 at 164 kg, so confirm the shipping weight before booking transport
• Expect slightly lower top speed than the equivalent standard Type Q set, which is the trade for the thicker blade
• Line cutter 21686496 is the one listed for IPS 3 and IPS 30 and is worth fitting in debris-laden water
• Both propellers on a drive must carry the same type code - the front and rear are matched for torque distribution and mixing codes changes how the load is shared.
• Volvo Penta water-resistant multi-purpose premium grease is recommended for propeller shafts and all other propeller components.

🔄 Supersession & Cross Reference

OEM / Related Numbers

• 22059614 front propeller
• 22059634 rear propeller
• 21297787 related propeller-cone kit

Other-Brand OEM Numbers

• VOE22059724

📦 Condition

• Genuine Volvo Penta part
• Brand new
• Supplied in original or equivalent packaging
