22063732 Flange Screw | Genuine Volvo Penta Part

🔧 Product Description

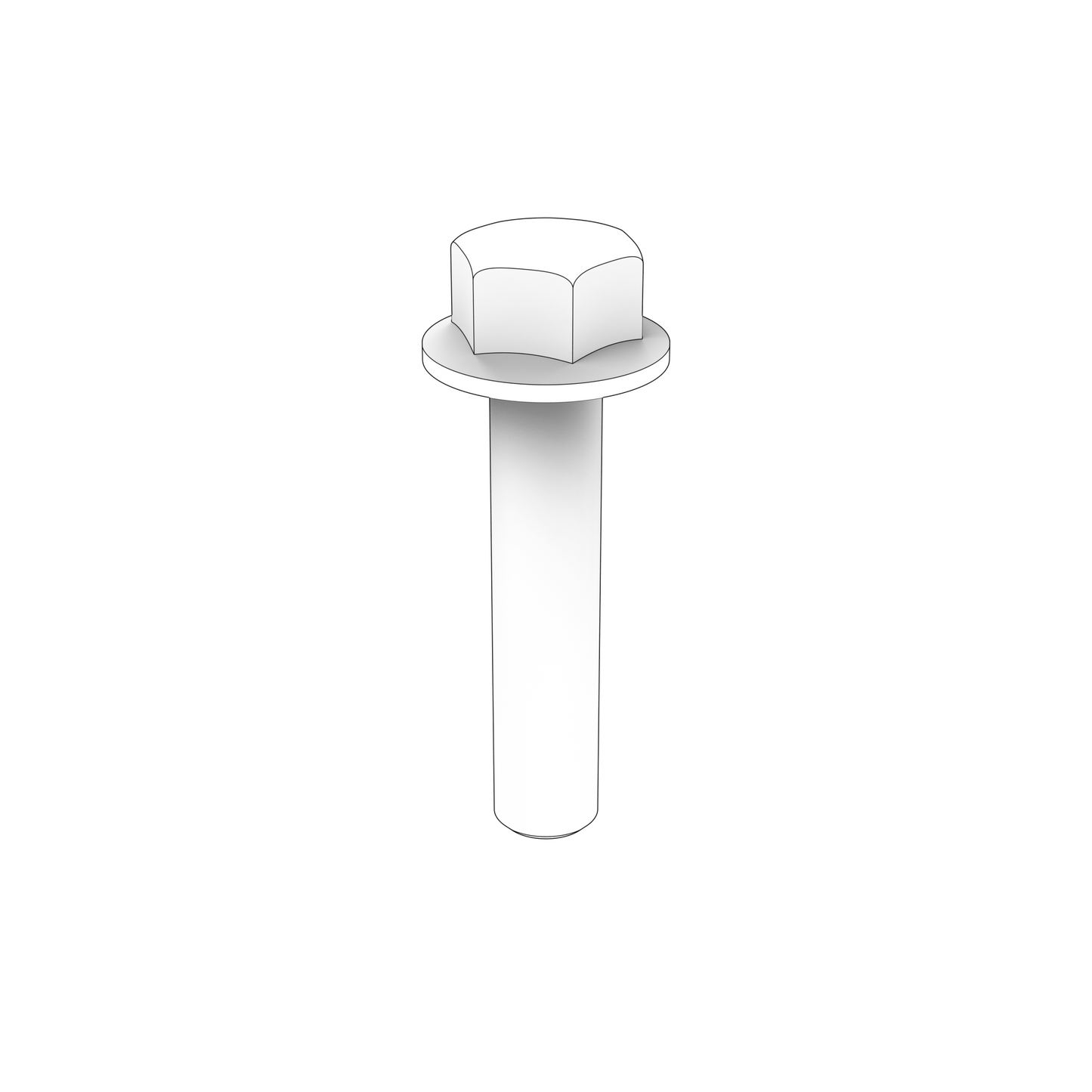

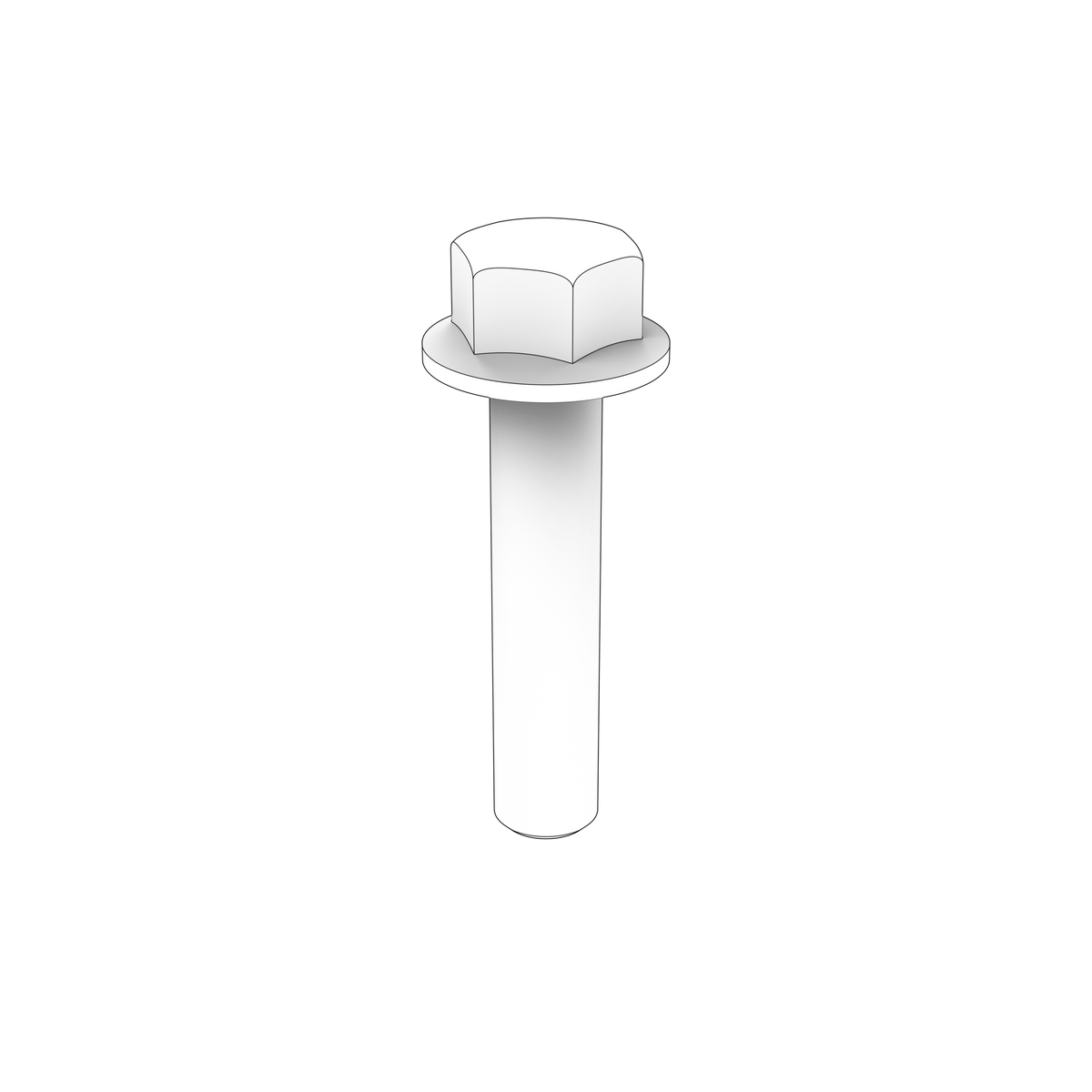

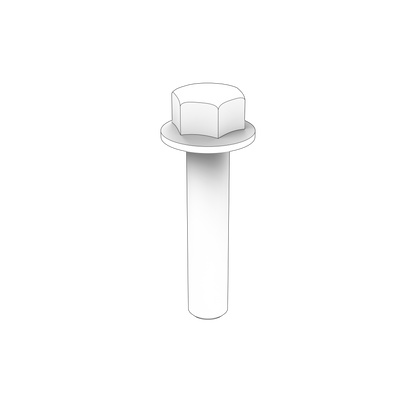

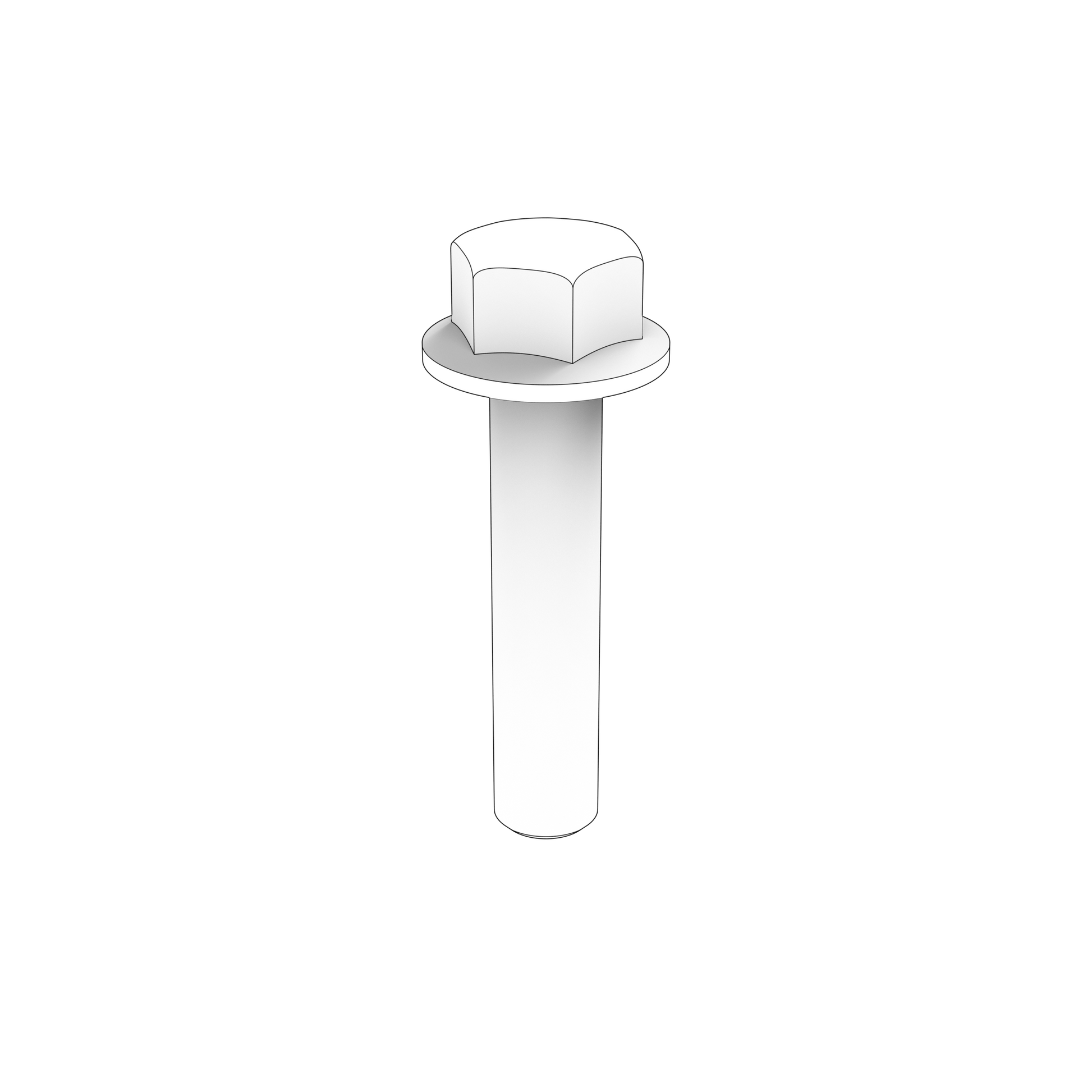

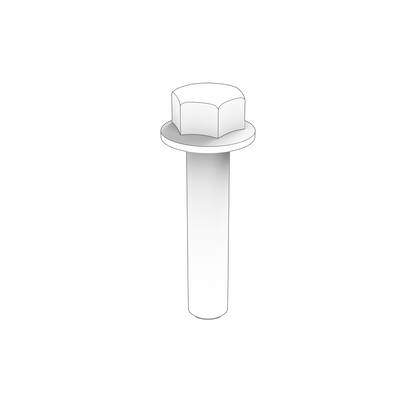

High-strength flange-head screw used in the fuel-system mounting of selected Volvo Penta V8 gasoline engines. The integral flange distributes clamp load across the bracket or pump mounting without a separate washer.

🚤 Compatibility

• Engine Family: V
• HP Range: 200-320 HP

Full model list at the end of this description.

⚙️ Key Features

• OEM thread diameter, pitch and length
• Specified material and strength class
• Factory flange or head geometry
• Maintains the required clamp load
• Correct tightening torque is essential
• Quantity varies by assembly, most commonly three

🔌 Function

Applies and maintains the specified clamp load between the joined components.

⚠️ Common Signs of Failure

• Damaged internal hex or flange head
• Stretched or corroded threads
• Incorrect bolt length bottoming in the bore
• Oil, coolant or exhaust leakage from poor joint compression

🛠️ Service Notes

• The integral flange spreads the load and forms the bearing face, so do not add a separate washer unless the workshop manual for your engine specifically calls for one
• Clean the threads and the seating face before fitting — grit, paint or old sealant under the flange gives a false torque reading and the joint will slacken off in service
• Where the flange is serrated it must bear directly on clean metal to grip; discard any screw with a deformed flange or damaged serrations rather than reusing it
• Tighten to the torque and sequence given in the workshop manual for your engine, and treat the screw as single-use where the manual specifies an angle-tightened or stretch fastener
• Check the thread in the receiving component at the same time; a pulled or corroded thread will not hold a new screw however carefully it is torqued

🔄 Supersession & Cross Reference

OEM Supersession Chain

• 22063732 → Supersedes 3850753

OEM / Related Numbers

• 3850753 earlier number superseded by this part
• 23306461 - fuel pump
• 3588865 - fuel-pump set
• 3847644 - fuel filter
• 21358873 - fuel-system bracket
• 60114414 - companion flange screw

📦 Condition

• Genuine Volvo Penta part
• Brand new
• Supplied in original or equivalent packaging

🔎 Full Model Compatibility

Typically suits:

• Volvo Penta V8-270-C-B, V8-270-CE-B, V8-300-A, V8-300-E-A, V8-300-B, V8-300-E-B, V8-300-C-A, V8-300-CE-A, V8-300-C-B, V8-320-C-B, V8-320-CE-B, V8-300-CE-B, V8-320-A, V8-320-E-A, V8-320-B, V8-320-E-B, V8-320-C-A, V8-320-CE-A, V8-225-C-A, V8-225-CE-A, V8-225-C-B, V8-225-CE-B, V8-270-A, V8-270-E-A, V8-270-B, V8-270-E-B, V8-270-C-A, V8-270-CE-A
• Volvo Penta V6-200-A, V6-225-A, V6-225-E-A
