🔧 Product Description

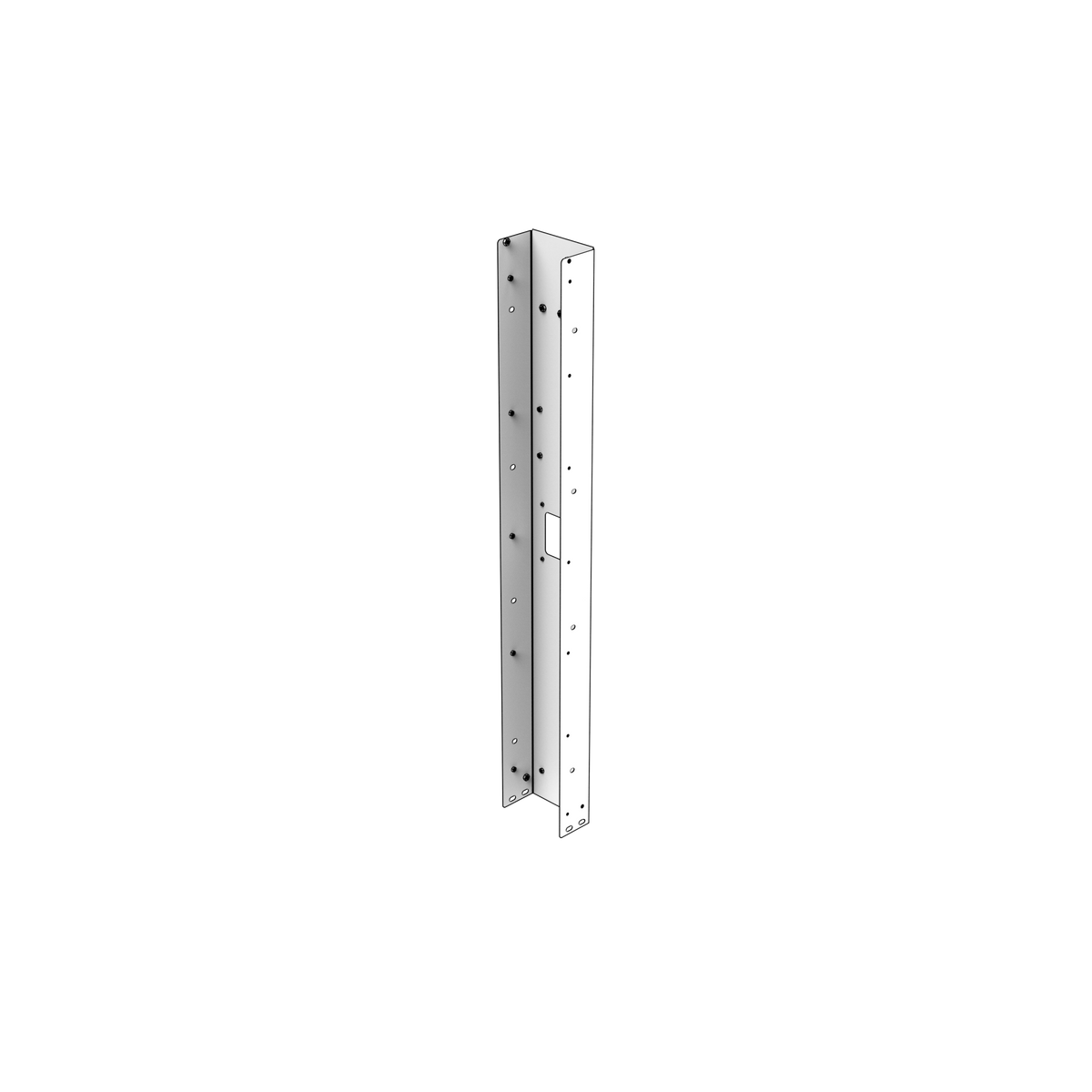

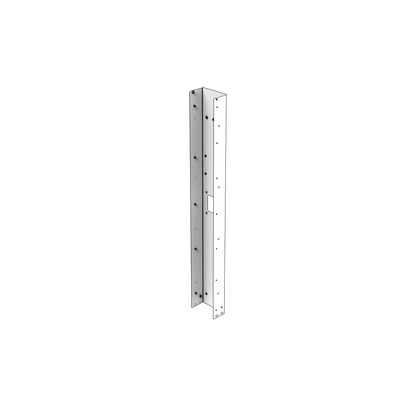

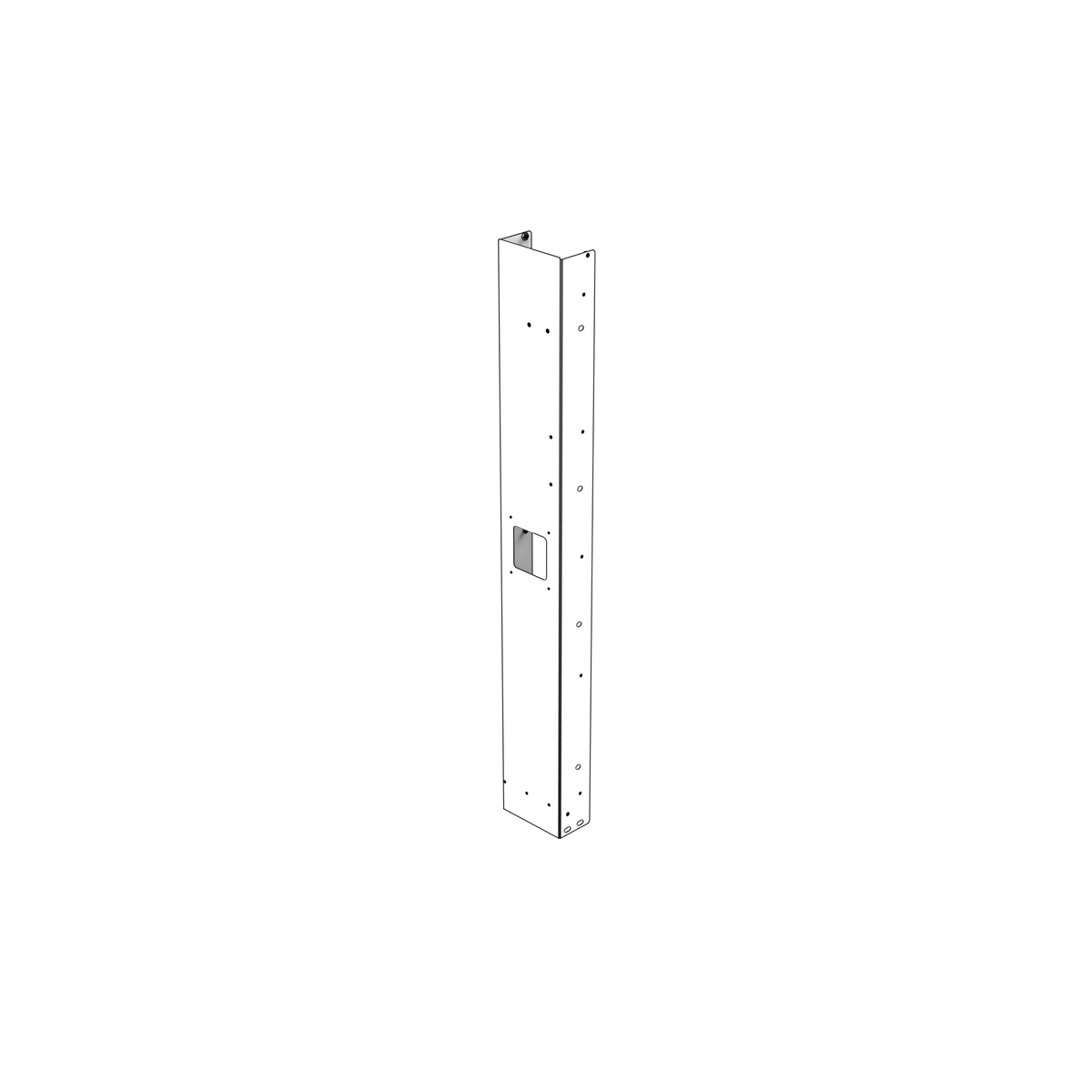

Genuine Volvo Penta TWD1643GE Cooling-Package Frame, part number 22075341. A genuine component used to form, support, seal or connect one structural frame section on Volvo Penta TWD1643GE generator engines.
🚤 Compatibility
Typically suits:
- Volvo Penta TWD1643GE
- Volvo Penta TWD1652GE
- Volvo Penta TWD1653GE
- Volvo Penta TWG1663GE
- Volvo Penta TWD1644-45GE
- Volvo Penta TWD1663GE
- Volvo Penta TWD1682-83GE
- Volvo Penta TWD1683GE-B
- Volvo Penta TWD1672-1673GE
- Engine Family: TWD, TWG
- Year Range: Approximately 2010 - 2020
⚙️ Key Features
- Main structural frame section of the TWD1643GE cooling package
- 24.494 kg
- Listed for 9 applications across the TWD and TWG series
- 22075204 and 22075345 are the other frame sections listed here
🔌 Function
Forms one of the main structural sections of the cooling-package frame, carrying the cores and shroud and holding the package square to the fan.
⚠️ Common Signs of Failure
- Cooling package out of square or moving on its mountings
- Fan catching the shroud, or an altered note from the fan
- Cracks radiating from fixing holes or from a weld
- Coolant or charge-air joints weeping as the cores shift
- Mounting fasteners that will not hold
🛠️ Service Notes
- 22075204, 22075341 and 22075345 are separate sections of the same frame and are not interchangeable, so order by part number and position
- Renew the isolators and re-check fan clearance after rebuilding the package
🔄 Supersession & Cross Reference
OEM / Related Numbers
- 22075207 - expansion tank
- 22075210 - cooling-package seals
- 22075211 - cooling-package seals
- 22075213 - position-specific hoses
- 22075217 - position-specific hoses
- 22075219 - position-specific hoses
- 22075221 - position-specific hoses
- 22075228 - support brackets
- 22075229 - support brackets
- 22075321 - support brackets
- 22075335 - support brackets
- 22075301 - cooling pipes
- 22075302 - cooling pipes
- 22075304 - radiator configurations
- 22075312 - radiator configurations
- 22075315 - radiator configurations
- 22075338 - package cover
- 22075345 - frame sections
- 22347040 - filler cap
- 22347416 - later related pipe
- 22347412 - pipe seal
- 22347417 - plates
- 22347421 - plates
- 22347423 - pipe
- 22347419 - tank
- 22347418 - hose connection
- 22347426 - O-ring
- 22347425 - plug
📦 Condition
- Genuine Volvo Penta part
- Brand new
- Supplied in original or equivalent packaging
