22081500 Wiring Harness | Genuine Volvo Penta Part

🔧 Product Description

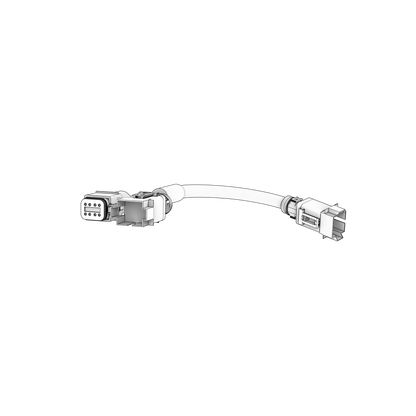

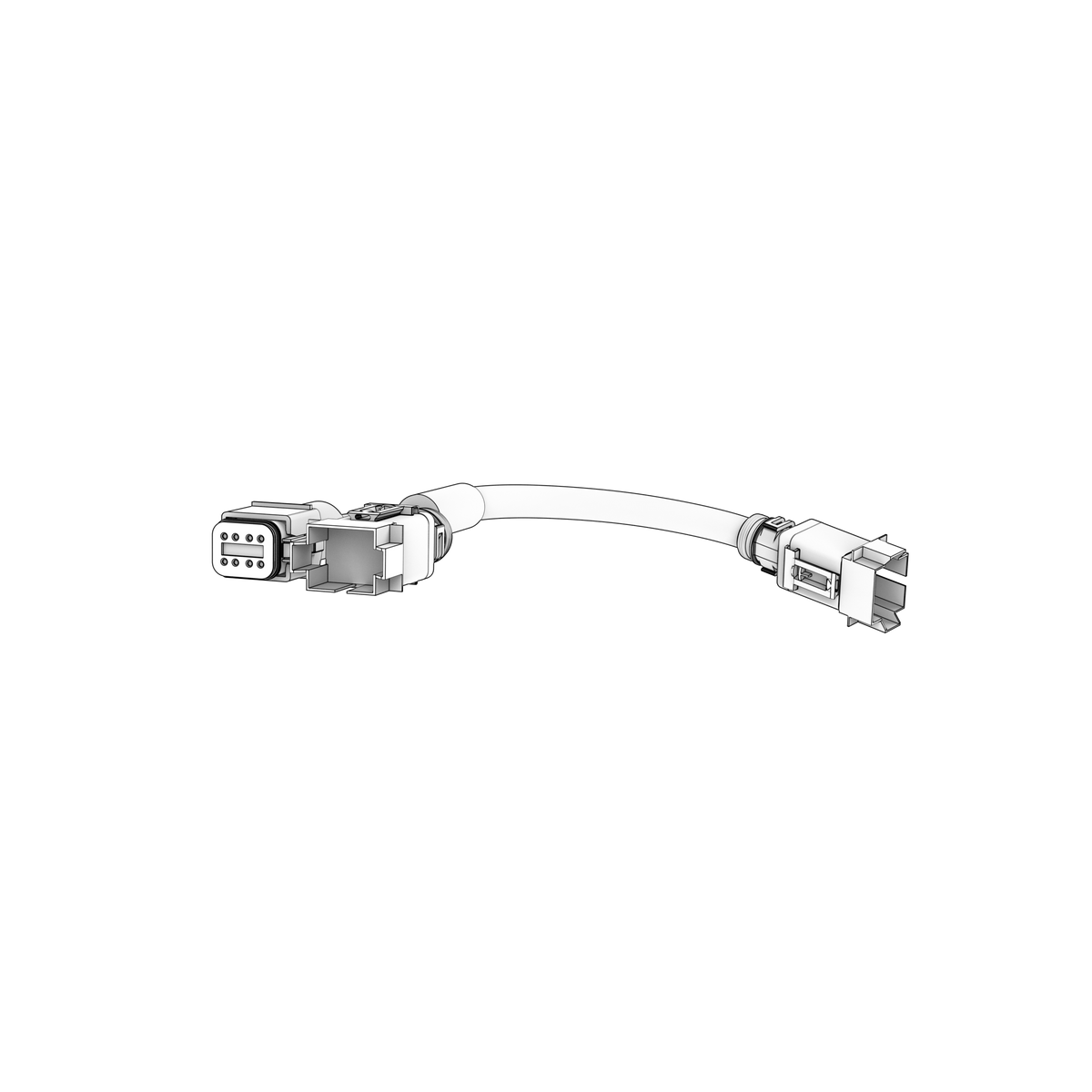

Genuine Volvo Penta DCU / EVC Engine Wiring Harness, part number 22081500. A genuine control-system wiring harness used with the DCU and related engine-control components on Volvo Penta TAD1140-42VE engines and selected later marine or industrial control installations.

🚤 Compatibility

• Engine Family: D
• HP Range: 300-480 HP
• Year Range: Approximately 2010 - 2021

Full model list at the end of this description.

⚙️ Key Features

• Factory branch length, conductor sizing and connector keying
• Marine- or industrial-grade insulation and sealing
• Correct pin allocation for the assigned control system
• Direct replacement for the exact harness or cable configuration
• Engine type: 10.8L inline six-cylinder turbocharged industrial diesel

🔌 Function

Carries power, ground, communication or control signals between the specified engine, display, control unit or vessel-side components.

⚠️ Common Signs of Failure

• One branch of the Y dead while the others still work
• Control-unit communication dropping out intermittently, often with vibration
• Corroded or pushed-back terminals in one of the eight-pole housings
• The overmoulding at the Y split cracked, letting moisture into the joint
• Fault codes that clear when a connector is unplugged and reseated

🛠️ Service Notes

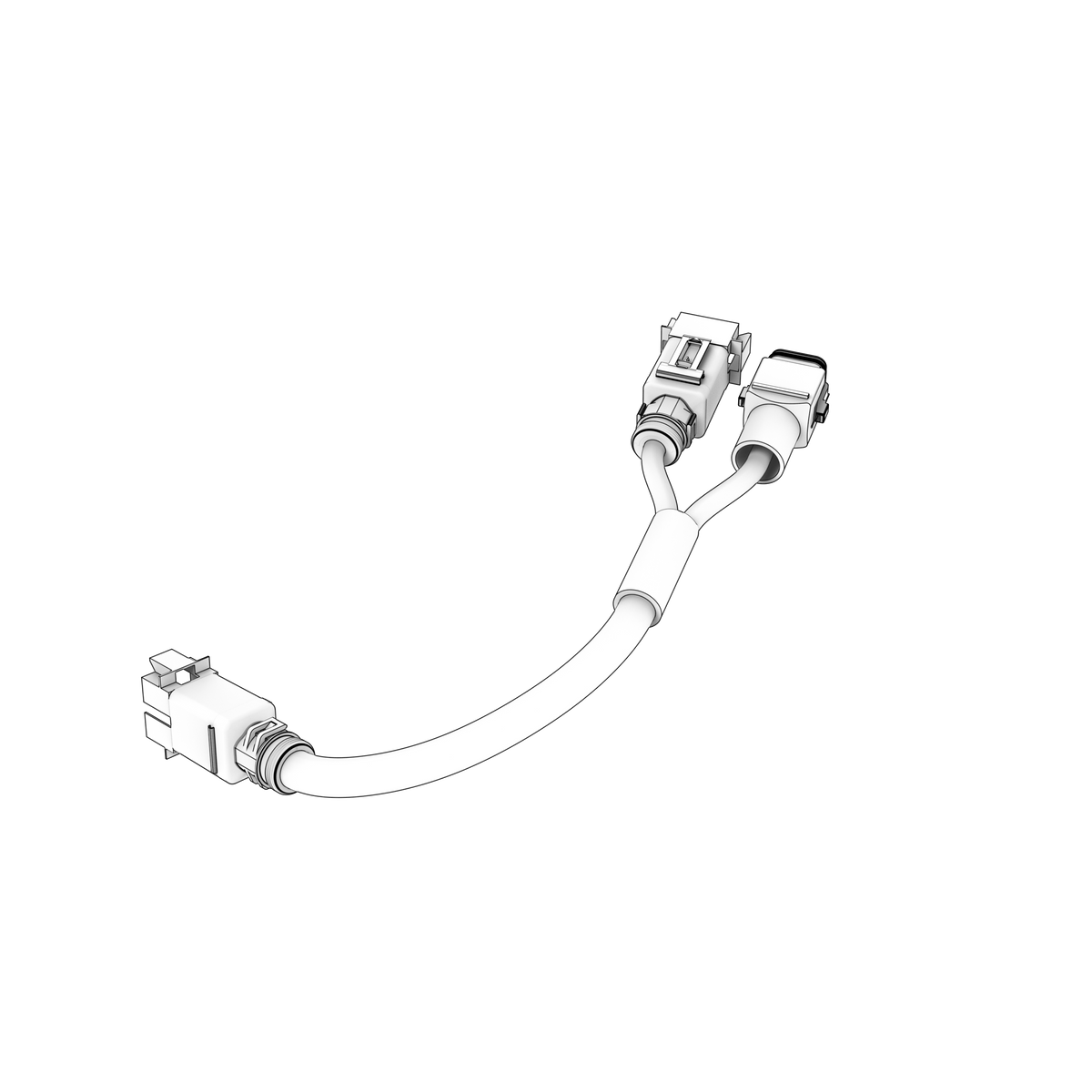

• This is the three-way eight-pole Y cable, so check all three legs when diagnosing - a fault on one branch reads at the control unit as if the whole circuit is down
• Check the connectors and their seals at both ends before replacing the cable

🔄 Supersession & Cross Reference

OEM / Related Numbers

• 21930866 - related engine harness
• 22088729 → 23111396 - 1m air-filter sensor cable
• 22088730 → 23111397 - related sensor cable
• 22088731 → 23111398 - related sensor cable
• 3944972 - connector housing
• 21935378 - 12-pole CIM harness

📦 Condition

• Genuine Volvo Penta part
• Brand new
• Supplied in original or equivalent packaging

🔎 Full Model Compatibility

Typically suits:

• Volvo Penta D6-340I-G, D6-380I-G, D6-440I-G, D6-480I-G, D6-300A-G, D6-340A-G, D6-380A-G, D6-440I-WJ-G, D6-480I-WJ-G, D6-300D-G, D6-340D-G, D6-380D-G, D6-440D-G, D6-480D-G, D6-440A-G, D6-300I-G
• Volvo Penta D13C1-A MP, D13C2-A MP, D13C3-A MP, D13C4-A MP, D13B-K MP, D13B-N MH, D13B-N MH (FE), D13C6-A MP, D13C1-A MH, D13C5-A MP
• Volvo Penta D8A2-A MP, D8A5-A MH, D8A6-A MH, D8A5-A MG, D8A6-A MG, D8A4-A MP, D8A1-A MP, D8A3-A MP
• Volvo Penta D11B3-A MP, D11B4-A MP, D11B2-A MP, D11B1-A MP
• Volvo Penta D4-320I-G, D4-300I-G, D4-320A-G, D4-300A-G
• Volvo Penta D16C-D MH
