22089960 Wiring Harness | Genuine Volvo Penta Part

🔧 Product Description

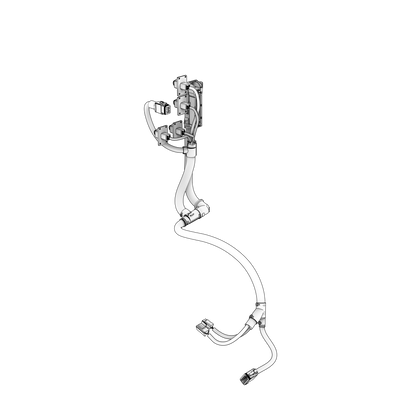

Dedicated reverse-gear harness used in Volvo Penta marine-commercial propulsion installations with ZF400A and selected MGX transmissions. It carries shift, pressure, temperature and control signals between the gearbox and EVC/engine electrical system.

🚤 Compatibility

• Engine Family: D, TAD
• HP Range: 13-435 HP

Full model list at the end of this description.

⚙️ Key Features

• Reverse-gear electrical harness
• ZF400A and selected MGX transmission application
• Factory connector pinout and cable branches
• Marine oil- and moisture-resistant loom
• Supports gearbox monitoring and shift control
• Engine type: Marine-commercial turbocharged diesel
• Quantity varies by assembly, most commonly one

🔌 Function

Connects the reverse gear to the engine/vessel control system for shift commands and gearbox sensor monitoring.

⚠️ Common Signs of Failure

• No shift command or intermittent gear engagement
• Gearbox alarm or missing pressure/temperature signal
• Corroded transmission connector
• Chafed loom near coupling or mounts
• Intermittent faults when harness is moved

🛠️ Service Notes

• Compare the new harness with the old one before fitting — check the connector types, the number of pins and the branch lengths, and lay it out alongside the old loom to confirm every branch reaches its component
• Disconnect the batteries before unplugging or fitting a harness, and support the loom as you work so its weight never hangs on a connector or a bulkhead grommet
• Route it along the original path and secure it with the original clips and ties, clear of hot exhaust surfaces, sharp edges and anything that moves; leave a service loop at each connector rather than pulling a branch tight
• Push every connector home until the lock latches and protect the joints with a marine dielectric grease — an intermittent electrical fault is far more often a partly seated or salt-corroded pin than a broken wire
• Renewing the harness is the right repair where insulation is chafed, brittle or oil-soaked, or where corrosion has tracked inside the connector bodies; patch repairs in a damp engine bay tend to fail again, and any single conductor that is repaired should be joined with tinned marine cable of the same gauge, a proper crimp and adhesive-lined heat-shrink

🔄 Supersession & Cross Reference

OEM Supersession Chain

• 22089960 → Supersedes 21776653

OEM / Related Numbers

• 21776653 earlier number superseded by this part

📦 Condition

• Genuine Volvo Penta part
• Brand new
• Supplied in original or equivalent packaging

🔎 Full Model Compatibility

Typically suits:

• Volvo Penta D6-330A-D, D6-330D-E, D6-370D-E, D6-330A-F, D6-370A-F, D6-330D-D, D6-370D-D, D6-330D-F, D6-370A-D, D6-330A-E, D6-370A-E, D6-370D-F, D6-330I-D, D6-280I-D, D6-310I-D, D6-435I-D, D6-280I-E, D6-310I-E, D6-300A-F, D6-300D-F, D6-300I-F, D6-310D-D, D6-310D-E, D6-280A-D, D6-310A-D, D6-280A-E, D6-310A-E, D6-330I-F, D6-370I-F, D6-400A-E, D6-435D-D, D6-435D-E, D6-435D-F, D6-435I-E, D6-400A-F, D6-435I-F, D6-370I-D, D6-330I-E, D6-370I-E
• Volvo Penta D13C3-B MH, D13C1-B MH, D13C4-B MH, D13C2-B MP, D13C1-A MP, D13C2-A MP, D13C3-A MP, D13C4-A MP, D13B-A MP, D13B-C MH, D13B-H MP, D13B-G MP, D13B-L MP, D13B-E MH, D13B-E MH (FE), D13B-K MP, D13B-N MH, D13B-N MH (FE), D13B-B MP, D13B-D MP, D13B-J MP, D13B-M MP, D13C4-B MP, D13C5-B MP, D13C6-A MP, D13C1-A MH, D13C2-A MH, D13C5-A MP, D13C7-B MP, D13C8-B MP, D13C9-A MP
• Volvo Penta D4-260A-D, D4-260A-E, D4-260A-F, D4-260D-D, D4-260D-E, D4-260D-F, D4-260I-D, D4-260I-E, D4-260I-F, D4-300A-D, D4-300A-E, D4-300A-F, D4-300D-D, D4-300D-E, D4-300D-F, D4-180I-D, D4-225I-D, D4-180I-E, D4-225I-E, D4-180I-F, D4-225I-F, D4-225A-D, D4-300I-D, D4-300I-E, D4-300I-F, D4-225A-E, D4-225A-F
• Volvo Penta D3-220I-G, D3-140A-G, D3-170A-G, D3-200A-G, D3-220A-G, D3-140I-G, D3-110I-G, D3-150I-G, D3-170I-G, D3-200I-G, D3-110I-H, D3-140A-H, D3-170A-H, D3-200A-H, D3-220A-H, D3-150I-H, D3-170I-H, D3-200I-H, D3-220I-H, D3-140I-H
• Volvo Penta D11C1-A MP, D11C3-A MP, D11B3-A MP, D11B4-A MP, D11A-A, D11A-B, D11A-C, D11A-D, D11A-E, D11B2-A MP, D11B1-A MP
• Volvo Penta D8A5-A MH, D8A6-A MH, D8A5-A MG, D8A6-A MG, D8A1-A MP, D8A3-A MP, D8A7-A MP
• Volvo Penta D12D-C MP, D12D-D MP, D12D-E MP, D12D-F MP, D12D-G MP, D12D-H MP
• Volvo Penta D2-40F, D2-55F, D2-50F, D2-75F, D2-60F
• Volvo Penta D16C-A MH, D16C-B MH, D16C-C MH, D16C-D MH
• Volvo Penta D9A2L MH, D9A2M MP, D9A2H, D9A2K
• Volvo Penta D1-30F, D1-13F, D1-20F
• Volvo Penta TAD1240GE
• Volvo Penta TAD1241GE
• Volvo Penta TAD1242GE
