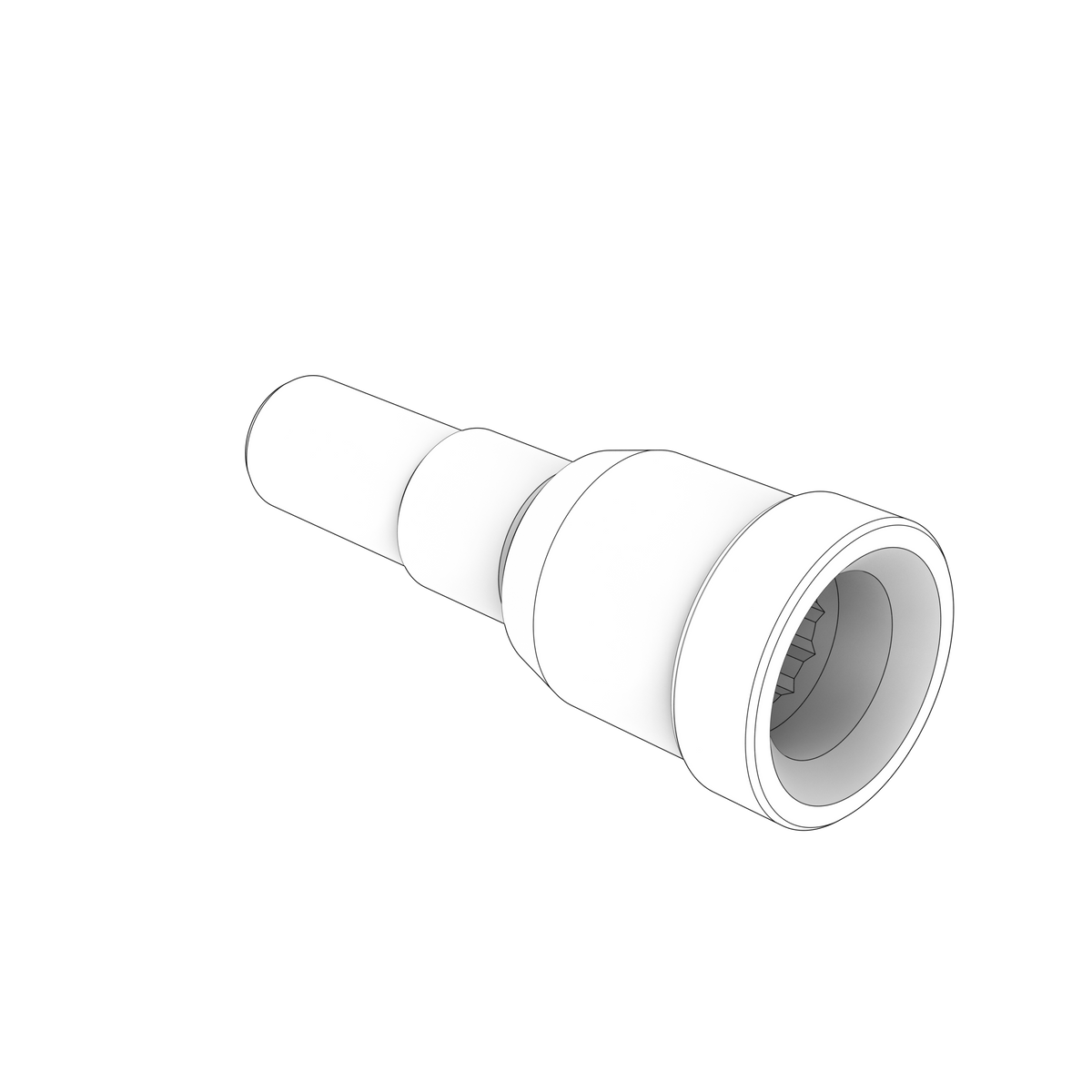

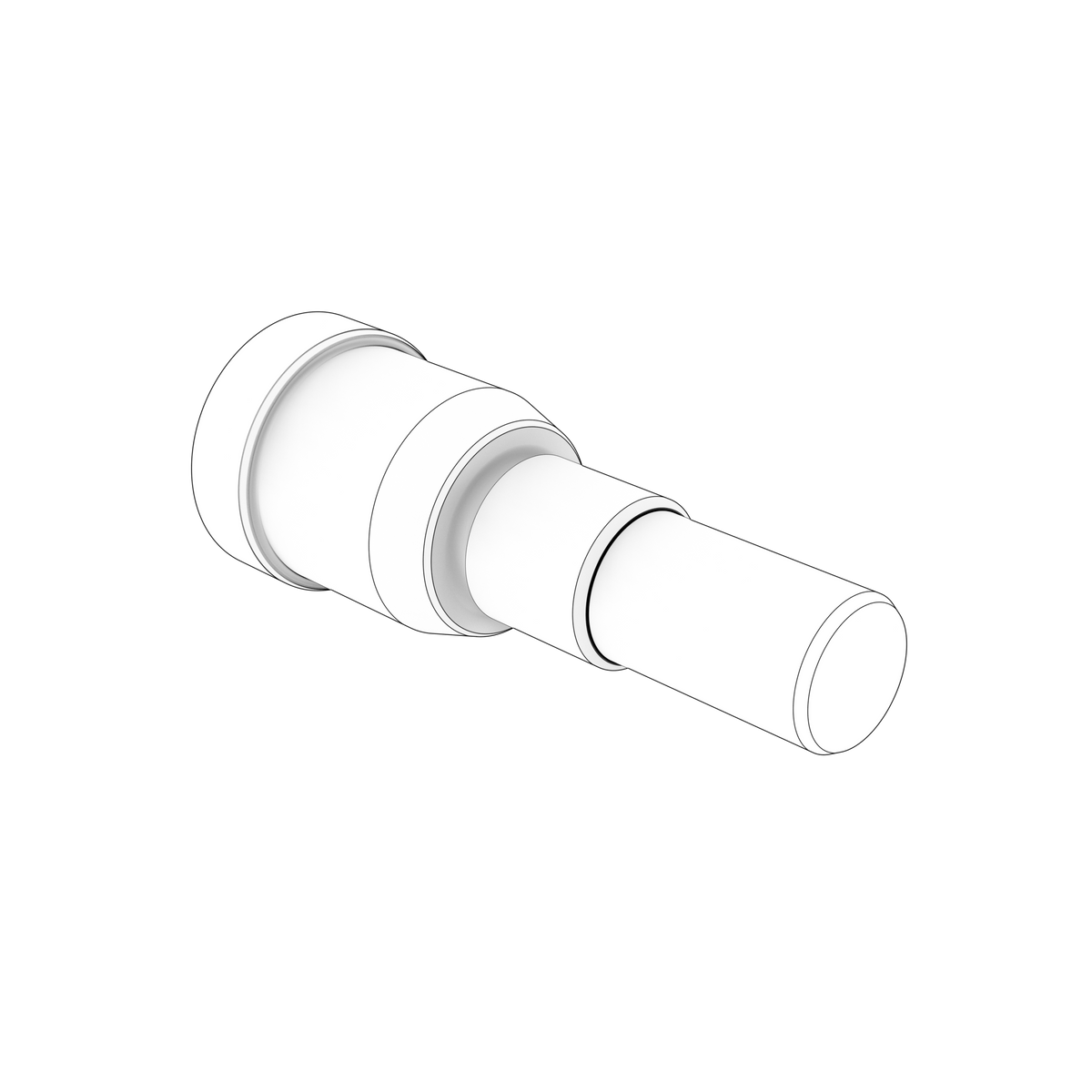

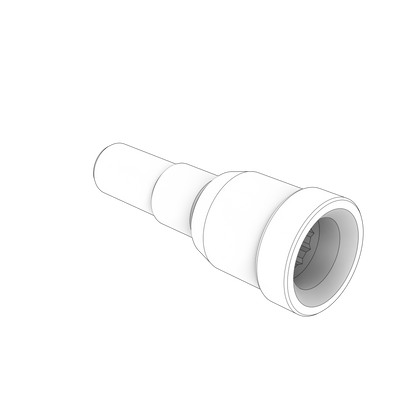

22093448 Pivot Pin | Genuine Volvo Penta Part

22093448 Pivot Pin | Genuine Volvo Penta Part

$103.87 AUD
$103.87 AUD
Sale Sold out
Shipping calculated at checkout.

In stock — Australian warehouse

Typically reaches our store in 3–5 business days

Availability checked daily with Volvo Penta

✓ Authorised Volvo Penta Dealer · Genuine Volvo Penta parts · Ships Australia-wide

🔧 Product Description

Later-production pivot pin used in Volvo Penta DPH transom-shield and trim-cylinder geometry. It supports the drive/trim pivot and is documented from approximately transom-shield serial A395817 onward.

🚤 Compatibility

Typically suits:

  • Volvo Penta DPH-D1
  • Volvo Penta D6-330A-F
  • Volvo Penta D6-370A-F
  • Volvo Penta D4-260A-F
  • Volvo Penta D4-300A-F
  • Volvo Penta D6-300A-F
  • Volvo Penta D4-225A-F
  • Volvo Penta D6-300A-G
  • Volvo Penta D6-340A-G
  • Volvo Penta D6-380A-G
  • Volvo Penta DPH-E
  • Volvo Penta TSK DPH-E
  • Volvo Penta D6-400A-G
  • Volvo Penta D6-400A-F
  • Volvo Penta D4-150A-G
  • Volvo Penta D4-230A-G
  • Volvo Penta D4-270A-G
  • Volvo Penta D4-300A-G
  • Volvo Penta TSK DPH-E1
  • Engine Family: DPH, D, TSK
  • HP Range: 150-400 HP

⚙️ Key Features

  • DPH transom-shield pivot application
  • Later-production pin geometry
  • Hardened bearing surface
  • Used with DPH trim and steering components
  • Included as a service component in pivot service kit 3818189 where specified
  • Also supersedes Volvo part number 3862854

🔌 Function

Provides the hardened pivot axis for the connected drive, steering or trim component while carrying radial and oscillating loads.

⚠️ Common Signs of Failure

  • Excessive drive or cylinder play
  • Corrosion or pitting on the pin
  • Seized pivot movement
  • Elongated mating bores
  • Knocking during trim or steering movement

🛠️ Service Notes

  • Check the pin and its bore or bush for wear, ridging and ovality — a pin worn into a step gives free play that shows up as slop in whatever it carries
  • Renew the bush, circlip, split pin or other retaining part that goes with it rather than reusing tired ones
  • Grease or oil the pin as the assembly requires, fit it square with a soft drift, and make sure the retaining device positively locks it; a pivot pin that can walk out will do so under vibration
  • Check the joint articulates freely through its full travel, without binding at any point and without noticeable play

🔄 Supersession & Cross Reference

OEM Supersession Chain

  • 22093448 → Supersedes 21840807 → Supersedes 3887960 → Supersedes 3862853

OEM / Related Numbers

  • 21840807 earlier number superseded by this part
  • 3887960 earlier number superseded by this part
  • 3818189 (related pivot service kit)
  • 3809887 (earlier/related pivot-pin references; verify by serial number)
  • 3862809 (earlier/related pivot-pin references; verify by serial number)

📦 Condition

  • Genuine Volvo Penta part
  • Brand new
  • Supplied in original or equivalent packaging
