22101934 Bracket | Genuine Volvo Penta Part

🔧 Product Description

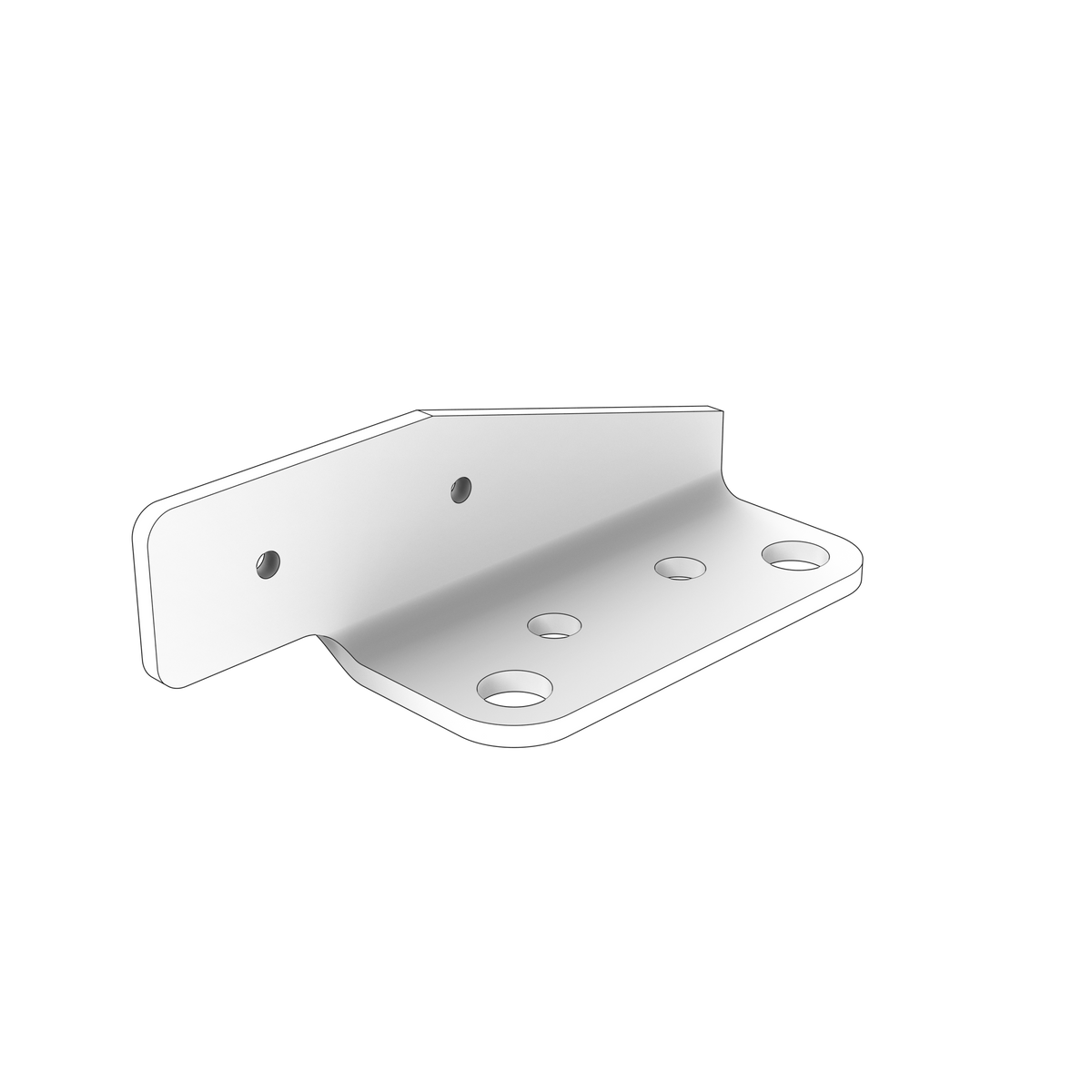

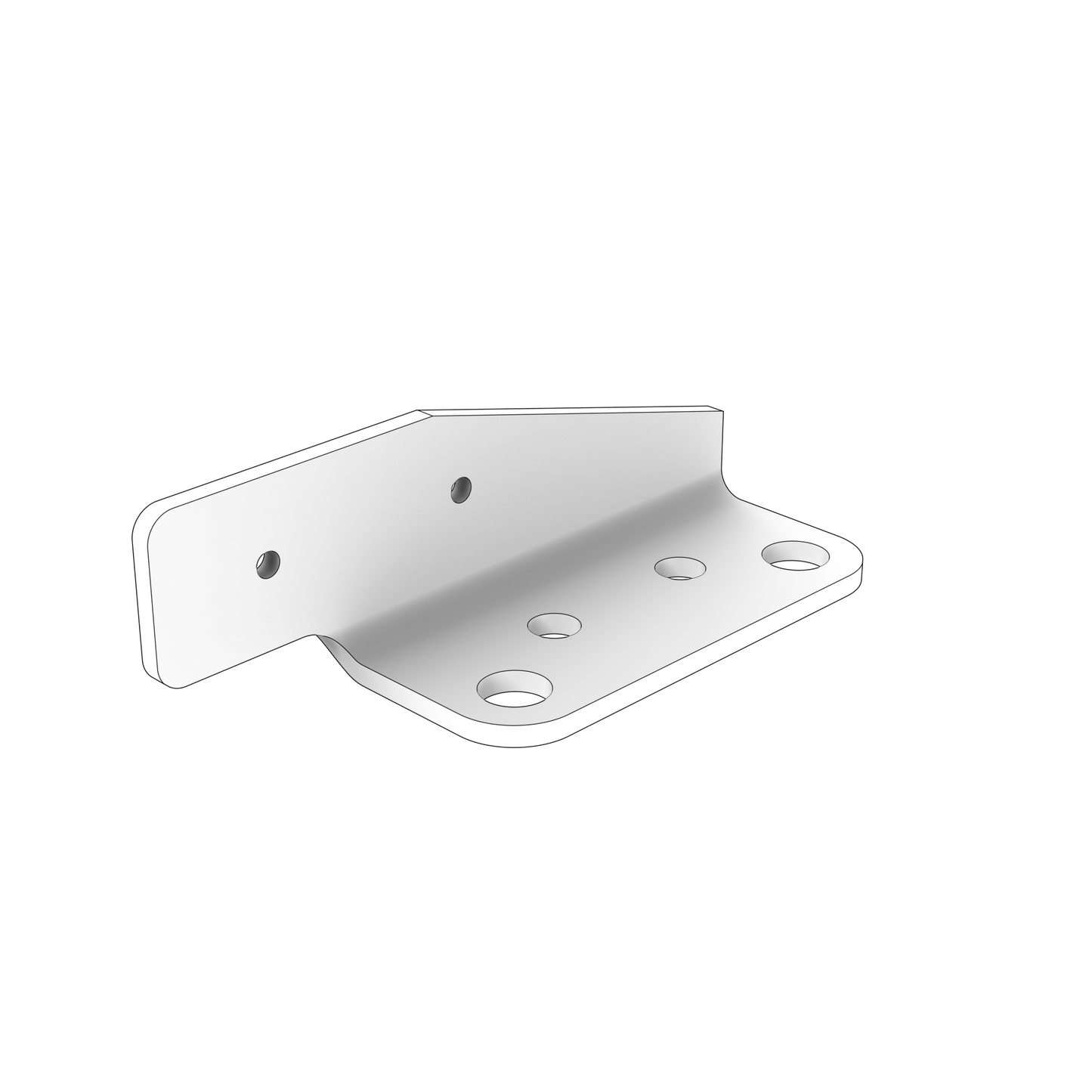

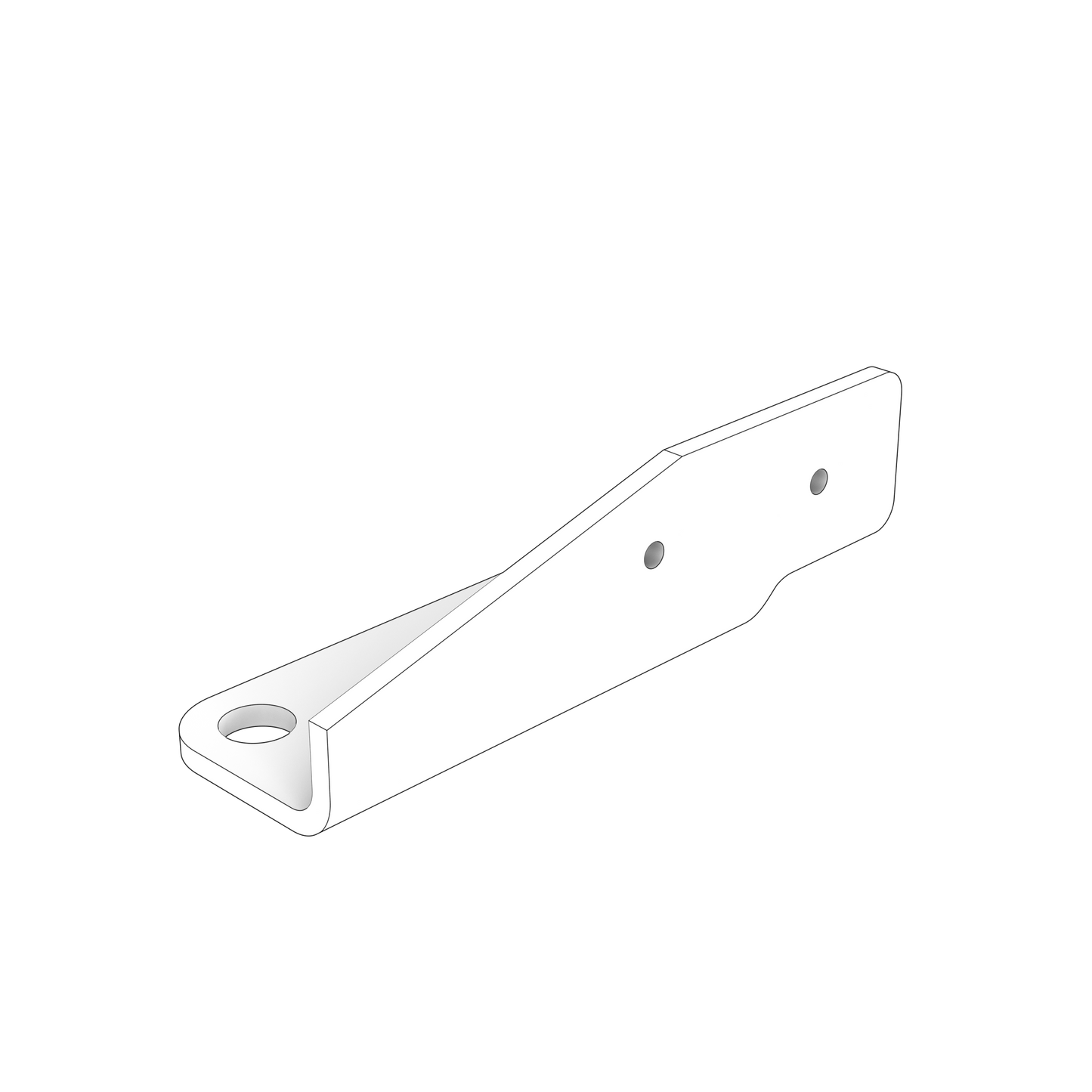

Electrical-system bracket used on D3 D- through F-series engines to support relay, fuse and wiring-harness components. It replaces earlier bracket 861317 and maintains protected cable routing.

🚤 Compatibility

• Engine Family: D
• HP Range: 110-220 HP
• Serial Range: Included in installation kit 872381 for changing from 2-pole to 1-pole starter motor., SN2300052118-

Full model list at the end of this description.

⚙️ Key Features

• D3 electrical-system application
• Supersedes 861317
• Supports relay box and wiring harness
• Factory mounting and cable-clearance geometry
• Used with relay box 21494263
• Engine type: 5-cylinder turbocharged marine diesel

📋 Kit Contents

• Included in installation kit 872381 for changing from 2-pole to 1-pole starter motor., SN2300052118-

🔌 Function

Supports and protects electrical relays, fuses and wiring so connectors remain secure and clear of heat and vibration.

⚠️ Common Signs of Failure

• Cracked or corroded bracket
• Relay box movement
• Loose earth or power connections

🛠️ Service Notes

• Offer the bracket up and start every fastener by hand before tightening any of them, so the component is not pulled into a strained position
• Check the mating faces are clean, flat and free of corrosion scale — a bracket that does not sit flat will work loose and let the component move
• Renew self-locking nuts, lock washers, tab washers or thread-locking compound wherever the original assembly used them, and tighten to the figure given in the workshop manual for your engine
• Where the bracket carries a rubber mount or bush, renew that at the same time rather than reusing a perished one
• On brackets in the inlet and exhaust area, never force alignment to make the holes line up — cure the misalignment at its source, or the bracket and the component it holds will both crack

🔄 Supersession & Cross Reference

OEM Supersession Chain

• 22101934 → Supersedes 861317 → Supersedes 3803216 → Supersedes 3803165 → Supersedes 3803144 → Supersedes 3803078

OEM / Related Numbers

• 861317 earlier number superseded by this part
• 860884 earlier number superseded by this part
• 872888 earlier number superseded by this part
• 3803216 earlier number superseded by this part
• 3803165 earlier number superseded by this part
• 3803145 earlier number superseded by this part
• 3803144 earlier number superseded by this part
• 3803078 earlier number superseded by this part
• 21494263 (relay box)
• 22117514 (related wiring harnesses)
• 22203111 (related wiring harnesses)
• 22396638 (related wiring harnesses)
• 872242 (relay)
• 21120406 (feed pump)
• 22426555 (insulation)

📦 Condition

• Genuine Volvo Penta part
• Brand new
• Supplied in original or equivalent packaging

🔎 Full Model Compatibility

Typically suits:

• Volvo Penta D3-220I-G, D3-140A-D, D3-170A-D, D3-200A-D, D3-220A-D, D3-140I-D, D3-140A-E, D3-170A-E, D3-200A-E, D3-220A-E, D3-140I-E, D3-140A-F, D3-170A-F, D3-200A-F, D3-220A-F, D3-140I-F, D3-140A-G, D3-170A-G, D3-200A-G, D3-220A-G, D3-140I-G, D3-110I-D, D3-150I-D, D3-170I-D, D3-200I-D, D3-220I-D, D3-110I-E, D3-150I-E, D3-170I-E, D3-200I-E, D3-220I-E, D3-110I-F, D3-150I-F, D3-170I-F, D3-200I-F, D3-220I-F, D3-110I-G, D3-150I-G, D3-170I-G, D3-200I-G, D3-110I-H, D3-140A-H, D3-170A-H, D3-200A-H, D3-220A-H, D3-150I-H, D3-170I-H, D3-200I-H, D3-220I-H, D3-140I-H
• Volvo Penta 2003, 2003R, 2003TB, 2003D, 2003T, 2003TR, 2003B
