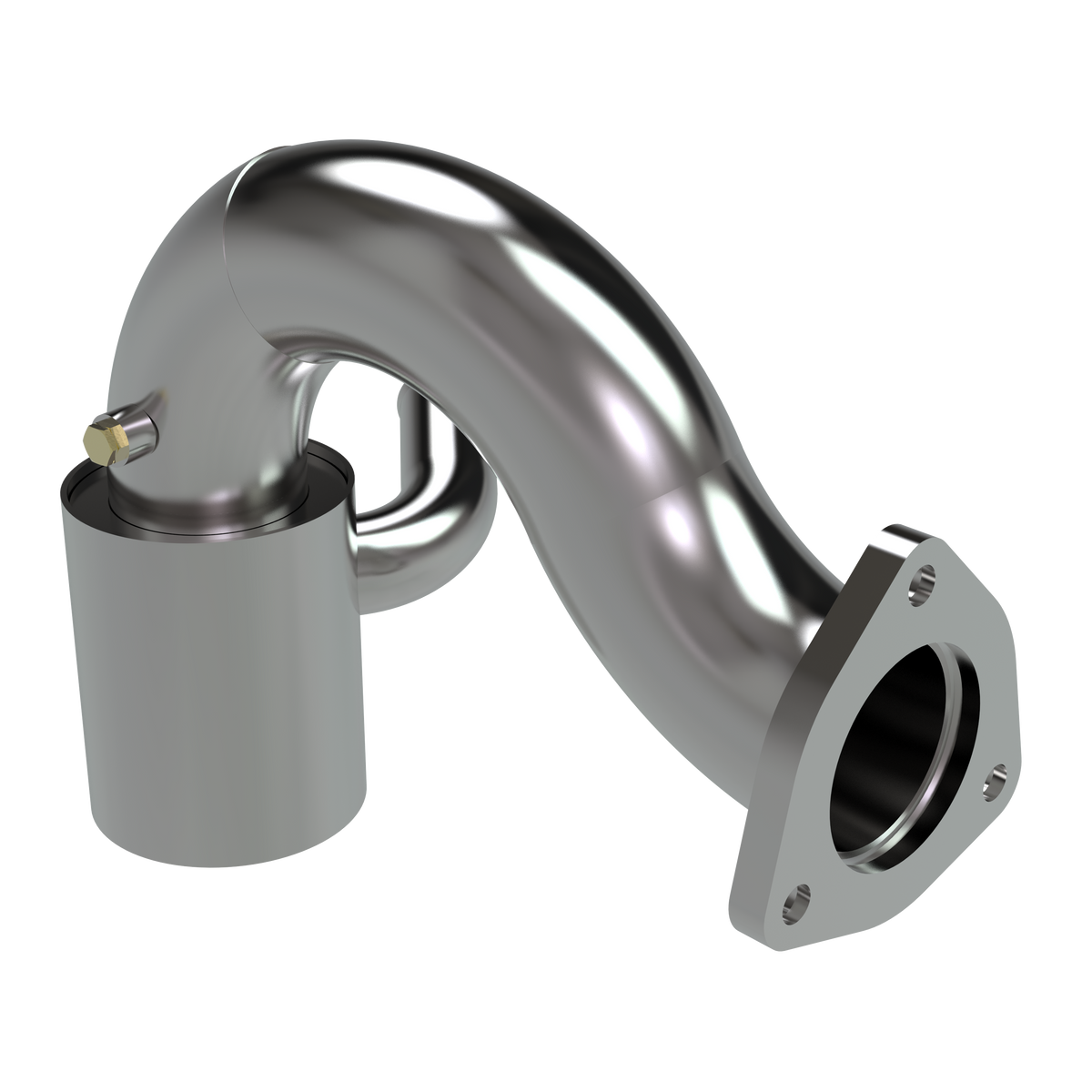

22108716 Exhaust Pipe | Genuine Volvo Penta Part

🔧 Product Description

Wet-exhaust pipe used on D3 D- through H-series marine diesel engines. It is documented on D3-140A-H and across the D3-140A-D to D3-140A-H production sequence and includes the connection for plug 981749.

🚤 Compatibility

Typically suits:

• Volvo Penta D3-140A-H
• Volvo Penta D3-170A-H
• Volvo Penta D3-200A-H
• Volvo Penta D3-220A-H

• Engine Family: D
• HP Range: 140-220 HP

⚙️ Key Features

• D3 wet-exhaust system application
• Factory exhaust and cooling-water routing
• Used with plug 981749
• High-temperature corrosion-resistant construction
• D- through H-series fitment
• Engine type: 5-cylinder turbocharged marine diesel

🔌 Function

Routes exhaust gas and injected cooling water from the engine outlet into the vessel wet-exhaust hose.

⚠️ Common Signs of Failure

• Soot or water tracks
• Corrosion or pinhole leakage
• Cracked flange or welded joint
• Excessive exhaust back pressure
• Water reversion risk

🛠️ Service Notes

• Fit new gaskets and seals at every joint you disturb; exhaust gaskets take a set once they have been heat-cycled and will not seal a second time
• Clean the flange faces back to bare, flat metal and check them for distortion and pitting — a warped face will blow out a new gasket however hard it is pulled up
• Renew corroded studs and nuts, use a high-temperature anti-seize on the threads, and tighten in the sequence and to the figures in the workshop manual for your engine; recheck once the engine has been run up to temperature and allowed to cool, because the joint relaxes over the first few heat cycles
• Support the pipe on its own mountings so nothing hangs on the flange and no hose pull is taken through the joint, and keep the specified clearance to hoses, wiring and glassfibre
• On water-cooled sections, check the cooling passages are clear and the water connections sound before running — a restricted jacket will cook the pipe and the hose behind it

🔄 Supersession & Cross Reference

OEM Supersession Chain

• 22108716 → Supersedes 21192127

OEM / Related Numbers

• 21192127 earlier number superseded by this part
• 981749 (related plug)

📦 Condition

• Genuine Volvo Penta part
• Brand new
• Supplied in original or equivalent packaging
