22119308 Inlet Manifold | Genuine Volvo Penta Part

🔧 Product Description

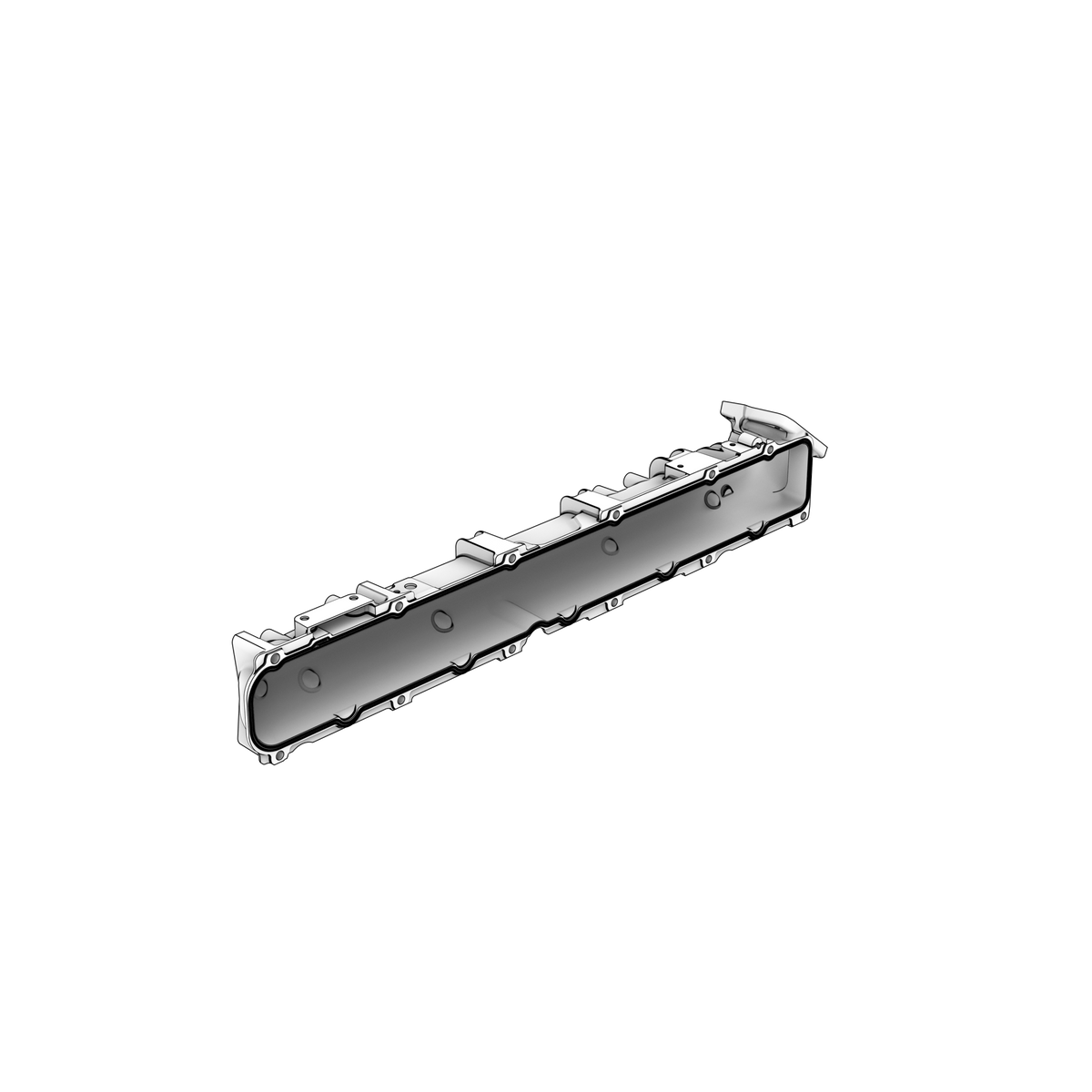

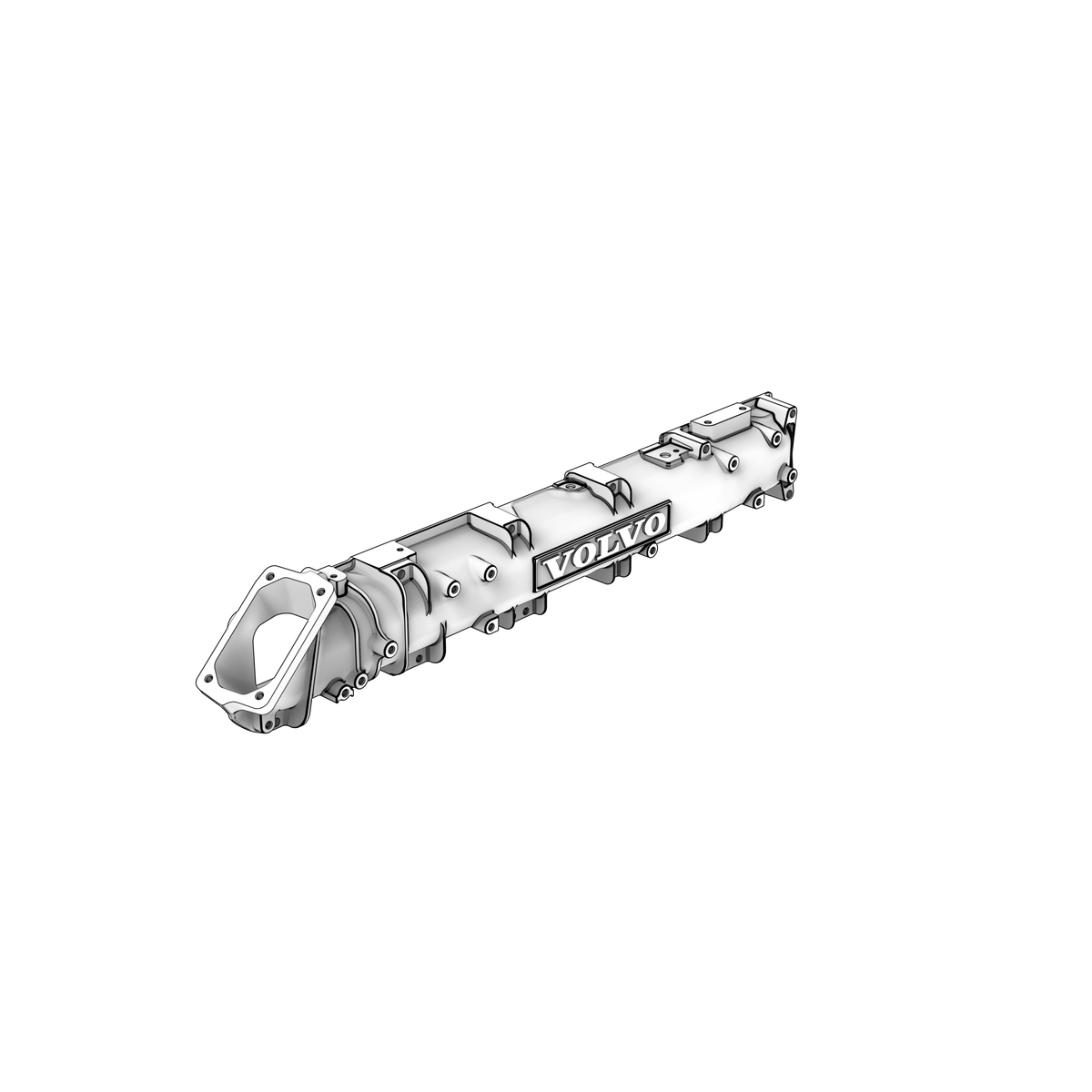

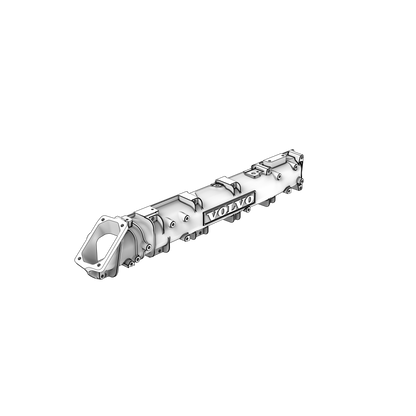

Genuine Volvo Penta TAD1351-53VE Inlet Manifold, part number 22119308. A genuine inlet manifold used on Volvo Penta TAD1351-53VE industrial engines. It distributes charge air evenly to the cylinders and supports the related mixing-chamber, cover and connection-pipe hardware.

🚤 Compatibility

Typically suits:

• Volvo Penta TAD1380-82GE
• Volvo Penta TAD1381-85VE
• Volvo Penta TAD1371-75VE
• Volvo Penta TAD1351-53VE
• Volvo Penta TAD1384-85VE-IWP

• Engine Family: TAD
• HP Range: Approximately 500-700 HP
• Year Range: Approximately 2010 - 2021

⚙️ Key Features

• Factory air, coolant and mounting geometry
• Designed for the specified engine airflow and heat load
• Maintains pressure and separation between adjoining circuits
• Matched to the correct hoses, seals and support brackets
• Direct replacement for the exact engine configuration
• Engine type: 12.8L inline six-cylinder turbocharged industrial diesel

🔌 Function

Routes or cools intake air or engine coolant so the engine maintains the designed combustion and operating temperatures.

⚠️ Common Signs of Failure

• Boost, coolant or external leakage
• Rising charge-air or coolant temperature
• Reduced power, smoke or overheating
• Cracking, corrosion or internal restriction
• Repeated seal or bracket failure caused by misalignment

🛠️ Service Notes

• Blank the open ports as soon as the manifold is off, so nothing can drop into a cylinder or the head while it is away
• Clean both mating faces without scoring them, check the manifold for flatness, cracks and corrosion, and fit new gaskets and seals throughout
• Clean out oil, soot and carbon deposits from the manifold interior before refitting, and look at the crankcase breather arrangement if the build-up is heavy — refitting a fouled manifold puts the restriction straight back
• Tighten the fasteners evenly, working outwards from the centre in stages to the figures given in the workshop manual for your engine
• Refit and check all charge air, breather and sensor connections and their clips; an air leak on a pressure-charged inlet shows up as lost power and smoke rather than an audible leak

🔄 Supersession & Cross Reference

OEM Supersession Chain

• 22119308 → Supersedes 21839416

OEM / Related Numbers

• 21839416 earlier number superseded by this part
• 21282255 - manifold gasket
• 947281 - gasket
• 21734948 - intermediate housing
• 3979639 - plane gasket
• 22296634 - mixing chamber
• 945713 - hose nipple
• 21313833 - gasket
• 21141563 - connection pipe
• 21724572 - gasket
• 22305738 - cover

📦 Condition

• Genuine Volvo Penta part
• Brand new
• Supplied in original or equivalent packaging
