22169 Aftermarket Trim Piston Repair Kit | Sawley's Select Marine Parts

🔧 Product Description

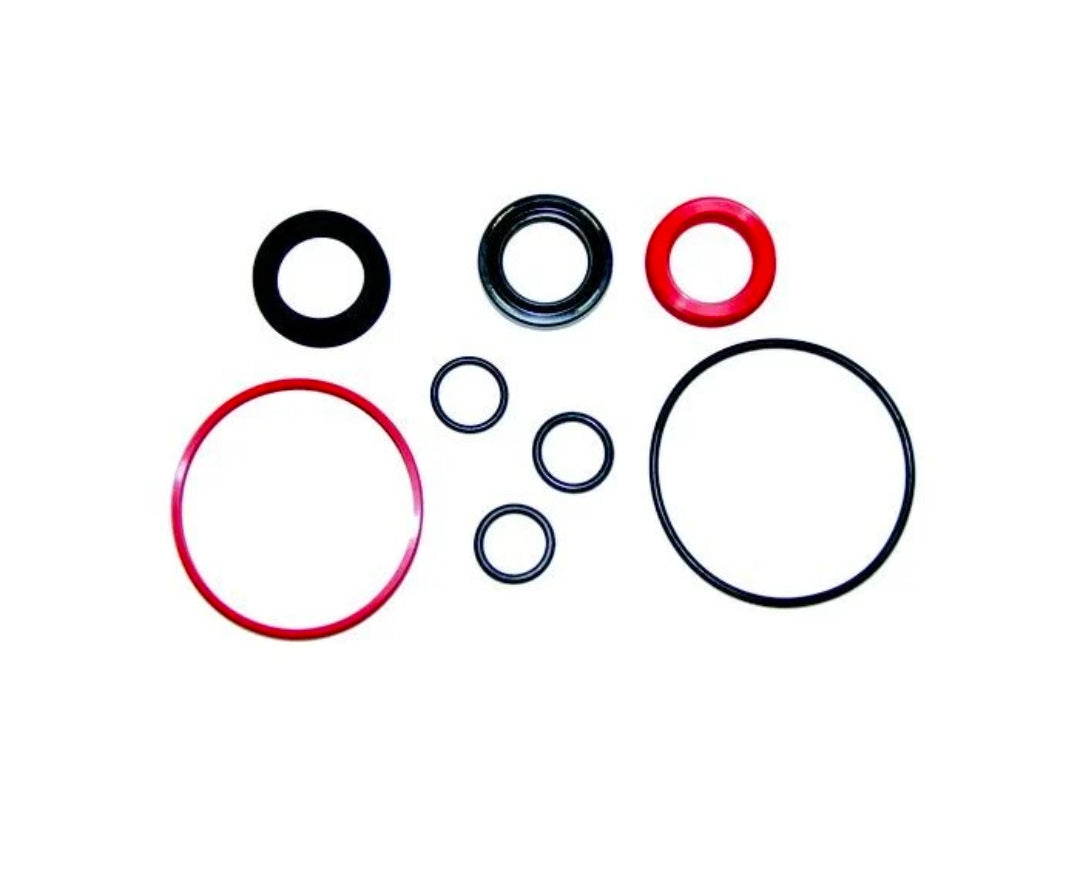

Aftermarket replacement DPH/DPR Trim Cylinder Seal Kit - Replaces Part Number: 22169

New aftermarket trim-piston sealing kit for Volvo Penta DPH and DPR cylinders. It services both the port and starboard cylinder families and renews the internal hydraulic seals.

⚙️ Key Features

• Complete trim-cylinder seal package

• Fits port and starboard DPH/DPR cylinders

• Services cylinder families 3888301, 3887960, 21840806 and 22121309

• Suitable for cylinder disassembly and pressure testing

• Use with replacement end nut 19088 when the original gland is corroded

🧰 Kit / Assembly Contents

• 1 × Piston seal set - supplied under kit P/N 22169

• 1 × Rod-seal and wiper set - supplied under kit P/N 22169

• 1 × Complete O-ring and backup-ring package - supplied under kit P/N 22169

• Small retaining/sealing components required for one cylinder rebuild

🔄 Supersession & Cross Reference

OEM Supersession Chain:

• 22169 (Orbitrade/Recmar aftermarket trim-piston seal-kit reference)

OEM / Related Numbers:

• 3888301

• 3887960

• 21840806

• 21840807

• 22121309

• 19088

Aftermarket / Verified Equivalents:

• Orbitrade: ORB-22169

• Recmar: REC22169

• Poseidon: SK-301 / compatible DPH-DPR seal kit

🚤 Compatibility

Commonly used on:

• Volvo Penta DPH/DPR hydraulic trim cylinders

Typically suits:

• Engine / Drive models:

• Starboard cylinders 3888301 and 21840806

• Port cylinders 3887960, 21840807 and 22121309

• HP / Drive Range: Drive rating dependent

• System Type: Volvo Penta DPH/DPR trim-cylinder hydraulic system

• Year Range: Cylinder-revision dependent

• Serial / Component Identification: Confirm cylinder number and inspect the end nut before rebuilding.

🔌 Function

The seal kit renews the O-rings, rod seals, wipers and internal sealing components that prevent hydraulic fluid loss and pressure bypass in the matching trim or steering cylinder.

Common signs of failure / service requirement:

• Hydraulic fluid leaks around the piston rod

• Cylinder pressure bypass causes trim or steering drift

• Wiper seal no longer excludes water and debris

• O-rings are flattened, swollen or hardened

• System requires repeated bleeding after fluid loss

📦 Condition

• New aftermarket replacement part

• Brand new

• Supplied in original or equivalent packaging
