🔧 Product Description

Aftermarket replacement DPH/DPR Steering Piston Gasket Set - Replaces Part Number: 22170

New aftermarket gasket and seal set for the hydraulic steering piston/cylinder used on Volvo Penta DPH and DPR sterndrive systems.

⚙️ Key Features

• Dedicated DPH/DPR steering-cylinder seal package

• Renews rod, piston and housing seals

• Supports steering-cylinder overhaul and pressure testing

• Not a power-trim cylinder seal kit

• One set services the matching steering piston assembly

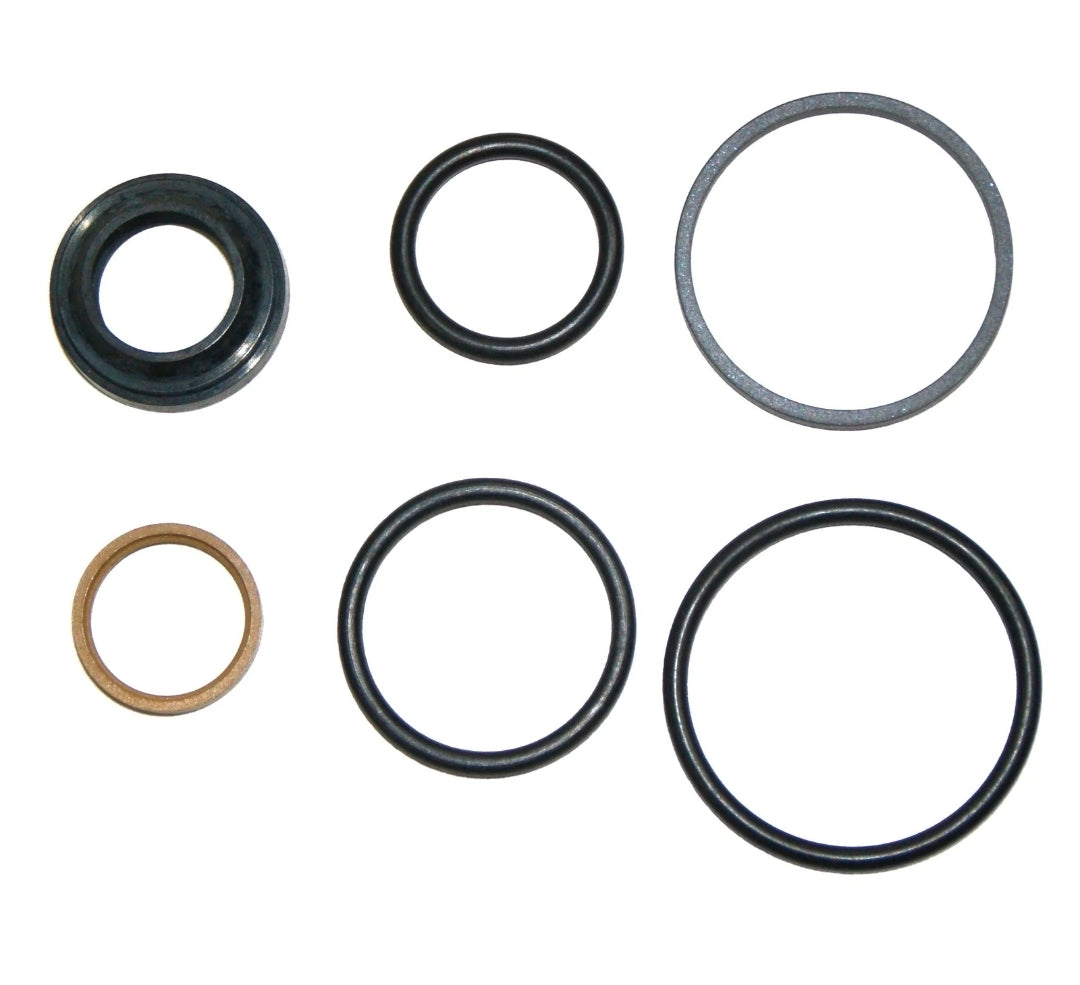

🧰 Kit / Assembly Contents

• 1 × Steering piston seal group - supplied under kit P/N 22170

• 1 × Rod-seal and wiper group - supplied under kit P/N 22170

• 1 × O-ring and backup-ring package - supplied under kit P/N 22170

🔄 Supersession & Cross Reference

OEM Supersession Chain:

• 22170 (Orbitrade/Recmar aftermarket steering-piston gasket-set reference)

OEM / Related Numbers:

• DPH steering-cylinder family

• DPR steering-cylinder family

Aftermarket / Verified Equivalents:

• Orbitrade: ORB-22170

• Recmar: REC22170

🚤 Compatibility

Commonly used on:

• Volvo Penta DPH/DPR hydraulic steering systems

Typically suits:

• Engine / Drive models:

• DPH-A through DPH-E steering-cylinder applications

• DPR-A through DPR-D steering-cylinder applications

• HP / Drive Range: Drive rating dependent

• System Type: Volvo Penta hydraulic sterndrive steering cylinder

• Year Range: Cylinder-revision dependent

• Serial / Component Identification: Do not interchange with trim-cylinder kit 22169 or DPX steering kit 22171.

🔌 Function

The seal kit renews the O-rings, rod seals, wipers and internal sealing components that prevent hydraulic fluid loss and pressure bypass in the matching trim or steering cylinder.

Common signs of failure / service requirement:

• Hydraulic fluid leaks around the piston rod

• Cylinder pressure bypass causes trim or steering drift

• Wiper seal no longer excludes water and debris

• O-rings are flattened, swollen or hardened

• System requires repeated bleeding after fluid loss

📦 Condition

• New aftermarket replacement part

• Brand new

• Supplied in original or equivalent packaging
