22171 Aftermarket DPX Steering Piston Gasket Set | Sawley's Select Marine Parts

🔧 Product Description

Aftermarket replacement DPX Steering Piston Gasket Set - Replaces Part Number: 22171

New aftermarket gasket and seal set for Volvo Penta DPX hydraulic steering cylinders, including cylinder 3861556 where specified.

⚙️ Key Features

• Dedicated DPX steering-cylinder seal package

• Fits the DPX/DP-S steering piston family

• Renews internal piston, rod and housing seals

• Supports full cylinder pressure testing after overhaul

• Not suitable for DPH/DPR steering cylinders

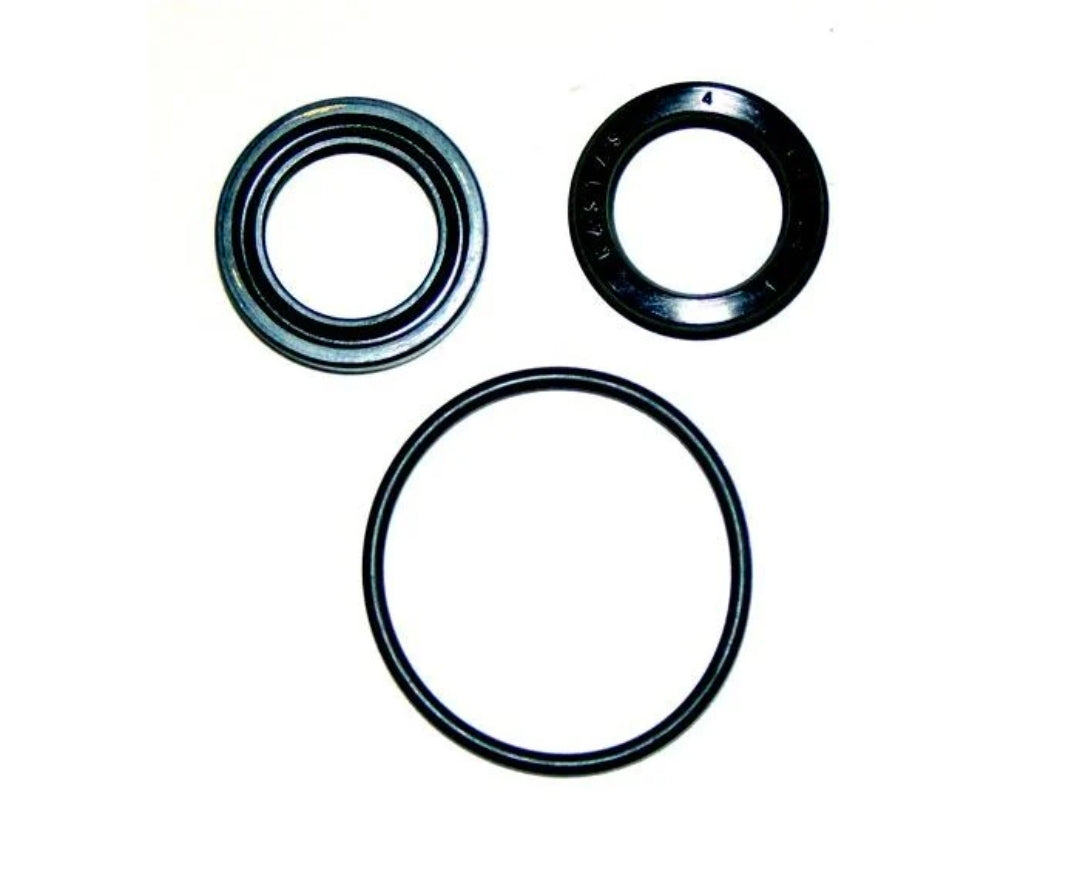

🧰 Kit / Assembly Contents

• 1 × Steering piston seal group - supplied under kit P/N 22171

• 1 × Rod-seal and wiper group - supplied under kit P/N 22171

• 1 × O-ring and backup-ring package - supplied under kit P/N 22171

🔄 Supersession & Cross Reference

OEM Supersession Chain:

• 22171 (Orbitrade/Recmar aftermarket DPX steering seal-kit reference)

OEM / Related Numbers:

• 3861556

• DP-S

• DP-S1

• DP-SM

• DP-SMTD

• SX-C

• SX-M

• SX-R

• SX-S

Aftermarket / Verified Equivalents:

• Orbitrade: ORB-22171

• Recmar: REC22171

🚤 Compatibility

Commonly used on:

• Volvo Penta DPX and related hydraulic steering-cylinder systems

Typically suits:

• Engine / Drive models:

• DPX and DPX-S

• DP-S, DP-S1, DP-SM and DP-SMTD

• SX-C, SX-M, SX-R and SX-S applications using steering cylinder 3861556

• HP / Drive Range: Drive rating dependent

• System Type: Volvo Penta hydraulic sterndrive steering cylinder

• Year Range: Drive- and cylinder-revision dependent

• Serial / Component Identification: Confirm steering cylinder 3861556 or the equivalent DPX family before ordering.

🔌 Function

The seal kit renews the O-rings, rod seals, wipers and internal sealing components that prevent hydraulic fluid loss and pressure bypass in the matching trim or steering cylinder.

Common signs of failure / service requirement:

• Hydraulic fluid leaks around the piston rod

• Cylinder pressure bypass causes trim or steering drift

• Wiper seal no longer excludes water and debris

• O-rings are flattened, swollen or hardened

• System requires repeated bleeding after fluid loss

📦 Condition

• New aftermarket replacement part

• Brand new

• Supplied in original or equivalent packaging
