22171036 Volvo Penta Compressor Belt Tensioner | Genuine Used Part

🔧 Product Description

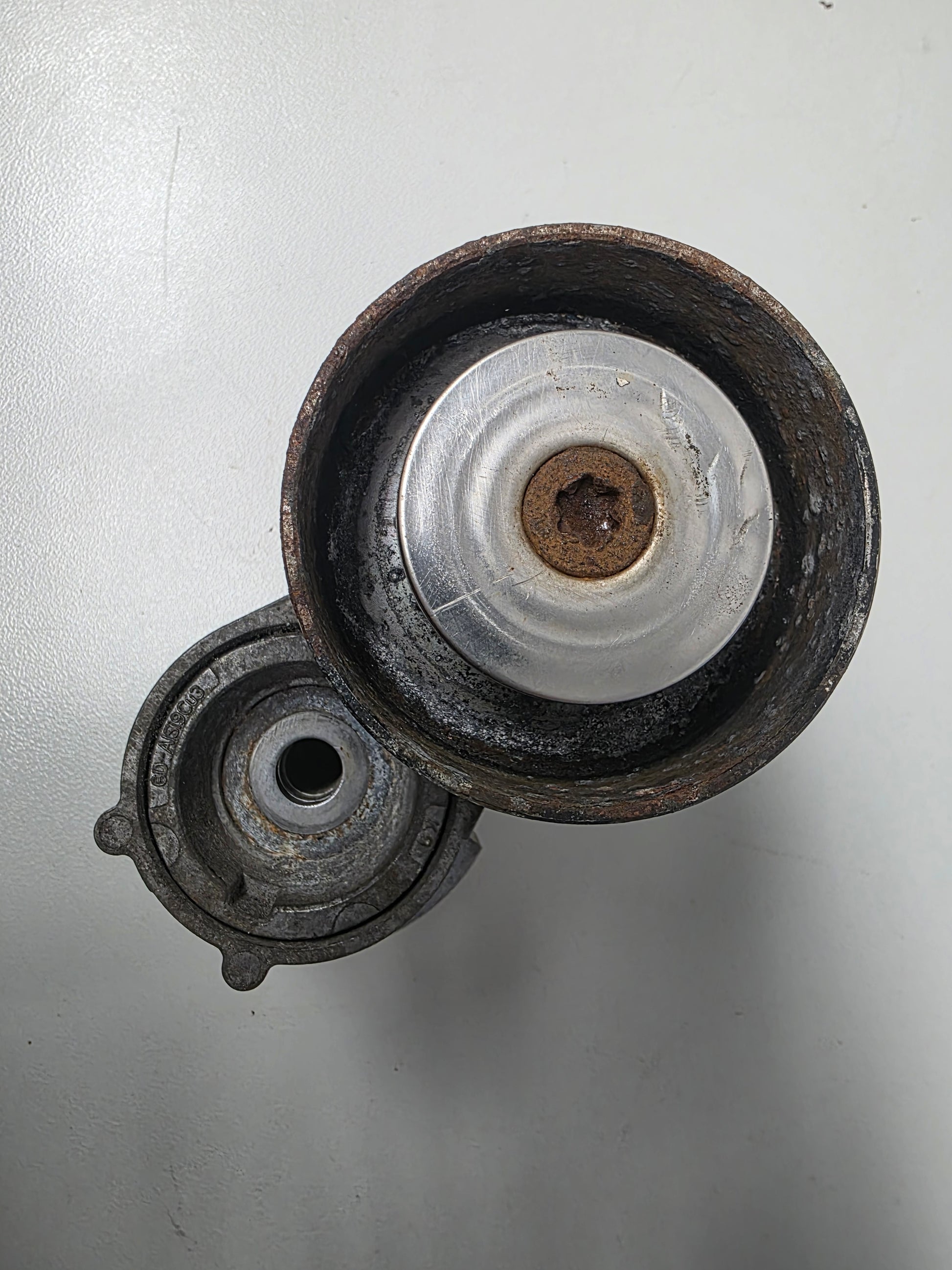

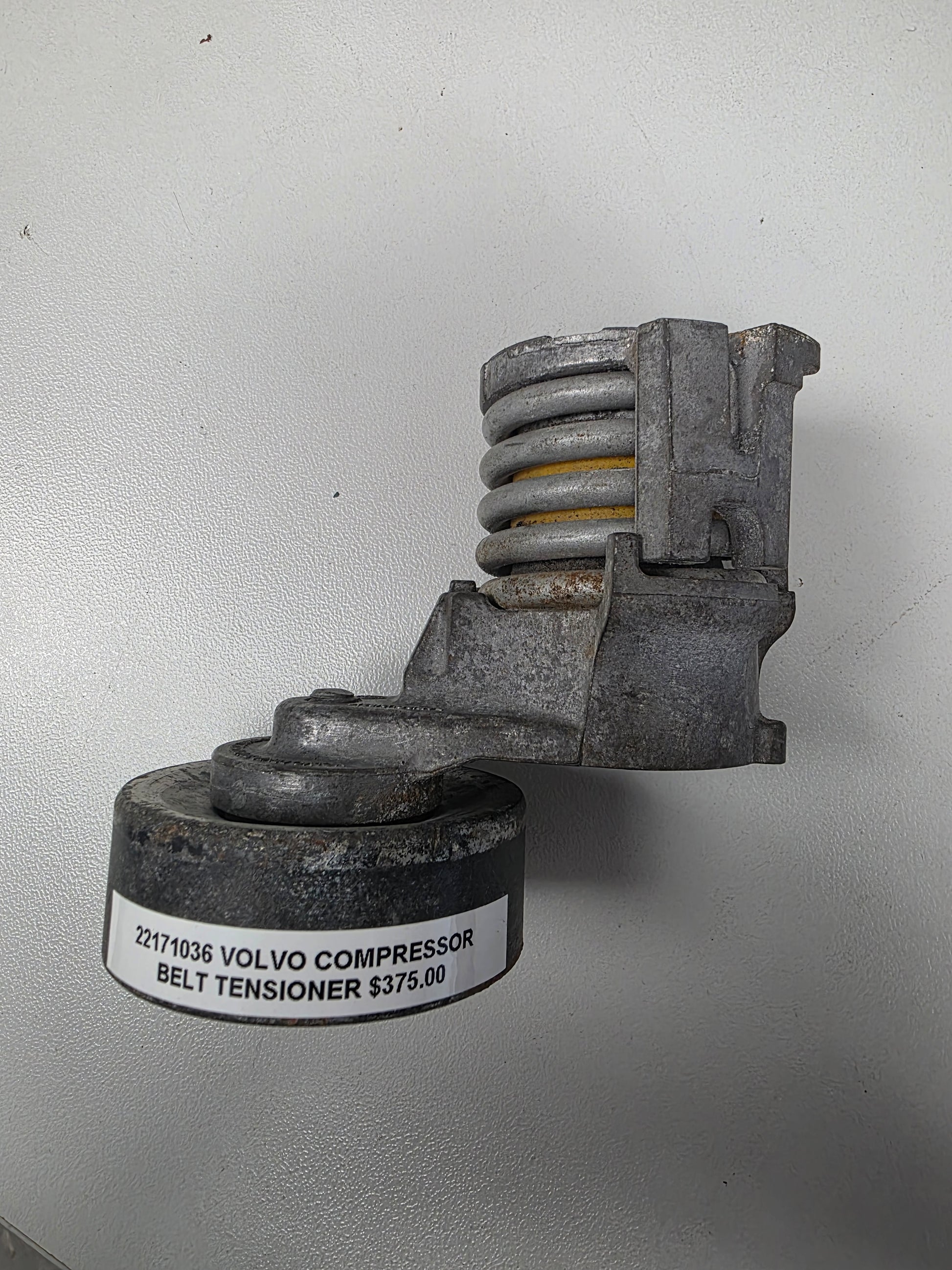

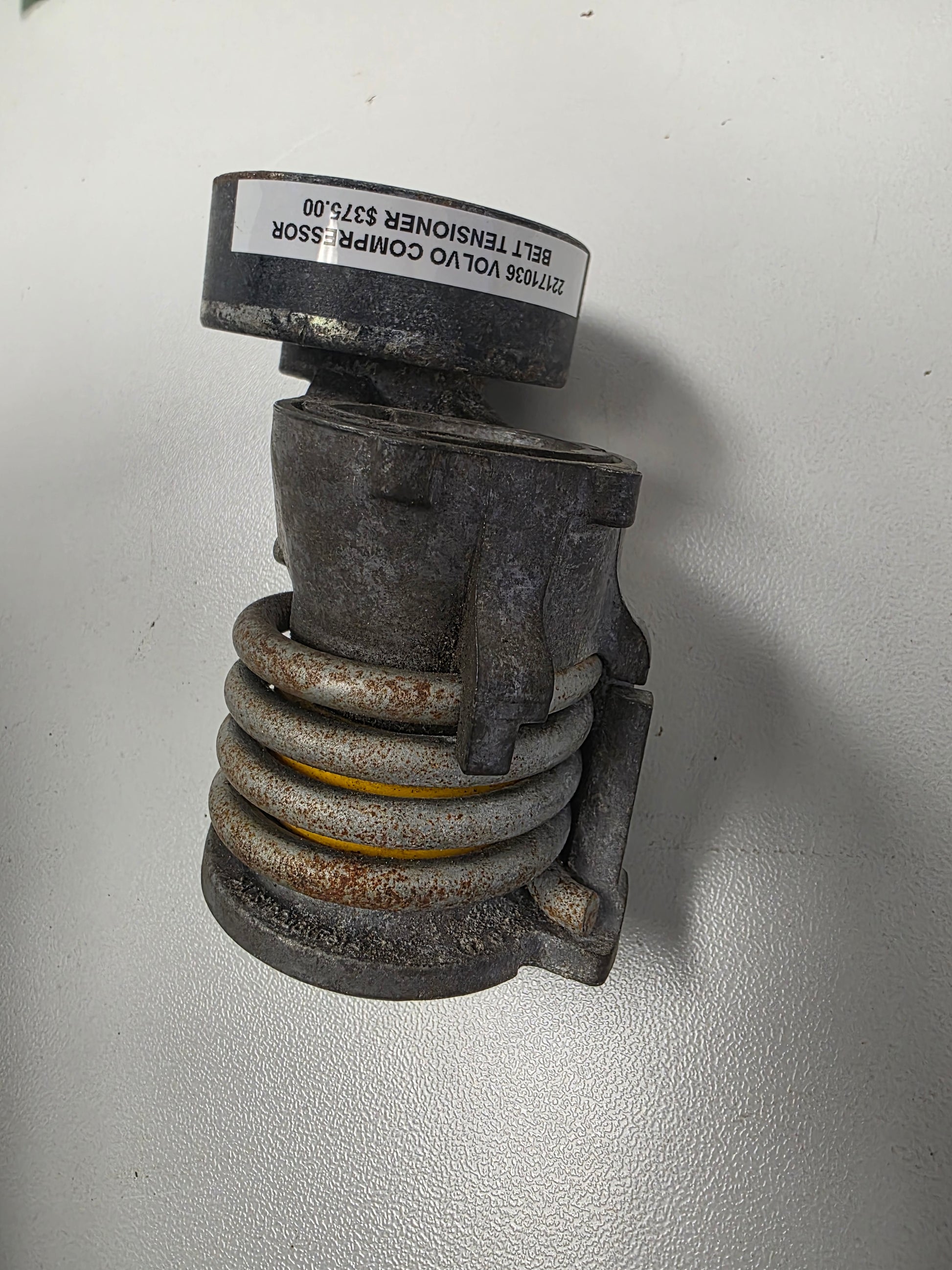

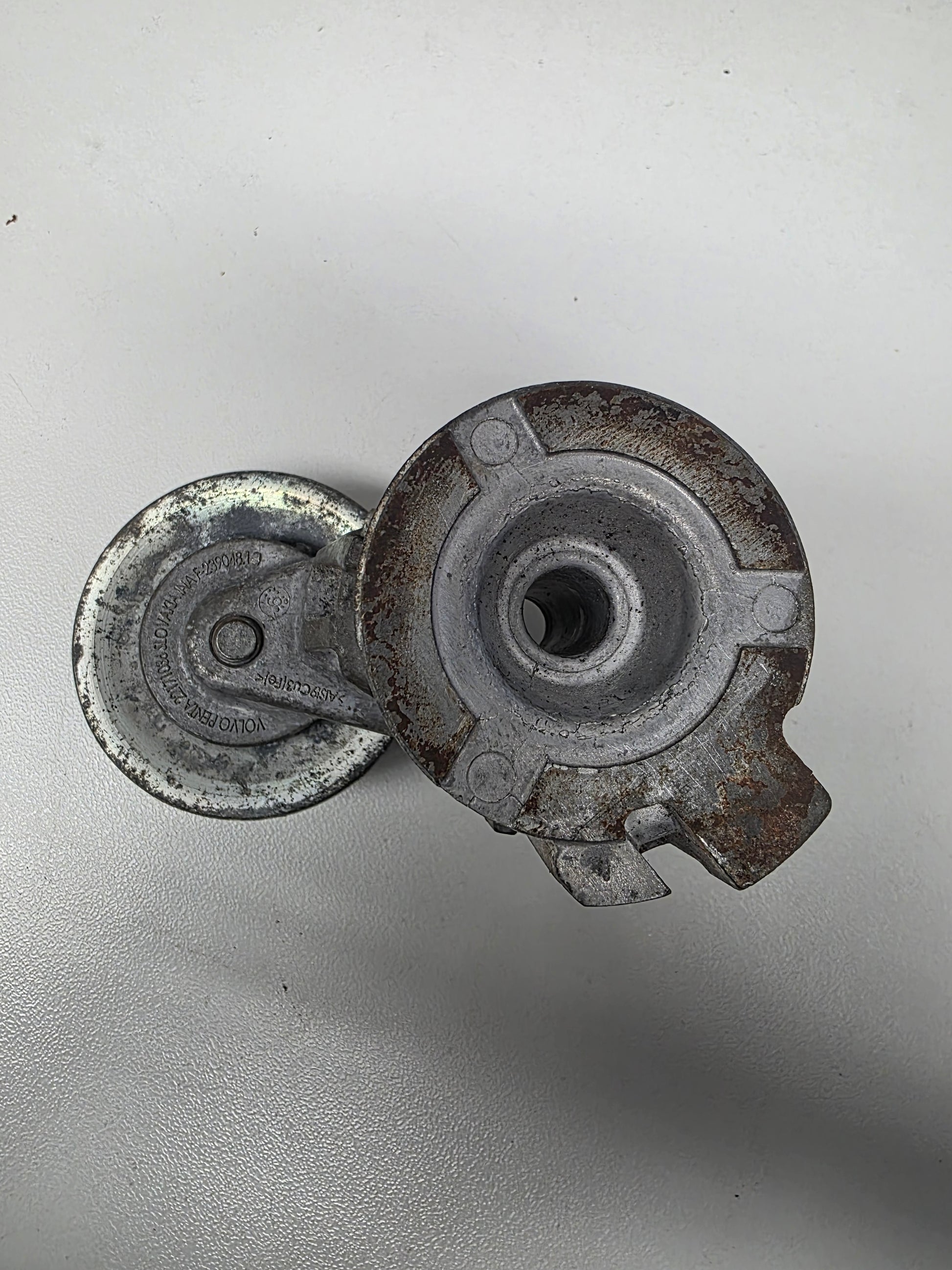

Genuine Used Volvo Penta D4 / D6 Compressor Belt Tensioner - Part Number: 22171036

A genuine pre-owned Volvo Penta automatic belt-tensioner assembly for the mechanically driven compressor or supercharger fitted to selected D4 and D6 marine diesel engines.

The tensioner maintains the specified load on the compressor drive belt, allowing the supercharger to provide low-speed boost before the exhaust-driven turbocharger reaches its normal operating range.

⚙️ Key Features

• Genuine Volvo Penta used tensioner

• Current service part number 22171036

• Compressor or supercharger drive-belt tensioner

• Suitable for selected D4 and D6 engines

• Automatic spring-loaded tensioning action

• Aftermarket and stainless-steel replacement options available

🔄 Supersession & Cross Reference

OEM Supersession Chain:

• Volvo Penta 3588305 - Earlier tensioner reference

• Volvo Penta 21678750 - Later service reference

• Volvo Penta 22171036 - Current service reference

OEM / Related Numbers:

• 22171036

• 21678750

• 3588305

• Related replacement reference: 21786692 on selected catalogues

• OEM Description: Belt Tensioner

• System: Compressor / Supercharger Drive

Aftermarket / Verified Equivalents:

• Recmar: REC22171036

• Aftermarket replacement for 22171036 / 21678750 / 3588305

• Stainless-steel rebuildable D4 / D6 tensioner assemblies

• Olsson Parts reference family 115739

🚤 Compatibility

Commonly used on:

• Volvo Penta D4 marine diesel engines with compressor

• Volvo Penta D6 marine diesel engines with compressor

• Inboard and Aquamatic installations

Selected applications include:

• D4-260 engine families

• D4-270A-G / D4-270I-G

• D4-300A-G / D4-300I-G

• D4-320A-G / D4-320I-G

• D6-380A-G / D6-380D-G / D6-380I-G

• D6-400A-G

• D6-440A-G / D6-440D-G / D6-440I-G

• D6-480D-G / D6-480I-G

• Earlier D4 and D6 variants whose compressor diagram specifies 3588305, 21678750 or 22171036

Important fitment note:

• Volvo Penta D4 and D6 engines use several manual, automatic, alternator and compressor belt tensioners.

• Confirm the engine suffix and original tensioner number.

• This tensioner must not be selected solely from the D4 or D6 engine name.

🔌 Function

The tensioner maintains compressor-belt pressure as belt length changes with temperature and wear.

Common signs of wear or failure:

• Compressor belt squeals

• Belt flutters at idle

• Supercharger does not engage correctly

• Reduced low-speed acceleration

• Tensioner arm oscillates excessively

• Pulley bearing rumbles

• Belt runs off-centre

• Tensioner spring feels weak

• Pulley seizes or develops radial play

Recommended checks before installation:

• Rotate the pulley bearing

• Check the arm through its full travel

• Inspect spring resistance

• Check the mounting bore and stop

• Inspect the compressor pulley and belt

• Replace a cracked, glazed or oil-contaminated belt

• Confirm belt routing before starting

📦 Condition

• Genuine Volvo Penta used part

• Pre-owned rotating and spring-loaded component

• Cosmetic marks and light corrosion may be present

• Bearing and spring operation must be checked before installation

• Supplied in protective or equivalent packaging
