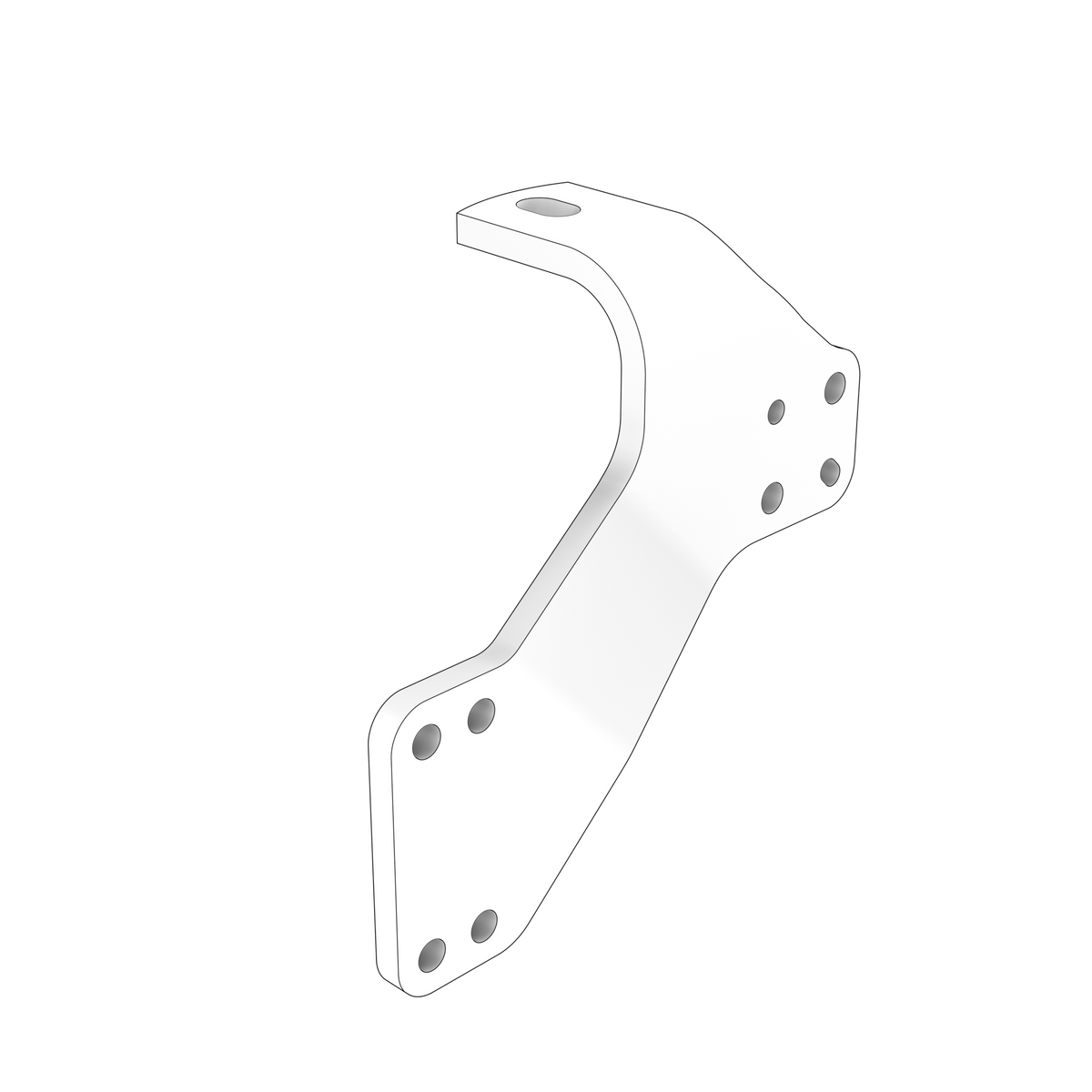

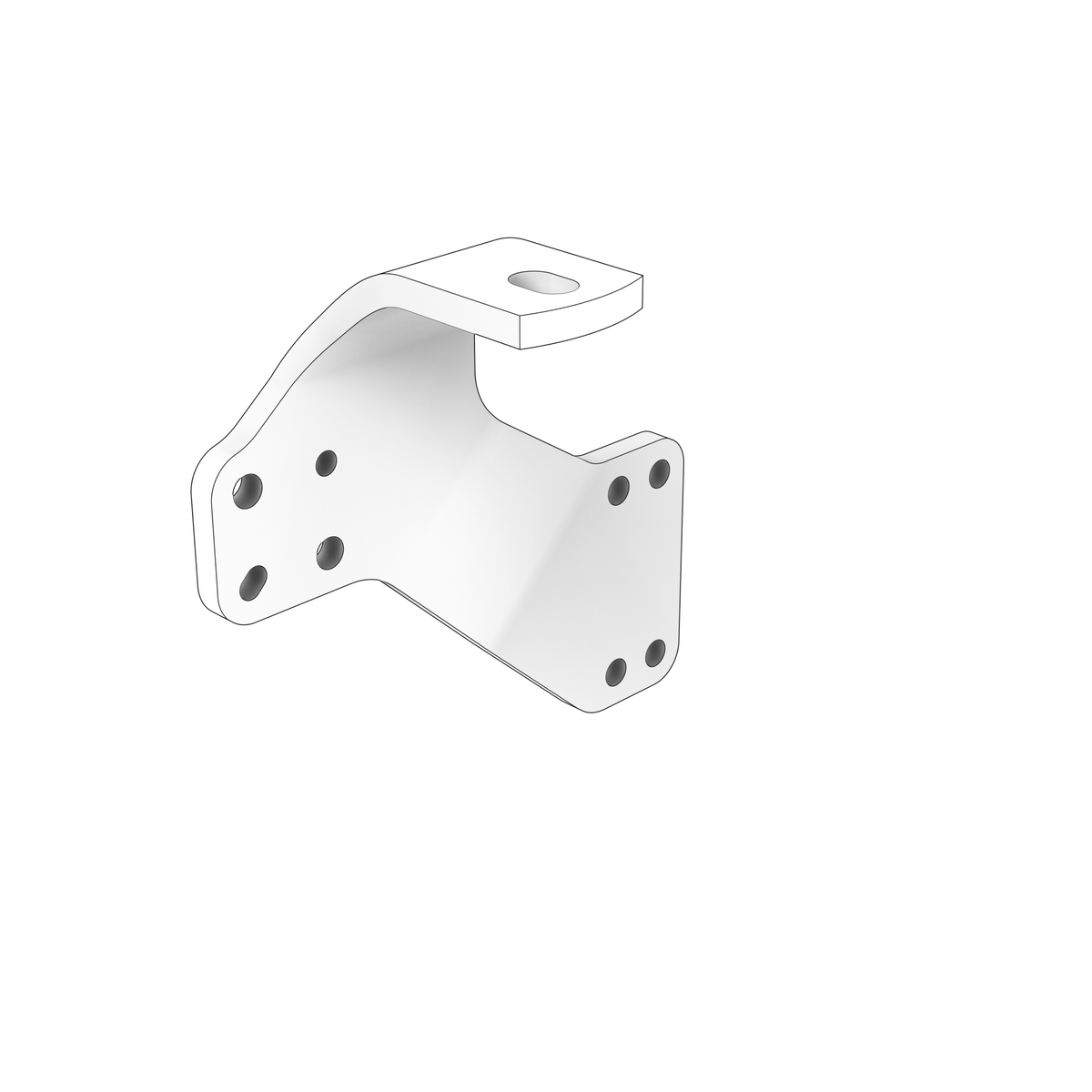

22176272 Engine Bracket | Genuine Volvo Penta Part

🔧 Product Description

Heavy mounting bracket for the left/port-side of Volvo Penta D3 inboard installations using the HS63IV reverse gear. The bracket establishes the correct engine/transmission mounting width, height and isolator position.

🚤 Compatibility

Typically suits:

• Volvo Penta D3-110I-H
• Volvo Penta D3-150I-H
• Volvo Penta D3-170I-H
• Volvo Penta D3-200I-H
• Volvo Penta D3-220I-H
• Volvo Penta D3-140I-H

• Engine Family: D
• HP Range: 110-220 HP

⚙️ Key Features

• Marked Left in the catalogue, for the left/port side of the installation
• 6.358 kg
• Listed for 6 applications in the D family
• Right-hand partner is 22176274 (6.271 kg); only 87 grams separate the pair, so order by hand rather than by weight

🔌 Function

Supports the engine/reverse-gear package on the resilient mount while maintaining driveline alignment.

⚠️ Common Signs of Failure

• Vibration through the hull that was not there before
• Engine or gear package sitting visibly off level or out of line
• Knocking from the mount area when shifting between ahead and astern
• Cracks around the bracket's fixing holes or through the formed web
• Bolt holes elongated and fretted where the bracket has been working against the block

🛠️ Service Notes

• Brackets are handed: this is the left/port side and 22176274 is the right/starboard side
• Renew the mount rubbers at the same time and re-check driveline alignment after fitting
• At 6.358 kg the bracket needs supporting before the last fixings come out

🔄 Supersession & Cross Reference

OEM / Related Numbers

• 22006200 - associated rubber cushion / mounting isolator

📦 Condition

• Genuine Volvo Penta part
• Brand new
• Supplied in original or equivalent packaging
