22176274 Engine Bracket | Genuine Volvo Penta Part
22176274 Engine Bracket | Genuine Volvo Penta Part
Couldn't load pickup availability
Available from Volvo Penta international
Typically reaches our store in 10–14 business days
Availability checked daily with Volvo Penta
✓ Authorised Volvo Penta Dealer · Genuine Volvo Penta parts · Ships Australia-wide
🔧 Product Description

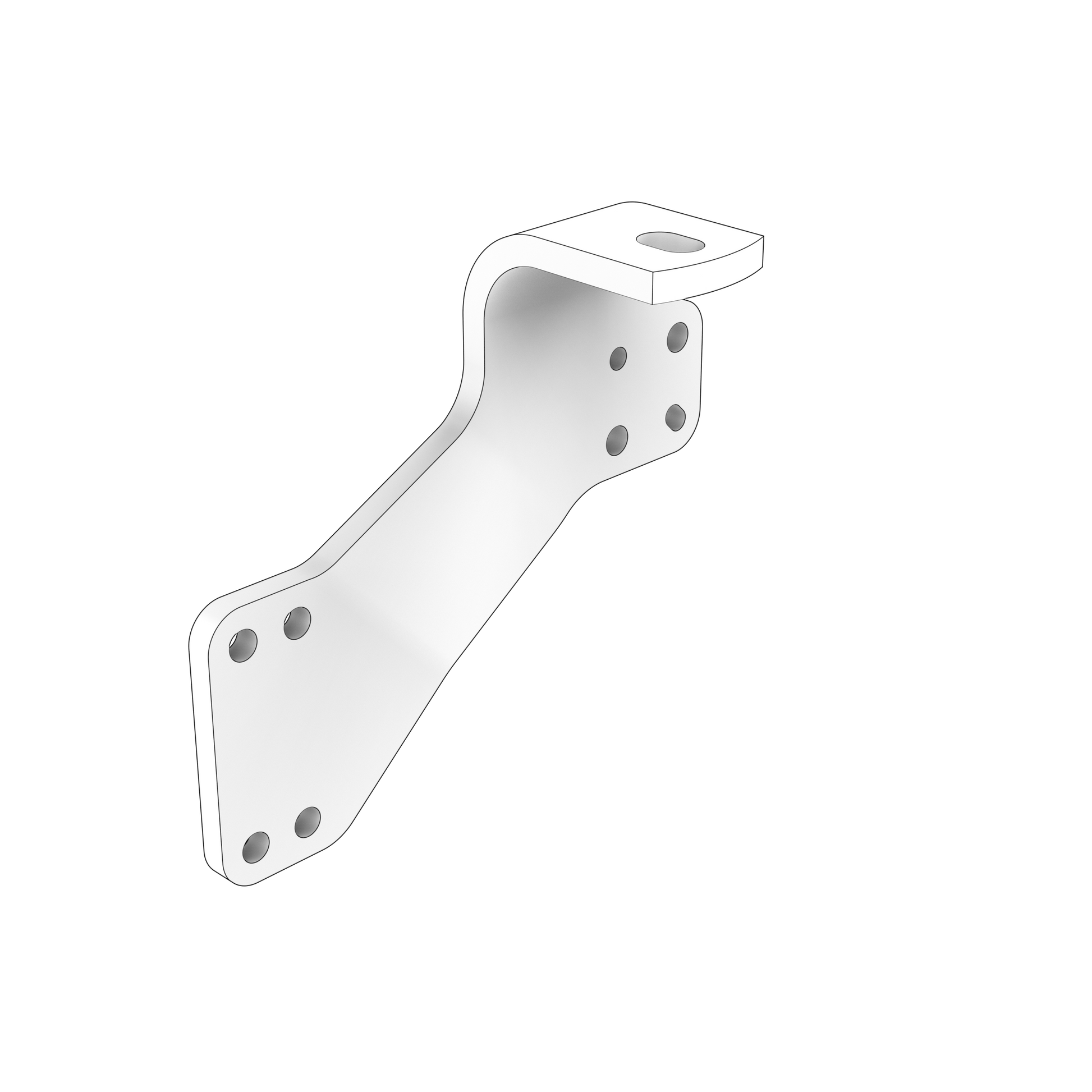

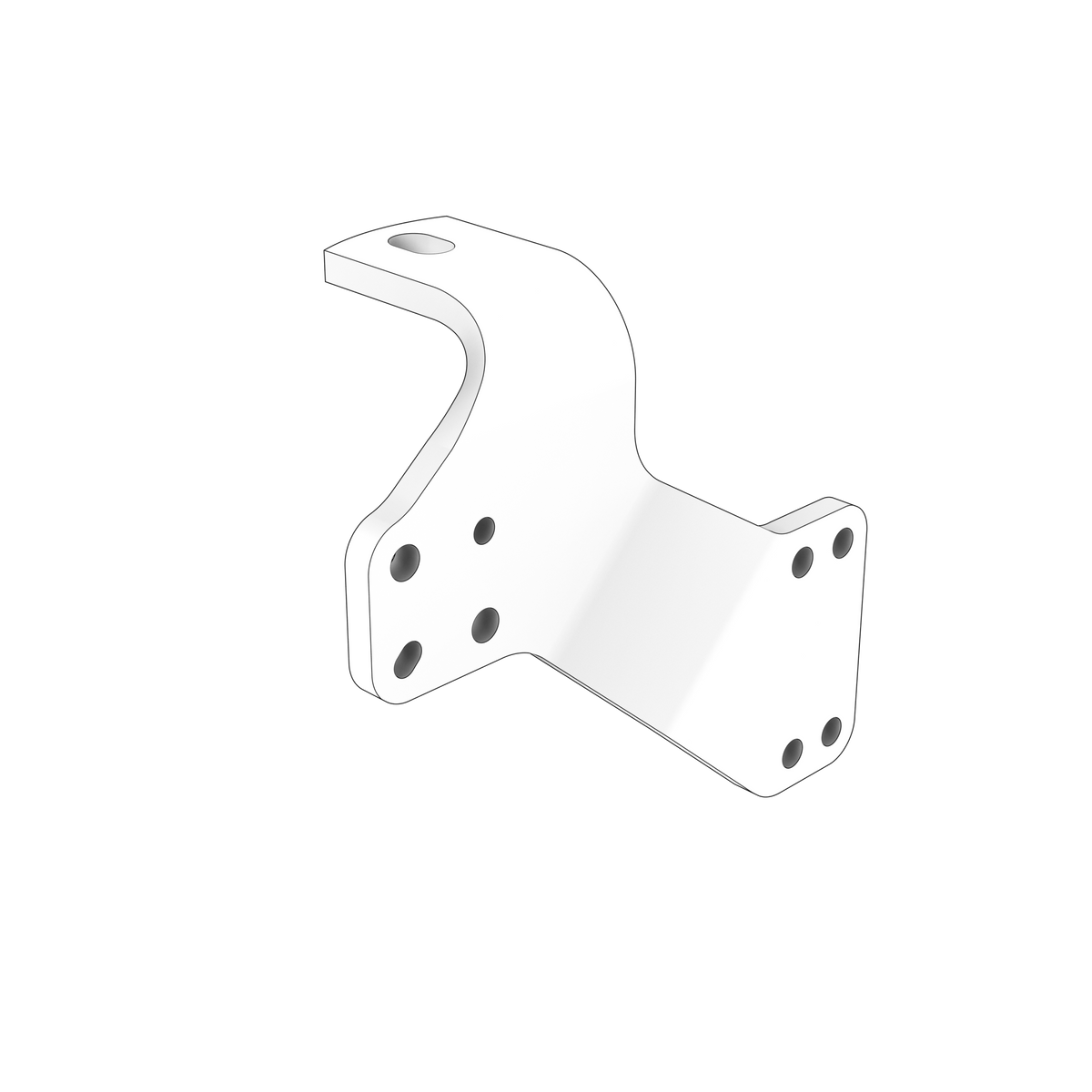

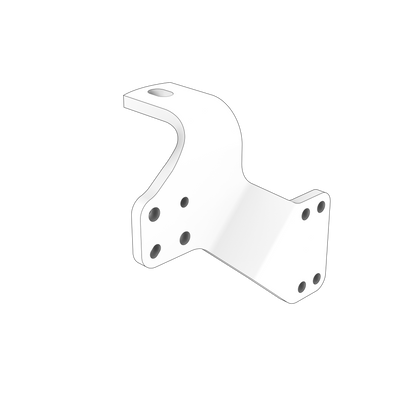

Heavy mounting bracket for the right/starboard-side of Volvo Penta D3 inboard installations using the HS63IV reverse gear. The bracket establishes the correct engine/transmission mounting width, height and isolator position.
🚤 Compatibility
Typically suits:
- Volvo Penta D3-110I-H
- Volvo Penta D3-150I-H
- Volvo Penta D3-170I-H
- Volvo Penta D3-200I-H
- Volvo Penta D3-220I-H
- Volvo Penta D3-140I-H
- Engine Family: D
- HP Range: 110-220 HP
⚙️ Key Features
- Marked Right in the catalogue, for the right/starboard side of the installation
- 6.271 kg
- Listed for 6 applications in the D family
- Left-hand partner is 22176272 (6.358 kg); the two are within 87 grams of each other, so identify by hand and part number
🔌 Function
Supports the engine/reverse-gear package on the resilient mount while maintaining driveline alignment.
⚠️ Common Signs of Failure
- New or worsening vibration felt through the hull
- Engine and gear package sitting out of alignment on its mounts
- Clunk from the mount area when engaging gear
- Cracks starting at the fixing holes or in the formed section
- Fretting and elongated holes where the bracket has been moving under load
🛠️ Service Notes
- Order by hand: 22176272 is the left/port bracket and this one is the right/starboard bracket
- Renew the resilient mounts with the bracket and re-check alignment before running the boat
- At 6.271 kg it needs supporting before the final fixings are removed
🔄 Supersession & Cross Reference
OEM / Related Numbers
- 22006200 - associated rubber cushion / mounting isolator
📦 Condition
- Genuine Volvo Penta part
- Brand new
- Supplied in original or equivalent packaging
