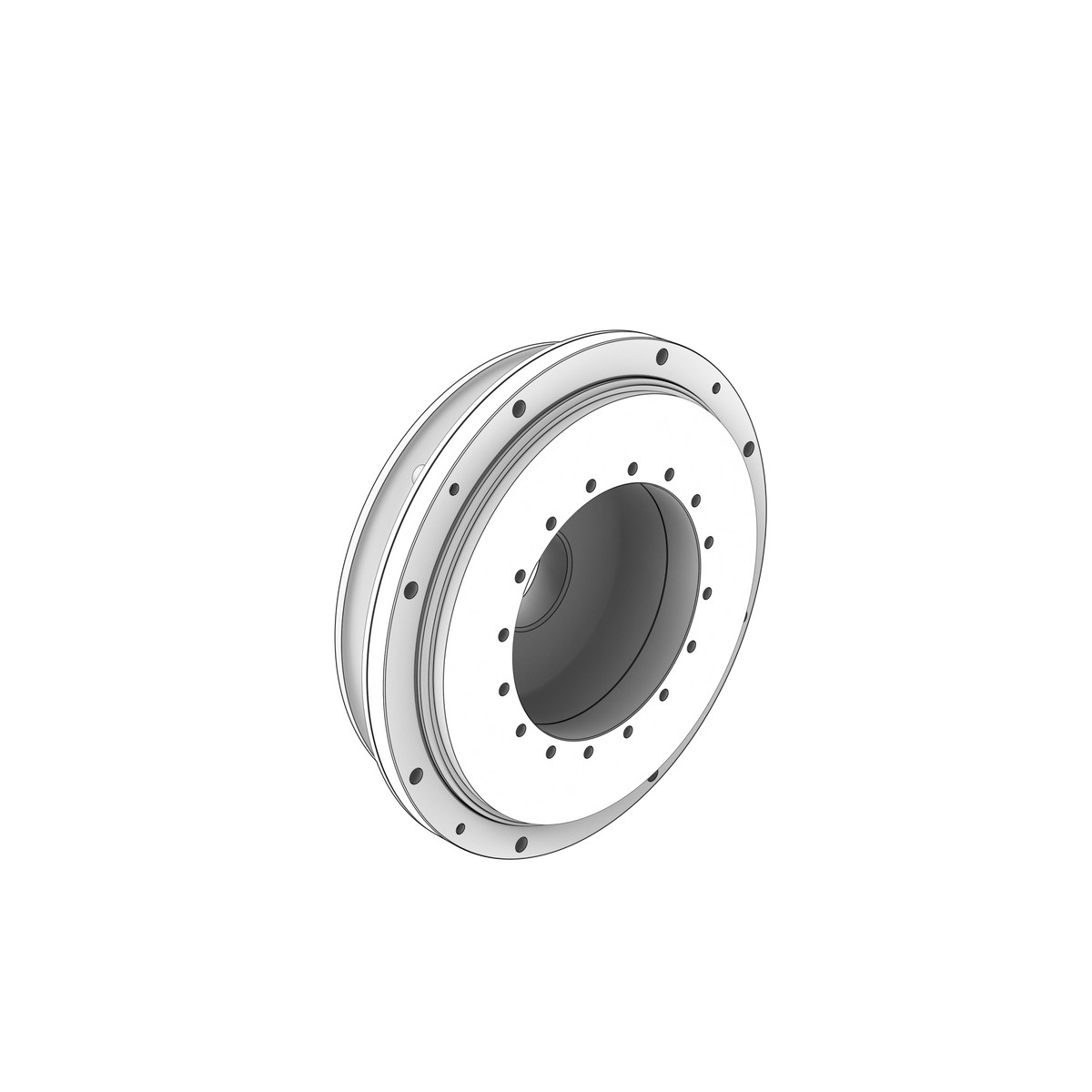

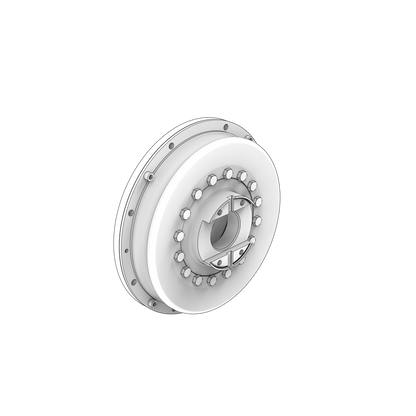

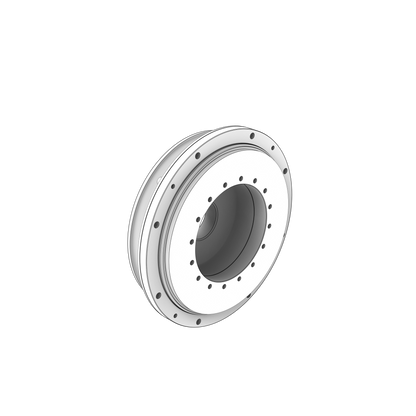

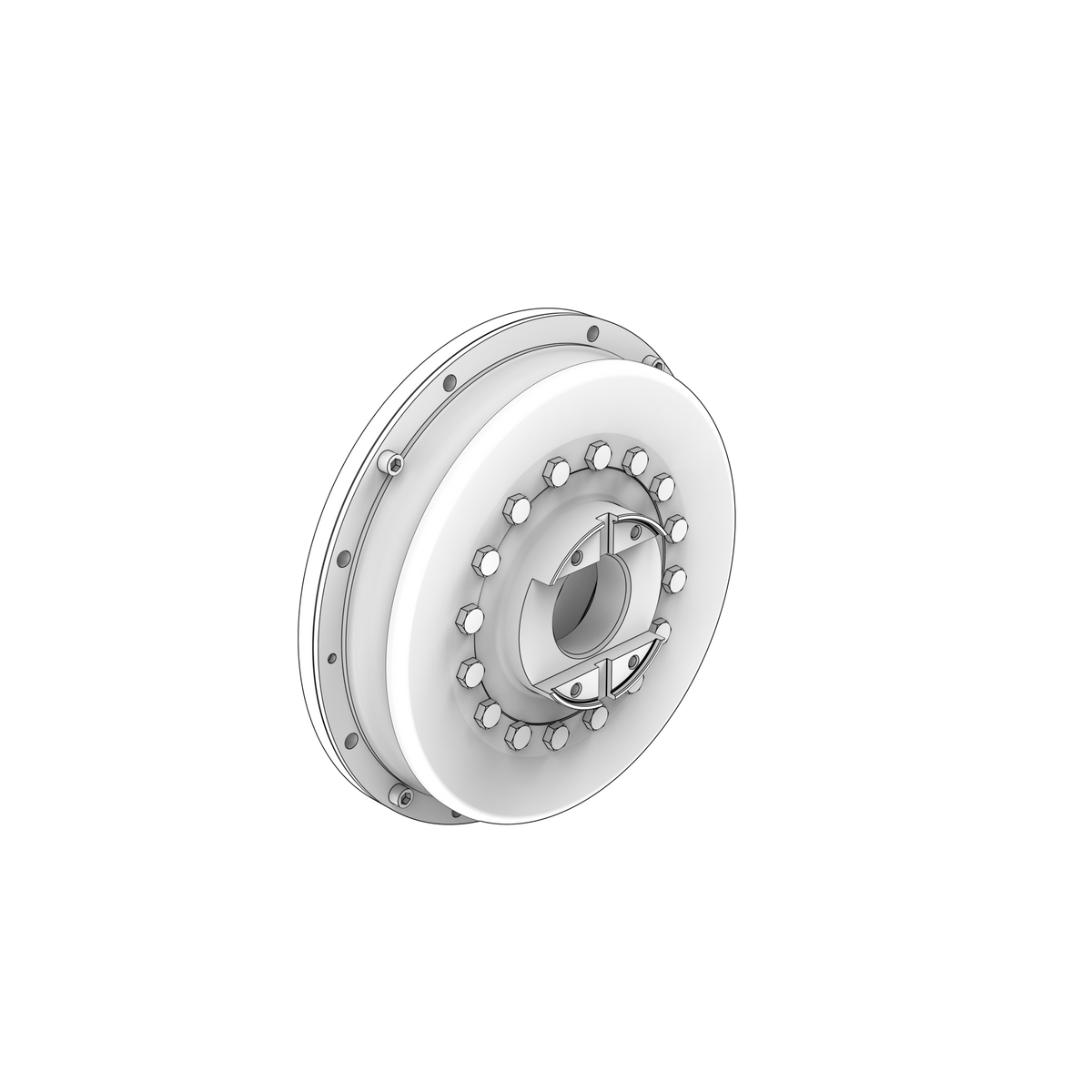

22183980 Flexible Coupling | Genuine Volvo Penta Part

🔧 Product Description

Torsionally flexible shaft coupling used in the Volvo Penta IPS3-A propulsion installation. It transfers engine torque into the IPS input shaft while damping driveline shock, vibration and minor alignment movement.

🚤 Compatibility

Typically suits:

• Volvo Penta D13C2-B MP
• Volvo Penta D13C2-A MP
• Volvo Penta D13C4-A MP
• Volvo Penta D13B-G MP
• Volvo Penta D13B-L MP
• Volvo Penta D13B-K MP
• Volvo Penta D13B-C MP
• Volvo Penta D13C6-A MP
• Volvo Penta D13C4-B MP
• Volvo Penta D13C5-B MP
• Volvo Penta D13C5-A MP
• Volvo Penta IPS3-A
• Volvo Penta D13C7-B MP
• Volvo Penta D13C8-B MP

• Engine Family: D, IPS
• Serial Range: SN2013579939-

⚙️ Key Features

• Torsionally resilient marine coupling element
• Matched bolt pattern and pilot diameter
• Reduces driveline shock and gear noise
• Designed for the IPS3-A torque and speed envelope
• Coupling generation, flywheel interface and serial must match

🔌 Function

Transfers torque from the engine to the IPS drive while damping torsional vibration and transient shock.

⚠️ Common Signs of Failure

• Cracked, separated or heat-damaged elastomer
• Clunking or vibration under load
• Fretting at bolt holes or pilot surfaces
• Misalignment or coupling runout
• Metallic debris or driveline noise from coupling deterioration

🛠️ Service Notes

• Check and set the alignment of the engine and drive before and after fitting a flexible coupling — it absorbs vibration and a small amount of misalignment, it does not correct a driveline that is out of line
• Handle the rubber elements carefully and keep them clear of oil, fuel and solvents, which soften and swell rubber and shorten its life dramatically
• Fit the coupling as a complete unit, use new locking hardware wherever the workshop manual for your engine specifies it, and tighten the fasteners to the figures in that manual
• Turn the driveline over by hand after assembly and check that it runs true, with no binding and no excessive free play
• Inspect the coupling whenever the drive is separated for any other reason; the rubber is the part that ages, and planned replacement is far cheaper than a failure at sea

🔄 Supersession & Cross Reference

OEM Supersession Chain

• 22183980 → Supersedes 22220710 → Supersedes 21196579

OEM / Related Numbers

• 22220710 earlier number superseded by this part
• 21196579 earlier number superseded by this part
• 21446040 - related extension kit
• 3889354 - propeller/input shaft reference
• 21493370 - associated wiring harnesses
• 22023242 - associated wiring harnesses
• 22023244 - associated wiring harnesses
• 3594042 - power-supply harness
• 21356943 - oil-cooler hoses
• 3889341 - oil-cooler hoses
• 21227466 - exhaust hose
• 21609813 - hose clamp
• 959259 - screw
• 18634 - washer
• 3588539 - cap

📦 Condition

• Genuine Volvo Penta part
• Brand new
• Supplied in original or equivalent packaging
