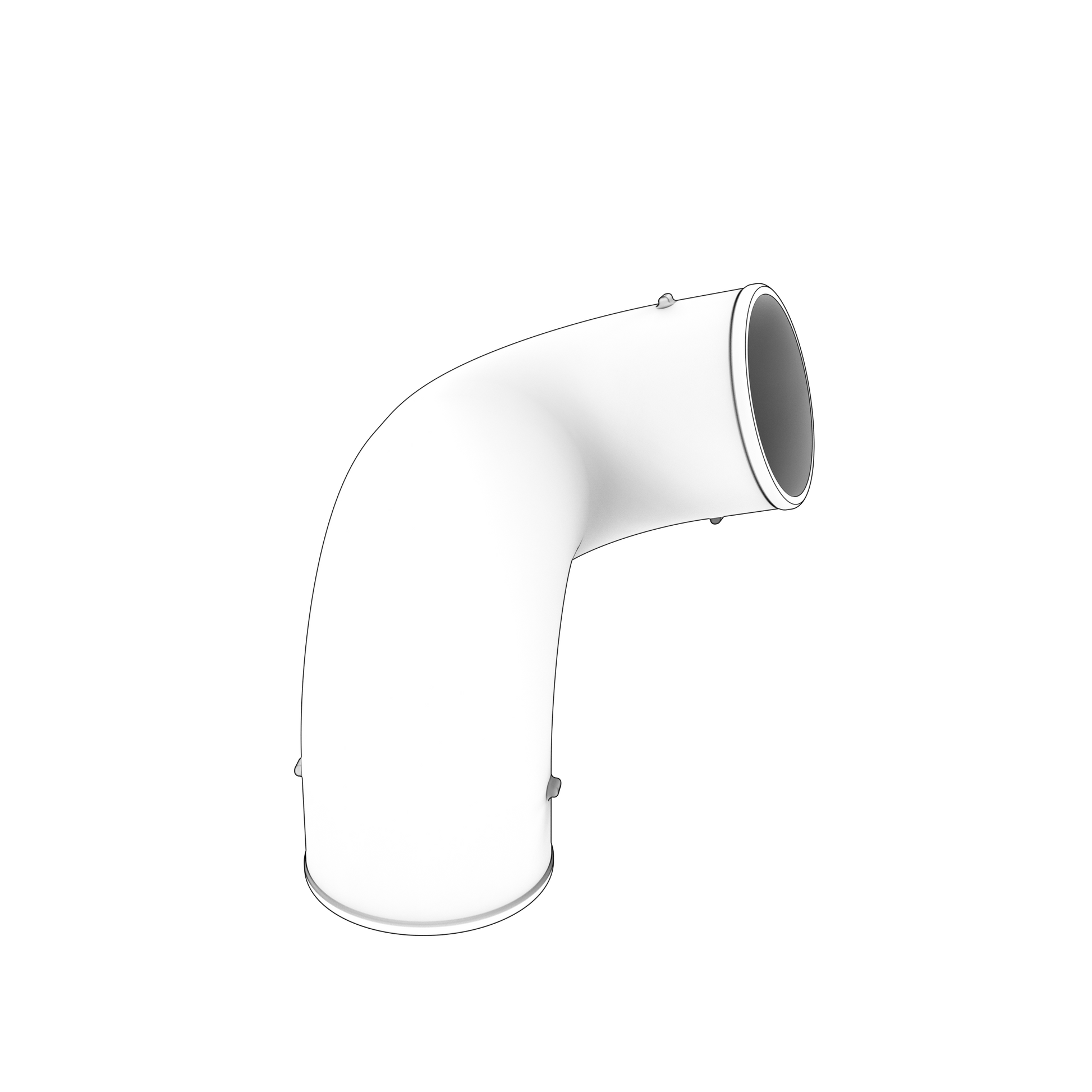

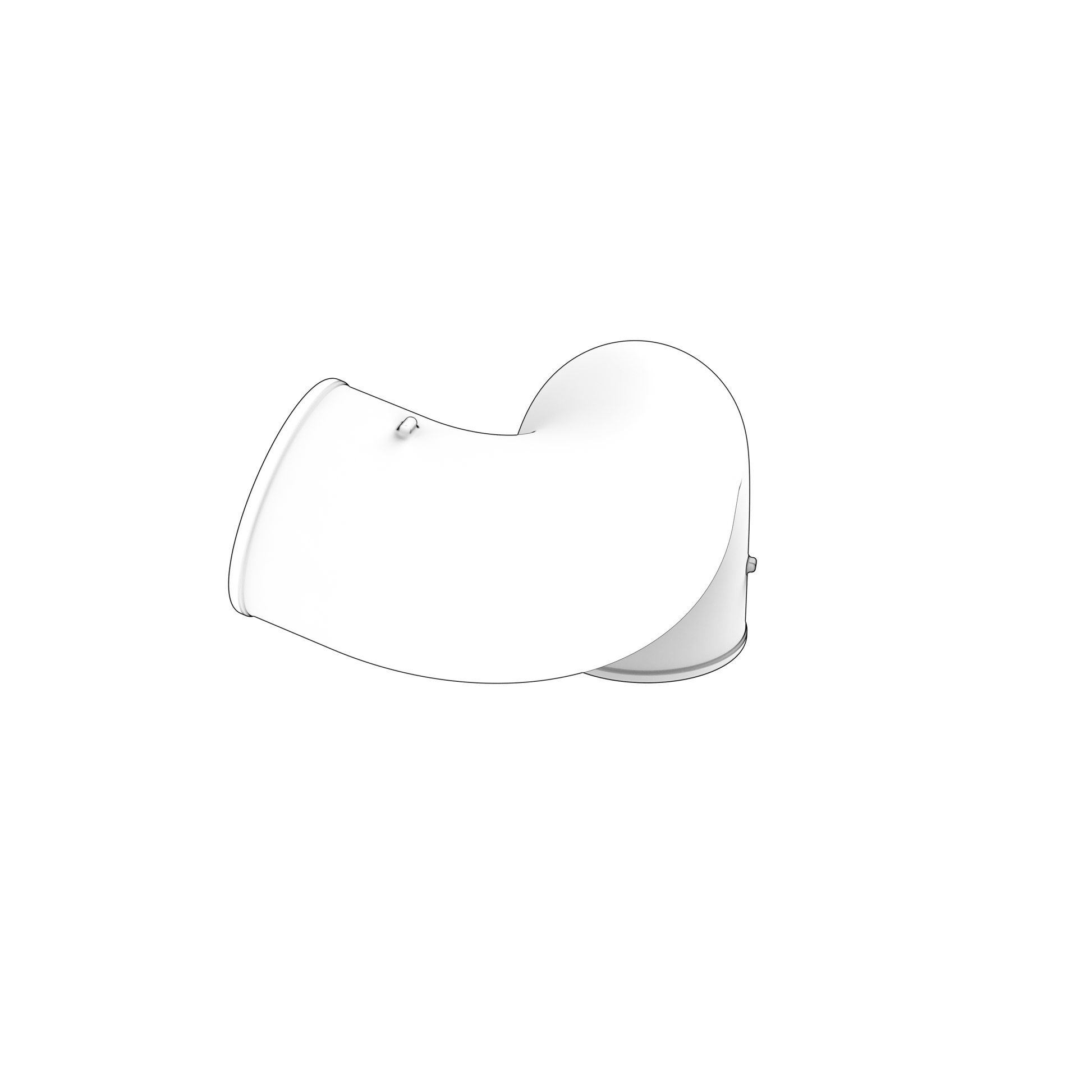

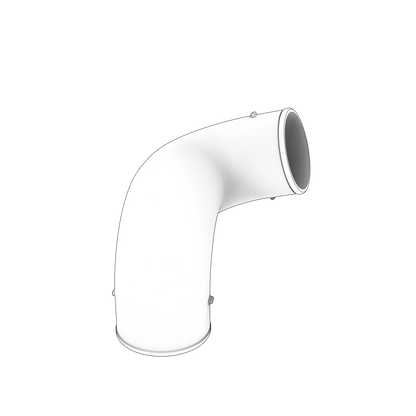

22185615 Pipe | Genuine Volvo Penta Part

🔧 Product Description

Factory-formed pipe in the TAD1640-TAD1642GE-B radiator and charge-air-cooler package. It routes coolant or charge-air-system fluid between the engine and external cooling module while maintaining fan and frame clearance.

🚤 Compatibility

Typically suits:

• Volvo Penta TAD1650VE-B/51VE
• Volvo Penta TAD1643VE-B
• Volvo Penta TAD1640-42GE-B
• Volvo Penta TAD1640GE
• Volvo Penta TAD1640VE-B
• Volvo Penta TAD1641VE-B
• Volvo Penta TAD1642VE-B
• Volvo Penta TAD1641GE
• Volvo Penta TAD1642GE
• Volvo Penta TAD1641VE
• Volvo Penta TAD1642VE
• Volvo Penta TAD1643VE
• Volvo Penta TAD1650GE
• Volvo Penta TAD1651GE
• Volvo Penta TAD1650VE
• Volvo Penta TAD1660-62VE
• Volvo Penta TAD1662VE EU5
• Volvo Penta TAD1670-72VE
• Volvo Penta TAD1640-42VE-C

• Engine Family: TAD

⚙️ Key Features

• Correct bore and wall thickness for the assigned medium
• Designed for original seals, clamps, brackets and mating fittings
• Exact schematic position and configuration must match

🔌 Function

Carries the assigned cooling medium between the engine and radiator/charge-air-cooler package.

⚠️ Common Signs of Failure

• External leakage, staining or pressure loss
• Cracking at bends, welds, flares or brazed joints
• Kinking, crushing or internal restriction
• Fretting or misalignment at supported connections

🛠️ Service Notes

• Offer the pipe up and check it reaches both connections freely before you tighten anything — a rigid pipe pulled into place is a pipe left under permanent strain, and strained pipes crack at the fittings in service
• Renew the sealing washers, O-rings or union seals that go with the pipe rather than reusing the old ones, and make sure the seats, faces and threads are clean
• Keep the ends capped while you work and blow or flush a pipe through before fitting; anything left inside goes straight into the oil, fuel or coolant system
• Tighten unions and banjo bolts evenly to the figures in the workshop manual for your engine — overtightening distorts the seat and starts the leak you were trying to cure
• Refit every clip and support bracket in its original place and keep the pipe clear of hot or moving parts so it cannot chafe or be shaken to failure

🔄 Supersession & Cross Reference

OEM / Related Numbers

• 23122125 - radiator / charge-air-cooler assembly
• 23275232 - expansion tank
• 3838792 - charge-air hose
• 3829537 - fan-hub references
• 21418129 - fan-hub references
• 22198506 - associated cooling hose

📦 Condition

• Genuine Volvo Penta part
• Brand new
• Supplied in original or equivalent packaging
